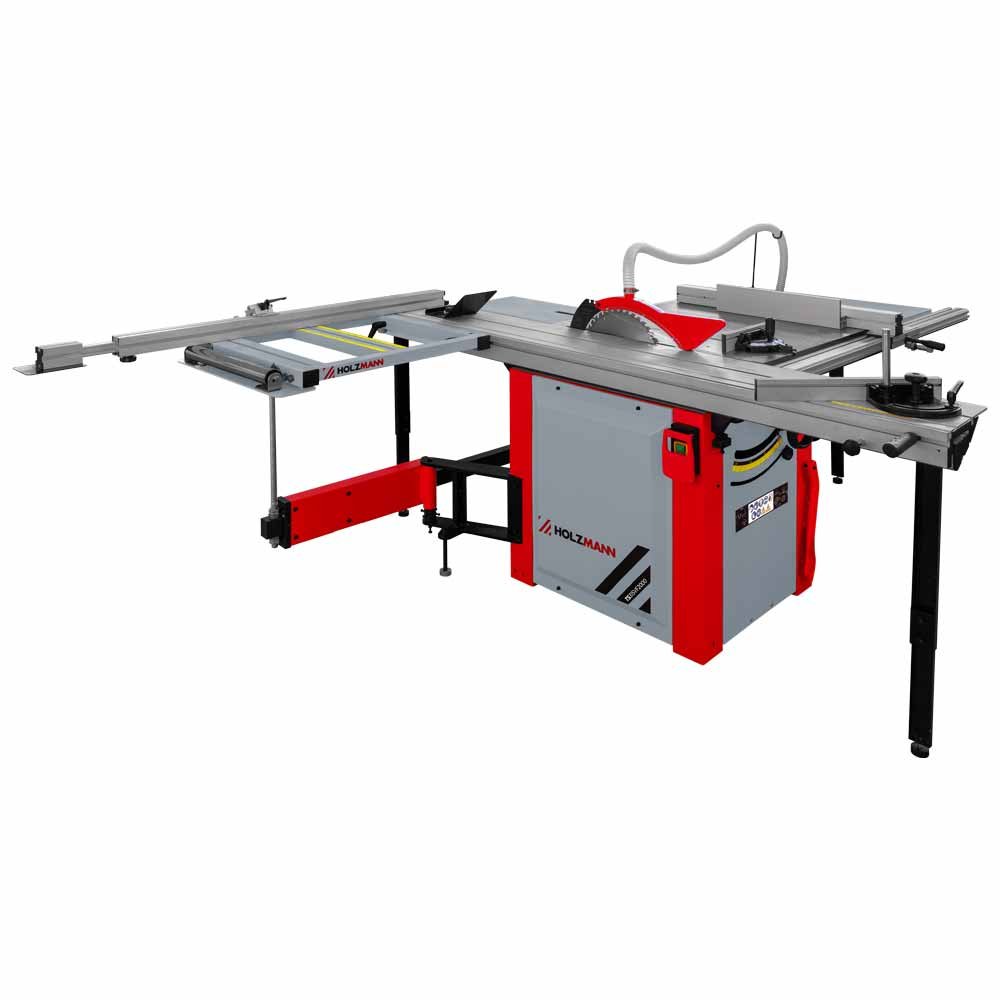

HOLZMANN TS315VF2000 Panel Saw
TS315VF2000
Sliding-table travel is the deciding figure here: the TS315VF2000 carries a 2000 x 270 mm aluminium carriage that trims to 1900 mm, making it the short-carriage member of the pair and the one that fits a tighter shop. A 4000 W S6 motor spins the 315 mm blade at 4000 min-1, with a 90 mm scorer at 5800 min-1.
The delivered price of the TS315VF2000 is moved by the voltage variant (230 V or 400 V), the main and scoring blade package, the extraction system and ducting for the 100 mm port, transport and mechanical offloading within Georgia, siting and levelling, and whether commissioning and operator training are included.
ფასის მოთხოვნაWhere the HOLZMANN TS315VF2000 sits
The HOLZMANN TS315VF2000 is the shorter-slider version of HOLZMANN’s 315 mm panel saw, built for a furniture or joinery shop that cuts sheet goods regularly but not at full sheet length every day. TS315VF2000 has a 2000 x 270 mm aluminium sliding table giving 1900 mm of trimming length, so a long door blank or a half sheet crosscuts in a single pass while the machine occupies far less floor than the 3200 mm model.
Blade, scoring unit and depth of cut
The TS315VF2000 runs a 315 mm main blade at 4000 rpm with a 90 mm scoring blade at 5800 rpm, cutting 100 mm at 90 degrees and 80 mm at 45 degrees. Blade height and swivel from 0 to 45 degrees are both adjustable, and the scoring unit is what makes the TS315VF2000 suitable for melamine-faced chipboard rather than solid timber alone. Motor rating is 4000 W S6 / 3000 W S1.
Tables and rip capacity
The TS315VF2000 uses a grey cast iron main table of 800 x 820 mm at 870 mm working height, with extensions of 500 x 310 mm and 800 x 440 mm on the right hand side and at the rear, and a 540 x 760 mm outrigger table with a support roller. Rip width at the parallel fence on the TS315VF2000 is 1250 mm. The extractable mitre at the rip fence carries a workpiece end stop, which is what makes repeat crosscut lengths quick to set.
TS315VF2000 or TS315VF3200
The decision between the two is trimming length and mass, not cutting depth, since both cut 100 mm at 90 degrees. The TS315VF2000 gives 1900 mm of trim at 263 kg net; the TS315VF3200 gives 3200 mm at 350 kg net, a higher 5100 W S6 rating and a faster 8500 rpm scoring unit. Shops that break down full-length sheets should be quoted the TS315VF3200, while shops working mainly from pre-cut panels usually find the TS315VF2000 the better use of floor space.
Supply and extraction
The TS315VF2000 is available as a 230 V or a 400 V variant and connects to extraction through a 100 mm port. Three-phase is the recommended supply for a machine at this rating wherever the workshop has it.
ძირითადი მახასიათებლები
- 2000 x 270 mm aluminium sliding table, 1900 mm maximum trimming length
- 90 mm scoring blade at 5800 min-1 running ahead of the main blade
- Main blade of 315 mm turning at 4000 min-1, tilting through 0°-45° for bevel work
- 4000 W S6 / 3000 W S1 motor, ordered as a 230 V or a 400 V machine
- Cuts to 100 mm upright, dropping to 80 mm with the blade tilted to 45°
- 1250 mm maximum cutting width at the parallel fence, with an extractable mitre and workpiece end stop
- 540 x 760 mm outrigger table over an 800 x 820 mm cast iron table at 870 mm working height
- 263 kg net, 295.50 kg gross, 500 x 310 mm and 800 x 440 mm table extensions
ტექნიკური მახასიათებლები
- Motor power S6
- 4000 W
- Motor power S1
- 3000 W
- Voltage
- 230 V (TS315VF2000_230V) / 400 V (TS315VF2000_400V)
- Table size
- 800 x 820 mm
- Table height
- 870 mm
- Table extension
- 500 x 310 mm / 800 x 440 mm
- Sliding table
- 2000 x 270 mm
- Outrigger table
- 540 x 760 mm
- Dust collector port
- 100 mm
- Max. cutting height at 90°
- 100 mm
- Max. cutting height at 45°
- 80 mm
- Max. trimming length
- 1900 mm
- Max. cutting width at parallel fence
- 1250 mm
- Saw blade diameter
- 315 mm
- Saw blade speed
- 4000 min-1
- Scoring saw blade diameter
- 90 mm
- Scoring unit speed
- 5800 min-1
- Saw blade swivel
- 0°-45°
- Net weight
- 263 kg
- Gross weight
- 295.50 kg
- Packaging width
- 741 mm
- Packaging length
- 910 mm
- Packaging height
- 1047 mm
- EAN code
- 9120039903934 (230 V variant)
უპირატესობები
- Full 100 mm cutting height and a scoring unit in a machine that fits a normal joinery bay
- 1250 mm rip capacity at the fence, only 10 mm less than the much larger TS315VF3200
- 263 kg net with a 2000 mm slider - far easier to site than the 350 kg, 3200 mm model
გასათვალისწინებელი
- 1900 mm of trimming length will not crosscut a full-length sheet in one pass
- Scoring unit runs at 5800 rpm against 8500 rpm on the TS315VF3200, and the scoring blade is 90 mm rather than 100 mm
- A 263 kg machine with a 2000 mm slider still needs mechanical offloading, a planned bay and a real chip collector
