TS315VF3200 — HOLZMANN TS315VF3200 Panel Saw 1 / 3

HOLZMANN

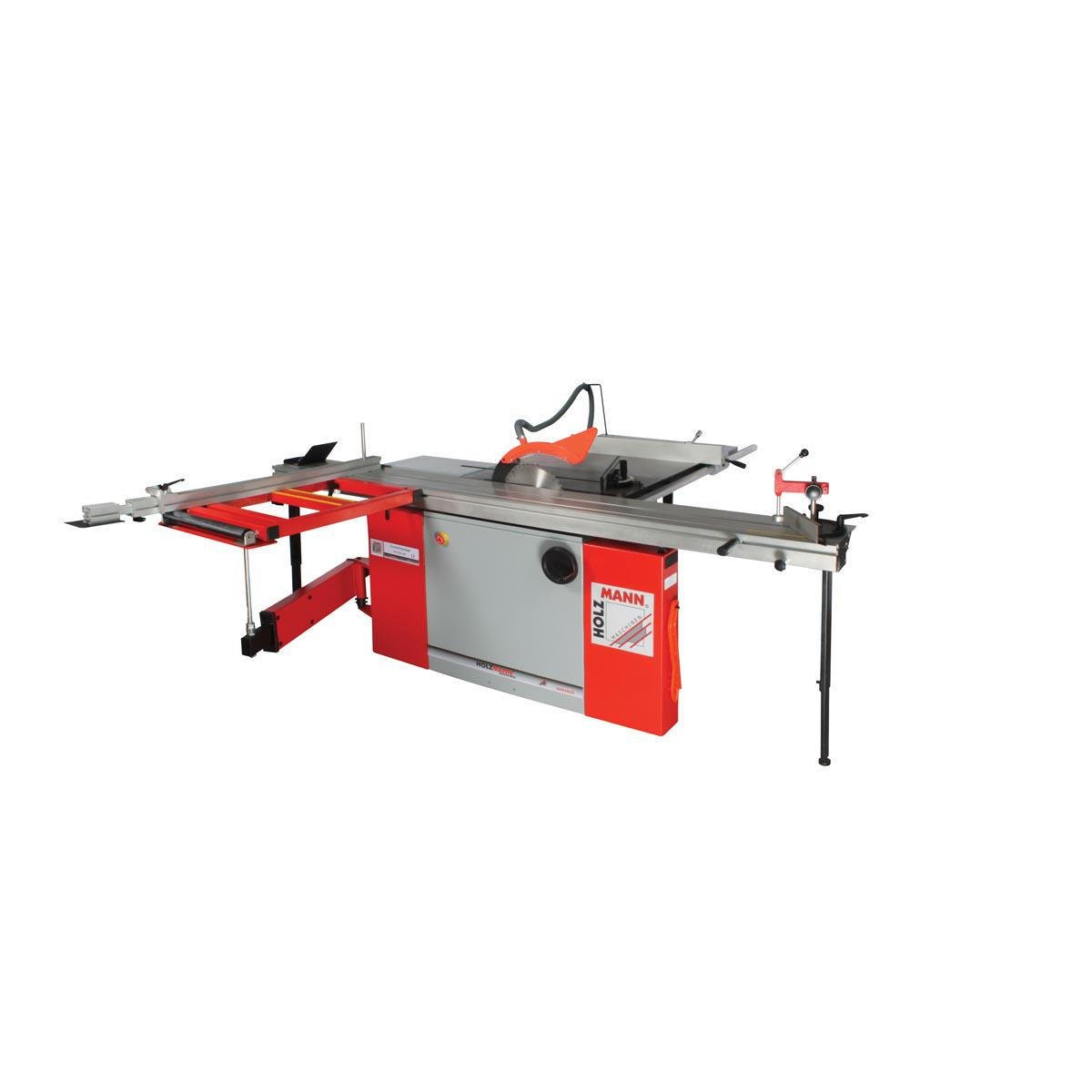

HOLZMANN TS315VF3200 Panel Saw

TS315VF3200

A 3200 x 270 mm aluminium sliding carriage is what separates the TS315VF3200 from its short-carriage sibling: it trims up to 3200 mm in one uninterrupted pass. The 315 mm blade turns at 4500 min-1 ahead of a 100 mm scorer at 8500 min-1, driven by a 5100 W S6 motor in a 230 V or 400 V version.

ფასი მოთხოვნით

The delivered price of the TS315VF3200 is moved by the voltage variant (230 V or 400 V), the main and scoring blade package specified, the chip extraction system and ducting sized for the 100 mm port, transport and mechanical offloading of a 384 kg gross machine within Georgia, siting and levelling, and whether commissioning and operator training are included.

ფასის მოთხოვნა

The HOLZMANN TS315VF3200 as a sheet-cutting machine

The HOLZMANN TS315VF3200 is the machine to specify when a furniture shop breaks down full sheets every day. TS315VF3200 carries a 3200 x 270 mm aluminium sliding table with 3200 mm of maximum trimming length, which crosscuts a full-length sheet in one pass instead of turning the panel and cutting twice. The main blade is 315 mm turning at 4500 rpm, cutting 100 mm at 90 degrees and 75 mm at 45 degrees, driven by a 5100 W S6 / 3800 W S1 motor.

The scoring unit and edge quality

Chipping on melamine-faced and veneered board is exactly what the scoring unit on the TS315VF3200 exists to prevent. The saw runs a 100 mm scoring blade at 8500 rpm ahead of the main blade, cutting the underside of the panel before the main blade passes through. HOLZMANN supplies a two-piece scoring blade with the TS315VF3200, so the scoring kerf is adjusted with shims rather than by replacing the blade when it drifts out of line with the main blade.

Tables, fences and cutting width

Around its 800 x 820 mm cast iron main table, the TS315VF3200 adds extensions of 500 x 310 mm and 800 x 440 mm supported on a leg, plus a 760 x 540 mm outrigger table with a support roller that carries the weight of a panel during the cut. Rip capacity at the parallel fence on the TS315VF3200 is 1260 mm, the widest in this HOLZMANN group, and the rip fence is bar-guided with a quick clamp. Working table height is 850 mm.

Power supply, extraction and siting

The TS315VF3200 is offered as a 230 V and a 400 V variant, and at this motor rating the 400 V version is the sensible specification wherever three-phase is available in the building. Extraction is a single 100 mm port and should feed a proper chip collector rather than a workshop vacuum. At 350 kg net, with a 3200 mm slider and a 760 x 540 mm outrigger, the TS315VF3200 needs a planned bay with clear infeed and outfeed room, levelling on a solid floor, and mechanical handling to position it.

ძირითადი მახასიათებლები

  • 3200 x 270 mm aluminium sliding table delivering 3200 mm of trimming length in a single pass
  • 100 mm scoring blade at 8500 min-1 for chip-free cuts in faced and laminated boards
  • 315 mm main blade at 4500 min-1, swivelling 0°-45°
  • 5100 W S6 / 3800 W S1 motor, ordered as a 230 V or a 400 V machine
  • 100 mm cutting height at 90° and 75 mm at 45°
  • 1260 mm maximum cutting width at the bar-guided parallel fence
  • 760 x 540 mm outrigger table and an 800 x 820 mm cast iron main table at 850 mm working height
  • 350 kg net, 384 kg gross, 100 mm extraction port

ტექნიკური მახასიათებლები

Motor power S6
5100 W
Motor power S1
3800 W
Voltage
230 V (TS315VF3200_230V) / 400 V (TS315VF3200_400V)
Table size
800 x 820 mm
Table extension
500 x 310 mm / 800 x 440 mm
Table height
850 mm
Dust collector port
100 mm
Sliding table
3200 x 270 mm
Outrigger table
760 x 540 mm
Max. cutting height at 90°
100 mm
Max. cutting height at 45°
75 mm
Max. trimming length
3200 mm
Max. cutting width at parallel fence
1260 mm
Saw blade diameter
315 mm
Scoring saw blade diameter
100 mm
Saw blade speed
4500 min-1
Scoring unit speed
8500 min-1
Saw blade swivel
0°-45°
Net weight
350 kg
Gross weight
384 kg
Packaging height
1040 mm
Packaging width
765 mm
Packaging length
1330 mm
EAN code
9120039904535 (230 V variant)

უპირატესობები

  • 3200 mm trimming length crosscuts a full-length sheet in one pass
  • Two-piece 100 mm scoring blade at 8500 rpm is included, giving chip-free edges on melamine
  • 1260 mm rip capacity at the bar-guided fence is the widest in this HOLZMANN panel saw group

გასათვალისწინებელი

  • 350 kg net plus a 3200 mm slider and a 760 x 540 mm outrigger demand a dedicated, planned floor bay
  • The 100 mm extraction port must feed a real chip collector - a workshop vacuum will not keep this machine clear
  • HOLZMANN currently lists this model as unavailable on its own webshop, so availability must be confirmed before quoting

ხშირად დასმული კითხვები

How much does the HOLZMANN TS315VF3200 cost?
The HOLZMANN TS315VF3200 is a capital machine supplied on quotation rather than at a published price. The price of a TS315VF3200 is moved by the voltage variant chosen (230 V or 400 V), the saw blade and scoring blade package specified, the chip extraction system sized for the 100 mm port, transport and offloading of a 384 kg gross machine to your site in Georgia, positioning and levelling, and whether commissioning and operator training are included. Send your panel sizes and power supply details and the quotation will price the TS315VF3200 as a working installation.
What size panel can the TS315VF3200 cut?
The HOLZMANN TS315VF3200 has a 3200 x 270 mm sliding table with 3200 mm of maximum trimming length, so a full-length sheet crosscuts in a single pass. Rip capacity at the parallel fence on the TS315VF3200 is 1260 mm, and maximum cutting height is 100 mm at 90° and 75 mm at 45°.
Should I order the TS315VF3200 in 230 V or 400 V?
The HOLZMANN TS315VF3200 is available in both a 230 V variant and a 400 V variant. With a 5100 W S6 / 3800 W S1 motor, the 400 V three-phase version of the TS315VF3200 is the sensible choice wherever three-phase is available, because it starts and holds speed better under load in continuous sheet cutting. The 230 V variant exists for premises with no three-phase supply, which is common in Georgian rented workshop units - tell us which supply you have and the correct EAN is quoted.
Does the TS315VF3200 have a scoring unit?
Yes. The HOLZMANN TS315VF3200 has a scoring unit running a 100 mm blade at 8500 rpm ahead of the 315 mm main blade, and HOLZMANN supplies a two-piece scoring blade with the machine. That is what allows the TS315VF3200 to cut melamine-faced chipboard without chipping the underside edge.
What is the lead time and availability of the TS315VF3200?
HOLZMANN currently lists the TS315VF3200 as unavailable on its own webshop, so availability must be confirmed before the order is placed. As a dealer we quote and then order, so ask for a current availability and lead time check on the TS315VF3200 when you send your enquiry - both are stated on the offer rather than promised in advance.
What does installing and commissioning a TS315VF3200 involve?
Installing the HOLZMANN TS315VF3200 needs a planned bay with clear infeed and outfeed room for the 3200 mm slider and the 760 x 540 mm outrigger, mechanical handling to offload and position a 384 kg gross machine, a solid level floor, a three-phase or single-phase connection depending on the variant, and ducting from the 100 mm port to a chip collector. Commissioning the TS315VF3200 then means levelling the machine, aligning the slider and squaring the fences before the first production cut.
What tooling and consumables should I budget for with the TS315VF3200?
Budget separately for 315 mm main saw blades in the tooth counts your materials need, replacement 100 mm two-piece scoring blades, blade sharpening, and an extraction system with ducting and filters sized for the 100 mm port on the TS315VF3200. Blades and extraction filters are the recurring cost of running a TS315VF3200.
Is operator training needed for the TS315VF3200?
Yes, operator training is normally advisable on the HOLZMANN TS315VF3200. Setting the scoring unit in line with the 315 mm main blade, squaring the crosscut fence, working safely with a 3200 mm slider and handling full sheets on the outrigger are all learned skills, and we can include a hand-over session in the quotation.
