FKS305V16TOP — HOLZMANN FKS305V16TOP Panel Saw – Compact 1.6 m Carriage with Scorer 1 / 4

HOLZMANN

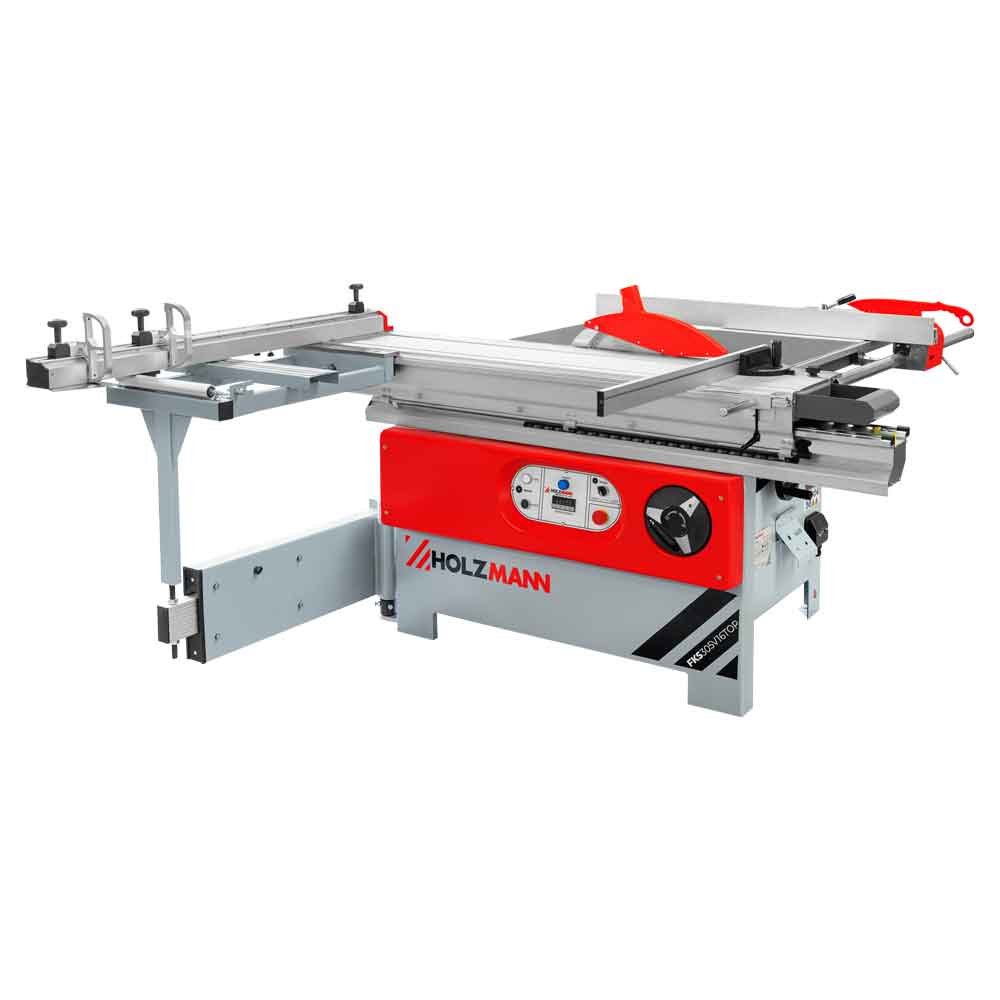

HOLZMANN FKS305V16TOP Panel Saw – Compact 1.6 m Carriage with Scorer

FKS305V16TOP

At 3100 x 1800 x 890 mm and 490 kg net, the FKS305V16TOP is the format saw that fits a workshop already full. Its 1600 x 370 mm carriage and 1200-2280 mm cross-cut fence size doors and cabinet parts rather than full sheets, while the 315 mm blade, 5500 W motor and 750 W scorer stay unchanged.

ფასი მოთხოვნით

The FKS305V16TOP price turns on the shorter 1600 mm carriage and 900 x 500 mm outrigger that make it the cheapest way into a scored panel cut, on the 400 V installation, on freight and customs for 570 kg gross into Georgia, on blades and scoring blades that are not in the delivery, and on whether extraction and commissioning are quoted with it.

ფასის მოთხოვნა

Compact format saw with a 1.6 m carriage

The HOLZMANN FKS305V16TOP is a sliding-table panel saw with a 1600 x 370 mm aluminium carriage, built for workshops that need scored, square panel cuts inside a 3100 x 1800 mm footprint. The 5500 W main motor drives blades of 250 to 315 mm on a 30 mm bore at 4000 or 6000 rpm, and a dedicated 750 W scoring motor turns a Ø120 x 20 mm scoring blade at 8000 rpm so melamine and veneer faces are cut clean on the underside before the main blade passes through.

Who the FKS305V16TOP is for

The FKS305V16TOP is for the joinery, kitchen fitter or door shop that cuts panel regularly but crosscuts parts more often than it sizes full-length sheets. A 900 x 500 mm outrigger table and a cross-cut fence adjustable from 1200 to 2280 mm handle cabinet sides, doors and shelves, while maximum rip width at the parallel fence is still a full 1250 mm. The cast iron work table of the FKS305V16TOP measures 935 x 610 mm at 890 mm working height, with a 900 x 500 mm table widening and a 600 x 520 mm table extension in solid steel construction.

The FKS305V16TOP against the 3.2 m models

The FKS305V16TOP is the smallest and lightest of the HOLZMANN FKS format saws at 490 kg net, against 645 kg for the FKS305V32TOP and 930 kg for the FKS400V32TOP. The trade is stroke: the 1600 mm carriage of the FKS305V16TOP is half the length of the 3.2 m machines, so a full-length sheet cannot be trimmed along its whole edge in a single pass. Everything else is shared – the scorer with its own motor, the 0-45 degree blade tilt, the 5500 W motor and the 1250 mm rip capacity.

Controls and extraction

The FKS305V16TOP is adjusted entirely by hand: main blade height and scorer height and side position are set manually, and blade tilt is read from an angle indicator rather than a display. Extraction connects to a Ø100 mm port with a Ø50 mm secondary connection. The FKS305V16TOP runs on 400 V / 50 Hz three-phase power, declares 90 dB(A) sound power and 88.2 dB(A) sound pressure, and ships at 570 kg gross.

ძირითადი მახასიათებლები

  • 1600 x 370 mm carriage inside a 3100 x 1800 x 890 mm plan - about half the depth of the 3.2 m FKS305V32TOP
  • 490 kg net / 570 kg gross, the lightest FKS format saw in this range
  • 900 x 500 mm outrigger with a 1200-2280 mm cross-cut fence, sized for doors, shelves and cabinet parts
  • Scoring blade quoted simply as Ø120 x 20 mm, driven by its own 750 W motor at 8000 min-1 with manual height and side setting
  • 250-315 mm main blades on a 30 mm bore, 5500 W S1 motor, speeds of 4000 and 6000 min-1
  • Cast iron table 935 x 610 mm with 900 x 500 mm widening and 600 x 520 mm extension
  • Extraction split across a Ø100 mm main port and a Ø50 mm secondary connection
  • 1250 mm rip at the parallel fence - identical to the far larger FKS305V32TOP

ტექნიკური მახასიათებლები

Motor power S1
5500 W
Voltage
400 V / 50 Hz
Table height
890 mm
Sliding table
1600 x 370 mm
Outrigger table
900 x 500 mm
Total dimensions
3100 x 1800 x 890 mm
Max. cutting width at parallel fence
1250 mm
Saw blade
250-315 mm (30 mm bore)
Saw blade speed
(I) 4000 / (II) 6000 min-1
Saw blade swivel
0-45°
Scoring saw blade
Ø120 x 20 mm
Scoring unit motor power
750 W
Scoring unit speed
8000 min-1
Dust collector port
Ø100 mm / (Ø50 mm)
Sound power level
90 dB(A)
Sound pressure level
88.2 dB(A)
Net weight
490 kg
Gross weight
570 kg
EAN code
9120058379697

უპირატესობები

  • Smallest footprint in the FKS range at 3100 x 1800 mm and 490 kg net, yet still a genuine sliding-table saw
  • Full 750 W independent scoring unit at 8000 rpm, not a reduced entry-level version
  • Keeps the 1250 mm rip capacity and 5500 W motor of the much larger FKS305V32TOP

გასათვალისწინებელი

  • The 1600 mm carriage and 1200-2280 mm cross-cut fence cannot size a full-length sheet in one pass
  • All settings on the FKS305V16TOP are manual - no electric blade or scorer height, no display
  • Three-phase 400V only, and no dust collector is supplied for the Ø100 mm and Ø50 mm ports

ხშირად დასმული კითხვები

Can the HOLZMANN FKS305V16TOP be connected to a 230V single-phase socket?
No. The HOLZMANN FKS305V16TOP is a 400 V / 50 Hz three-phase machine, with a 5500 W main motor plus a 750 W scoring motor, and no 230V variant exists. If a Georgian workshop has only single-phase power, the HOLZMANN TS315VF2600 panel saw is offered in a 230V version and is the alternative to consider.
How large a panel can the FKS305V16TOP cut?
The FKS305V16TOP has a 1600 x 370 mm sliding table and a cross-cut fence adjustable between 1200 and 2280 mm, so it crosscuts cabinet parts, doors and shelves comfortably. Rip width at the parallel fence on the FKS305V16TOP is 1250 mm, the same as on the larger FKS305V32TOP. For trimming the full length of a 2.8 m sheet in one pass, the 3.2 m carriage of the FKS305V32TOP is needed instead.
What does the FKS305V16TOP not do?
The FKS305V16TOP does not have any electric adjustment: blade height, scorer height and scorer side position are set by hand, and blade tilt is read off an angle indicator. The FKS305V16TOP also does not accept blades above 315 mm, so it cannot reach the 130 mm cutting height of the FKS400V32TOP, and it does not include a dust collector.
Does the FKS305V16TOP have a real scoring unit?
Yes. The FKS305V16TOP carries a full scoring unit with its own 750 W motor turning a Ø120 x 20 mm blade at 8000 rpm, with manual height and side adjustment. That independent motor is what lets the FKS305V16TOP produce chip-free edges on melamine-faced chipboard and veneered panel, the same standard as the larger FKS models.
How much floor space does the FKS305V16TOP need?
The FKS305V16TOP measures 3100 x 1800 x 890 mm in total, which is roughly half the depth of the 3.2 m FKS models and the main reason to choose it. At 490 kg net the FKS305V16TOP still needs a level, solid floor, but it can be installed in a workshop that could not host a full format saw.
What extraction does the FKS305V16TOP require?
The FKS305V16TOP has a Ø100 mm main extraction port with a Ø50 mm secondary connection, and a dust collector must be ordered separately. Both connections should be served so that scoring dust at the table and chip inside the cabinet of the FKS305V16TOP are removed while cutting.
Why would the FKS305V16TOP be quoted lower than the FKS305V32TOP?
The HOLZMANN FKS305V16TOP is quoted below the FKS305V32TOP because the carriage is 1600 mm rather than 3200 mm, the outrigger is 900 x 500 mm rather than 1220 x 530 mm, the cross-cut fence runs 1200-2280 mm rather than 1950-3300 mm, and shipping weight falls from 810 kg to 570 kg gross - all while the 315 mm blade, 5500 W motor, 750 W scorer and 1250 mm rip capacity stay the same. Beyond the machine, the FKS305V16TOP quotation moves on blades, extraction, freight and customs into Georgia, and any installation. Ask us to price both side by side.
How soon can the FKS305V16TOP be supplied?
The FKS305V16TOP is built to order and the current lead time is confirmed at quotation. Being the lightest FKS at 570 kg gross does not turn the FKS305V16TOP into a parcel shipment - it still travels as palletised freight and clears Georgian customs, and both steps sit inside the schedule we confirm in writing with the price.
Can the FKS305V16TOP be installed in a small workshop, and what does that take?
Yes - a compact plan is the point of the FKS305V16TOP. Installation needs a level floor rated for 490 kg, a 3100 x 1800 mm footprint with clearance for the 1.6 m carriage stroke, lifting gear to set the machine down, and a 400 V / 50 Hz three-phase circuit for the 5500 W main motor and 750 W scorer. The carriage of the FKS305V16TOP is then levelled to the cast iron table and the Ø100 mm and Ø50 mm extraction connections are ducted. We can quote installation with the machine.
What has to be bought alongside the FKS305V16TOP?
Alongside the FKS305V16TOP, budget for 250-315 mm main blades on a 30 mm bore, Ø120 x 20 mm scoring blades, and a dust collector with ducting for the Ø100 mm main port and the Ø50 mm secondary connection - none of which HOLZMANN lists in the delivery. Hearing protection is also required, as the FKS305V16TOP declares 90 dB(A) sound power and 88.2 dB(A) sound pressure. All of these can be quoted on one document with the machine.
