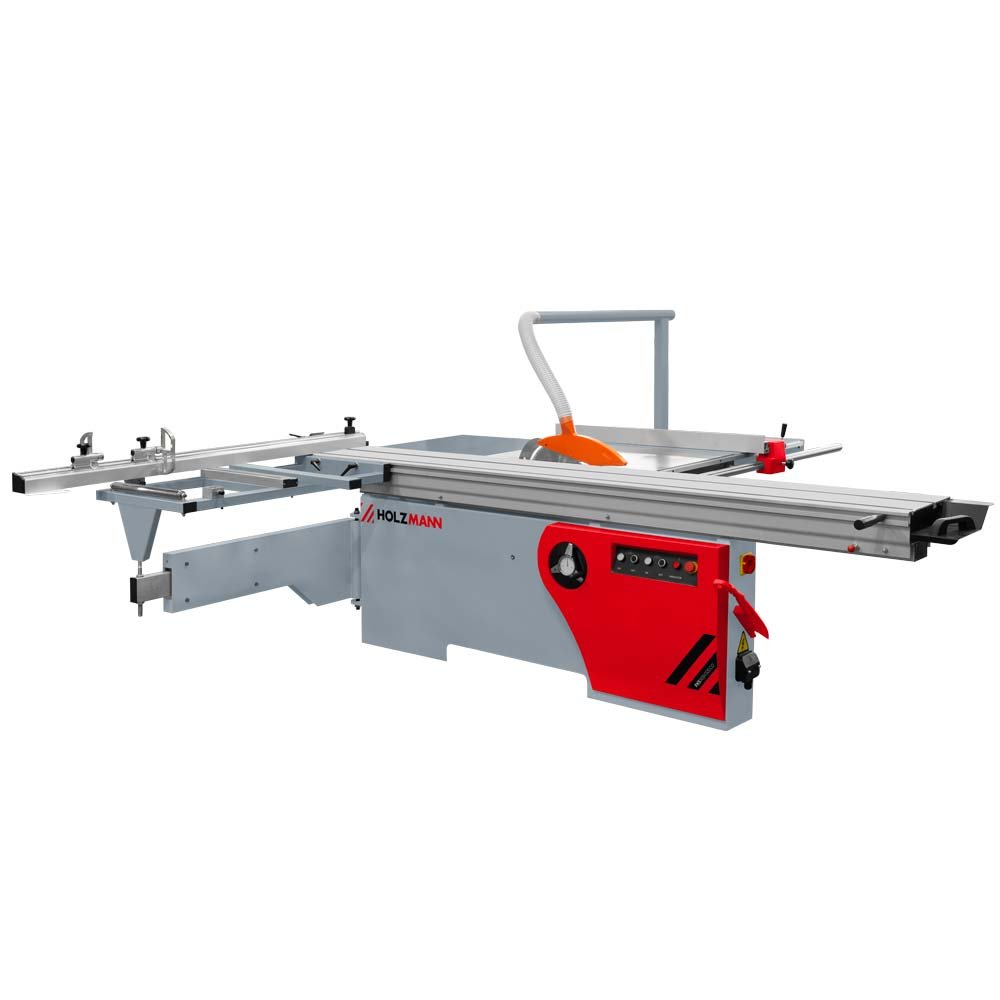

HOLZMANN FKS305V32ECO Panel Saw with 3200 mm Sliding Table

FKS305V32ECO — HOLZMANN FKS305V32ECO Panel Saw with 3200 mm Sliding Table 1 / 4

The HOLZMANN FKS305V32ECO is a 400 V three-phase panel saw with a 3200 x 375 mm aluminium sliding table, a 5.5 kW main motor and a separately powered 750 W scoring unit. The FKS305V32ECO rips up to 1250 mm at the parallel fence, weighs 560 kg net and is supplied on quotation.

სამუშაო სიგანე
1250 mm
ძრავის სიმძლავრე
5.5 kW
მაგიდის სიგრძე
3200 mm
ძაბვა
400V
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of an FKS305V32ECO is moved by the additional blade and tooling package specified, whether extraction equipment and ducting are quoted with the machine, freight and unloading of a 1085 kg gross machine into Georgia, and whether three-phase connection, installation, alignment and operator handover are included.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

Full-sheet cutting at the sensible end of the range

The FKS305V32ECO is the machine to quote when a shop needs genuine sheet-cutting capacity without paying for electronic positioning. The FKS305V32ECO carries a 3200 x 375 mm aluminium sliding table with an 1100 x 590 mm outrigger and a cross-cut fence adjustable from 1700 to 3150 mm, so a full board is supported and squared on the carriage rather than balanced on rollers. Rip capacity at the parallel fence on the FKS305V32ECO is 1250 mm.

Scoring unit and blade control

The scoring unit is what separates the FKS305V32ECO from lighter panel saws. The FKS305V32ECO drives its Ø120 x 20 x 3.1/2.2 mm scoring blade from a dedicated 750 W motor at 8000 rpm, with manual height and lateral adjustment so the scorer can be aligned to the main blade for melamine, veneered board and laminate. The main saw on the FKS305V32ECO takes Ø250-315 mm blades on a 30 mm bore at 4000 or 6000 rpm, tilts manually from 0° to 45° against an angle display, and is raised on a handwheel.

Frame, installation and power

Treat the FKS305V32ECO as a fixed installation. The FKS305V32ECO weighs 560 kg net, works at 870 mm table height on a 910 x 650 mm cast iron top with a 900 x 650 mm cast extension plus steel extensions of 900 x 690 mm and 630 x 690 mm, and needs a footprint of about 4500 x 4540 mm once carriage and outrigger travel are counted. The 5.5 kW main motor of the FKS305V32ECO requires a 400 V three-phase supply — there is no single-phase version — and extraction connects to Ø95 mm and Ø55 mm ports.

FKS305V32ECO or FKS400V32SMART?

Specify the FKS305V32ECO when the cutting work is board and the budget is finite. The FKS400V32SMART takes blades up to Ø400 mm for 130 mm cutting height and positions its rip fence, blade height and tilt electronically from a display; the FKS305V32ECO does the same panel work with handwheels, a 315 mm blade ceiling and considerably less mass to pay for and ship.

ძირითადი მახასიათებლები

  • 3200 x 375 mm aluminium sliding table with 1100 x 590 mm outrigger table
  • Cross-cut fence adjustable from 1700 to 3150 mm for full-sheet squaring
  • Scoring unit with its own 750 W motor at 8000 rpm, Ø120 x 20 x 3.1/2.2 mm blade, manual height and side adjustment
  • 5500 W (S1) main motor taking Ø250-315 mm blades on a 30 mm bore at 4000 or 6000 rpm
  • Manual saw blade swivel 0-45° read off an angle display, blade height set by handwheel
  • Cast iron work table 910 x 650 mm with 900 x 650 mm extension plus steel extensions of 900 x 690 mm and 630 x 690 mm
  • 1250 mm maximum cutting width at the parallel fence
  • 560 kg net weight at 870 mm table height; extraction ports Ø95 mm and Ø55 mm

ტექნიკური მახასიათებლები

Motor power (S1)
5500 W (plus 750 W scoring unit)
Voltage
400 V / 50 Hz
Table height
870 mm
Sliding table
3200 x 375 mm
Outrigger table
1100 x 590 mm
Dust extraction port
Ø95 mm / Ø55 mm
Total dimensions
4500 x 4540 x 1460 mm
Max. cutting width at parallel fence
1250 mm
Saw blade
Ø250-315 mm (30 mm bore)
Saw blade speed
(I) 4000 rpm / (II) 6000 rpm
Scoring saw blade
Ø120 x 20 x 3.1/2.2 mm
Scoring unit motor power
750 W
Scoring unit speed
8000 rpm
Saw blade swivel
0-45°
Sound power level
90 dB(A)
Sound pressure level
88.2 dB(A)
Gross weight
1085 kg
Net weight
560 kg
Packaging width
1170 mm
Packaging length
2210 mm
Packaging height
1120 mm
EAN code
9120132140090

უპირატესობები

  • A 3200 mm carriage with 1100 x 590 mm outrigger and 1700-3150 mm cross-cut fence handles full sheets without a second operator
  • A dedicated 750 W scoring unit at 8000 rpm makes melamine and veneered board viable, which lighter panel saws cannot do cleanly
  • A main saw blade and scoring blade are included, so the machine can be commissioned without a separate tooling order

გასათვალისწინებელი

  • The FKS305V32ECO is 400 V three-phase only — a workshop without three-phase must budget for a supply upgrade before the machine can run
  • At 560 kg net and roughly 4500 x 4540 mm of working footprint, the FKS305V32ECO commits a large share of a small shop's floor permanently
  • Blade height, tilt and rip fence are set manually, so repeat cutting lists take longer to set than on the display-driven FKS400V32SMART

ხშირად დასმული კითხვები

How much does the HOLZMANN FKS305V32ECO cost?
The HOLZMANN FKS305V32ECO panel saw is supplied on quotation, not at a published shelf price. The price of an FKS305V32ECO is driven by the tooling package specified beyond the included main and scoring blades, whether an extraction unit and ducting are quoted with the machine, freight of a 560 kg net / 1085 kg gross machine to Georgia, unloading and positioning on site, and whether installation, three-phase connection and operator handover are included. Send the sheet sizes and materials to be cut and a written FKS305V32ECO quotation will be prepared.
Can the FKS305V32ECO run on single-phase power?
No. The FKS305V32ECO is listed only in a 400 V / 50 Hz three-phase version, because the 5500 W main motor and the separate 750 W scoring motor cannot sensibly be fed from a single-phase supply. A workshop without three-phase should budget for a supply connection before ordering an FKS305V32ECO, or look at a lighter panel saw such as the TS315F1600, which is offered in a 230 V single-phase version.
What does the scoring unit on the FKS305V32ECO actually do?
The scoring unit of the FKS305V32ECO makes a shallow first cut on the underside of the panel with a Ø120 x 20 x 3.1/2.2 mm blade driven by its own 750 W motor at 8000 rpm, immediately ahead of the main blade. That pre-cut severs the melamine or veneer face so the main blade cannot lift and tear it, which is what gives a clean edge on both faces. Height and lateral position of the scoring blade on the FKS305V32ECO are adjusted manually so the scorer can be aligned exactly to the main blade kerf.
How long is the lead time for an FKS305V32ECO?
The FKS305V32ECO is a factory-supplied capital machine and Holzmann currently lists this model as unavailable on its own webshop, so it is ordered against the quotation rather than taken from local stock. Confirm the current lead time for the FKS305V32ECO when requesting a quote; a delivery window is stated in writing with the offer.
What is involved in installing and commissioning an FKS305V32ECO?
Installing an FKS305V32ECO means unloading a machine of about 1085 kg gross, siting it on a level floor with roughly 4500 x 4540 mm of clear working area for carriage and outrigger travel, levelling the frame so the carriage runs true to the blade, connecting a 400 V three-phase supply through a suitable isolator, and connecting the Ø95 mm and Ø55 mm ports to extraction. Squaring the cross-cut fence and aligning the scoring blade to the main blade are part of commissioning the FKS305V32ECO.
What tooling and consumables need a separate budget with the FKS305V32ECO?
An HW main saw blade and a scoring blade are supplied with the FKS305V32ECO, but a working shop should budget separately for a second main blade in a different tooth geometry, resharpening of both main and scoring blades, an extraction unit and ducting for the Ø95 mm and Ø55 mm ports, and replacement scoring blades, which wear faster than the main blade because they cut abrasive faced surfaces.
