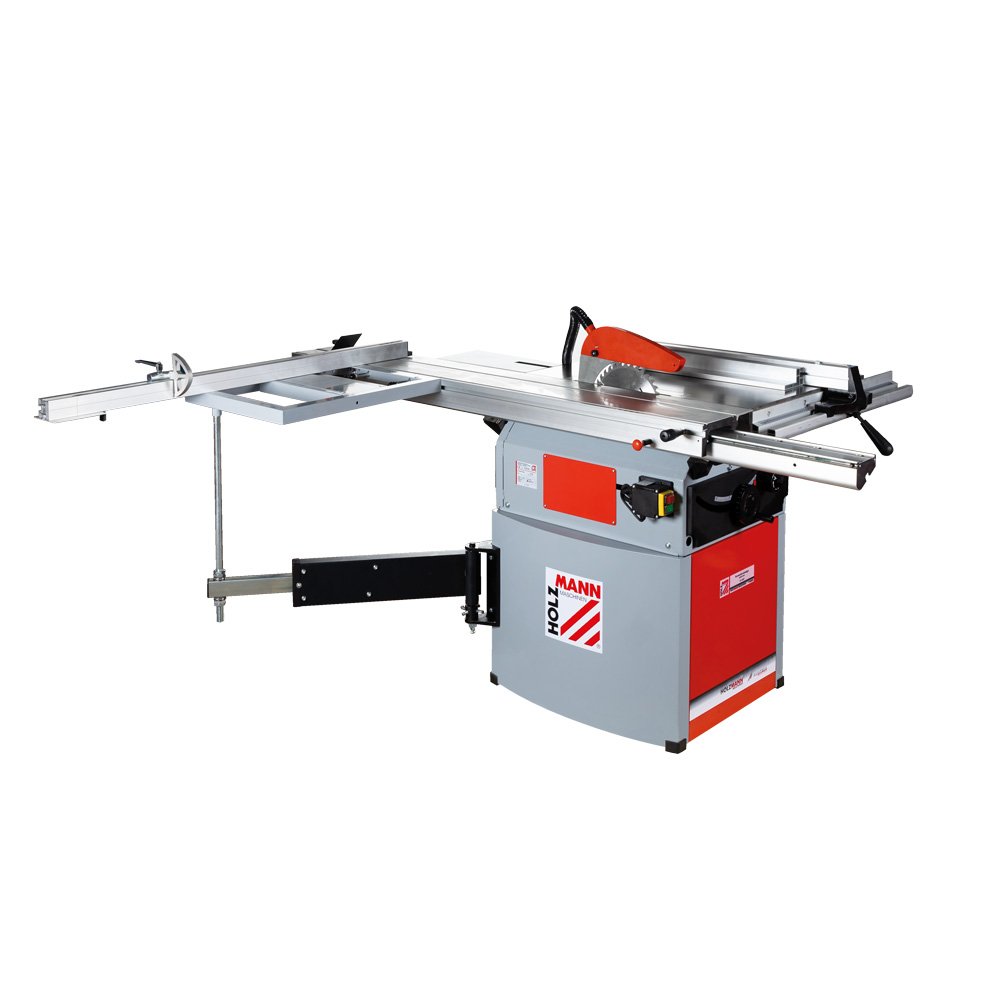

HOLZMANN TS250F Panel Saw
TS250F
The HOLZMANN TS250F is a 254 mm sliding-table panel saw with a 1650 x 250 mm aluminium slider, 1250 mm maximum trimming length and a 595 x 460 mm outrigger table. The HOLZMANN TS250F is supplied with a 254 x 30 x 3.0 mm 36-tooth TCT blade, edging shoe, push stick and an extendable cross-cut fence, in 230 V and 400 V variants.
The delivered price of the TS250F is moved by the voltage variant (230 V or 400 V), any additional 254 mm blades beyond the included 36-tooth TCT blade, the extraction system for the Ø100 mm and Ø30 mm ports, transport and offloading of a 233 kg gross machine within Georgia, siting and levelling, and whether operator hand-over is included.
ფასის მოთხოვნაThe HOLZMANN TS250F arrives ready to work
The HOLZMANN TS250F is a 254 mm sliding-table saw supplied with a full working kit, and that is its main argument. TS250F ships with a tungsten-carbide-tipped general purpose blade of 254 x 30 x 3.0 mm with 36 teeth, the sliding table, an edging shoe, a push stick, sliding wood, table extension and widening, and an extendable cross-cut fence. Against the entry-level TS250FL, the TS250F adds a longer slider, an outrigger table and that extendable cross-cut fence.
Sliding table and crosscut capacity
The TS250F has a 1650 x 250 mm aluminium sliding table giving 1250 mm of maximum trimming length, working with a 595 x 460 mm outrigger table. The cross-cut fence on the TS250F tilts 45 degrees to left and right and extends from 1230 mm to 2275 mm, which is what allows the machine to square long door stiles and wide panels accurately. Rip capacity at the parallel fence is 640 mm, set with a quick-release clamp.
Cutting performance and the cast iron table
The TS250F cuts 80 mm at 90 degrees and 50 mm at 45 degrees with a 254 mm blade turning at 4000 rpm on a 2900 W S6 / 2100 W S1 motor. The precision-ground grey cast iron table measures 800 x 350 mm at 900 mm height, with a 405 x 210 mm extension and 800 x 320 mm widening. Overall dimensions of the TS250F are 2180 to 3225 x 2930 x 1150 mm, so the machine needs a planned bay rather than a corner of the shop.
Noise, extraction and shop conditions
Measured sound power on the TS250F is 95.7 dB(A) with sound pressure at 86.5 dB(A), so hearing protection is required at the machine and the saw should not sit next to a bench where people work unprotected. Extraction on the TS250F uses a 100 mm port with a 30 mm connection, and connecting both is what keeps the cast iron table and the slider running clean.
ძირითადი მახასიათებლები
- 1650 x 250 mm aluminium sliding table giving 1250 mm maximum trimming length
- Tungsten-carbide-tipped Ø254 x 30 x 3.0 mm 36-tooth general purpose blade supplied with the machine
- 254 mm blade at 4000 rpm cutting 80 mm at 90° and 50 mm at 45°
- Cross-cut fence tilting 45° left and right, extendable from 1230 mm to 2275 mm
- 595 x 460 mm outrigger table plus 405 x 210 mm table extension and 800 x 320 mm widening
- 800 x 350 mm precision-ground grey cast iron table at 900 mm working height
- 640 mm maximum cutting width at the parallel fence with quick-release clamp
- 2900 W S6 / 2100 W S1 motor, available as 230 V or 400 V variant
ტექნიკური მახასიათებლები
- Motor power S6
- 2900 W
- Motor power S1
- 2100 W
- Voltage
- 230 V / 50 Hz (TS250F_230V) / 400 V (TS250F_400V)
- Table size
- 800 x 350 mm
- Table height
- 900 mm
- Dust collector port
- Ø 100 mm (Ø 30 mm)
- Sliding table
- 1650 x 250 mm
- Outrigger table
- 595 x 460 mm
- Table extension
- 405 x 210 mm
- Table widening
- 800 x 320 mm
- Total dimensions
- 2180 (-3225) x 2930 x 1150 mm
- Max. cutting height at 90°
- 80 mm
- Max. cutting height at 45°
- 50 mm
- Max. trimming length
- 1250 mm
- Max. cutting width at parallel fence
- 640 mm
- Saw blade diameter
- 254 mm (bore 30 mm)
- Saw blade speed
- 4000 min-1
- Sound power level
- 95.7 dB(A)
- Sound pressure level
- 86.5 dB(A)
- Net weight
- 192 kg
- Gross weight
- 233 kg
- Packaging height
- 1035 mm
- Packaging width
- 760 mm
- Packaging length
- 970 mm
- EAN code
- 9120039903927 (230 V variant)
უპირატესობები
- Genuinely complete delivery: TCT blade, sliding table, edging shoe, push stick, sliding wood, extension, widening and extendable cross-cut fence
- Cross-cut fence extends from 1230 mm to 2275 mm and tilts 45° left and right for accurate squaring of long stock
- 595 x 460 mm outrigger table plus a precision-ground 800 x 350 mm cast iron table give a stable working platform
გასათვალისწინებელი
- 50 mm maximum cutting height at 45° is modest for thick mitred timber
- No scoring unit, so melamine-faced board needs a suitable blade and careful technique
- 95.7 dB(A) sound power and a 2180-3225 x 2930 x 1150 mm footprint mean a planned bay and hearing protection, not a corner installation
