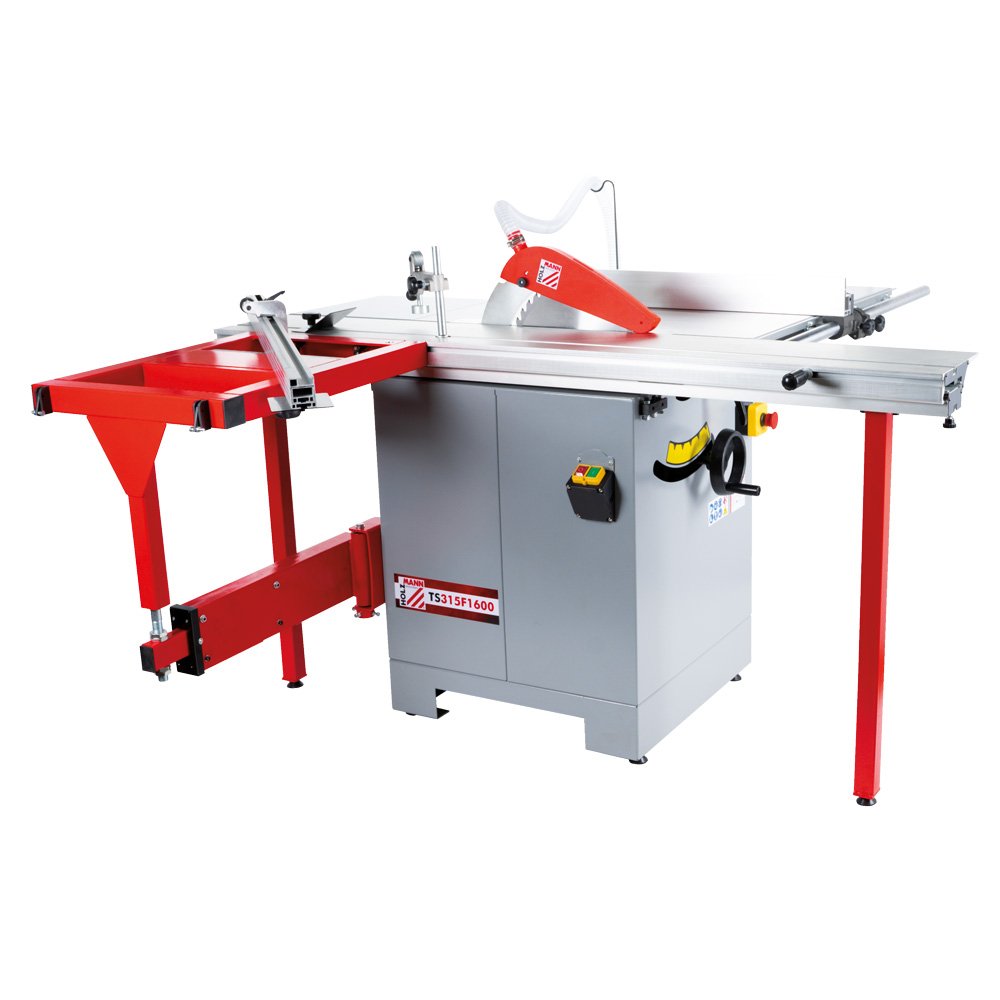

HOLZMANN TS315F1600 Panel Saw with 1600 mm Sliding Table
TS315F1600
The HOLZMANN TS315F1600 is a panel saw built on a grey cast iron table with a 1600 mm aluminium sliding carriage, a Ø315 mm saw blade and 85 mm cutting height at 90°. The TS315F1600 is available in a 230 V single-phase and a 400 V three-phase version and is supplied on quotation.
The price of a TS315F1600 is moved by the voltage version (230 V or 400 V), the saw blade package specified, whether extraction equipment and ducting are quoted with the machine, delivery to site in Georgia, and whether installation and operator handover are included.
ფასის მოთხოვნაA first true panel saw for a joinery shop
The TS315F1600 fits the moment a workshop outgrows a fixed-table site saw, because on the TS315F1600 the sliding carriage carries the panel past the blade instead of the operator pushing it. The TS315F1600 runs a Ø315 mm blade at 4000 rpm, cuts 85 mm deep at 90° and 60 mm at 45°, and rips up to 900 mm at the parallel fence. That envelope covers 18-38 mm furniture board, solid door stiles and repeat sizing work in a small to medium joinery.
Sliding table, outrigger and fences
Accuracy on the TS315F1600 comes from the carriage, not from muscle. The TS315F1600 carries a 1600 mm aluminium sliding table 238 mm wide, working with an outrigger table and support roller so full sheets stay level through the cut, and trims up to 1400 mm on that carriage. The ground grey cast iron main table of the TS315F1600 measures 800 x 365 mm at 850 mm working height and is extended by a 350 x 365 mm table extension and an 800 x 540 mm table widening. The rip fence is precision-guided and the saw blade adjusts for both height and angle.
Power supply, extraction and floor space
Plan the TS315F1600 into roughly 3000 x 3200 mm of clear floor, since the carriage and outrigger need travel on both sides of the machine. The TS315F1600 draws 2200 W continuous (S1) and 3100 W intermittent (S6) and is built in a 230 V single-phase version and a 400 V three-phase version, which is a genuine choice for Georgian workshops where three-phase is not yet connected. Extraction on the TS315F1600 is a single Ø100 mm port, and the 103 dB(A) sound power figure makes hearing protection routine rather than optional.
How the TS315F1600 compares inside the Holzmann range
Choose the TS315F1600 over the larger FKS305V32ECO when floor space, budget and single-phase supply matter more than sheet capacity. The FKS305V32ECO carries a 3200 mm carriage, a separately motorised scoring unit and a 560 kg frame, while the TS315F1600 weighs 146.5 kg net and has no scoring blade, so a scoring pass or a trim allowance is the practical answer for chip-free melamine faces.
ძირითადი მახასიათებლები
- Ø315 mm saw blade with 30 mm bore running at 4000 rpm
- 85 mm cutting height at 90° and 60 mm at 45°
- 1600 mm aluminium sliding table, 238 mm wide, with outrigger table and support roller
- 1400 mm maximum trimming length on the carriage and 900 mm rip at the parallel fence
- Solid grey cast iron main table, 800 x 365 mm, at 850 mm working height
- 350 x 365 mm table extension plus 800 x 540 mm table widening for panel support
- 2200 W (S1) / 3100 W (S6) motor in 230 V single-phase or 400 V three-phase versions
- Ø100 mm extraction port; 146.5 kg net weight
ტექნიკური მახასიათებლები
- Motor power (S1)
- 2200 W
- Motor power (S6)
- 3100 W
- Voltage
- 230 V / 50 Hz (400 V three-phase variant also available)
- Table size
- 800 x 365 mm
- Table height
- 850 mm
- Table extension
- 350 x 365 mm
- Table widening
- 800 x 540 mm
- Sliding table
- 238 x 1600 mm
- Dust extraction port
- Ø100 mm
- Total dimensions
- 3000 x 3200 x 1200 mm
- Max. cutting height at 90°
- 85 mm
- Max. cutting height at 45°
- 60 mm
- Max. trimming length
- 1400 mm
- Max. cutting width at parallel fence
- 900 mm
- Saw blade
- Ø315 mm (30 mm bore)
- Saw blade speed
- 4000 rpm
- Sound power level
- 103 dB(A)
- Sound pressure level
- 89.5 dB(A)
- Gross weight
- 199 kg
- Net weight
- 146.5 kg
- Packaging width
- 750 mm
- Packaging length
- 850 mm
- Packaging height
- 925 mm
- EAN code (230 V variant)
- 9120058378294
უპირატესობები
- A 1600 mm carriage, outrigger table and 1400 mm trimming length give real panel-saw geometry in a 146.5 kg machine
- Ground grey cast iron table and a precision-guided rip fence hold settings far better than pressed-steel site saws
- Offered as a 230 V single-phase machine, so a workshop without a three-phase connection can still run it
გასათვალისწინებელი
- 85 mm cutting height at 90° confines the TS315F1600 to panels and moderate solid stock; deeper ripping needs a Ø400 mm class saw
- No scoring unit is listed, so melamine-faced and veneered board will break out on the underside unless a scoring pass or trim allowance is used
- 103 dB(A) sound power and a single Ø100 mm port mean hearing protection and a properly sized extractor are part of the real cost
