ADVANTAGE-4 — MIZRAK ADVANTAGE-4 Edge Banding Machine 1 / 4

MIZRAK

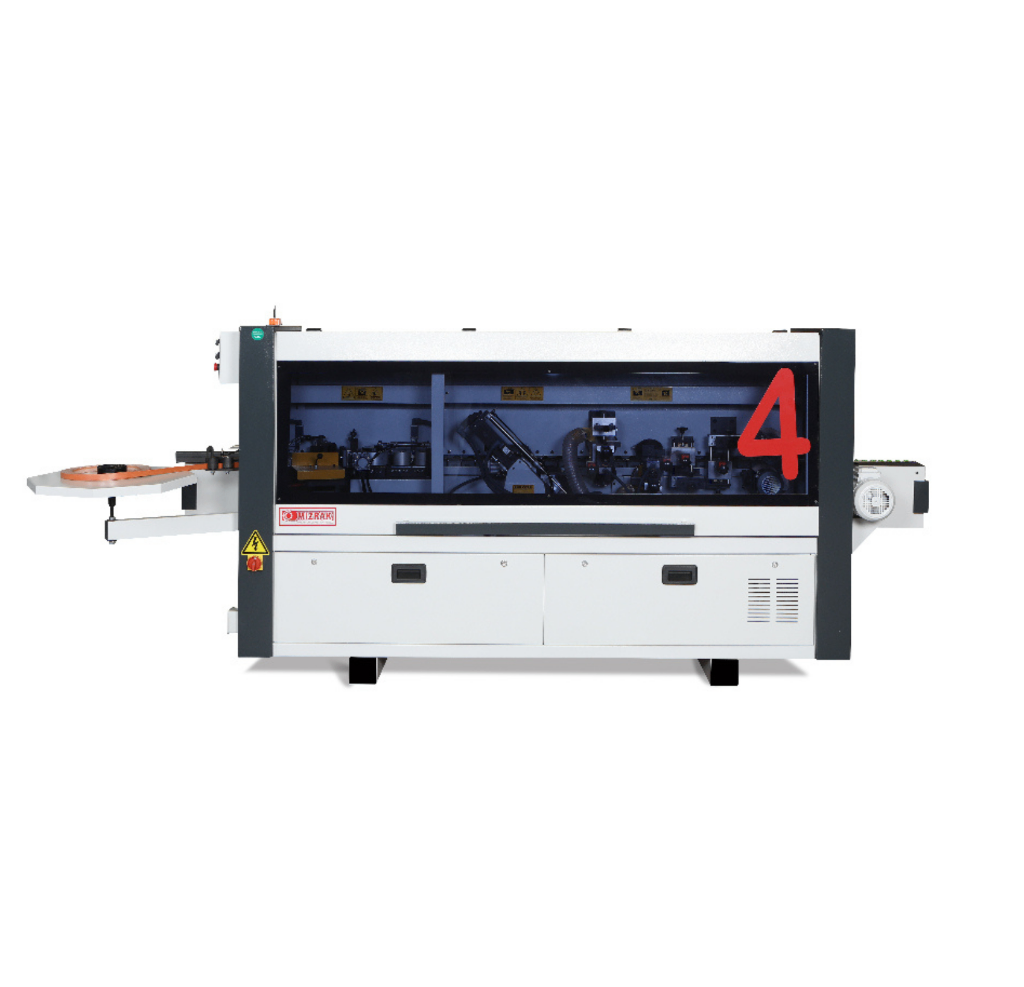

MIZRAK ADVANTAGE-4 Edge Banding Machine

ADVANTAGE-4

The ADVANTAGE-4 adds a radius scraping unit and integrated dust extraction that the ADVANTAGE X SMALL does not carry, rounding the tape profile without hand dressing. Panels 8 to 42 mm thick run at 10 m/min on 5.27 kW, in a 3500 x 540 x 1120 mm frame weighing 813 kg.

ფასი მოთხოვნით

The ADVANTAGE-4 price is driven by the scraping and polishing unit specification, the blade and spare tooling package, whether a compressor is added, and delivery and installation - the 5.27 kW load and 813 kg weight keep both electrical work and rigging modest.

ფასის მოთხოვნა

What the ADVANTAGE-4 does

The ADVANTAGE-4 completes the whole banding sequence except pre-milling. Panels 8 to 42 mm thick and at least 100 mm wide travel at 10 m/min under a 42 mm top pressure beam while the gluing, shear and pressing units apply tape between 0.40 mm and 3 mm. A Ø100 x 3.2 mm x 30 Z 30 saw cuts the front and rear ends, a Ø49 x 20 Z 4 cutter driven at 18,000 rpm trims top and bottom, and the radius scraping unit and 0.25 kW polishing unit finish the profile.

Who the ADVANTAGE-4 suits

The ADVANTAGE-4 suits a furniture workshop whose panel cutting is already clean, typically from a sliding table saw or a beam saw with a scoring blade. Without a pre-milling unit the ADVANTAGE-4 relies on the quality of the incoming cut, and in exchange the machine draws only 5.27 kW and fits into 3500 x 540 mm, which is a realistic footprint for a workshop that cannot give up a five-metre bay.

How the ADVANTAGE-4 compares with the ADVANTAGE-5 and ADVANTAGE-3

The ADVANTAGE-4 is the middle machine of the range. The ADVANTAGE-5 adds a 1.5 kW pre-milling unit, taking total power to 9.37 kW and length to 4000 mm. Below it, the ADVANTAGE-3 drops the front and rear cutting unit entirely and uses flat scraping instead of radius scraping, at 3.62 kW and 2500 mm. The ADVANTAGE-4 is therefore the shortest machine in the range that still cuts the tape ends automatically and scrapes a radius.

What is included with the ADVANTAGE-4

The ADVANTAGE-4 is supplied with the gluing, shear and pressing units, a glue pot holding up to 3.5 kg, the 42 mm top pressure beam, front and rear cutting, top and bottom trimming, radius scraping, polishing, a 0.55 kW dust extraction motor and a 1.1 kW chain conveyor drive at 26 rpm. Site requirements are a 380-430 V 50-60 Hz three-phase supply and compressed air at 6-8 atm, with a 950 mm working height.

ძირითადი მახასიათებლები

  • Radius scraping unit and 0.25 kW / 2840 rpm polishing unit as standard
  • Ø49 x 20 Z 4 top and bottom trim cutter driven at 18,000 rpm
  • Ø100 x 3.2 mm x 30 Z 30 front and rear cutting saw
  • Processes panels 8-42 mm thick, minimum 100 mm wide, at 10 m/min
  • 3.5 kg maximum glue pot capacity and 42 mm top pressure beam
  • 0.55 kW dust extraction motor and 1.1 kW / 26 rpm chain conveyor
  • 5.27 kW total power in a compact 3500 x 540 x 1120 mm frame, 813 kg

ტექნიკური მახასიათებლები

Nominal current
380-430 V, 50-60 Hz
Sound level
Lwa 82.9 dB
Band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 42 mm
Minimum workpiece width
100 mm
Working speed
10 m/min
Working height
950 mm
Maximum glue pot capacity
3.5 kg
Air pressure
6 - 8 atm
Front-rear cutting saw blade size
Ø100 x 3.2 mm x 30 Z 30
Top-bottom trimming saw blade size
Ø49 x 20 Z 4
Front-rear cutting motor power / speed
0.37 kW / 12,000 rpm
Top-bottom trimming motor power / speed
0.55 kW / 18,000 rpm
Polishing motor power / speed
0.25 kW / 2840 rpm
Dust extraction motor power
0.55 kW / 2840 rpm
Chain conveyor motor power / speed
1.1 kW / 26 rpm
Total electric power
5.27 kW
Machine length
3500 mm
Machine width
540 mm
Machine height
1120 mm
Machine weight
813 kg

უპირატესობები

  • Compact 3500 mm frame with the full trim, scrape and polish sequence
  • Low 5.27 kW total draw for a machine of this class
  • 3.5 kg glue pot, larger than the 2.5 kg pot on the ADVANTAGE-5 and ADVANTAGE-6

გასათვალისწინებელი

  • No pre-milling unit, so panel cut quality directly affects the glue line
  • No corner rounding, so thick tape corners need hand finishing
  • Three-phase only and dependent on a separate 6-8 atm air supply

ხშირად დასმული კითხვები

What power supply does the ADVANTAGE-4 need?
The ADVANTAGE-4 needs a 380-430 V, 50-60 Hz three-phase supply and draws 5.27 kW in total, which is the lowest total power in the range apart from the ADVANTAGE-3 and the ADVANTAGE X SMALL.
Does the ADVANTAGE-4 have a pre-milling unit?
No, the ADVANTAGE-4 has no pre-milling unit. Panels should reach the ADVANTAGE-4 already cut cleanly and square; the ADVANTAGE-5 is the model in the same range that adds a 1.5 kW pre-milling spindle.
What panels can the ADVANTAGE-4 process?
The ADVANTAGE-4 processes panels 8 to 42 mm thick with a minimum workpiece width of 100 mm, applying edge tape from 0.40 mm to 3 mm at 10 m/min.
What tooling and consumables does the ADVANTAGE-4 use?
The ADVANTAGE-4 uses a Ø100 x 3.2 mm x 30 Z 30 front and rear cutting saw and a Ø49 x 20 Z 4 top and bottom trim cutter, plus EVA granule glue in a pot holding up to 3.5 kg.
How much floor space does the ADVANTAGE-4 need?
The ADVANTAGE-4 measures 3500 x 540 x 1120 mm and weighs 813 kg, with a 950 mm working height, so the ADVANTAGE-4 fits a workshop that cannot spare the 4900 mm bay the ADVANTAGE-6 requires.
What does the ADVANTAGE-4 not do?
The ADVANTAGE-4 does not pre-mill the panel edge, does not round corners and does not cut panels to size. Compressed air at 6-8 atm must also be supplied separately.
How much does the ADVANTAGE-4 cost?
The ADVANTAGE-4 edge banding machine is supplied on quotation rather than at a published price. The quoted figure for an ADVANTAGE-4 reflects the scraping and polishing unit specification, the blade and spare tooling package (Ø100 x 3.2 mm x 30 Z 30 end cutting and Ø49 x 20 Z 4 trimming), whether a compressor is included, and delivery and installation in Georgia. Describe the panels and tape to be run and a written ADVANTAGE-4 quotation is prepared.
What is the lead time on an ADVANTAGE-4?
The ADVANTAGE-4 is built to order by Mizrak, so its current lead time is confirmed at quotation and not published as a fixed figure. Ask at the time of enquiry and the delivery window for the ADVANTAGE-4 is stated in writing on the offer.
Does the ADVANTAGE-4 need professional installation?
The ADVANTAGE-4 is a three-phase machine drawing 5.27 kW and weighing 813 kg, so the electrical connection and levelling are done at installation rather than by simply plugging it in. Siting an ADVANTAGE-4 needs a 3500 x 540 mm footprint plus panel clearance, a 380-430 V three-phase supply and a 6-8 atm air line. Installation and commissioning are arranged through the dealer and quoted separately.
What tooling and consumables should be budgeted separately from the ADVANTAGE-4?
Separate from the ADVANTAGE-4 machine price, budget for hot-melt glue for the 3.5 kg pot, edge tape from 0.40 mm to 3 mm, scraper knives and replacement cutters in the ADVANTAGE-4 sizes: Ø100 x 3.2 mm x 30 Z 30 front and rear cutting saws and Ø49 x 20 Z 4 top and bottom trim cutters. A compressor delivering 6-8 atm is a separate purchase.
