MIZRAK ADVANTAGE-7 Edge Banding Machine

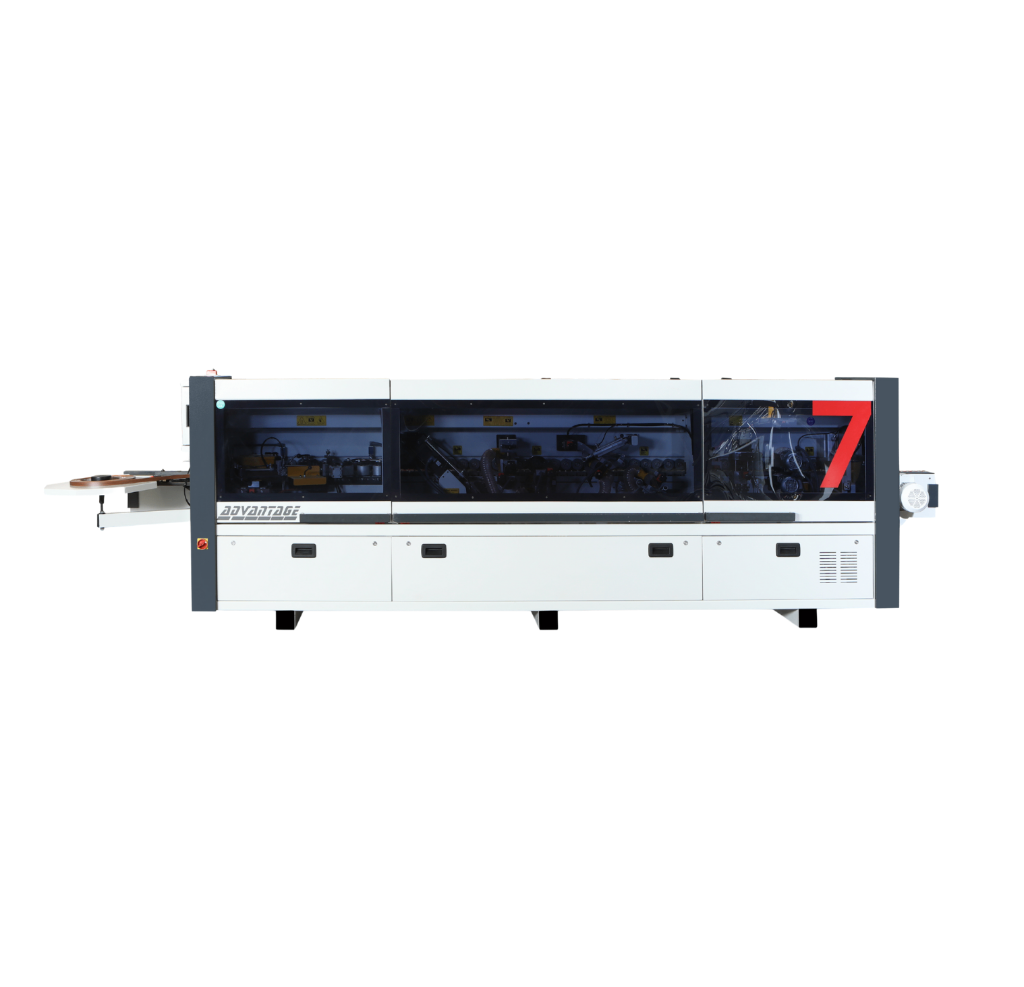

ADVANTAGE-7 — MIZRAK ADVANTAGE-7 Edge Banding Machine 1 / 4

Among the ADVANTAGE edge banders, only the ADVANTAGE-7 carries a 2.6 kW grooving unit alongside corner rounding and radius scraping. The ADVANTAGE-7 bands panels 8 to 42 mm thick with 0.40 to 3 mm tape at 10 m/min, drawing 11.97 kW in a 5300 mm frame weighing 1500 kg.

დეტალის სისქე
8 – 42 mm
სამუშაო სიჩქარე
10 m/min
ჰაერის წნევა
6 – 8 atm
წონა
1500 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The ADVANTAGE-7 price moves with the grooving and corner rounding unit configuration, the blade and spare tooling package specified, whether a compressor and central extraction ducting are added, and the cost of delivery, rigging into a 5300 mm bay and on-site commissioning.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the ADVANTAGE-7 does

The ADVANTAGE-7 is a compact automatic edge banding machine for panels 8 to 42 mm thick, applying 0.40-3 mm tape at a conveyor speed of 10 m/min. The ADVANTAGE-7 includes pre-milling, gluing with shear and pressing units, front and end cutting, milling, corner rounding, radius scraping, cleaning fluid application, polishing and a grooving unit, all within a 5300 x 630 mm frame that weighs 1500 kg.

Integrated dust extraction

Integrated dust extraction is the feature that sets the ADVANTAGE-7 apart from the larger TUANA machines. A 0.55 kW extraction motor running at 2840 rpm is built into the ADVANTAGE-7, which means a small workshop can commission the machine without first installing a central chip extraction system. Larger Mizrak edge banders expect an external extraction connection instead.

Corner rounding on a small machine

The ADVANTAGE-7 rounds corners to a maximum distance of 36 mm and carries a 42 mm top pressure unit with a radius scraping unit behind it, so soft-formed and rounded-corner parts can be produced on a machine that occupies 5300 mm of wall. Grooving is handled by a 2.6 kW motor at 12,000 rpm with a Ø80 x 8.5 mm blade, the same grooving power as the much larger OF-KA TUANA 56.

Who the ADVANTAGE-7 suits and who it does not

The ADVANTAGE-7 suits a small joinery or kitchen workshop banding 16-25 mm carcase panels and 38-42 mm worktop fronts. The limit is real: maximum workpiece thickness is 42 mm, so thick door panels and 50-60 mm worktops cannot be run, and 10 m/min is the slowest feed in the Mizrak range against 14 m/min on the OF TUANA 56. Working height is 950 mm, minimum workpiece width is 100 mm, glue pot capacity is 2.5 kg, and total electrical power is 11.97 kW on a 380-430 V 50 Hz supply with compressed air at 6-8 atm.

ძირითადი მახასიათებლები

  • Workpiece thickness 8-42 mm at 10 m/min with a 100 mm minimum workpiece width
  • Corner rounding to a maximum distance of 36 mm with a radius scraping unit
  • Integrated dust extraction driven by a 0.55 kW motor at 2840 rpm
  • 42 mm top pressure unit over the tape application section
  • 2.6 kW grooving motor at 12,000 rpm with a Ø80 x 8.5 mm grooving blade
  • 1.5 kW pre-milling unit at 12,000 rpm with a Ø70 x 35 x 3 mm blade
  • 2.5 kg glue pot, 950 mm working height and 11.97 kW total electric power
  • Largest frame and highest connected load in the ADVANTAGE range at 5300 x 630 x 1550 mm, 1500 kg and 11.97 kW, reflecting the added grooving and corner rounding units

ტექნიკური მახასიათებლები

Nominal Current
380–430 V, 50 Hz – 3P + 1N 1MP
Sound Level
Lwa 82.9 dB
Band Thickness
0.40 mm – 3 mm
Workpiece Thickness
8 – 42 mm
Min. Workpiece Width
100 mm
Working Speed
10 m/min
Working Height
950 mm
Glue Pot Capacity (Max.)
2.5 kg
Air Pressure
6 – 8 atm
Pre-Milling Saw Blade Diameter
Ø70 x 35 x 3 mm
Front-Rear Cutting Saw Blade Diameter
Ø100 x 3.2 mm
Top-Bottom Trimming Blade Diameter
Ø49 x R3 mm
Trim Trimming Blade Diameter
Ø69 x R3 mm
Grooving Saw Blade Diameter
Ø80 x 8.5 mm
Max. Corner Rounding Distance
36 mm
Pre-Milling Motor Power / Speed
1.5 kW / 12,000 rpm
Front-Rear Cutting Motor Power / Speed
0.37 kW / 12,000 rpm
Top-Bottom Trimming Motor Power / Speed
0.55 kW / 12,000 rpm
Trim Trimming Motor Power / Speed
0.55 kW / 12,000 rpm
Grooving Motor Power / Speed
2.6 kW / 12,000 rpm
Polishing Motor Power / Speed
0.25 kW / 2840 rpm
Dust Extraction Motor Power / Speed
0.55 kW / 2840 rpm
Chain Conveyor Motor Power / Speed
1.1 kW / 26 rpm
Total Electric Power
11.97 kW
Machine Length
5300 mm
Machine Width
630 mm
Machine Height
1550 mm
Machine Weight
1500 kg

უპირატესობები

  • Integrated 0.55 kW dust extraction, so no central chip extraction installation is needed to commission the machine
  • Corner rounding to 36 mm plus radius scraping and grooving on a machine only 5300 x 630 mm
  • Lightest machine in the group at 1500 kg, so it can be positioned with a pallet truck and standard rigging

გასათვალისწინებელი

  • 42 mm maximum workpiece thickness excludes thick door panels and 50-60 mm worktops
  • 10 m/min feed is the slowest of the Mizrak edge banders, roughly 30% below the TUANA 56 models
  • Smaller 2.5 kg glue pot means more frequent refilling than the 3.5 kg pots on the TUANA machines

ხშირად დასმული კითხვები

What panel thickness can the ADVANTAGE-7 band?
The ADVANTAGE-7 handles workpieces from 8 to 42 mm thick with a minimum workpiece width of 100 mm, and applies edge tape from 0.40 to 3 mm. Panels thicker than 42 mm cannot be run on the ADVANTAGE-7, so worktops of 50 mm or more need the OF TUANA 56 or the OF-KA TUANA 56 PREMIUM.
Does the ADVANTAGE-7 need a separate dust extraction system?
The ADVANTAGE-7 has integrated dust extraction with its own 0.55 kW motor running at 2840 rpm, so it does not depend on a central chip extraction installation in the way the larger TUANA machines do. Confirm the capacity and emptying arrangement of the ADVANTAGE-7 extraction unit against the volume of chips the workshop produces.
What power supply does the ADVANTAGE-7 need?
The ADVANTAGE-7 requires a 380-430 V 50 Hz supply listed as 3P + 1N with a total electric power of 11.97 kW, plus compressed air at 6-8 atm. The ADVANTAGE-7 is three-phase equipment and cannot be run from a single-phase household connection.
Can the ADVANTAGE-7 round corners?
Yes. The ADVANTAGE-7 has a corner rounding unit with a maximum corner rounding distance of 36 mm and a radius scraping unit behind it, so rounded and soft-formed edges can be finished inline. The 36 mm figure on the ADVANTAGE-7 is smaller than the 42 mm of the OF-KA TUANA 56 PREMIUM.
How much space does the ADVANTAGE-7 need?
The ADVANTAGE-7 measures 5300 x 630 x 1550 mm and weighs 1500 kg, with a 950 mm working height. It is the smallest and lightest machine in this Mizrak edge banding group, so a workshop with roughly 9 metres of clear run can install the ADVANTAGE-7 where the 7180 mm PREMIUM would not fit.
How fast is the ADVANTAGE-7 compared with the TUANA models?
The ADVANTAGE-7 runs at 10 m/min, against 14 m/min on the OF TUANA 56 and OF-KA TUANA 56 and 14-18 m/min on the OF-KA TUANA 56 PREMIUM. For a workshop banding a few hundred metres of edge per day the ADVANTAGE-7 speed is adequate, but for continuous shift production the faster TUANA machines are the correct specification.
How much does the ADVANTAGE-7 cost?
The ADVANTAGE-7 edge banding machine is supplied on quotation rather than at a published list price. The quoted figure for an ADVANTAGE-7 depends on the grooving and corner rounding unit configuration, the blade and spare tooling package (Ø70 x 35 x 3 mm pre-milling, Ø100 x 3.2 mm end cutting, Ø49 x R3 and Ø69 x R3 trimming, Ø80 x 8.5 mm grooving), whether a compressor and extraction ducting are added, and delivery, rigging and commissioning in Georgia. Send the panel thicknesses and tape sizes to be run and a full written quotation is prepared.
What is the lead time for an ADVANTAGE-7?
The ADVANTAGE-7 is built to order by Mizrak, so the current lead time is confirmed at quotation rather than published in advance. Availability of an ADVANTAGE-7 changes with the factory's production schedule and with the units specified, so ask for confirmation at the time of enquiry and it will be stated in writing on the offer.
Who installs and commissions the ADVANTAGE-7?
Installation of the ADVANTAGE-7 is arranged through the dealer and quoted as a separate line. Site preparation for an ADVANTAGE-7 covers a 5300 mm clear run plus infeed and outfeed, a level floor rated for 1500 kg, a 380-430 V three-phase supply for 11.97 kW and a 6-8 atm compressed air line. Commissioning covers levelling, glue pot and unit setting, a first banded sample and operator handover.
What tooling and consumables should be budgeted separately from the ADVANTAGE-7?
Budget separately from the ADVANTAGE-7 machine price for hot-melt glue, edge tape from 0.40 mm to 3 mm, glue cleaning fluid, and replacement blades in the sizes the ADVANTAGE-7 uses: Ø70 x 35 x 3 mm pre-milling, Ø100 x 3.2 mm front and rear cutting, Ø49 x R3 and Ø69 x R3 trimming and Ø80 x 8.5 mm grooving. A compressor delivering 6-8 atm is also a separate purchase if the workshop does not already have one.
