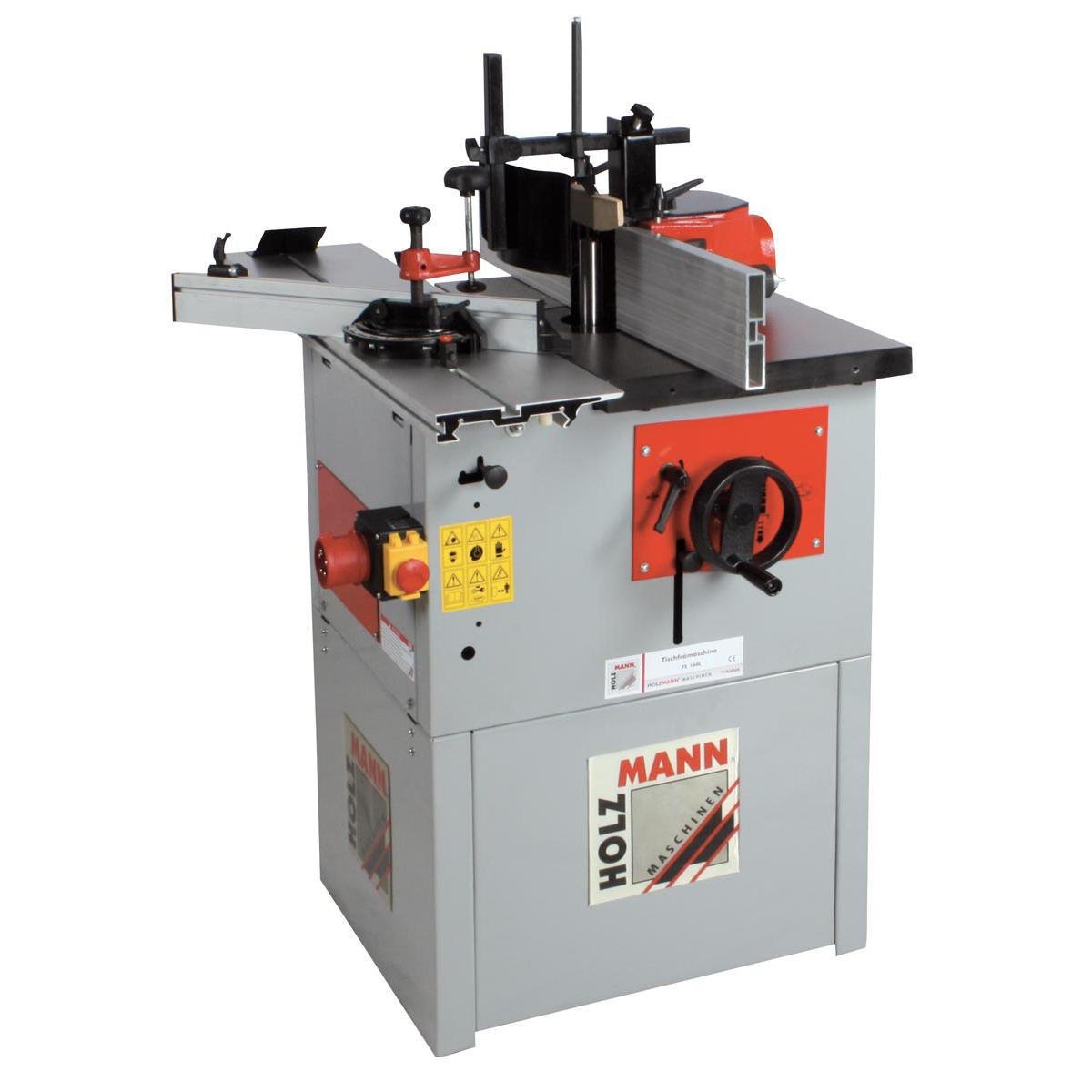

HOLZMANN FS160L Compact Spindle Moulder
FS160L
The HOLZMANN FS160L is a compact 1500 W spindle moulder with a Ø30 mm spindle, an exchangeable spindle carrying a Ø12 mm router collet, four speeds from 1400 to 9000 rpm and a 1000 x 220 mm aluminium sliding table. The FS160L weighs 108 kg net, is offered in 230 V and 400 V versions and is supplied on quotation.
The price of an FS160L is moved by the voltage version, the cutter block and router bit package specified, whether extraction and a power feed are quoted with the machine, delivery into Georgia, and whether operator handover is included.
ფასის მოთხოვნაA spindle moulder sized for a small workshop
The FS160L exists for the shop that has no floor to spare. The FS160L is built on a 600 x 400 mm cast iron table at 850 mm height and weighs 108 kg net, yet still carries a full Ø30 mm moulding spindle with 110 mm of stroke and 105 mm maximum clamping height. That combination lets the FS160L cut door and window profiles, rebates, tongues and grooves in a corner of a workshop that could not accept a 280 kg machine.
Two spindles in one machine
The exchangeable spindle is the FS160L’s most useful trick. Alongside the Ø30 mm moulding spindle, the FS160L accepts a spindle carrying a Ø12 mm router collet, so router bits handle small profiles, edge work and template cuts that would be uneconomic to tool up for with a full cutter block. Four speeds on the FS160L — 1400, 4000, 6000 and 9000 rpm — cover both jobs, with the dynamically balanced spindle keeping run-out low across the range.
Guiding, guarding and extraction
Workpiece control on the FS160L is better than the machine’s size suggests. The FS160L runs an extra-long 1000 x 220 mm aluminium sliding table and a 350 x 125 mm mitre fence that tilts 60° left and right with a workpiece stop and holder, which makes angled ends and short-piece work practical. Guarding on the FS160L is CE-approved and includes a safety hood, a height-adjustable material guide rail and cover, a micro-switch and an emergency stop. Extraction is a Ø100 mm port; maximum tool diameter is 150 mm below the table and 170 mm above it, matching the 170 mm table opening.
Where the FS160L stops
Specify the FS160L for profile work in modest sections and the FS200SF where tilt is needed. The FS160L has no tilting spindle and 1500 W (2100 W S6) on tap, so deep single passes in hardwood ask for two lighter cuts rather than one heavy one.
ძირითადი მახასიათებლები
- Ø30 mm milling spindle with 110 mm stroke and 105 mm maximum clamping height
- Exchangeable spindle with a Ø12 mm router collet for router bits
- Four spindle speeds: 1400, 4000, 6000 and 9000 rpm on a dynamically balanced spindle
- 1500 W (S1) / 2100 W (S6) motor in 230 V and 400 V versions
- Torsion-resistant cast iron table, 600 x 400 mm, at 850 mm working height
- Extra-long 1000 x 220 mm aluminium sliding table
- 350 x 125 mm mitre fence tilting 60° left and right with workpiece stop and holder
- CE-approved safety hood, height-adjustable guide rail and cover, micro-switch and emergency stop; 108 kg net
ტექნიკური მახასიათებლები
- Motor power (S1)
- 1500 W
- Motor power (S6)
- 2100 W
- Voltage
- 230 V (400 V three-phase variant also available)
- Table size
- 600 x 400 mm
- Table height
- 850 mm
- Sliding table
- 1000 x 220 mm
- Dust extraction port
- Ø100 mm
- Milling spindle diameter
- 30 mm
- Milling spindle speed
- 1400 / 4000 / 6000 / 9000 rpm
- Spindle stroke
- 110 mm
- Max. clamping height
- 105 mm
- Max. tool diameter below table
- 150 mm
- Max. tool diameter above table
- 170 mm
- Table opening
- 170 mm
- Mitre fence
- 350 x 125 mm
- Router collet (exchangeable spindle)
- Ø12 mm
- Net weight
- 108 kg
- Gross weight
- 114 kg
- Packaging width
- 630 mm
- Packaging length
- 650 mm
- Packaging height
- 530 mm
- EAN code (230 V variant)
- 9120039902760
უპირატესობები
- A full Ø30 mm spindle with 110 mm stroke in a 108 kg machine that fits a workshop corner
- The exchangeable Ø12 mm router collet spindle covers small profile and template work without buying cutter blocks for every job
- A 1000 x 220 mm sliding table and a 60° left/right tilting mitre fence give control usually found on larger shapers
გასათვალისწინებელი
- The FS160L has no tilting spindle, so bevelled and sprung profiles need angled jigs or a different machine such as the FS200SF
- 1500 W (S1) means deep hardwood profiles have to be taken in two or more passes rather than one
- At 108 kg the FS160L is light for a shaper, so bolting it down or loading the base is worth doing before running large cutters
