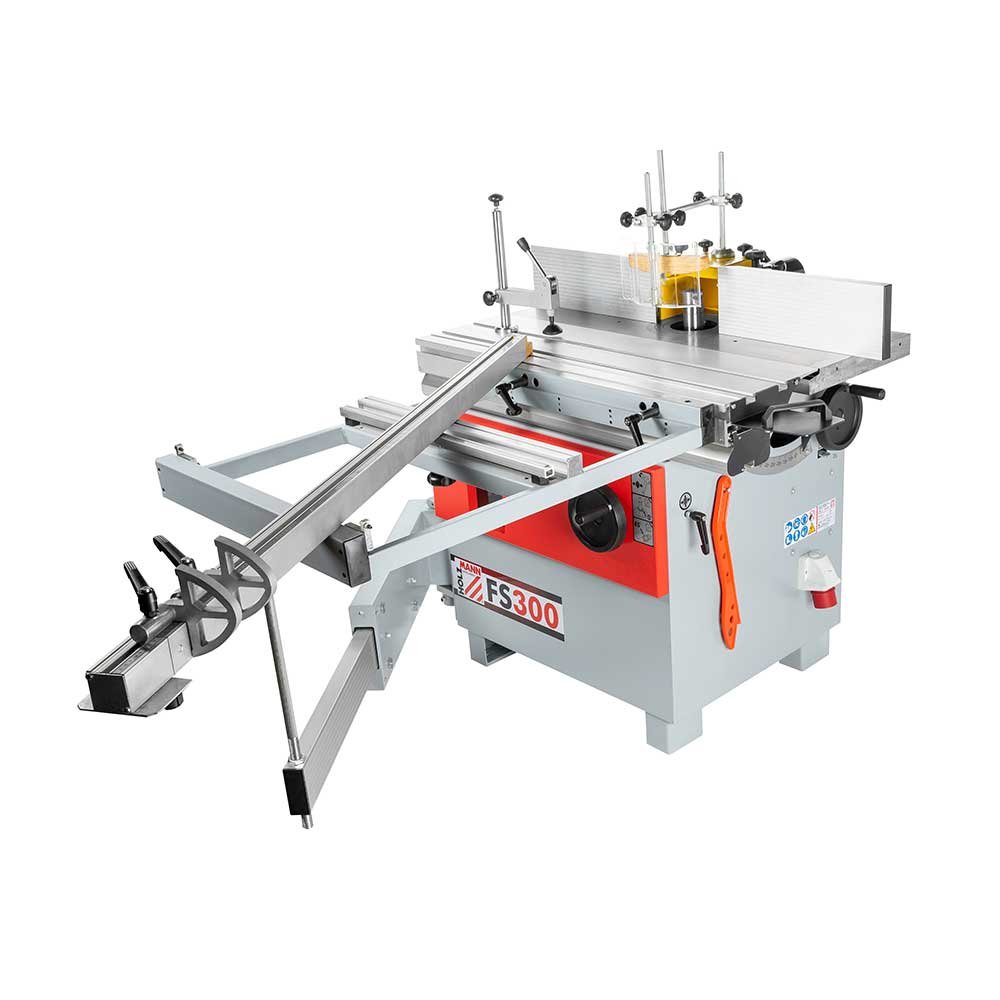

HOLZMANN FS300 Spindle Moulder with Tilting Spindle
FS300
The HOLZMANN FS300 is a 3000 W, 400 V three-phase spindle moulder with a Ø30 mm spindle tilting from -5° to 45°, 130 mm spindle stroke, 140 mm maximum clamping height and tool diameters up to 200 mm above the table. The FS300 weighs 280 kg net and is supplied on quotation.
The price of an FS300 is moved by the cutter block and tooling package specified, whether a power feed and extraction system are quoted with the machine, freight and unloading of a 343.5 kg gross machine into Georgia, the three-phase electrical work, and whether installation and operator training are included.
ფასის მოთხოვნაThe heavy end of the Holzmann shaper range
The FS300 is specified when a shaper has to run all day on hardwood. The FS300 puts 3000 W continuous (4000 W S6) through a Ø30 mm spindle with 130 mm of stroke and 140 mm maximum clamping height, on a machine weighing 280 kg net — mass that matters, because a spindle moulder’s finish quality is largely a question of how little the frame moves. Maximum tool diameter on the FS300 is 200 mm above the table and 175 mm milling diameter overall.
Tilting spindle and fence control
The FS300 tilts its spindle from -5° through 0° to 45° on a handwheel, and the negative five degrees is the detail that distinguishes the FS300 from lighter shapers: it allows the cutter to lean slightly away from the fence for undercut profiles and for fine correction of a moulding that runs tight. The FS300 carries a high-quality hood with a down holder and fine adjustment of the fence, so pressure and dimension are set by hand and held mechanically. Speeds on the FS300 are 1400, 3500, 6000 and 8000 rpm.
Tables, dimensions and services
Plan the FS300 as fixed plant with room around it. The FS300 has a 1000 x 350 mm main table at 890 mm height, a 1000 x 310 mm sliding table and a generous 450 x 160 mm mitre fence usable left and right, with a 178 mm table opening. The FS300 measures 2155 x 990 x 1430 mm without the sliding table and 2155 x 2400 (+1150) x 1430 mm with it. The FS300 is a 400 V three-phase machine only, extracts through a Ø100 mm port drawing from below the sliding table, and is rated at 96.8 dB(A) sound power.
Choosing between the FS300 and the FS200SF
Take the FS300 when tooling is large or the duty is continuous. The FS200SF covers 180 mm tools, 100 mm stroke and a 230 V option; the FS300 raises that to 200 mm tools, 130 mm stroke and 140 mm clamping height, and is quoted only with a three-phase supply.
ძირითადი მახასიათებლები
- Ø30 mm milling spindle tilting from -5° through 0° to 45° via handwheel
- 3000 W (S1) / 4000 W (S6) motor on a 400 V three-phase supply
- 130 mm spindle stroke and 140 mm maximum clamping height for tall cutter blocks
- Maximum tool diameter 200 mm above the table, 175 mm maximum milling diameter
- Four speeds: 1400, 3500, 6000 and 8000 rpm
- 1000 x 350 mm table at 890 mm height with a 1000 x 310 mm sliding table
- High-quality hood with down holder and fine fence adjustment; 450 x 160 mm mitre fence usable left and right
- Dust extraction drawn from below the sliding table through a Ø100 mm port; 280 kg net
ტექნიკური მახასიათებლები
- Motor power (S1)
- 3000 W
- Motor power (S6)
- 4000 W
- Voltage
- 400 V / 3 / 50 Hz
- Table size
- 1000 x 350 mm
- Table height
- 890 mm
- Sliding table
- 1000 x 310 mm
- Dust extraction port
- Ø100 mm
- Milling spindle diameter
- 30 mm
- Milling spindle speed
- 1400 / 3500 / 6000 / 8000 rpm
- Spindle stroke
- 130 mm
- Max. milling diameter
- 175 mm
- Milling spindle swivel
- -5° to 45°
- Max. clamping height
- 140 mm
- Table opening
- 178 mm
- Max. tool diameter below table
- 170 mm at 90°, 100 mm at 45°
- Max. tool diameter above table
- 200 mm
- Mitre fence
- 450 x 160 mm (left and right)
- Overall dimensions without sliding table
- 2155 x 990 x 1430 mm
- Overall dimensions with sliding table
- 2155 x 2400 (+1150) x 1430 mm
- Sound power level
- 96.8 dB(A)
- Sound pressure level
- 80.7 dB(A)
- Gross weight
- 343.5 kg
- Net weight
- 280 kg
- Packaging width
- 1150 mm
- Packaging length
- 900 mm
- Packaging height
- 1078 mm
- EAN code
- 9120058377150
უპირატესობები
- A -5° to 45° tilt range covers undercut profiles and fine correction that a 0-45° machine cannot reach
- 130 mm stroke, 140 mm clamping height and 200 mm tool diameter above the table accept large door and window cutter blocks
- 280 kg of cast construction with extraction below the sliding table gives a stable, clean-running machine for continuous duty
გასათვალისწინებელი
- The FS300 is 400 V three-phase only, so a single-phase workshop must upgrade its supply before the machine can run
- At 343.5 kg gross the FS300 needs mechanical handling to unload and about 2155 x 2400 mm of floor with the sliding table fitted
- 96.8 dB(A) sound power makes the FS300 a loud machine; hearing protection and thought about where it sits in the shop are necessary
