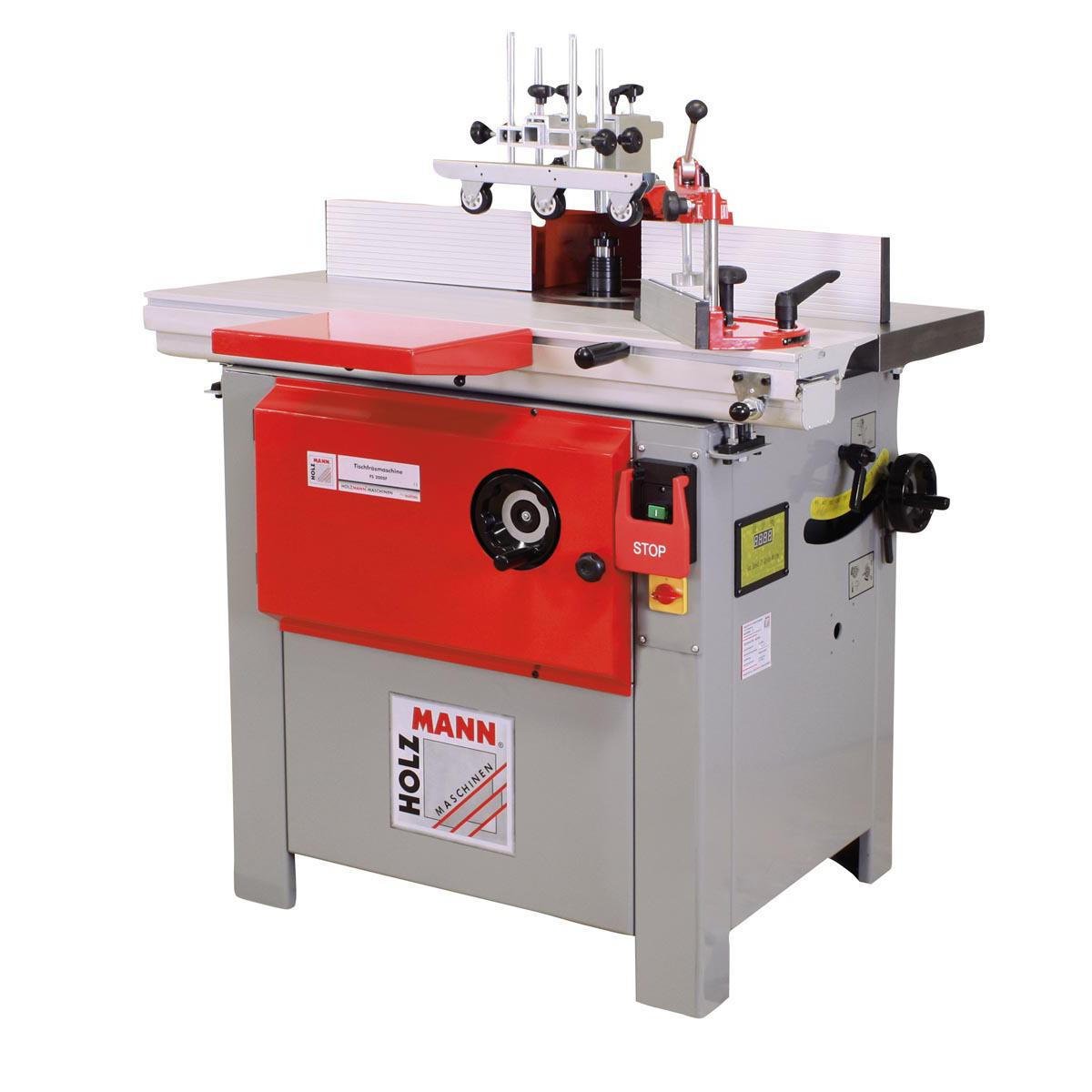

HOLZMANN FS200SF Spindle Moulder with Tilting Spindle
FS200SF
The HOLZMANN FS200SF is a 2800 W spindle moulder with a Ø30 mm spindle that tilts backwards from 0° to 45°, four speeds from 1800 to 9000 rpm and a 1000 x 250 mm aluminium sliding table on a 1000 x 360 mm cast iron top. The FS200SF is offered in 230 V and 400 V versions and is supplied on quotation.
The price of an FS200SF is moved by the voltage version, the cutter block and tooling package specified, whether a power feed unit and extraction are quoted with the machine, delivery of a 260 kg gross machine into Georgia, and whether installation and operator training are included.
ფასის მოთხოვნაA tilting-spindle moulder for real joinery work
The FS200SF is the point in the Holzmann shaper range where a spindle moulder stops being a hobby machine. The FS200SF puts 2800 W continuous (3750 W S6) behind a Ø30 mm spindle that tilts backwards from 0° to 45°, so bevelled mouldings, angled tenon shoulders and sprung profiles are cut by tilting the tool rather than by building jigs. Tool diameter on the FS200SF reaches 180 mm both above and below the 200 mm table opening.
Speeds, spindle and tooling
Speed range is the practical measure of a shaper’s versatility, and the FS200SF offers four: 1800, 3000, 6000 and 9000 rpm, shown electronically on an LCD readout. The FS200SF gives 100 mm of spindle stroke and 100 mm maximum clamping height, which accommodates stacked cutter blocks and tall tenoning heads. Changing tooling on the FS200SF is done with a spindle-lock lever on the side of the machine and a maintenance cover at the front for the speed change, so the operator is not reaching over the table.
Table, feeding and extraction
The FS200SF is built around a heavy, torsion-resistant ground grey cast iron table of 1000 x 360 mm at 900 mm working height. Workpiece control on the FS200SF comes from a smooth-running 1000 x 250 mm aluminium sliding table with a further 250 mm extension table, a 360 x 120 mm mitre fence and a shaper fence with guide rollers for consistent feed pressure. Extraction on the FS200SF connects to a Ø100 mm port, which should be treated as a minimum for a machine throwing chips at 9000 rpm.
FS200SF, FS160L or FS300?
Position the FS200SF between the two. The 108 kg FS160L is a compact 1500 W machine with a fixed vertical spindle; the 280 kg FS300 offers a 3000 W motor, 130 mm spindle stroke and -5° to 45° tilt. The 218 kg FS200SF adds tilt and a 1000 mm sliding table to the smaller machine while remaining available in a 230 V single-phase version.
ძირითადი მახასიათებლები
- Ø30 mm milling spindle tilting backwards from 0° to +45° for bevelled and sprung profiles
- 2800 W (S1) / 3750 W (S6) motor in 230 V and 400 V versions
- Four spindle speeds — 1800, 3000, 6000 and 9000 rpm — with electronic LCD speed indication
- 100 mm spindle stroke and 100 mm maximum clamping height for stacked cutter blocks
- Massive torsion-resistant ground grey cast iron table, 1000 x 360 mm, at 900 mm height
- 1000 x 250 mm aluminium sliding table with an additional 250 mm extension table
- Maximum tool diameter 180 mm above and below the table through a 200 mm table opening
- Spindle-lock lever at the machine side and front maintenance cover for fast tool and speed changes
ტექნიკური მახასიათებლები
- Motor power (S1)
- 2800 W
- Motor power (S6)
- 3750 W
- Voltage
- 230 V (400 V three-phase variant also available)
- Table size
- 1000 x 360 mm
- Table height
- 900 mm
- Sliding table
- 1000 x 250 mm
- Dust extraction port
- Ø100 mm
- Milling spindle diameter
- 30 mm
- Milling spindle speed
- 1800 / 3000 / 6000 / 9000 rpm
- Spindle stroke
- 100 mm
- Max. clamping height
- 100 mm
- Milling spindle swivel
- 0° to +45°
- Max. tool diameter below table
- 180 mm
- Max. tool diameter above table
- 180 mm
- Table opening
- 200 mm
- Mitre fence
- 360 x 120 mm
- Net weight
- 218 kg
- Gross weight
- 260 kg
- Packaging width
- 730 mm
- Packaging length
- 1150 mm
- Packaging height
- 1200 mm
- EAN code (230 V variant)
- 9120058379161
უპირატესობები
- A spindle tilting 0-45° removes the need for angled jigs and lets one cutter block produce several profiles
- Four speeds from 1800 to 9000 rpm with LCD indication cover both large-diameter blocks and small high-speed cutters correctly
- A 218 kg cast iron machine available in 230 V single-phase suits Georgian workshops that cannot yet get three-phase
გასათვალისწინებელი
- 100 mm maximum clamping height limits the FS200SF on tall tenoning and stacked profile blocks compared with the 140 mm of the FS300
- No power feed unit is listed, so hand feeding is the default and a feeder must be budgeted for consistent finish and safety
- The 200 mm table opening and 180 mm tool ceiling set a hard limit on cutter diameter, which matters for large door and window profiles
