HOLZMANN FS200S Tilting Spindle Shaper (Spindle Moulder)

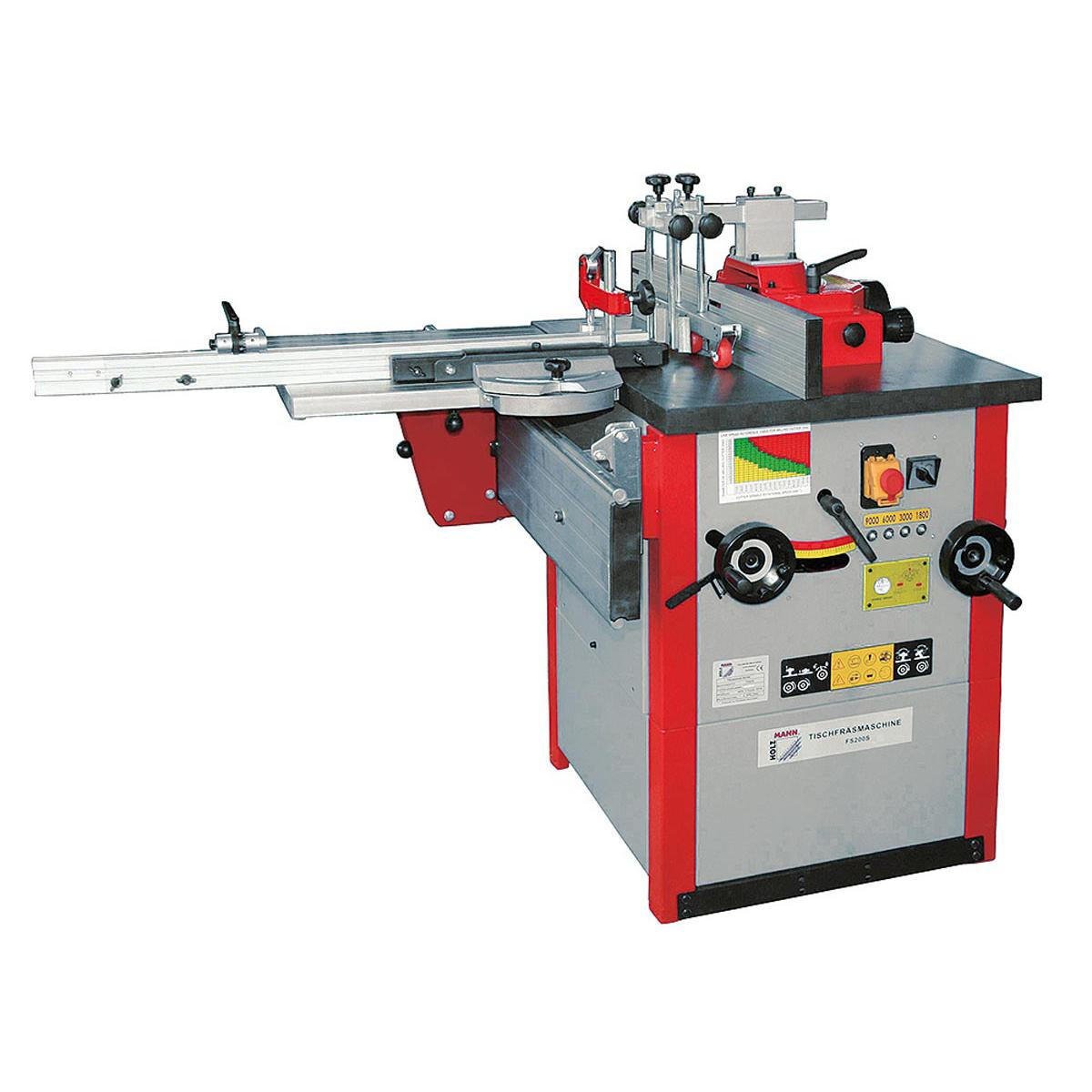

FS200S — HOLZMANN FS200S Tilting Spindle Shaper (Spindle Moulder) 1 / 2

Swivelling from -5° to +30°, the milling spindle of the FS200S cuts chamfers and bevelled panel fields that a fixed-spindle shaper needs a dedicated angled cutter to produce. Its table grows to 710 x 640 mm and its weight to 170 kg net, while the 30 mm spindle and 2800 W S1 motor match the FS200.

ძრავის სიმძლავრე
3.75 kW
ძაბვა
230V
მაგიდის ზომა
710 x 640 mm
მაგიდის სიმაღლე
900 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The FS200S price is driven by the voltage variant ordered, the straight and angled cutter heads specified for the -5° to +30° tilting spindle, whether the optional retrofittable sliding table is added, any power feeder fitted, and freight and rigging of a 191 kg crate.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the tilting spindle of the FS200S adds

The tilt is the whole point of the FS200S. The milling spindle of the FS200S swivels from -5° to +30°, which means a single straight cutter can produce a family of angled profiles, chamfers, bevelled panel fields and undercut door edges that a fixed vertical shaper can only reach by buying a dedicated cutter for each angle. For a Georgian door manufacturer or a furniture shop running varied profiles in short batches, that tilt is the difference between one tooling set and a shelf full of them.

Capacity and construction of the HOLZMANN FS200S

The FS200S is built on a torsion-resistant grey cast iron table of 710 x 640 mm at 900 mm working height, and weighs 170 kg net. The 30 mm milling spindle has 100 mm of stroke, a maximum clamping height of 105 mm and accepts cutters up to 190 mm diameter above and below the table through a 200 mm table opening. Four standard speeds of 1800, 3000, 6000 and 9000 rpm are shown by electronic LED indication, and spindle height is set on hand wheels. Motor rating on the FS200S is 2800 W continuous (S1) and 3750 W intermittent (S6). A 360 x 120 mm mitre fence is provided and the shaper hood carries aluminium fences with independent micro adjustment.

FS200S or FS200

The choice between the FS200S and the FS200 is simple. Both machines share the 30 mm spindle, the four speeds, the 100 mm stroke, the 105 mm clamping height and the same motor. The FS200 has a fixed vertical spindle, a 690 x 480 mm table and weighs 150 kg. The FS200S adds the -5° to +30° tilt, a larger 710 x 640 mm table and 20 kg more mass, at a higher price. A workshop that only cuts vertical profiles should save the money and take the FS200; a workshop that quotes angled and bevelled work should take the FS200S and stop declining those jobs.

Delivery and workshop requirements

The FS200S ships at 191 kg gross with a sanding roller included for curved edge work. A 100 mm extraction port is fitted and a chip extractor is mandatory in use. The optional sliding table for the FS200S is retrofittable, so tenoning capability can be added later without changing machine.

ძირითადი მახასიათებლები

  • Milling spindle swivels -5° to +30°, the one published specification that separates the FS200S from the otherwise identical FS200
  • 710 x 640 mm cast iron table - 160 mm deeper than the 690 x 480 mm FS200 top, giving the tilted spindle room to work
  • 170 kg net / 191 kg gross: roughly 20 kg of extra casting over the FS200, carried in the trunnion and the larger table
  • Undercut to -5° for tight scribed joints and forward to +30° for bevelled raised panels cut with a straight cutter
  • Crate of 760 x 690 x 700 mm - plan a wider access route than the FS200 needs
  • Ordered as FS200S_230V (EAN 9120039902791) or FS200S_400V (EAN 9120039905242), both rated 2800 W S1 / 3750 W S6
  • Four spindle speeds of 1800, 3000, 6000 and 9000 rpm with electronic LED step indication
  • Ø 100 mm extraction port at 900 mm table height, so an FS200S drops into a bay already piped and benched for an FS200

ტექნიკური მახასიათებლები

Motor power S6
3750 W
Motor power S1
2800 W
Voltage
230V (400V variant also available)
Table size
710 x 640 mm
Table height
900 mm
Dust collector port
100 mm
Milling spindle diameter
30 mm
Milling spindle speed
1800 / 3000 / 6000 / 9000 rpm
Spindle stroke
100 mm
Max. clamping height
105 mm
Milling spindle swivel
-5° to +30°
Max. tool diameter below table
190 mm
Max. tool diameter above table
190 mm
Table opening
200 mm
Mitre fence
360 x 120 mm
Net weight
170 kg
Gross weight
191 kg
EAN code (FS200S_230V)
9120039902791
EAN code (FS200S_400V)
9120039905242

უპირატესობები

  • -5° to +30° tilting spindle produces angled profiles from straight cutters, cutting tooling spend
  • Larger 710 x 640 mm cast iron table and 170 kg mass give more workpiece support than the FS200
  • Same four-speed 1800-9000 rpm drive and 2800 W S1 motor as the FS200, in both 230V and 400V

გასათვალისწინებელი

  • Costs more than the fixed-spindle FS200 for shops that never cut an angled profile
  • At 170 kg net the FS200S is heavy to move once positioned on a workshop floor
  • Hand feed only and no sliding table in standard delivery

ხშირად დასმული კითხვები

Is the HOLZMANN FS200S sold as 230V or 400V?
The HOLZMANN FS200S is one machine in two variants: FS200S_230V for single-phase 230V and FS200S_400V for three-phase 400V. A small joinery on a domestic connection orders the 230V FS200S; a workshop with a three-phase board should prefer the 400V FS200S for easier starting under load and balanced supply loading. Both FS200S variants carry the same 2800 W S1 / 3750 W S6 motor rating.
What does the HOLZMANN FS200S not do?
The HOLZMANN FS200S does not feed the workpiece: feeding on the FS200S is by hand unless a separate power feeder is bought and mounted. The FS200S also does not include a sliding table as standard, does not accept 8 mm router bits directly on its 30 mm spindle, and does not tilt beyond the -5° to +30° range.
How far does the spindle of the HOLZMANN FS200S tilt?
The milling spindle of the HOLZMANN FS200S tilts from -5° to +30°. That range lets the FS200S undercut slightly past vertical and reach 30° forward, which covers standard chamfers, bevelled raised panels and angled door profiles from one straight cutter.
What is the difference between the HOLZMANN FS200S and the FS200?
The HOLZMANN FS200S adds a -5° to +30° tilting spindle and a larger 710 x 640 mm table to what the FS200 offers, and weighs 170 kg against the 150 kg of the FS200. Spindle diameter, the four speeds from 1800 to 9000 rpm, spindle stroke, clamping height and motor rating are identical on both machines.
Does the HOLZMANN FS200S need a chip extractor?
The HOLZMANN FS200S requires a chip extractor on its 100 mm dust collector port. Shaper work of the kind the FS200S is built for generates heavy chip volume, and running the FS200S unextracted buries the fence, spoils visibility of the cut and creates a fire and health risk.
Is anything included with the HOLZMANN FS200S?
HOLZMANN publishes no separate delivery list for the FS200S. What the FS200S highlights do name is a sanding roller for curved edge work, a shaper hood with micro-adjustable aluminium fences and the spindle tilting -5° to +30°. A 360 x 120 mm mitre fence appears in the FS200S specification table but is not stated as part of the delivery, and a sliding table is listed as optional and retrofittable. Exact FS200S box contents are confirmed at quotation.
What does a HOLZMANN FS200S cost?
The HOLZMANN FS200S is quoted rather than shelf-priced. What moves an FS200S figure is the voltage variant (FS200S_230V or FS200S_400V), the cutter heads chosen for the -5° to +30° tilting spindle, whether the optional sliding table is added, a power feeder if you need consistent feed on angled work, and freight and rigging for the 191 kg crate. Send the angled profiles you intend to produce and the FS200S will be quoted with tooling matched to them.
How long does delivery of a HOLZMANN FS200S take?
The HOLZMANN FS200S is built to order and its lead time is confirmed at quotation, not published as a standing figure. The FS200S lead time depends on the voltage variant, on the HOLZMANN build slot and on the shipping route into Georgia, and it is stated together with the price when you request a quote.
What does installing and commissioning a HOLZMANN FS200S involve?
Installing a HOLZMANN FS200S means unloading a 191 kg crate of 760 x 690 x 700 mm, placing the 170 kg machine on level concrete with swing clearance around the 710 x 640 mm table, connecting the 230V single-phase or 400V three-phase supply that matches the FS200S variant ordered, checking spindle rotation, setting the tilt scale zero, and connecting the Ø 100 mm port to extraction. Commissioning and operator hand-over for the FS200S can be quoted with the machine.
What tooling should be budgeted alongside a HOLZMANN FS200S?
Budget FS200S tooling as a separate line. Because the FS200S spindle tilts from -5° to +30°, cutter heads must be rated and set for angled work as well as vertical: plan for 30 mm-bore heads and limiter knives for the profiles you run, spacer and spindle rings, pressure guards and push devices, and a power feeder if the FS200S will run production batches at angle.
FS200S ფასი მოთხოვნით ფასის მოთხოვნა
