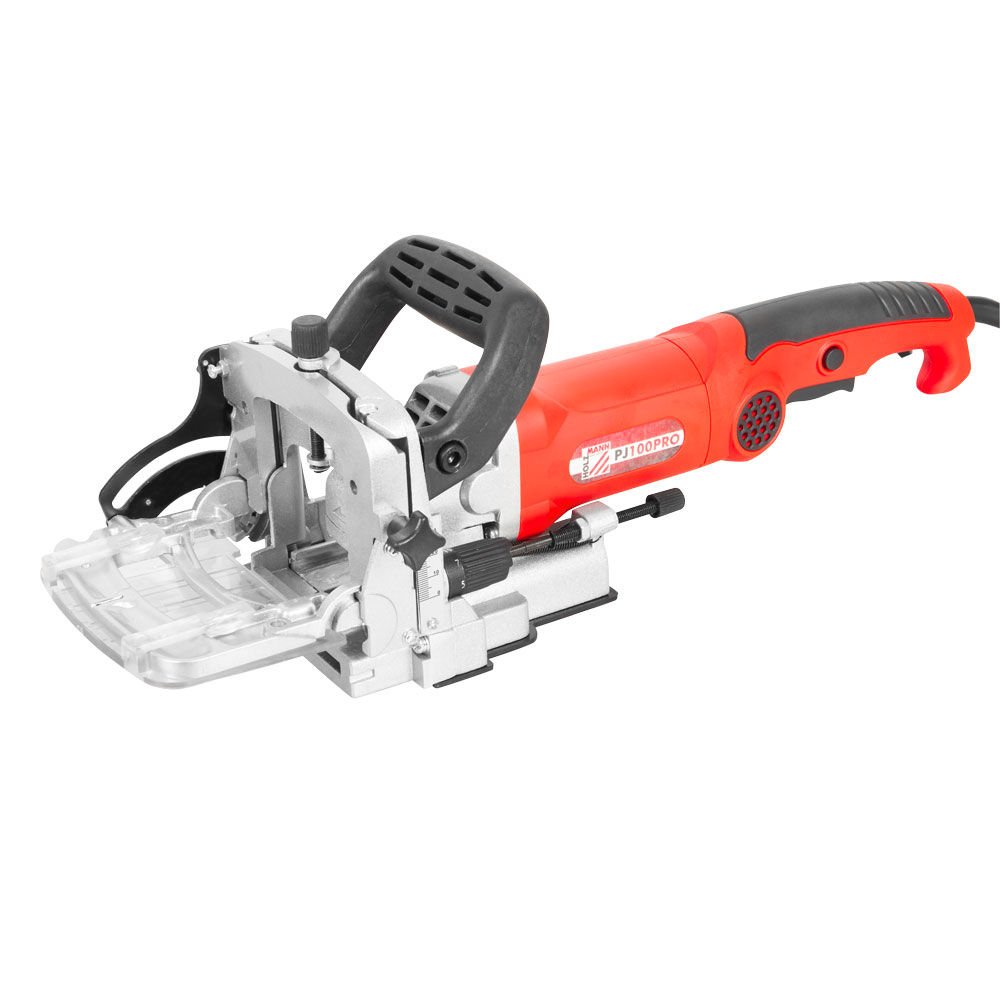

HOLZMANN PJ100PRO Biscuit Jointer (900 W, 100 mm Carbide Cutter)
PJ100PRO
Slot depth is the dividing line in HOLZMANN's biscuit-jointer pair: the PJ100PRO publishes 19 mm, plus a 10800 min-1 cutter speed and a -45 to +90 degree swivel fence that the entry PJ100A does not list. A 900 W class-II motor turns a 100 x 22 x 3.8 mm six-tooth carbide cutter. 4.5 kg net, case and dust bag.
Price on this article moves with quantity, whether spare carbide cutters and a stock of flat dowels are added to the order, and the freight and customs line for the consignment it travels in.
ფასის მოთხოვნაWhat the HOLZMANN PJ100PRO does
The HOLZMANN PJ100PRO cuts crescent-shaped slots for flat dowels so two pieces of timber can be aligned and glued without visible fasteners. A 900 W motor spins a tungsten-carbide 6-tooth cutter of 100 x 22 x 3.8 mm at 10800 min-1, and the plunge mechanism reaches a maximum milling depth of 19 mm. That combination covers the joints a furniture workshop makes every day: edge-to-edge panel glue-ups, carcase corners, face frames, mitred plinths and worktop joints.
Who the PJ100PRO suits
The PJ100PRO belongs in a joinery or furniture shop that assembles solid wood and board material by hand rather than on a line. At 4.5 kg net the PJ100PRO is carried to the bench or to site, plugs into an ordinary 230 V / 50 Hz socket, and is built to protection class II with an IP 20 rating, so the machine is a dry indoor tool. The fence swivels through -45° to +90°, which lets the PJ100PRO register on a face or an edge and cut mitre joints without a jig, and the M10 milling adapter takes the standard cutter mount.
PJ100PRO compared with the HOLZMANN PJ100A
The PJ100PRO is the heavier and better-equipped of the two HOLZMANN biscuit jointers. The PJ100A is the entry model at 3.30 kg net with a 100 x 22 x 4 mm carbide cutter and a plain synthetic box. The PJ100PRO adds the -45° to +90° swivel range, the published 19 mm milling depth and 10800 min-1 cutter speed, the M10 adapter and a dust bag. A workshop buying one jointer for daily production should take the PJ100PRO; the PJ100A suits occasional use.
Delivery contents
The PJ100PRO is delivered in a synthetic carrying box with the tungsten-carbide cutter and a dust bag, so the machine is ready to cut on arrival. Gross shipping weight is 6 kg.
ძირითადი მახასიათებლები
- Published maximum milling depth 19 mm - a figure HOLZMANN states for the PRO and not for the entry-level PJ100A
- Cutter speed 10800 min-1 at the 100 mm maximum milling diameter
- Swivel range -45 to +90 degrees, so face, edge and mitred slots are cut off the same fence
- M10 milling adapter thread on the cutter mount
- Six-tooth tungsten-carbide cutter 100 x 22 x 3.8 mm (the PJ100A cutter is 4 mm thick)
- 900 W S1 motor, 230 V / 50 Hz, appliance class II, IP 20 - dry indoor use
- 4.5 kg net against 3.30 kg for the PJ100A; 6 kg gross for shipping
- Synthetic carry case plus dust bag; the PJ100A is delivered in the box alone
- Declared 89 dB(A) sound pressure and 5.1 m/s2 hand-arm vibration
ტექნიკური მახასიათებლები
- Motor power (S1)
- 900 W
- Voltage
- 230 V / 50 Hz
- Speed
- 10800 min-1
- Appliance class
- II
- Protection rating
- IP 20
- Swivel range
- -45° to +90°
- Max. milling depth
- 19 mm
- Max. milling diameter
- 100 mm
- Milling adapter
- M10
- Cutter
- Tungsten carbide, ø100 x ø22 x 3.8 mm, 6T
- Sound power level
- 100 dB(A)
- Sound pressure level
- 89 dB(A)
- Hand-arm vibration
- 5.1 m/s²
- Net weight
- 4.50 kg
- Gross weight
- 6 kg
- EAN code
- 9120058376634
უპირატესობები
- 19 mm milling depth and 10800 min-1 carbide cutter handle hardwood and board equally
- -45° to +90° swivel fence covers face, edge and mitre joints without extra jigs
- 4.5 kg with a case and dust bag, so the PJ100PRO travels to site
გასათვალისწინებელი
- Single-phase 230 V only, with no three-phase variant for shops wired at 400 V
- The supplied dust bag is small; continuous chipboard work needs a workshop extractor
- IP 20 and class II construction restrict the PJ100PRO to dry indoor use
