TFM610V — HOLZMANN TFM610V Table Router (Benchtop Router Table) 1 / 4

HOLZMANN

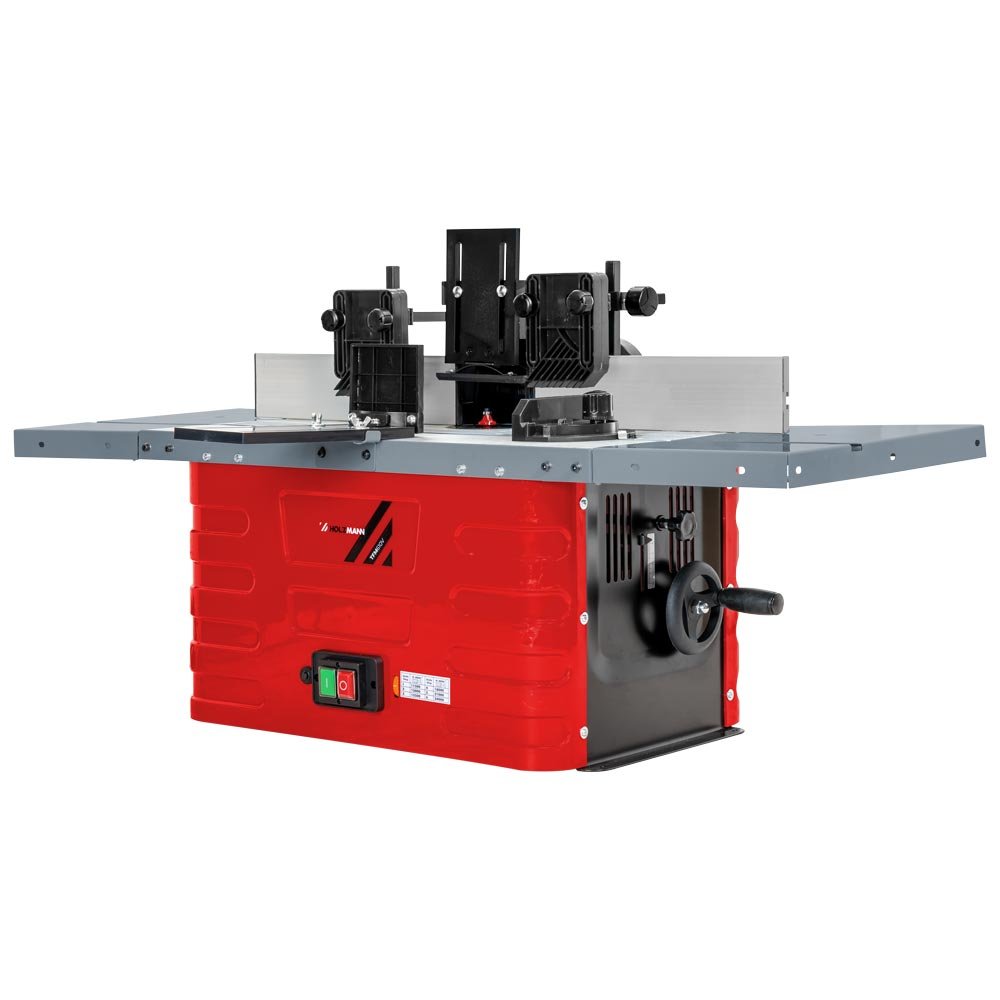

HOLZMANN TFM610V Table Router (Benchtop Router Table)

TFM610V

Its own 1500 W spindle is what sets the TFM610V apart from a passive table such as the OFT102: six speed steps from 11500 to 24000 rpm, a 0-40 mm spindle stroke read off an indicator, and 32/47/55 mm table inserts for tools up to 50 mm diameter. The bench top is 610 x 360 mm plus a 210 x 360 mm extension; 21 kg net.

ფასი მოთხოვნით

Price moves with quantity, with whether a cutter set such as the OFS12 is ordered alongside, and with the freight and customs share of the consignment - the TFM610V ships at 23 kg gross.

ფასის მოთხოვნა

What the HOLZMANN TFM610V table router is

The TFM610V is a complete table router, motor included, not an empty table waiting for a hand router. A 1500 W motor drives the spindle through six selectable steps from 11500 to 24000 rpm, and spindle height is set from 0 to 40 mm on a scale with an indicator, so a rebate depth can be dialled in and returned to on a later batch. The working surface is 610 x 360 mm with a 210 x 360 mm table extension, and overall the TFM610V measures 1035 x 690 x 555 mm at a table height of 310 mm, which confirms what it is: a bench machine, meant to sit on a workbench rather than stand on the floor.

Who the TFM610V suits

The TFM610V is aimed at DIY users, small furniture repair shops, hobby workshops and site carpenters who need clean edge profiles, grooves and small joints without owning a spindle shaper. At 21 kg net the TFM610V is carried by one person and stored on a shelf between jobs. Three table openings of 32, 47 and 55 mm let the insert be matched to the bit in use, keeping the gap around the cutter small, which is what protects small workpieces from dropping into the table.

How the TFM610V differs from a shaper and from the OFT102

The TFM610V occupies the middle ground in the HOLZMANN range. Compared with the OFT102 router table, the TFM610V includes its own motor and speed control, so nothing else has to be bought. Compared with a HOLZMANN FS-series spindle shaper, the TFM610V is a different class of machine entirely: maximum tool diameter on the TFM610V is 50 mm above and below the table, against cutter heads several times that size on a shaper, and its high 11500-24000 rpm range is router-bit speed, not cutter-head speed. Profile work in the TFM610V range is light: edges, grooves and small mouldings, not raised panels.

Extraction and delivery

The TFM610V carries a Ø 100 mm dust collector port, which is generous for a bench machine and allows connection to a proper chip extractor rather than a vacuum cleaner. Various serial accessories are included in TFM610V delivery, and the machine ships at 23 kg gross with a 2 m power cable, so it plugs straight into a normal 230V socket.

ძირითადი მახასიათებლები

  • 1500 W spindle built into the machine - nothing to mount underneath, unlike the motorless OFT102
  • Six speed steps between 11500 and 24000 rpm, selected on the machine rather than on a hand router
  • Spindle stroke 0 to 40 mm with a height indicator, so a depth setting can be returned to between batches
  • Three table openings of 32, 47 and 55 mm to close the gap around the cutter in use
  • Maximum tool diameter 50 mm above and below the table - the hard limit on what can be run
  • 610 x 360 mm table with a 210 x 360 mm extension, at 310 mm bench height
  • 100 mm dust collector port, sized for a real chip extractor rather than a vacuum hose
  • 21 kg net, 1035 x 690 x 555 mm overall, with a 2 m cable to a 230 V / 50 Hz socket

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230V / 50Hz
Cable length
2 m
Table size
610 x 360 mm
Table height
310 mm
Table extension
210 x 360 mm
Total dimensions
1035 x 690 x 555 mm
Dust collector port
Ø 100 mm
Milling spindle speed
11500 - 24000 rpm (6 steps)
Spindle stroke
0 - 40 mm
Table opening
32 / 47 / 55 mm
Max. tool diameter below table
50 mm
Max. tool diameter above table
50 mm
Sound power level
89 dB(A)
Sound pressure level
102 dB(A)
Net weight
21 kg
Gross weight
23 kg
EAN code
9120058378010

უპირატესობები

  • Complete machine with its own 1500 W motor and six speeds, ready to work out of the carton
  • 0-40 mm spindle height with an indicator makes depth settings repeatable across batches
  • Ø 100 mm extraction port and a 610 x 360 mm table with extension, unusual on a 21 kg bench router

გასათვალისწინებელი

  • 50 mm maximum tool diameter, so no panel-raising or large moulding heads
  • Needs a solid bench: the 310 mm table height means the TFM610V is not a standalone floor machine
  • No spindle tilt, no sliding table and no power feed; every workpiece is hand fed

ხშირად დასმული კითხვები

Does the HOLZMANN TFM610V run on 230V or 400V?
The HOLZMANN TFM610V runs on 230V / 50Hz single-phase and is supplied with a 2 m cable, so the TFM610V plugs into any ordinary Georgian workshop or household socket. No 400V three-phase variant of the TFM610V exists and none is needed for a 1500 W bench machine.
What does the HOLZMANN TFM610V not do?
The HOLZMANN TFM610V does not take large shaper cutter heads: maximum tool diameter on the TFM610V is 50 mm above and below the table. The TFM610V also does not tilt, has no sliding table, has no power feed, and with a spindle stroke of only 0-40 mm it cannot produce the deep profiles a spindle shaper produces.
How is cutting depth set on the HOLZMANN TFM610V?
Cutting depth on the HOLZMANN TFM610V is set by adjusting the spindle height between 0 and 40 mm, read off an indicator. That indicator is what makes a setting on the TFM610V repeatable between batches instead of being found again by trial cuts.
What speeds does the HOLZMANN TFM610V offer and why do they matter?
The HOLZMANN TFM610V offers six speed steps from 11500 to 24000 rpm. Large-diameter bits are run near the bottom of the TFM610V range and small bits near the top; running a large bit at 24000 rpm on the TFM610V burns the edge and shortens the life of the tool.
Can the HOLZMANN TFM610V replace a spindle shaper?
The HOLZMANN TFM610V does not replace a spindle shaper. The TFM610V is a 21 kg bench machine with a 1500 W motor and a 50 mm maximum tool diameter, while a HOLZMANN FS-series shaper such as the FS200 is a 150 kg floor machine on a 900 mm table with a 30 mm milling spindle taking tools up to 190 mm in diameter. Workshops running mouldings all day should buy the shaper; workshops profiling occasionally should buy the TFM610V.
Does the HOLZMANN TFM610V need dust extraction?
The HOLZMANN TFM610V has a Ø 100 mm dust collector port and should be connected to a chip extractor. The 100 mm port on the TFM610V accepts a full workshop extraction hose, which clears chips far better than the small vacuum fittings usual on bench routers.
What determines the price quoted for a HOLZMANN TFM610V?
The TFM610V is quoted on enquiry rather than sold at a fixed list price. The figure is driven by order quantity, by whether router cutters are ordered with it - the OFS12 12-piece set is the usual companion to a TFM610V - and by the freight and customs share of the consignment. At 23 kg gross the TFM610V consolidates cheaply with a larger machine order.
What is the lead time on a TFM610V?
The TFM610V is built to order and the delivery date is confirmed in writing with the quotation. We publish no standing lead time for the TFM610V, because it follows HOLZMANN's production slot and the consolidation of the shipment.
What does installing a TFM610V involve?
Installing a TFM610V means putting it on a bench solid enough for a 21 kg machine with a 1035 x 690 x 555 mm working envelope, plugging the 2 m cable into a 230 V / 50 Hz socket, and running a 100 mm hose from the TFM610V to a chip extractor. There is no levelling, no anchoring and no three-phase connection.
What tooling should be budgeted with a TFM610V?
Router cutters are budgeted separately for the TFM610V, and the limit to work to is 50 mm maximum tool diameter above and below the table - larger shaper heads cannot be fitted. Budget a chip extractor for the 100 mm port as well, since the TFM610V has the spigot but no collector of its own.
