OFT102 — HOLZMANN OFT102 Router Table 1 / 4

HOLZMANN

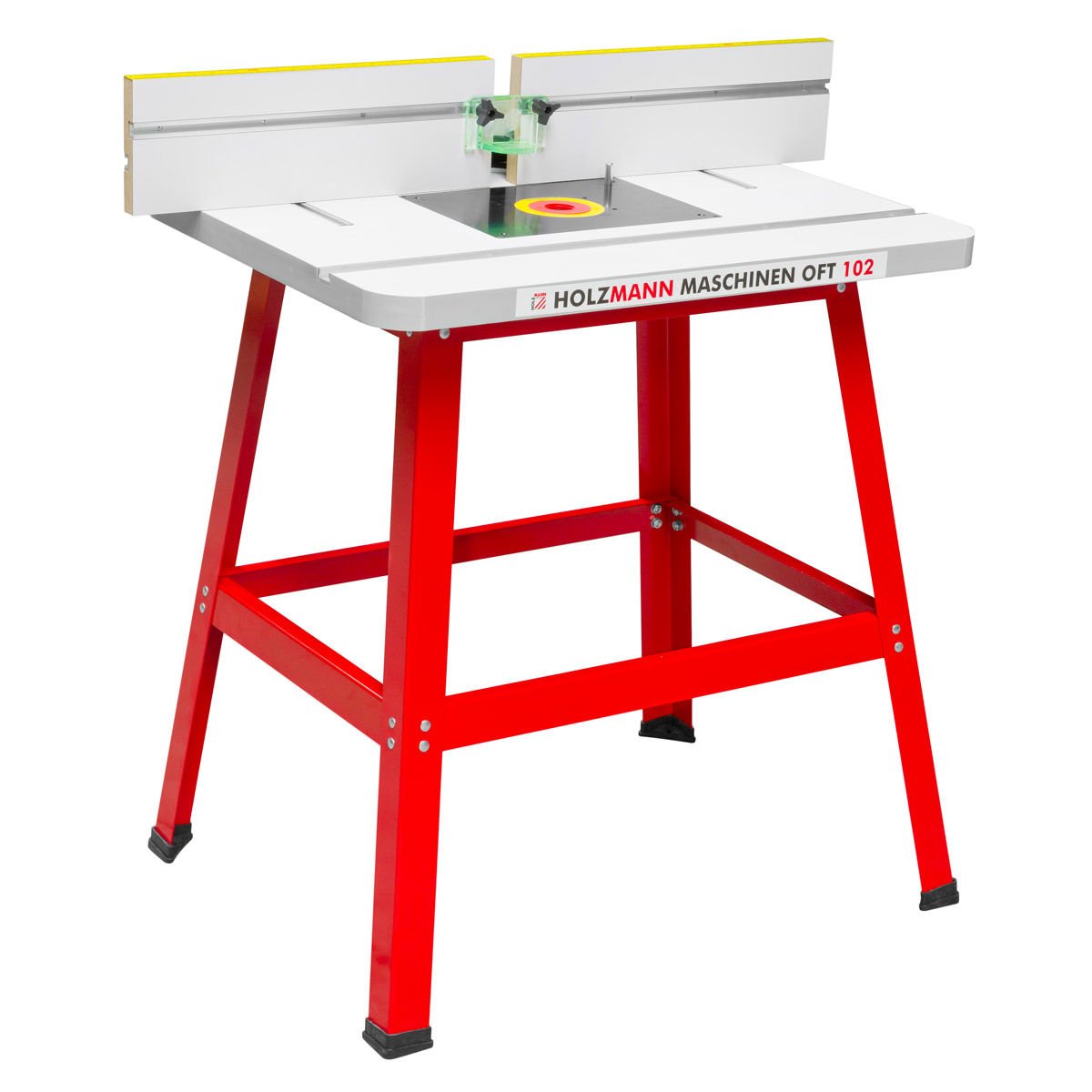

HOLZMANN OFT102 Router Table

OFT102

The OFT102 supplies no motor at all - it is the 810 x 610 mm worktop, standing at 880 mm, that turns a hand router you already own into a stationary shaper. Extraction connects at 60/70/75 mm. At 29 kg net it can be lifted aside between jobs, and it ships flat at 31 kg gross in a 980 x 650 x 120 mm carton.

ფასი მოთხოვნით

Price is driven by quantity, by whether a router and cutter set are taken with the table, and by the freight and customs share: the OFT102 ships flat at 31 kg gross, which is cheap to consolidate with other machines.

ფასის მოთხოვნა

What the HOLZMANN OFT102 router table is for

The OFT102 converts a hand-held router into a stationary shaping machine. Instead of pushing a router over the workpiece, the operator mounts the router beneath the 810 x 610 mm worktop of the OFT102 and feeds the workpiece over the cutter against a fence. Edge profiles, rebates, grooves, small tongue-and-groove joints and repeated mouldings on narrow strips all become faster, safer and far more repeatable on the OFT102 than they are freehand. Working height is 880 mm, which puts the cut at a comfortable standing position for a full shift.

Who should buy the OFT102

The OFT102 suits small joineries, cabinet installers and workshops that already own a good hand router and are not yet ready for a full spindle shaper. The economics are the argument: the OFT102 is a 29 kg table, not a 150 kg cast iron machine, so a workshop gains stationary routing for a fraction of the cost and none of the floor space. Site-based fitters and furniture repair shops in Tbilisi and the regions use exactly this kind of table as their first step out of hand tools.

How the OFT102 differs from a spindle shaper

The OFT102 is not a spindle shaper and should not be sold as one. A HOLZMANN FS-series shaper carries its own motor, a 30 mm spindle and a heavy cast iron table, and takes large profile cutters. The OFT102 has no motor of its own at all: cutting power, speed and collet size are whatever the customer’s hand router provides, and tooling is limited to router bits, not shaper heads. What the OFT102 does give is the geometry, the fence and the support surface, which is the difference between a rough freehand profile and a clean one.

Extraction and delivery of the OFT102

The OFT102 has a dust extraction connection sized 60/70/75 mm, so it fits the common hose diameters of small workshop extractors and shop vacuums rather than a 100 mm industrial trunk line. Table-mounted routing throws chips directly at the operator, so connecting extraction to the OFT102 is not optional in practice. The OFT102 is delivered at 31 kg gross, flat packed at 980 x 650 x 120 mm, and needs assembly and a router of the buyer’s choice before first use.

ძირითადი მახასიათებლები

  • No drive of its own: the OFT102 carries your existing hand router, where the TFM610V brings its own 1500 W spindle
  • 810 x 610 mm worktop - 240 mm wider and 250 mm deeper than the 610 x 360 mm TFM610V table
  • 880 mm table height, set for standing work, against 310 mm for the benchtop TFM610V
  • Stepped extraction connection at 60/70/75 mm to suit vacuum and small chip-extractor hoses
  • 29 kg net, so one person moves it aside when floor space is needed
  • Ships flat, 31 kg gross in a 980 x 650 x 120 mm carton, and is assembled on site

ტექნიკური მახასიათებლები

Table size
810 x 610 mm
Table height
880 mm
Dust collector port
60 / 70 / 75 mm
Net weight
29 kg
Gross weight
31 kg
EAN code
9120058376238

უპირატესობები

  • Gives stationary, fence-guided routing on an 810 x 610 mm surface for a fraction of a shaper's cost
  • One person can lift and move the 29 kg OFT102, so no permanent floor space is committed
  • 60/70/75 mm extraction connection works with a shop vacuum already in the workshop

გასათვალისწინებელი

  • No motor supplied: the OFT102 is useless without the buyer's own hand router
  • Router bits only, no 30 mm bore shaper cutters, so profile capacity is limited
  • Small 60/70/75 mm extraction port cannot be tied into a 100 mm workshop trunk line without an adapter

ხშირად დასმული კითხვები

Does the HOLZMANN OFT102 need a 230V or 400V connection?
The HOLZMANN OFT102 needs no power connection of its own, because the OFT102 is a router table with no motor. Power comes from the hand router mounted under the OFT102, which in practice is a 230V single-phase tool. No 400V three-phase supply is ever required for the OFT102.
What does the HOLZMANN OFT102 not do?
The HOLZMANN OFT102 does not cut on its own: the OFT102 has no motor, no spindle and no cutter in delivery. The OFT102 also does not accept 30 mm bore shaper cutter heads, does not tilt, and does not feed the workpiece, so it is not a substitute for a HOLZMANN FS-series spindle shaper on production profile work.
Which routers fit the HOLZMANN OFT102?
The HOLZMANN OFT102 is designed to carry a standard hand-held plunge router beneath its 810 x 610 mm worktop. Because router base plates differ between brands, the mounting pattern of the specific router should be checked against the OFT102 insert plate before purchase.
What extraction hose fits the HOLZMANN OFT102?
The HOLZMANN OFT102 has a 60/70/75 mm dust extraction connection, which suits a shop vacuum or a small chip extractor rather than a 100 mm industrial ducting run. Extraction should always be connected to the OFT102, since a table-mounted router throws chips upward toward the operator.
How much space does the HOLZMANN OFT102 take?
The HOLZMANN OFT102 has an 810 x 610 mm worktop at 880 mm height and weighs 29 kg net. That makes the OFT102 light enough for one person to move aside between jobs, which is why it works in workshops that cannot dedicate permanent floor space to a shaper.
Is the HOLZMANN OFT102 delivered assembled?
The HOLZMANN OFT102 arrives flat packed at 31 kg gross in a 980 x 650 x 120 mm carton and requires assembly. Beyond assembly, the OFT102 needs the buyer's own hand router and router bits before the first cut can be made.
What drives the price of a HOLZMANN OFT102 router table?
The OFT102 is quoted on enquiry rather than sold at a fixed list price. Quantity, whether a hand router and a cutter set are bought with the OFT102, and the freight and customs share of the consignment are the three drivers. The OFT102 ships flat at 31 kg gross in a 980 x 650 x 120 mm carton, so its transport cost falls sharply when it travels with other machines.
How long does an OFT102 take to arrive?
The OFT102 is built to order and its delivery date is confirmed in writing with the quotation. No standing lead time is published for the OFT102, because the date follows HOLZMANN's production and the consolidation of the shipment.
What does commissioning an OFT102 involve?
Commissioning an OFT102 means assembling it from the flat pack, standing it level at its 880 mm working height, mounting your router underneath and running a 60, 70 or 75 mm hose to extraction. No wiring is done to the OFT102 itself, because the table has no motor - the router's own plug is the only electrical connection.
What has to be budgeted separately with an OFT102?
A hand router is the first separate item, since the OFT102 has no motor - and its base plate should be checked against the OFT102 insert before ordering, because router bases differ between makers. Then budget router cutters, a shop vacuum or small chip extractor for the 60/70/75 mm port, and hold-downs or featherboards, none of which are stated in the OFT102 delivery.
