NETMAK FR 2100 SA Reinforced Carriage Spindle Moulder

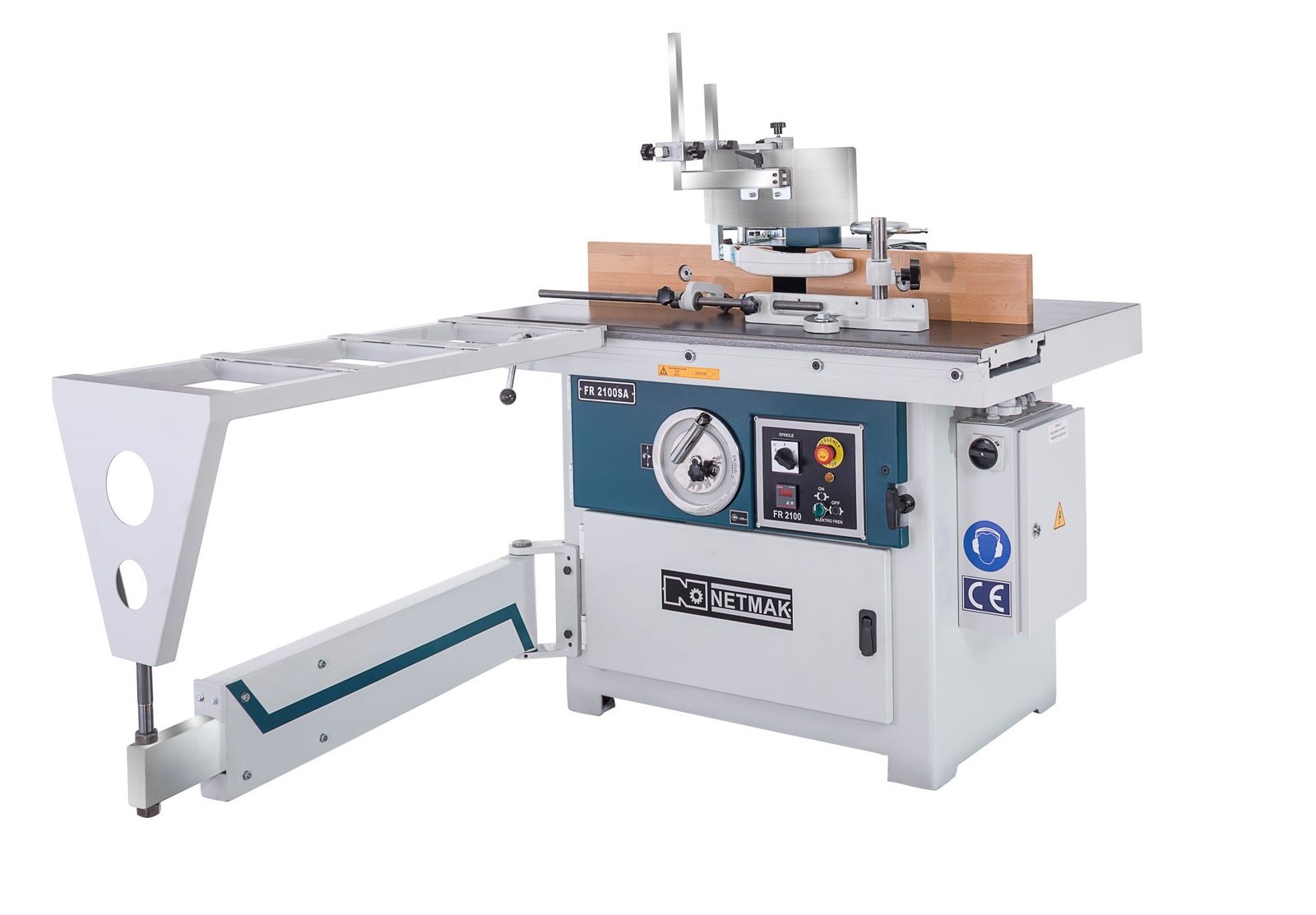

FR 2100 SA Takviye Arabalı Freze Makinası — NETMAK FR 2100 SA Reinforced Carriage Spindle Moulder

Heaviest carriage machine in the FR 2100 range at 695 kg, the NETMAK FR 2100 SA reinforces the carriage of the 680 kg FR 2100 S for deep profiles taken in solid hardwood. A 7.5 kW (10 HP) three-speed motor turns the 30-35 mm spindle with 150 mm stroke under a 1200 x 800 mm table.

ძრავის სიმძლავრე
7.5 kW
მაგიდის ზომა
1200 x 800 mm
მაგიდის სიმაღლე
850 mm
შპინდელი
30-35 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

On the FR 2100 SA the price is moved by the reinforced-carriage build itself, the spindle bore chosen (30 mm or 35 mm), the heavy profile-head package that deep hardwood work demands, any power feeder and extraction, and delivery with rigging of 695 kg into the workshop.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the FR 2100 SA does

The FR 2100 SA is the heaviest carriage machine in NETMAK’s FR 2100 spindle moulder range, and reinforcement is what the SA designation buys. The 1200 x 800 mm table rides on a strengthened carriage assembly that takes the FR 2100 SA to 695 kg and a 970 mm overall width — 70 mm wider and 15 kg heavier than the standard FR 2100 S — with the extra structure placed where a long, heavy component overhangs the table. Behind that sits the range’s 7.5 kW / 10 HP motor with three spindle speeds of 4000, 6000 and 8000 rpm, a 30-35 mm spindle and 150 mm of vertical travel shown on a digital indicator.

Who the FR 2100 SA suits

The FR 2100 SA is specified for door and window manufacturers running the same profile across large batches of heavy solid timber. When an entrance-door stile is clamped near the end of the carriage and a deep profile is taken in one pass, the load on the carriage is at its worst, and that is the case the FR 2100 SA is built for. A workshop making lighter cabinet frames will not load the reinforcement enough to justify it.

How the FR 2100 SA compares with its siblings

Above the table the FR 2100 SA is identical to the FR 2100 S — the same table size, spindle, collet and motor — with the difference confined to the carriage structure, weight and width. Compared with the FR 2000 SA, the FR 2100 SA is a substantially bigger machine: 695 kg against 590 kg, 7.5 kW against 5.5 kW, a 1200 x 800 mm table against 1000 x 750 mm, and a 30-35 mm spindle against a fixed 30 mm, at the cost of a lower 8000 rpm top speed. For full-length rails, the FR 2100 I.T. and its 2200 x 840 mm table takes over from the FR 2100 SA.

What is supplied with the FR 2100 SA

The FR 2100 SA ships with the reinforced carriage, a curved-workpiece jig, an electromechanical spindle brake, a guard-cover safety interlock circuit and a digital height indicator on a monobloc steel body. Cutter heads, knives, feeders and extraction are ordered separately.

ძირითადი მახასიათებლები

  • Reinforced sliding carriage taking net weight to 695 kg, the heaviest carriage in the FR 2100 range
  • 7.5 kW / 10 HP motor with three spindle speeds: 4000, 6000 and 8000 rpm
  • 1200 x 800 mm table at 850 mm working height, 970 x 1250 x 1450 mm overall
  • Spindle available in 30 mm or 35 mm diameter with 150 mm vertical stroke
  • 14 mm collet for router-type cutters and a Morse No. 5 (5 MK) spindle taper
  • Monobloc steel body with an electromechanical spindle brake
  • Guard-cover interlock circuit that isolates the spindle when the cover is opened
  • Digital spindle height indicator and curved-workpiece jig supplied as standard

ტექნიკური მახასიათებლები

Product code
FR 2100 SA
Machine type
Reinforced sliding carriage spindle moulder (Takviye Arabalı Freze Makinası)
Table size
1200 x 800 mm
Table type
Reinforced sliding carriage
Table height
850 mm
Spindle diameter
30-35 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
10 HP / 7.5 kW
Spindle speeds
4000-6000-8000 rpm
Overall dimensions
970 x 1250 x 1450 mm
Net weight
695 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • 695 kg with a reinforced carriage — the most rigid setup in the FR 2100 range for heavy stiles
  • 7.5 kW motor and 30-35 mm spindle take deep profiles with large bore-mounted heads
  • Curved-workpiece jig, digital height readout, spindle brake and guard interlock all standard

გასათვალისწინებელი

  • 970 x 1250 mm footprint plus carriage travel makes it the most space-hungry of the FR 2100 carriage models
  • 8000 rpm ceiling rules out very small-diameter cutters that want 10,000 rpm
  • Spindle height adjustment is manual, and tooling, feeder and extraction are all extra

ხშირად დასმული კითხვები

What does the reinforced carriage add on the FR 2100 SA?
The reinforced carriage on the FR 2100 SA raises net weight to 695 kg against 680 kg for the FR 2100 S, and overall width to 970 mm against 900 mm, while table size, spindle and motor stay identical. The benefit of the FR 2100 SA is carriage rigidity under heavy, overhanging stock rather than any change in cutting capacity.
What power supply does the FR 2100 SA need?
The FR 2100 SA is driven by a 7.5 kW / 10 HP three-speed motor. NETMAK does not publish supply voltage or phase for the FR 2100 SA, and a motor of this rating is an industrial three-phase item in practice, so confirm the available supply in your workshop with us before ordering the FR 2100 SA.
What tooling does the FR 2100 SA take?
The FR 2100 SA accepts bore-mounted profile heads on its 30-35 mm spindle and router-type cutters in its 14 mm collet, with a Morse No. 5 spindle taper. Cutter heads, knives and limiters are not included with the FR 2100 SA and must be specified to the profiles you intend to cut.
How much floor space does the FR 2100 SA need?
The FR 2100 SA measures 970 x 1250 x 1450 mm and weighs 695 kg, making it the largest-footprint machine of the FR 2100 carriage models. Around the FR 2100 SA, allow clear travel for the carriage, run-off for the stock length and rear access for extraction and power.
Can the FR 2100 SA handle two-metre door rails?
Not in a fully supported pass. The FR 2100 SA has a 1200 x 800 mm table, so two-metre components overhang considerably and need roller stands. For routine full-length rail work the FR 2100 I.T., with a 2200 x 840 mm extension table, is the correct machine rather than the FR 2100 SA.
Is a dust extractor supplied with the FR 2100 SA?
No. The FR 2100 SA does not include dust extraction, and extraction port sizes are not stated on the published specification. A 7.5 kW moulder taking deep profiles produces heavy chip volumes, so an extraction unit should be quoted alongside the FR 2100 SA.
How much does the NETMAK FR 2100 SA cost?
The NETMAK FR 2100 SA is supplied on quotation, not at a fixed price. Cost for an FR 2100 SA is shaped by the reinforced-carriage specification, the spindle bore chosen (30 mm or 35 mm), the profile-head package for deep hardwood cuts, any power feeder and extraction, and delivery with rigging. Quoting the FR 2100 SA next to the standard-carriage FR 2100 S shows exactly what the reinforcement costs.
Is the FR 2100 SA available from stock, and what is the lead time?
The FR 2100 SA is manufactured to order by NETMAK rather than held in stock, so availability depends on the production slot and on the tooling package specified with the machine. The lead time that applies to an FR 2100 SA is stated on the written quotation.
What does installing and commissioning an FR 2100 SA require?
Installing an FR 2100 SA means getting 695 kg through the workshop door onto a solid, level floor with clearance around a 970 x 1250 mm footprint for the carriage to travel, then levelling so the reinforced carriage runs true, three-phase connection by a qualified electrician and extraction connected to the hood. Commissioning of the FR 2100 SA is quoted as a separate item, so confirm at enquiry whether it is wanted.
What extras should be budgeted with an FR 2100 SA?
An FR 2100 SA includes a 14 mm collet and the curved-workpiece jig but no cutters, and the heavy profile heads suited to a 7.5 kW machine are a real budget line. Allow for bore-matched heads, spare knives and sharpening, carriage clamps and stops for repeat components, a power feeder, and extraction sized for continuous work on the FR 2100 SA.
