FS160SOLID — HOLZMANN FS160SOLID Compact Spindle Shaper

HOLZMANN

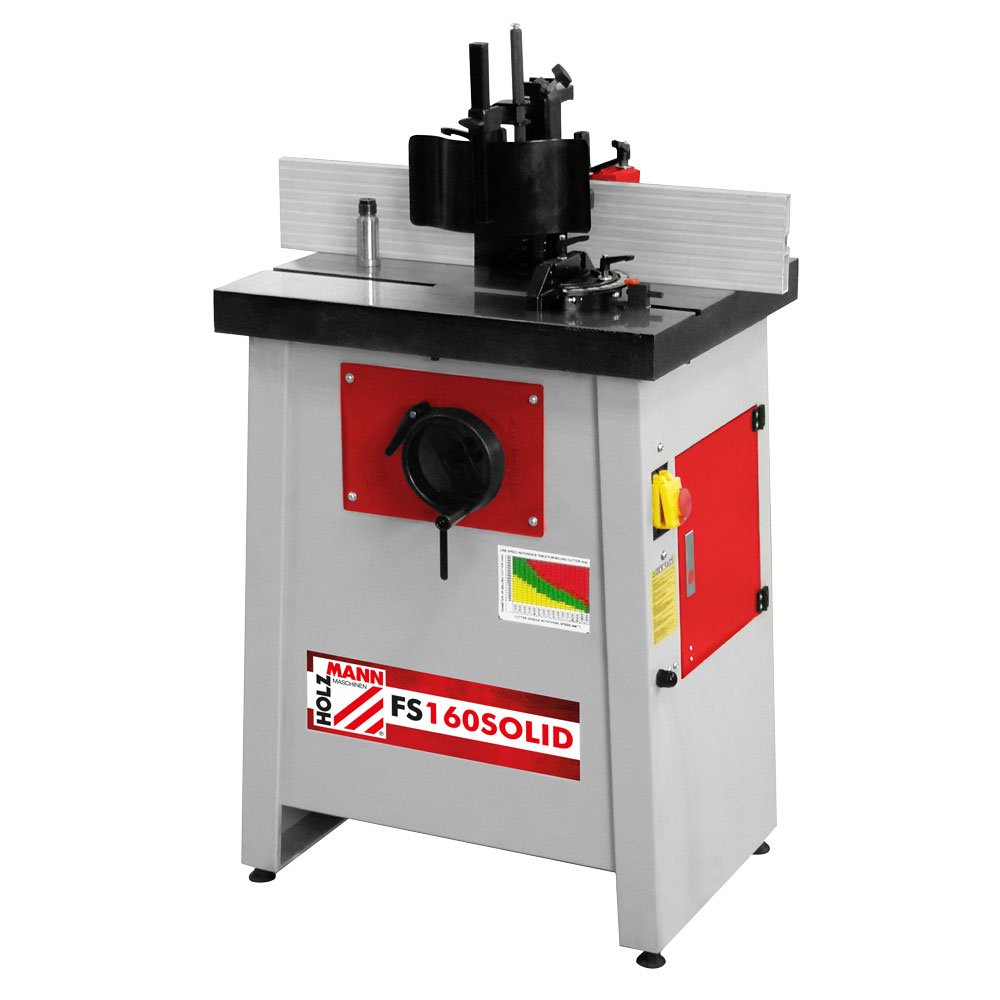

HOLZMANN FS160SOLID Compact Spindle Shaper

FS160SOLID

Two spindles ship with the FS160SOLID: the 30 mm shaper spindle and an exchangeable spindle carrying a 12 mm router collet, so one 110 kg cast iron machine covers shaper heads and router bits. Speeds run 1400/4000/6000/9000 rpm from a 2200 W S1 motor over a 620 x 510 mm table at 860 mm.

ფასი მოთხოვნით

The FS160SOLID price moves with the voltage variant ordered, the mix of 30 mm-bore shaper heads and 12 mm-shank router bits specified for the two supplied spindles, any additional collets or spindles, a power feeder if fitted, and freight for a 126 kg crate.

ფასის მოთხოვნა

Two machines in one footprint

The defining feature of the FS160SOLID is the exchangeable spindle. In its standard form the FS160SOLID runs a 30 mm shaper spindle for cutter heads up to 160 mm diameter above the table; swap in the supplied second spindle with its 12 mm router collet and the same machine drives ordinary router bits. For a small Georgian joinery that means one 110 kg machine covers both the heavy profile work usually reserved for a shaper and the light routing usually done on a bench-mounted router table.

Capacity of the HOLZMANN FS160SOLID

The FS160SOLID is built on a torsion-resistant massive cast iron table of 620 x 510 mm at 860 mm working height, with overall dimensions of 640 x 660 x 1250 mm. The dynamically balanced spindle runs at four speeds of 1400, 4000, 6000 and 9000 rpm with 100 mm of stroke and a maximum clamping height of 105 mm. Through a 160 mm table opening the FS160SOLID accepts cutters up to 150 mm diameter below the table and 160 mm above it, driven by a 2200 W S1 motor. Extraction connects at 100 mm.

FS160SOLID or FS200

The FS160SOLID is the space-constrained choice and the FS200 is the capacity choice. The FS200 offers a larger 690 x 480 mm table, a 200 mm table opening, 190 mm cutter diameter and a 2800 W S1 motor at 150 kg; the FS160SOLID accepts smaller tooling on a 160 mm opening with a 2200 W motor at 110 kg, but adds the router collet spindle and takes up less room. A workshop whose limit is floor area, not tooling size, should choose the FS160SOLID. A workshop running large panel-raising heads should choose the FS200.

What is included with the FS160SOLID

Delivery of the FS160SOLID includes the spindle shaper hood, a mitre fence, and the changeable spindle with its 12 mm router collet. The machine is shipped at 126 kg gross. As with every shaper, the FS160SOLID must be run with a chip extractor on its 100 mm port, and hearing protection is required: the FS160SOLID is rated at 103 dB(A) sound power and 89.5 dB(A) sound pressure.

ძირითადი მახასიათებლები

  • Two spindles in the delivery: the 30 mm shaper spindle and an exchangeable spindle with 12 mm router collet - neither the FS200 nor the FS200S is supplied that way
  • 2200 W S1 motor, 600 W below the FS200 pair and matched to the smaller 160 mm table opening
  • Speed steps start at 1400 rpm, below the 1800 rpm floor of the FS200 and FS200S, then 4000, 6000 and 9000 rpm
  • 620 x 510 mm cast iron table at 860 mm - a 40 mm lower working height than the 900 mm FS200 and FS200S tables
  • 160 mm table opening: 160 mm maximum tool diameter above the table, 150 mm below it
  • 110 kg net / 126 kg gross inside a 640 x 660 x 1250 mm footprint - the FS shaper for a shop with no floor to spare
  • HOLZMANN publishes 103 dB(A) sound power and 89,5 dB(A) sound pressure for the FS160SOLID
  • Delivered with spindle shaper hood, mitre fence and the changeable spindle + 12 mm router collet; Ø 100 mm extraction port

ტექნიკური მახასიათებლები

Motor power S1
2200 W
Voltage
230V / 50Hz (400V variant also available)
Table size
620 x 510 mm
Table height
860 mm
Dust collector port
100 mm
Total dimensions
640 x 660 x 1250 mm
Milling spindle diameter
30 mm
Milling spindle speed
1400 / 4000 / 6000 / 9000 rpm
Spindle stroke
100 mm
Max. clamping height
105 mm
Table opening
160 mm
Max. tool diameter below table
150 mm
Max. tool diameter above table
160 mm
Sound power level
103 dB(A)
Sound pressure level
89.5 dB(A)
Net weight
110 kg
Gross weight
126 kg
Included in delivery
Spindle shaper hood, mitre fence, changeable spindle + 12 mm router collet
EAN code (FS160SOLID_230V)
9120058377983
EAN code (FS160SOLID_400V)
9120058377976

უპირატესობები

  • Shaper cutter heads and 12 mm router bits on one machine, thanks to the included exchangeable spindle
  • 110 kg of massive cast iron in a 640 x 660 mm footprint: shaper rigidity without shaper floor space
  • Four speeds from 1400 to 9000 rpm suit both large heads and small router bits

გასათვალისწინებელი

  • 160 mm table opening and 150 mm under-table cutter limit rule out large panel-raising heads
  • Fixed vertical spindle with no tilt and no sliding table in standard delivery
  • Hand feed only, and at 103 dB(A) sound power the FS160SOLID is loud in a small closed shop

ხშირად დასმული კითხვები

Is the HOLZMANN FS160SOLID available in 230V and 400V?
The HOLZMANN FS160SOLID is one machine offered in two variants: FS160SOLID_230V for a single-phase 230V / 50Hz supply and FS160SOLID_400V for a three-phase 400V supply. A small workshop without an industrial connection takes the 230V FS160SOLID; a shop with a three-phase board should take the 400V FS160SOLID for smoother starting under load. Both FS160SOLID variants are rated 2200 W S1.
What does the HOLZMANN FS160SOLID not do?
HOLZMANN publishes no spindle-swivel figure and no sliding table for the FS160SOLID: the FS160SOLID specification lists a vertical 30 mm spindle with 100 mm stroke, and the delivery list covers only a spindle shaper hood, a mitre fence and the changeable spindle with 12 mm router collet. Plan angled profiles on the FS160SOLID around an angled cutter, and confirm any sliding-table or tenoning requirement with us before ordering. The FS160SOLID also takes tools no larger than 160 mm above the table and 150 mm below it, and feeds by hand unless a power feeder is added.
Can the HOLZMANN FS160SOLID use ordinary router bits?
The HOLZMANN FS160SOLID can use ordinary router bits, because a changeable spindle with a 12 mm router collet is part of FS160SOLID delivery. Fitting that spindle turns the FS160SOLID into a heavy cast iron router table; fitting the 30 mm spindle returns it to shaper cutter heads.
How much space does the HOLZMANN FS160SOLID need?
The HOLZMANN FS160SOLID measures 640 x 660 x 1250 mm overall with a 620 x 510 mm table at 860 mm height, and weighs 110 kg net. That compact footprint is the main reason to choose the FS160SOLID over a larger shaper, though clear space is still needed in front and behind for the workpiece.
What cutter sizes fit the HOLZMANN FS160SOLID?
The HOLZMANN FS160SOLID takes tools up to 160 mm diameter above the table and 150 mm below it, through a 160 mm table opening, on a 30 mm spindle with 105 mm maximum clamping height. Tooling bought for a larger shaper will not necessarily pass through the FS160SOLID table opening.
Does the HOLZMANN FS160SOLID need extraction and hearing protection?
The HOLZMANN FS160SOLID requires a chip extractor on its 100 mm port and hearing protection at the machine. The FS160SOLID is rated at 103 dB(A) sound power and 89.5 dB(A) sound pressure, which is above the level at which hearing protection becomes mandatory in a workshop.
What does a HOLZMANN FS160SOLID cost?
The HOLZMANN FS160SOLID is quoted rather than shelf-priced. The FS160SOLID figure is driven by the voltage variant (FS160SOLID_230V or FS160SOLID_400V), by the tooling package - 30 mm-bore cutter heads for the shaper spindle and 12 mm-shank router bits for the collet spindle - by any extra collets or spindles, by whether a power feeder is added, and by freight for a 126 kg crate. Tell us the mix of shaper and router work and the FS160SOLID is quoted accordingly.
How long does delivery of a HOLZMANN FS160SOLID take?
The HOLZMANN FS160SOLID is built to order, so the FS160SOLID lead time is confirmed at quotation rather than quoted as a standing figure. It depends on the voltage variant, on the HOLZMANN production slot and on the shipping route into Georgia, and it is given with the price when you request a quote.
What is involved in installing a HOLZMANN FS160SOLID?
Installing a HOLZMANN FS160SOLID is simpler than a full-size shaper: a 126 kg crate is unloaded, the 110 kg machine is placed on level concrete inside a 640 x 660 x 1250 mm footprint with feed clearance in front and behind the 620 x 510 mm table, the 230V or 400V supply is connected to match the variant, spindle rotation is checked, and the Ø 100 mm port is connected to a chip extractor. Hearing protection is needed at the FS160SOLID, which is published at 89,5 dB(A) sound pressure.
What tooling should be budgeted separately with a HOLZMANN FS160SOLID?
Budget FS160SOLID tooling separately. Because the FS160SOLID comes with both a 30 mm shaper spindle and a 12 mm router-collet spindle, plan for two tooling families: 30 mm-bore cutter heads (up to 160 mm diameter above the table, 150 mm below) with spacer and spindle rings, and 12 mm-shank router bits for the collet spindle. Push devices, pressure guards and an optional power feeder are the other lines to price alongside the FS160SOLID.
