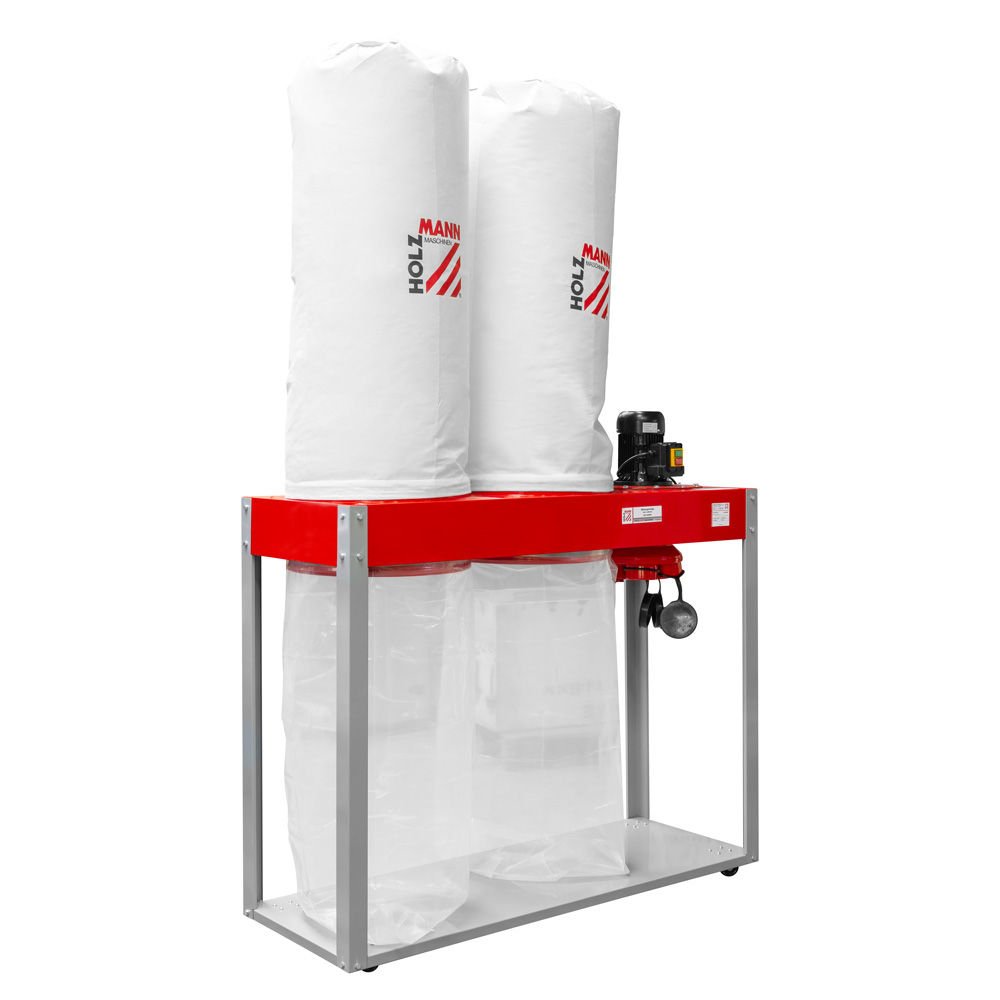

HOLZMANN ABS5000SE Twin-Bag Dust Collector – 5000 m³/h, 2200 W
ABS5000SE
Four equal Ø100 mm branches, three of them cappable, make the ABS5000SE the direct choice where every machine hood in the shop is already 100 mm. A 2200 W motor at 2950 min-1 and a 330 mm fan wheel give 5000 m³/h at 2600 Pa, filtered through two ø500 / 1200 mm sleeves. 400V / 50Hz only, 60 kg net, 2470 mm tall.
Price on the ABS5000SE turns on the three-phase supply work at the chosen position, the Ø100 mm hose and blast gates for up to four branches, spare filter sleeves and bags, delivery, and duty and VAT.
ფასის მოთხოვნაWhat the HOLZMANN ABS5000SE does
The HOLZMANN ABS5000SE is the twin-bag step of the HOLZMANN extraction range, built for a workshop where several machines are piped into one central unit. A 2200 W S1 motor drives a 330 mm fan wheel at 2950 min-1 and produces 5000 m³/h of airflow at 2600 Pa, drawn through a distributor with four Ø100 mm connections. Two filter sleeves and two chip bags share the load, which is why the ABS5000SE holds its rated airflow longer between bag changes than a single-bag machine of the same nominal class.
Who the ABS5000SE suits
The ABS5000SE suits established joineries, door manufacturers and furniture workshops that run a planer-thicknesser, a spindle moulder, a panel saw and a sander in the same room. The unit is 1540 x 560 x 2470 mm and 60 kg net, so the ABS5000SE takes a wall position rather than being wheeled about constantly, even though four casters and the moving device are supplied. Sound pressure is below 85 dB(A) and the cable is 1.75 m long.
How the ABS5000SE differs from the ABS3000SE and ABS7500MF
The ABS5000SE is the twin-bag version of the single-bag ABS3000SE: 5000 instead of 3000 m³/h, 2600 instead of 2200 Pa, a 330 mm instead of 300 mm fan wheel, and a four-way rather than a three-way distributor. The trade-off is that the ABS5000SE is offered only as a 400V three-phase machine, while the ABS3000SE and ABS4000 also exist in 230V. Above the ABS5000SE, the ABS7500MF moves to a 5500 W motor, 7500 m³/h and a 35-bag multi-filter tower for full production shops.
What is included with the ABS5000SE
Delivery of the ABS5000SE covers the moving device, the filter and chip bag set (two filter sleeves ø500 / 1200 mm, chip bags ø500 x 850 mm) and the four-way distributor with 4 x Ø100 mm ports including three sealing caps, so unused branches can be closed off to keep suction on the working machine.
ძირითადი მახასიათებლები
- Distributor with four equal Ø100 mm branches and three sealing caps for unused ports
- Two filter sleeves of ø500 / 1200 mm, double the filter run of the single-sleeve ABS3000SE
- 5000 m³/h at 2600 Pa from a 2200 W S1 motor at 2950 min-1
- 330 mm fan wheel; 1.75 m mains cable
- Chip bag ø500 mm diameter x 850 mm long
- 1540 x 560 x 2470 mm - the tallest of the SE uprights, needing 2.5 m of clear height
- 400V / 50Hz only; there is no single-phase ABS5000SE
- 60 kg net with sound pressure below 85 dB(A)
ტექნიკური მახასიათებლები
- Motor power S1
- 2200 W
- Voltage
- 400V / 50Hz
- Speed
- 2950 min-1
- Cable length
- 1.75 m
- Total dimensions
- 1540 x 560 x 2470 mm
- Suction performance
- 5000 m³/h
- Chip bag diameter
- 500 mm
- Chip bag length
- 850 mm
- Fan wheel diameter
- 330 mm
- Outputs
- 4 x Ø100 mm
- Hypotension (static pressure)
- 2600 Pa
- Sound pressure level
- <85 dB(A)
- Net weight
- 60 kg
- Gross weight
- 64 kg
- EAN code
- 9120058376825
უპირატესობები
- 5000 m³/h at 2600 Pa with four connection points
- Twin filter and bag set holds performance under continuous duty
- Sealing caps supplied so unused branches stay closed
გასათვალისწინებელი
- 400V three-phase only — no 230V variant
- 2470 mm tall and 1.54 m wide, so it needs a fixed wall position
- Bag separation only, without cyclone or automatic filter cleaning
