HOLZMANN DBK1300 Copy Wood Turning Lathe (1300 mm, 230 V / 400 V)

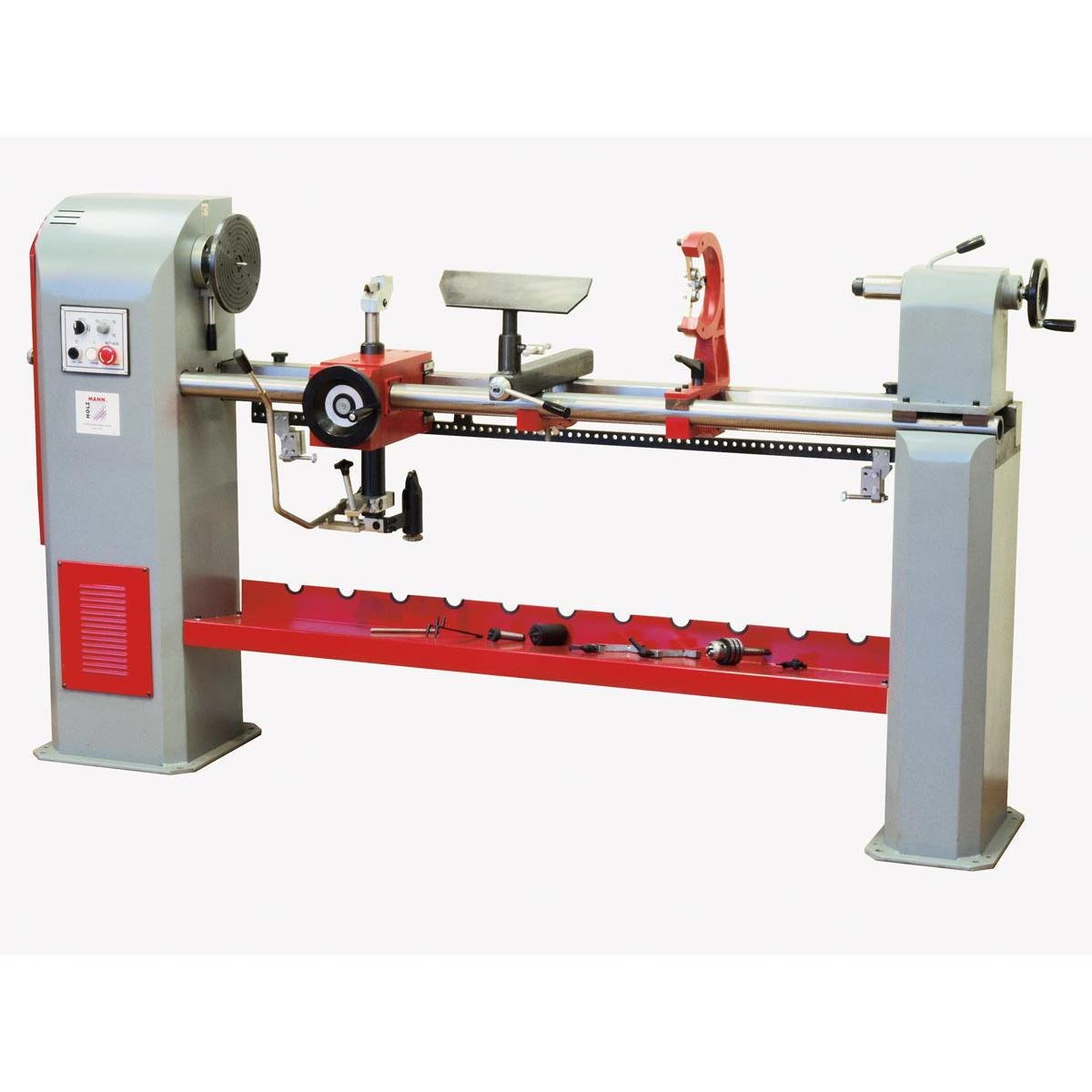

DBK1300 — HOLZMANN DBK1300 Copy Wood Turning Lathe (1300 mm, 230 V / 400 V) 1 / 3

Mains supply is the first thing that separates the DBK1300 from its stablemates: it is the only HOLZMANN copy lathe catalogued for single-phase, as DBK1300_230V beside DBK1300_400V. It takes 1300 mm between centres, copies a master up to 1100 mm long, and steps through 2800, 1950, 1000 and 500 min-1.

ძრავის სიმძლავრე
1.5 kW
ძაბვა
230V
შპინდელი
M33
წონა
202 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

DBK1300 pricing depends first on which variant is taken - DBK1300_230V or DBK1300_400V - then on freight and customs clearance for a 228 kg crate 2120 mm long, on order quantity, and on any M33 chucks, faceplates and turning tools added, since HOLZMANN does not itemise what the standard accessory package contains.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

A dedicated copy lathe, not a plain wood lathe

The HOLZMANN DBK1300 is a copy wood turning lathe: alongside normal freehand turning, the DBK1300 carries a copying attachment that traces a master workpiece or template and reproduces it, giving identical table legs, chair legs, balusters and stair spindles run after run. Copy capacity on the DBK1300 is 1100 mm in length and 50 mm in depth, with a copying centre height of 65 mm. Turning capacity is 1300 mm between centres at a 220 mm centre height, so the machine covers both the copy work and the one-off pieces a joinery still has to make.

Drive and speeds

The DBK1300 runs a 1500 W (S6) / 1100 W (S1) motor through four fixed spindle speeds: 2800, 1950, 1000 and 500 min-1, selected by belt position. Four steps are enough for the repeat production the DBK1300 is built for, where the speed is set once for a batch of legs and left alone. Workshops that need to change speed continuously within a cut should look at the DBK1300F instead, which is the same machine with stepless 0-3000 min-1 control.

Build and handling

Construction of the DBK1300 is a torsion-resistant steel frame weighing 202 kg net, which is the mass that keeps a 1.3 m blank from chattering. The tailstock uses a double guide system with 100 mm sleeve travel, and both tailstock and tool rest clamp one-handed through an eccentric clamp system. The tool rest is long, with a quick clamp and stepless height adjustment. The headstock spindle is M33 and the tailstock takes MT2 centres, so standard chucks, faceplates and drive centres fit.

Where the DBK1300 sits in the range

The DBK1300 is the mid-length model. The DBK1500 offers the same drive and copy system on a longer bed, 1500 mm between centres and 1300 mm of copy length, for stair newels and long balusters. The DBK1300 is the model to buy when 1100 mm of copy length covers the work and floor space matters.

Power supply and delivery

The DBK1300 is available as DBK1300_230V for single-phase workshops and DBK1300_400V for three-phase supply, and HOLZMANN includes various turning accessories in delivery. Gross shipping weight is 228 kg.

ძირითადი მახასიათებლები

  • Catalogued as DBK1300_230V as well as DBK1300_400V - the only copy lathe in this range with a single-phase option
  • Four belt-selected spindle speeds: 2800, 1950, 1000 and 500 min-1
  • 1300 mm between centres; the copy carriage traces a master up to 1100 mm long
  • 50 mm maximum copy depth at 65 mm copying centre height, 220 mm centre height over the bed
  • 1500 W (S6) / 1100 W (S1) motor, available wired for 230 V or for 400 V
  • 202 kg net and 228 kg gross on a torsion-resistant steel frame
  • M33 headstock spindle, MK2/MT2 tailstock taper and 100 mm sleeve travel on a double guide system
  • One-hand eccentric clamp for tailstock and tool rest; various turning accessories in delivery

ტექნიკური მახასიათებლები

Motor power S6
1500 W
Motor power S1
1100 W
Voltage
230 V (DBK1300_230V) / 400 V (DBK1300_400V)
Head stock spindle
M33
Tailstock taper
MK2/MT2
Lathe spindle speed
2800/1950/1000/500 min-1
Max. copy length
1100 mm
Max. copy depth
50 mm
Copying center height
65 mm
Tailstock sleeve travel
100 mm
Distance between centers
1300 mm
Center height
220 mm
Net weight
202 kg
Gross weight
228 kg
EAN code
9120039907475 (230 V) / 9120039901992 (400 V)

უპირატესობები

  • Genuine copy lathe: reproduces a master profile up to 1100 mm long for matched sets of legs and balusters
  • 202 kg torsion-resistant steel frame keeps long, heavy blanks stable during turning
  • Available in both 230 V and 400 V versions, unlike the DBK1300F and DBK1500

გასათვალისწინებელი

  • Only four fixed belt-change speeds — no stepless speed control, which the DBK1300F provides
  • Copy capacity is limited to 1100 mm length and 50 mm depth, so deeper profiles must be turned freehand
  • 202 kg net is heavy for a small joinery and needs a solid floor and two people to position

ხშირად დასმული კითხვები

Is the HOLZMANN DBK1300 available in 230 V or 400 V?
The HOLZMANN DBK1300 is offered in both: DBK1300_230V for single-phase workshops and DBK1300_400V for three-phase supply. Motor rating is 1500 W (S6) / 1100 W (S1) in either case, so a Georgian joinery on ordinary domestic mains can still run the DBK1300, while a shop with a 400 V connection gets the smoother three-phase drive.
What does the HOLZMANN DBK1300 not do?
The HOLZMANN DBK1300 does not carve, mill or sand, and it does not copy automatically without a master. The DBK1300 needs an existing master workpiece or template to trace, its copy capacity stops at 1100 mm long and 50 mm deep, and pieces longer than 1300 mm between centres do not fit the DBK1300 bed at all.
How does the copying system on the DBK1300 work?
The copying attachment of the HOLZMANN DBK1300 follows the profile of a master workpiece or template and transfers it to the blank, up to 1100 mm long, 50 mm deep and at a 65 mm copying centre height. This lets the DBK1300 produce a matched set of table legs, balusters or stair spindles to one identical profile rather than turning each by eye.
What is the difference between the DBK1300 and the DBK1300F?
The HOLZMANN DBK1300 has four fixed belt-selected spindle speeds — 2800, 1950, 1000 and 500 min-1 — while the DBK1300F offers stepless speed control from 0 to 3000 min-1. Copy and turning capacities are identical, but the DBK1300 is available in a 230 V version whereas the DBK1300F is 400 V only.
How large a workpiece can the DBK1300 turn?
The HOLZMANN DBK1300 turns workpieces up to 1300 mm between centres at a 220 mm centre height above the bed. For longer work such as stair newels or full-length balusters, the DBK1500 extends the DBK1300 geometry to 1500 mm between centres with 1300 mm of copy length.
What is included with the DBK1300 and how heavy is it?
HOLZMANN supplies the DBK1300 with various turning accessories in delivery. The DBK1300 weighs 202 kg net and 228 kg gross, so unloading and positioning need at least two people or a pallet truck, and the machine should stand on a solid floor.
What does a HOLZMANN DBK1300 copy lathe cost?
The DBK1300 is a capital machine sold by quotation. The price is moved by the variant chosen - DBK1300_230V or DBK1300_400V - by freight and customs clearance on a 228 kg crate 2120 mm long, by order quantity, and by any M33 chucks, faceplates and turning tooling added to the order. Tell us which supply you have and what you intend to turn, and we will quote the DBK1300 accordingly.
How long does it take to get a DBK1300?
The DBK1300 is built to order and the current lead time is confirmed at quotation rather than published in advance. Because the DBK1300 exists in two variants, confirm at enquiry whether you need the 230 V or the 400 V machine - we will state the position for that specific variant.
What is involved in installing and commissioning a DBK1300?
Installing a DBK1300 starts with the delivery route: a 2120 mm crate at 228 kg gross needs clear access. The machine then goes on a solid, level floor with room at both ends of the 1300 mm bed, is levelled so the copy carriage runs true, and is connected by an electrician to 230 V single phase or 400 V three phase depending on the variant. We quote installation and handover on the DBK1300 as a separate line.
What tooling should be budgeted separately with a DBK1300?
HOLZMANN includes various turning accessories with the DBK1300 but does not publish what they are, so budget separately for what your work actually needs: chucks and faceplates to suit the M33 headstock spindle, centres for the MK2/MT2 tailstock taper, turning tools, and spare copy-carriage cutters. A master workpiece or template also has to exist before the DBK1300 can copy anything - allow for making the first one.
