DKS21PRO — HOLZMANN DKS21PRO Scroll Saw (406 mm throat, 500-1700 min-1) 1 / 4

HOLZMANN

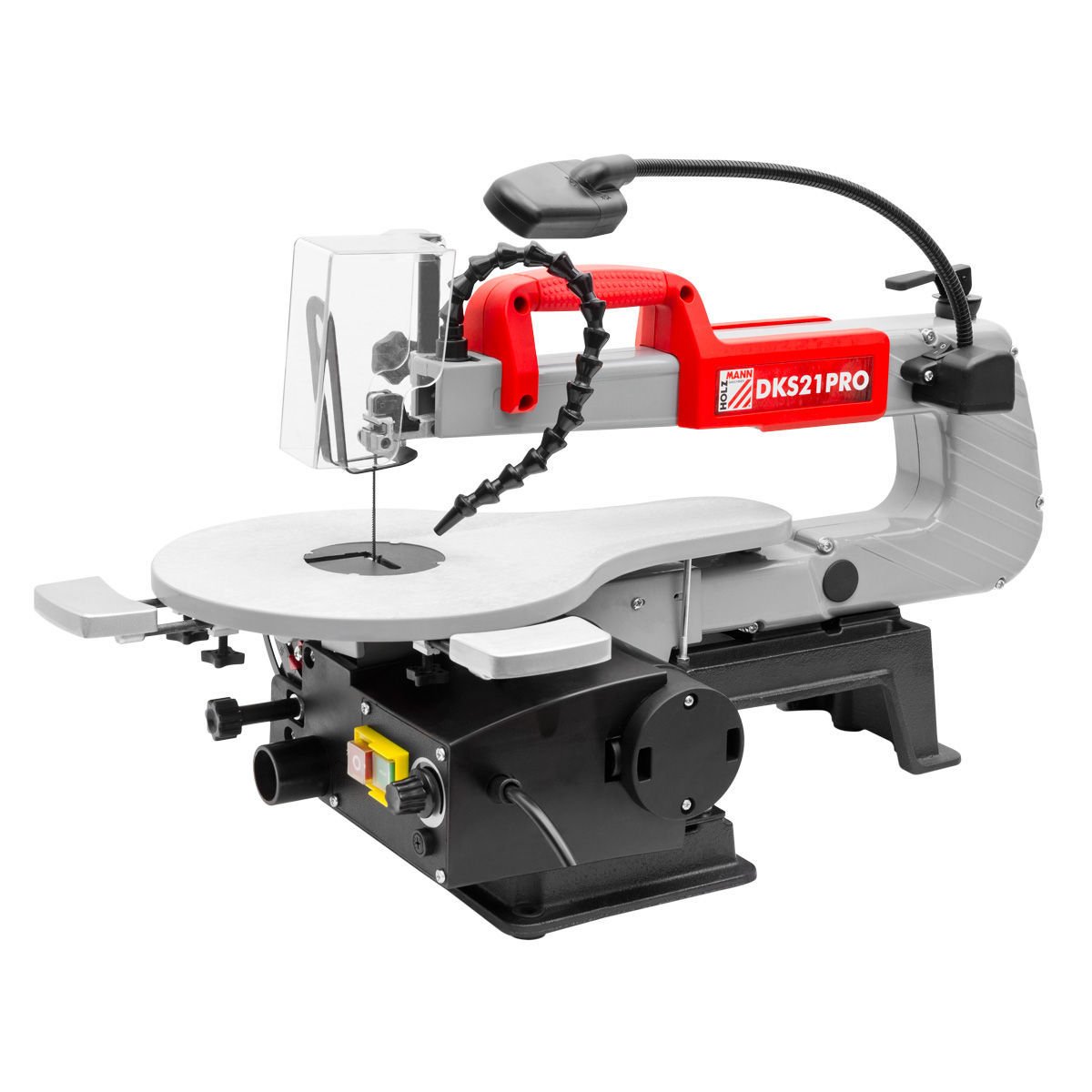

HOLZMANN DKS21PRO Scroll Saw (406 mm throat, 500-1700 min-1)

DKS21PRO

Throat depth decides what a scroll saw can reach, and the DKS21PRO gives 406 mm from blade to arm. Cutting height is 57 mm at 90 degrees and 27 mm at 45, the 120 W motor runs steplessly from 500 to 1700 min-1, and the 320 x 482 mm table tilts to 45 degrees. Plain 127 mm fret blades fit, and ten are included.

ფასი მოთხოვნით

Price moves with order quantity, with how many packs of 127 mm fret blades are taken with the saw, and with the freight and customs share of the consignment - the DKS21PRO ships at 14 kg gross, so it consolidates cheaply with other machines.

ფასის მოთხოვნა

What the HOLZMANN DKS21PRO does

The HOLZMANN DKS21PRO is a scroll saw for fine internal and contour cutting, with a 406 mm throat that decides how far a workpiece can be turned into the machine. The DKS21PRO cuts up to 57 mm deep at 90 degrees and 27 mm at 45 degrees, and the 120 W motor is regulated steplessly from 500 to 1700 min-1, which is what allows the same saw to run slowly in plexiglass and faster in soft wood. Beyond wood, the DKS21PRO is rated for plastic, metal, plexiglass and plaster.

Working comfort and accuracy

The HOLZMANN DKS21PRO holds accuracy through a stable throat arm, which keeps the machine steady under the cut. An integrated blower on the DKS21PRO clears dust from the cutting line so the marked line stays visible, and a 35 mm extraction port with plug removes the rest. The table measures 320 x 482 mm and tilts up to 45 degrees for bevelled cuts, and a work lamp and table extensions are part of the delivery. Sound pressure is measured at 66.9 dB(A), quiet enough for a workshop where other people are working.

Blades and consumables

The HOLZMANN DKS21PRO takes normal fret saw blades of 127 mm, so blades are bought anywhere rather than only from the machine supplier, and a saw blade adapter plus ten blades are supplied. Maximum blade elevation on the DKS21PRO is 21 mm.

Which workshops the DKS21PRO suits

The HOLZMANN DKS21PRO suits furniture workshops cutting decorative fretwork, joineries making templates and inlays, and model or sign makers. At 12 kg net the DKS21PRO is a bench machine and asks for a solid bench underneath, not a stationary foundation. Where a workshop instead needs to cut curves in thick stock or resaw, a bandsaw is the machine to look at rather than the DKS21PRO.

ძირითადი მახასიათებლები

  • 406 mm outreach from blade to throat arm - the reach figure that sets what size of panel can be worked
  • 57 mm cutting height at 90 degrees, dropping to 27 mm with the table tilted to 45
  • 120 W motor with stepless regulation across the full 500-1700 min-1 band, not fixed steps
  • Accepts ordinary 127 mm fret saw blades, so consumables are sourced locally; adapter and 10 blades supplied
  • 320 x 482 mm working table, tilting to 45 degrees
  • Integrated blower keeps the cut line visible; separate 35 mm dust port with plug
  • Rated for wood, plastic, metal, plexiglass and plaster
  • Quiet for a saw at 66.9 dB(A) sound pressure and 79.9 dB(A) sound power
  • 12 kg net with work lamp and table extensions in the delivery

ტექნიკური მახასიათებლები

Motor power S1
120 W
Voltage
230 V / 50 Hz
Speed
500-1700 min-1
Outreach (throat depth)
406 mm
Table size
320 x 482 mm
Dust collector port
35 mm
Max. cutting height at 90°
57 mm
Max. cutting height at 45°
27 mm
Saw blade length
127 mm
Max. blade elevation
21 mm
Sound power level
79.9 dB(A)
Sound pressure level
66.9 dB(A)
Net weight
12 kg
Gross weight
14 kg
EAN code
9120058375644

უპირატესობები

  • 406 mm throat and 57 mm cutting height at 90 degrees for a bench-top scroll saw
  • Stepless 500-1700 min-1 speed control covers wood, plastic, plexiglass, plaster and metal
  • Well equipped in the box: work lamp, table extensions, blade adapter and 10 saw blades

გასათვალისწინებელი

  • Cutting height stops at 57 mm at 90 degrees and only 27 mm at 45 degrees
  • The 35 mm dust port suits a shop vacuum, not a 100 mm workshop extraction hose
  • A 120 W, 12 kg bench machine needs a solid bench and is not built for continuous production

ხშირად დასმული კითხვები

Does the HOLZMANN DKS21PRO need a 400 V three-phase supply?
No. The HOLZMANN DKS21PRO has a 120 W motor on 230 V / 50 Hz supply, so the DKS21PRO plugs into any ordinary socket and there is no 400 V version. A scroll saw of this size needs no three-phase power, unlike stationary sanding and planing machines in the same workshop.
How thick a workpiece can the HOLZMANN DKS21PRO cut?
The HOLZMANN DKS21PRO cuts up to 57 mm deep with the table at 90 degrees and up to 27 mm with the table tilted to 45 degrees. The 406 mm throat of the DKS21PRO also limits how far into a panel a cut can be taken from the edge.
What does the HOLZMANN DKS21PRO not do?
The HOLZMANN DKS21PRO does not rip boards or cut panels to size, which is table saw or panel saw work, and the DKS21PRO does not resaw or cut curves in stock thicker than 57 mm, which is bandsaw work. The DKS21PRO is a fine contour and fretwork saw, not a production machine.
What blades does the HOLZMANN DKS21PRO take?
The HOLZMANN DKS21PRO takes normal fret saw blades of 127 mm, and a saw blade adapter with ten blades is included in delivery. Because standard blades fit, consumables for the DKS21PRO are easy to source locally.
Is dust extraction included with the HOLZMANN DKS21PRO?
The HOLZMANN DKS21PRO has an integrated blower system that removes dust from the workpiece automatically so the marked line stays visible, and a 35 mm dust collector port with plug is included. The 35 mm port on the DKS21PRO suits a workshop vacuum rather than a large extraction system.
What materials can the HOLZMANN DKS21PRO cut?
The HOLZMANN DKS21PRO can be used to cut wood, plastic, metal, plexiglass and plaster, with the blade speed set anywhere from 500 to 1700 min-1 to suit the material. Slower speeds on the DKS21PRO suit plastics and plexiglass, which melt at high speed.
What determines the quoted price of a HOLZMANN DKS21PRO?
The DKS21PRO is quoted on enquiry, not sold at a fixed list price. The figure is driven by the number of units ordered, by how many packs of 127 mm fret saw blades go with them, and by the freight and customs share of the consignment. Because the DKS21PRO ships at only 14 kg gross, adding it to a larger machine order costs very little extra in transport.
How soon can a DKS21PRO be delivered?
Lead time for the DKS21PRO is built to order and confirmed in writing with the quotation. We do not publish a standing delivery figure, because it depends on HOLZMANN's production and on when the shipment carrying your DKS21PRO consolidates.
Does the DKS21PRO need installation or commissioning?
The DKS21PRO needs no commissioning in the industrial sense. Set the saw on a rigid bench or stand at working height, plug it into a 230 V / 50 Hz socket and attach a workshop vacuum to the 35 mm port. Handover covers blade tensioning and speed selection on the DKS21PRO; there is nothing to level or wire.
What should be budgeted alongside a DKS21PRO?
Budget fret saw blades for the DKS21PRO as a running consumable - ten are included but fine blades break often in figured work. A workshop vacuum for the 35 mm port and a bench or stand at the right height are the other two items, since neither is part of the DKS21PRO delivery.
