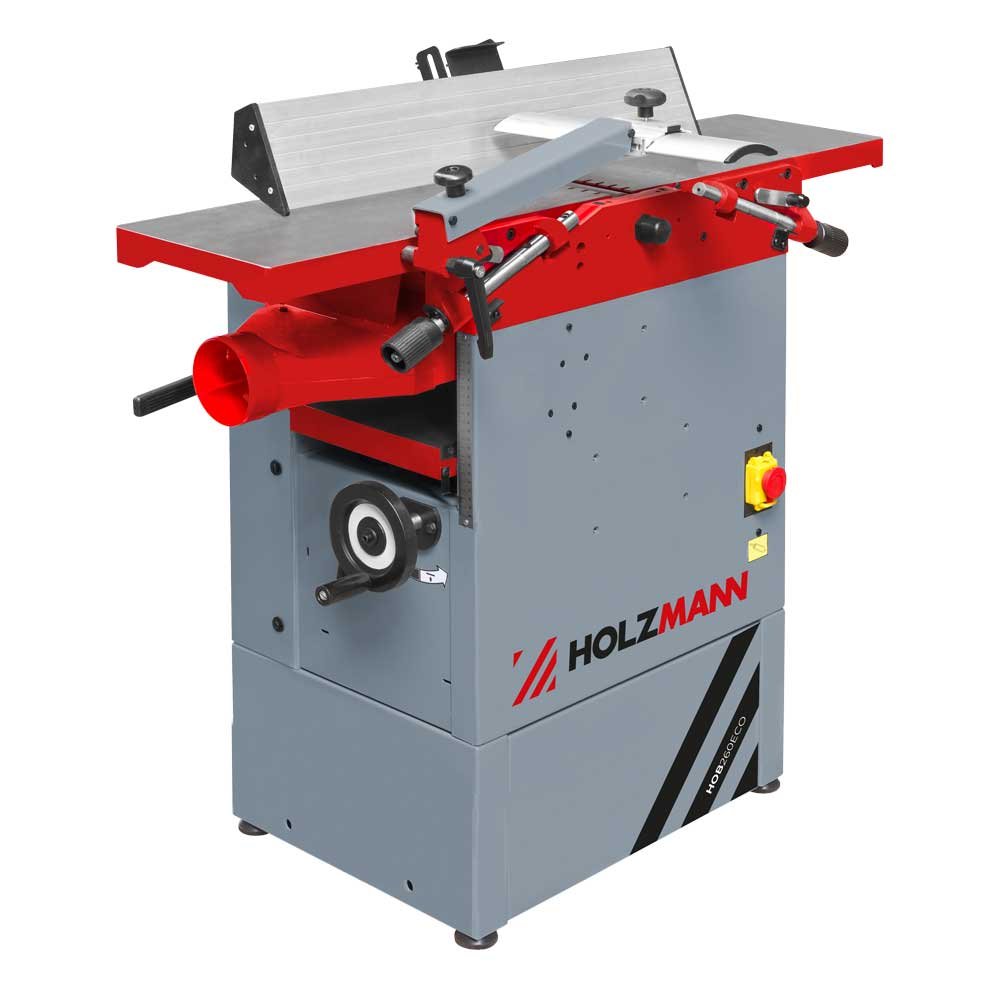

HOLZMANN HOB260ECOSMW2 Planer Thicknesser with Spiral Cutter Head
HOB260ECOSMW2
With 256 mm of planing width, the HOB260ECOSMW2 is the compact end of the spiral ECO range: 1085 x 256 mm pivoting tables, 195 mm of thicknessing capacity and a Ø 75 x 250 mm head carrying 20 inserts. Its 1500 W S1 motor runs at 4000 min-1 and the machine is rated at 83 dB(A) sound power.
The HOB260ECOSMW2 price is driven by the voltage version, the spare cutter-insert package, any extraction unit and Ø 100 mm hose quoted with the machine, and delivery to your workshop.
ფასის მოთხოვნაThe HOB260ECOSMW2 is the quietest machine in this Holzmann group
The HOLZMANN HOB260ECOSMW2 is the machine to specify when the workshop is small, shared or attached to a住 building and noise is a live constraint. The HOB260ECOSMW2 is rated at 83 dB(A) sound power and 77.3 dB(A) sound pressure — 10 dB below the straight-knife HOB260ECO’s 93 dB(A) and dramatically below the 103 to 111 dB(A) of the larger machines. That gap comes from the spiral cutter head: 20 indexable inserts of 15 x 15 x 2.5 mm at 30° on a Ø 75 x 250 mm head, each shearing a small chip instead of a full-width knife impact.
Capacity and construction
Compactness is what the HOB260ECOSMW2 trades for that quietness. The HOB260ECOSMW2 planes 256 mm wide on 1085 x 256 mm grey cast iron tables, thicknesses to 195 mm on a 590 x 245 mm table, and takes 3 mm in a planing pass and 2 mm when thicknessing. A solid cabinet base carries the machine at an 850 mm table height, the pivoting cast iron tables clear the thicknessing table without tools, and the adjustable aluminium fence measures 730 x 130 mm with 0 to 45° tilt. Total dimensions are 1150 x 490 x 750 mm and net weight is 146 kg.
Running the HOB260ECOSMW2
Power demand on the HOB260ECOSMW2 is modest and that opens up where the machine can go. A 1500 W continuously rated motor turning the head at 4000 min-1 runs happily from a 230 V single-phase supply, with a 400 V version also available. Chip extraction connects at Ø 100 mm and should be fitted before the first cut, because 256 mm of spiral cutting fills a small room quickly. Three spare inserts ship with the 20 fitted, along with a shaft cover.
Who should be quoting the HOB260ECOSMW2
The HOB260ECOSMW2 suits precision over throughput. Cabinet makers, instrument and furniture workshops and training rooms working figured hardwood in small sections get spiral finish, low noise and single-insert repairs from a 146 kg machine on a normal single-phase socket. A shop dimensioning structural timber in volume should look instead at the 310 or 410 mm models.
ძირითადი მახასიათებლები
- Ø 75 x 250 mm spiral cutter head with 20 indexable inserts, 15 x 15 x 2.5 mm at 30°
- 83 dB(A) sound power and 77.3 dB(A) sound pressure
- 256 mm planing width on 1085 x 256 mm pivoting grey cast iron tables
- 195 mm thicknessing height on a 590 x 245 mm table with a 2 mm depth of cut
- 1500 W S1 motor turning the head at 4000 min-1, in 230 V or 400 V form
- 730 x 130 mm adjustable aluminium planer fence tilting 0 to 45°
- 3 mm planing depth of cut and a Ø 100 mm dust collector port
- 146 kg net on a 1150 x 490 x 750 mm cabinet footprint, 850 mm table height
ტექნიკური მახასიათებლები
- Planing width
- 256 mm
- Planing table size
- 1085 x 256 mm
- Max. planing cutting depth
- 3 mm
- Planer fence
- 730 x 130 mm
- Fence tilt
- 0 - 45°
- Thicknesser table height
- 850 mm
- Thicknessing table size
- 590 x 245 mm
- Thicknessing cutting depth
- 2 mm
- Thicknessing height
- 195 mm
- Cutter head type
- Spiral cutter head with 20 cutter inserts (15 x 15 x 2.5 mm, 30°)
- Cutter head dimensions
- Ø 75 x 250 mm
- Cutter head speed
- 4000 min-1
- Motor power (S1)
- 1500 W
- Voltage
- 230 V / 50 Hz (400 V version available)
- Total dimensions
- 1150 x 490 x 750 mm
- Dust collector port
- Ø 100 mm
- Sound power level
- 83 dB(A)
- Sound pressure level
- 77.3 dB(A)
- Net weight
- 146 kg
- Gross weight
- 167.50 kg
- Packaging length
- 1150 mm
- Packaging width
- 490 mm
- Packaging height
- 750 mm
- EAN code (HOB260ECOSMW2_230V)
- 9120058379918
- EAN code (HOB260ECOSMW2_400V)
- 9120058379925
უპირატესობები
- At 83 dB(A) sound power and 77.3 dB(A) sound pressure the HOB260ECOSMW2 is by a wide margin the quietest machine in this group, which matters in shared premises or a workshop attached to housing.
- The 20-insert spiral head gives the HOB260ECOSMW2 tear-out control on figured and knotty hardwood that no straight-knife machine of this size can match, with single-insert repairs.
- A 1500 W motor and 230 V version let the HOB260ECOSMW2 run from an ordinary single-phase supply, and 146 kg on a 1150 x 490 mm footprint fits a genuinely small shop.
გასათვალისწინებელი
- A 2 mm thicknessing depth of cut and a 195 mm maximum thickness make the HOB260ECOSMW2 the most limited machine in this group for anything beyond furniture-scale stock.
- No feed speed is published for the HOB260ECOSMW2 in the manufacturer's data, so throughput must be confirmed with the factory before the machine is specified for batch work.
- 20 inserts across 250 mm is a sparse pattern compared with 44 or 68 inserts on the 410 mm spiral machines, so surface quality on the HOB260ECOSMW2 is good for its class rather than absolute.
