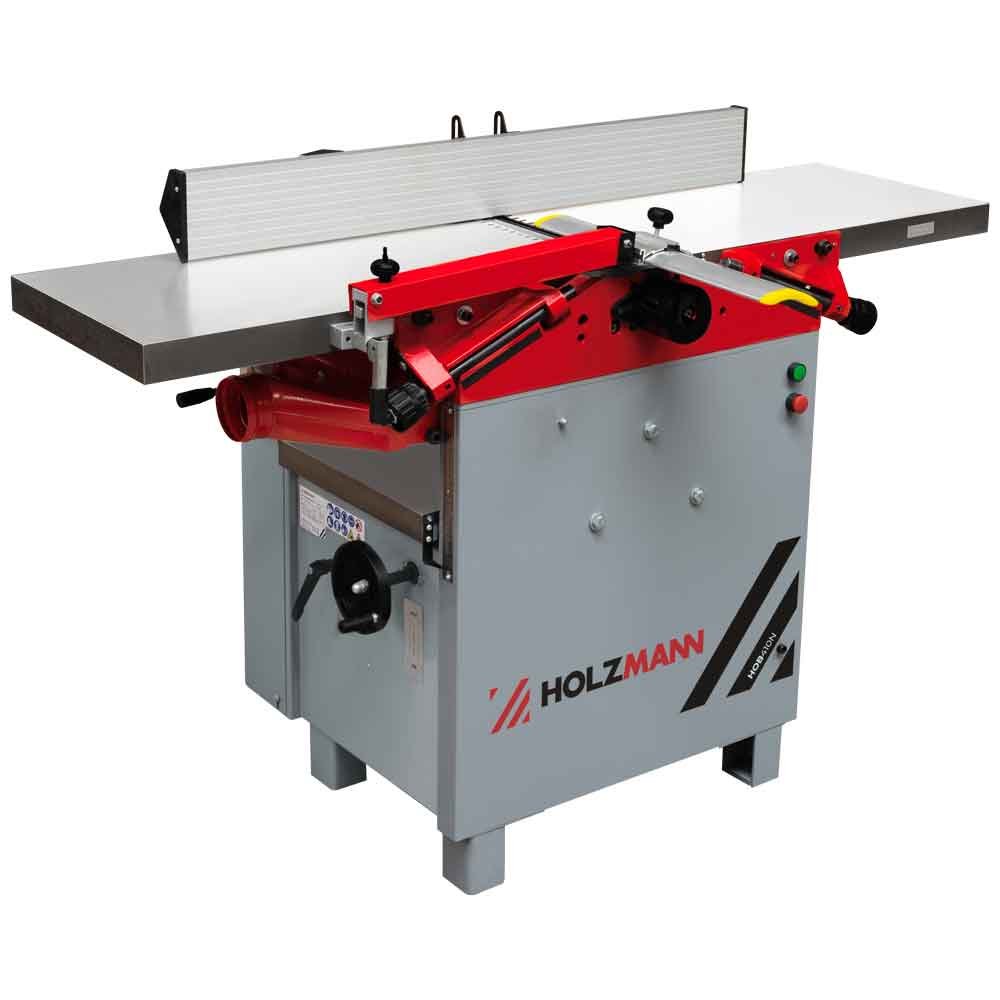

HOLZMANN HOB410N Combined Planer and Thicknesser, 410 mm
HOB410N
The HOLZMANN HOB410N is a 400 V combined planer and thicknesser with 1600 x 410 mm cast iron planing tables, a 750 x 405 mm thicknessing table and a Ø 95 mm four-knife cutterblock turning at 4500 min-1. The HOB410N runs a 4200 W S6 motor, feeds at 8 m/min and weighs 330 kg net on a solid cabinet base.
The HOB410N price is driven by the spare knife-set and setting-gauge package, any extraction unit and ducting quoted with the machine, the 400 V electrical installation, and delivery, offloading and commissioning at your site.
ფასის მოთხოვნაWhere the HOB410N sits in the Holzmann range
The HOLZMANN HOB410N is the heavy, traditional member of the 410 mm combination class, and buyers choose the HOB410N for mass and cutterblock diameter rather than for the latest features. A Ø 95 mm four-knife block turning at 4500 min-1 carries far more inertia than the slimmer Ø 70 mm heads used on the ECO machines, which shows up when a wide, hard board goes through at full depth. The HOB410N takes up to 5 mm in a planing pass and 3 mm in a thicknessing pass, on a 330 kg net cabinet-based frame.
Changeover and thicknessing
Changing the HOB410N between modes is a mechanical, tool-free operation. The grey cast iron planing tables pivot sideways together, clearing the 750 x 405 mm thicknessing table beneath, and the dust hood tilts over for thicknessing work. The infeed mechanism on the HOB410N can be switched off for surface planing, so the feed rollers are not turning while the operator works over the block. Height on the thicknessing table is set with a hand wheel against a scale, and the table runs on a double guide that keeps the setting square across the full 405 mm width. Feed rollers are well bedded top and bottom so contact pressure stays even at the 8 m/min feed rate.
Motor, fence and extraction
Power on the HOB410N is generous for a 410 mm machine: 4200 W S6 with a 3000 W continuous S1 rating, supplied on 400 V three-phase only. The planer fence measures 1100 x 130 mm and tilts between 45° and 90°, and a switch-plug combination keeps the controls to hand. A single 100 mm dust collector port serves both modes.
Practical points before quoting
The HOB410N is a workshop fixture, not a machine that moves. At 330 kg net and 382 kg gross, with a thicknesser table height of 925 mm, the HOB410N is taller at the work point than most of the range and needs a level floor plus infeed and outfeed room beyond the 1600 mm planing tables. Because the HOB410N is 400 V only, three-phase supply is a precondition rather than an option.
ძირითადი მახასიათებლები
- 1600 x 410 mm grey cast iron planing tables that pivot sideways together for a fast mode change
- Ø 95 mm four-knife cutterblock running at 4500 min-1 for stable cutting in wide hardwood
- 4200 W S6 motor (3000 W S1 continuous) on a 400 V three-phase supply
- Thicknessing table 750 x 405 mm with hand-wheel height adjustment on a double guide
- Feed speed 8 m/min with well-bedded infeed and outfeed rollers; feed switchable off for surface planing
- Planer fence 1100 x 130 mm tilting from 45° to 90°
- Tiltable dust hood and a single 100 mm extraction port serving both modes
- Solid cabinet base unit, 330 kg net, with a thicknesser table height of 925 mm
ტექნიკური მახასიათებლები
- Planing width
- 410 mm
- Planing table size
- 1600 x 410 mm
- Max. planing cutting depth
- 5 mm
- Planer fence
- 1100 x 130 mm
- Fence tilt
- 45° - 90°
- Thicknesser table height
- 925 mm
- Thicknessing table size
- 750 x 405 mm
- Thicknessing cutting depth
- 3 mm
- Cutterblock diameter
- 95 mm
- Cutterblock speed
- 4500 min-1
- Number of planer knives
- 4
- Motor power (S6)
- 4200 W
- Motor power (S1)
- 3000 W
- Feed speed
- 8 m/min
- Voltage
- 400 V
- Dust collector port
- 100 mm
- Net weight
- 330 kg
- Gross weight
- 382 kg
- Packaging length
- 1680 mm
- Packaging width
- 770 mm
- Packaging height
- 1070 mm
- EAN code (HOB410N_400V)
- 9120039902708
უპირატესობები
- The Ø 95 mm four-knife cutterblock of the HOB410N is the largest in this comparison and gives noticeably steadier cutting in wide hardwood than the Ø 70 mm heads on the ECO machines.
- At 8 m/min the HOB410N has the fastest thicknessing feed in the range, which pays back on volume work such as batches of framing or flooring stock.
- 330 kg net on a cabinet base gives the HOB410N the mass to damp vibration, and the double-guided thicknessing table holds its setting across the full 405 mm width.
გასათვალისწინებელი
- The HOB410N is 400 V three-phase only — there is no single-phase version, so a workshop without three-phase must pay for a supply upgrade before the machine can run.
- The HOB410N uses a straight four-knife block, so knives must be reset with a gauge after sharpening and a nail strike can damage a whole knife set; spiral-head models such as the HOB410PROSMW4 avoid this.
- No thicknessing height range is published for the HOB410N in the manufacturer's data, so maximum workpiece thickness must be confirmed with the factory before the machine is specified for a particular job.
