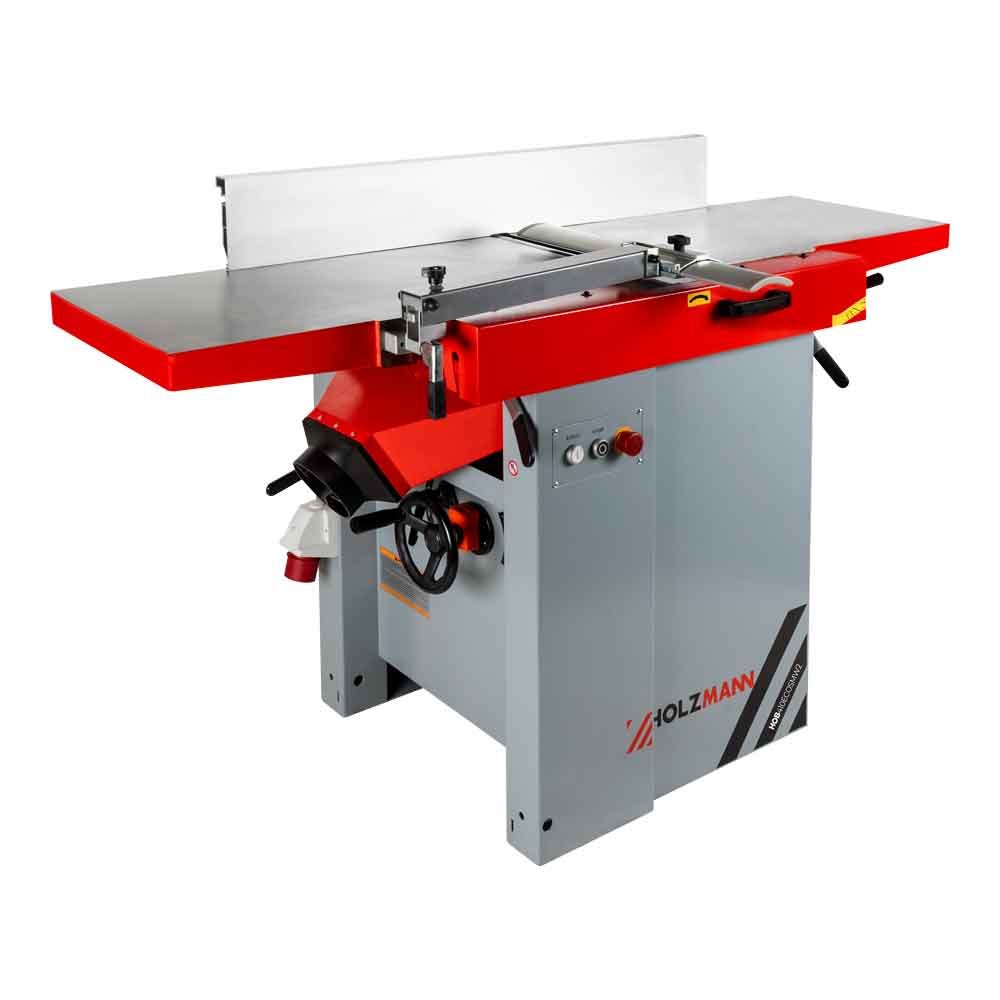

HOLZMANN HOB410ECOSMW2 Planer Thicknesser with Spiral Cutterblock

HOB410ECOSMW2 — HOLZMANN HOB410ECOSMW2 Planer Thicknesser with Spiral Cutterblock 1 / 4

A Ø 70 mm spiral block with 44 indexable inserts in two rows of 22 gives the HOB410ECOSMW2 its tear-out-resistant cut at 5500 min-1, in a 295 kg ECO frame rather than a full industrial one. It planes 410 mm wide over 1660 x 410 mm tables, thicknesses to 225 mm, and runs 4000 W S1 on 400 V / 3 / 50 Hz.

სამუშაო სიგანე
410 mm
ძრავის სიმძლავრე
4 kW
ძაბვა
400V
მაგიდის ზომა
1660 x 410 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The HOB410ECOSMW2 price is driven by the spare cutter-insert package, the optional thicknesser extension table, any extraction unit and Ø 120 mm ducting quoted with it, the 400 V electrical installation, and delivery and offloading of 353 kg gross.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The HOB410ECOSMW2 puts a spiral head on a mid-weight 410 mm machine

The HOLZMANN HOB410ECOSMW2 is the sensible middle of the 410 mm class: spiral cutting quality without the 420 kg and 5.5 kW of the PRO machines. The HOB410ECOSMW2 carries a Ø 70 mm spiral block with 44 indexable inserts of 15 x 15 x 2.5 mm at 30°, arranged in two rows of 22, spinning at 5500 min-1 behind a 4000 W continuous-rated motor. At 295 kg net the HOB410ECOSMW2 is a shop fixture, but a shop that could not take a 420 kg machine can usually take this one.

Cutting quality and noise

Choosing the HOB410ECOSMW2 over the straight-knife HOB410ECO buys surface finish and quieter running from the same chassis. Each of the 44 inserts on the HOB410ECOSMW2 shears into the timber at an angle instead of the full 410 mm width striking at once, so tear-out in interlocked and figured hardwood is greatly reduced. The measured difference is real: the HOB410ECOSMW2 is rated at 104 dB(A) sound power and 86 dB(A) sound pressure, against 107 and 89 dB(A) for the straight-knife HOB410ECO. Damage is dealt with one insert at a time, and the machine ships with 5 spares beyond the 44 fitted.

Changeover and thicknessing

Mode change on the HOB410ECOSMW2 is the simplest arrangement in the range. The entire planer table folds up as one piece, uncovering the 650 x 407 mm thicknessing table, and the thicknessing height is set by a smooth-running central adjustment with a counter so a setting can be dialled back exactly. The HOB410ECOSMW2 thicknesses to 225 mm with a 3 mm depth of cut, planes to 4 mm depth of cut, and feeds at 7 m/min.

Supply, extraction and layout

The HOB410ECOSMW2 needs three-phase power and real extraction. Supply is 400 V / 3 / 50 Hz with no single-phase alternative, the extraction port is Ø 120 mm, and overall dimensions are 1670 x 680 x 1000 mm at an 850 mm table height. The fence measures 1100 x 150 mm with 0 to 45° tilt. An extension table for the thicknessing table is available as an option and is worth discussing at quotation.

ძირითადი მახასიათებლები

  • Ø 70 mm spiral cutterblock, 44 inserts (15 x 15 x 2.5 mm, 30°) in two rows of 22
  • 5500 min-1 block speed from a 4000 W S1 continuously rated motor, 400 V / 3 / 50 Hz
  • 1660 x 410 mm planing tables with a single-piece fold-up for changeover
  • 225 mm thicknessing on a 650 x 407 mm table, 3 mm cut and 4 mm in planing
  • 104 dB(A) sound power and 86 dB(A) sound pressure
  • Central thicknessing height adjustment with a counter for repeatable settings
  • 7 m/min feed and a Ø 120 mm dust extraction port
  • 295 kg net, 1670 x 680 x 1000 mm overall, 850 mm table height, 1100 x 150 mm fence at 0 to 45°

ტექნიკური მახასიათებლები

Planing width
410 mm
Planing table size
1660 x 410 mm
Max. planing cutting depth
4 mm
Planer fence
1100 x 150 mm
Fence tilt
0 - 45°
Thicknesser table height
850 mm
Thicknessing table size
650 x 407 mm
Thicknessing cutting depth
3 mm
Thicknessing height
225 mm
Cutterblock type
Spiral cutterblock with 44 cutter inserts (2 rows of 22), 15 x 15 x 2.5 mm, 30°
Cutterblock diameter
70 mm
Cutterblock speed
5500 min-1
Motor power (S1)
4000 W
Voltage
400 V / 3 / 50 Hz
Feed speed
7 m/min
Dust collector port
Ø 120 mm
Total dimensions
1670 x 680 x 1000 mm
Sound power level
104 dB(A)
Sound pressure level
86 dB(A)
Net weight
295 kg
Gross weight
353 kg
Packaging length
1710 mm
Packaging width
740 mm
Packaging height
1150 mm
EAN code (HOB410ECOSMW2_400V)
9120058379949

უპირატესობები

  • The HOB410ECOSMW2 delivers spiral-cutterhead surface quality at 295 kg net, so shops that cannot take a 420 kg PRO machine still get low tear-out at 410 mm width.
  • A 4000 W S1 rating means the HOB410ECOSMW2 motor is rated for continuous duty rather than intermittent S6 operation.
  • The counter on the central thicknessing height adjustment lets an operator return the HOB410ECOSMW2 to a previous setting exactly, which saves time on repeat batches.

გასათვალისწინებელი

  • The HOB410ECOSMW2 is 400 V three-phase only — no single-phase version exists, so a workshop without three-phase must budget for the supply first.
  • With 44 inserts on a Ø 70 mm block, the HOB410ECOSMW2 has a lower insert density than the 68-insert HOB410PROSMW4, so the finest surface in the range still belongs to the PRO machine.
  • At 295 kg net the HOB410ECOSMW2 needs mechanical offloading and a permanent, level floor position, and the Ø 120 mm port demands an extraction unit sized for a 410 mm block, not a small mobile bag unit.

ხშირად დასმული კითხვები

How much does the HOLZMANN HOB410ECOSMW2 cost?
The HOLZMANN HOB410ECOSMW2 is supplied on quotation, not at a published list price. The price of a HOB410ECOSMW2 is driven by the spare cutter-insert package, whether the optional thicknesser extension table is included, whether an extraction unit and Ø 120 mm ducting are quoted alongside, the 400 V electrical installation, and delivery and offloading of 353 kg gross at your site. Tell us the options you want and we will return a written figure.
Can I get the HOB410ECOSMW2 in a 230 V single-phase version?
No. The HOB410ECOSMW2 is supplied only as a 400 V / 3 / 50 Hz machine (EAN 9120058379949); a 4000 W continuous motor at 410 mm width is not a single-phase proposition. If your Georgian workshop has no three-phase supply and you still want a spiral cutterblock, the HOLZMANN HOB310ECOSMW2 and HOB260ECOSMW2 are both offered in 230 V versions at smaller widths.
What is the lead time for a HOLZMANN HOB410ECOSMW2?
The HOB410ECOSMW2 is ordered from the Holzmann factory in Austria rather than held in stock in Georgia, so lead time follows the factory's current production and shipping position. Ask us to confirm the current lead time for the HOB410ECOSMW2 when you request the quotation and we will check before quoting a date.
Does the HOB410ECOSMW2 need professional installation?
The HOB410ECOSMW2 needs proper siting and an electrical connection made by a professional. At 353 kg gross the HOB410ECOSMW2 requires mechanical offloading onto a level, load-bearing floor with clear infeed and outfeed beyond the 1660 mm tables; a qualified electrician makes the 400 V connection and checks cutterblock rotation direction; and the Ø 120 mm port must be connected to an extraction unit sized for a 410 mm machine before the first cut.
What tooling and consumables should I budget for with the HOB410ECOSMW2?
Alongside the HOB410ECOSMW2, budget for spare 15 x 15 x 2.5 mm cutter inserts beyond the 5 supplied, a torque driver for the insert screws, an extraction unit with Ø 120 mm ducting, lubricant and table wax, and optionally the extension table for the thicknessing table. Inserts are the recurring consumable on the HOB410ECOSMW2 and are replaced individually rather than as a set.
How does the HOB410ECOSMW2 differ from the straight-knife HOB410ECO?
The HOB410ECOSMW2 and the HOB410ECO share the same 1660 x 410 mm tables, 4000 W motor, 5500 min-1 speed, 225 mm thicknessing capacity and 295 kg weight. The difference is the cutterblock: the HOB410ECOSMW2 uses a 44-insert spiral head and is rated at 104 / 86 dB(A), while the HOB410ECO uses three straight knives and is rated at 107 / 89 dB(A). Choose the HOB410ECOSMW2 for figured hardwood, lower noise and single-insert repairs; choose the HOB410ECO for lower purchase price and cheap knife replacement.
What is the maximum board the HOB410ECOSMW2 will thickness?
The HOB410ECOSMW2 thicknesses up to 225 mm workpiece height across a 650 x 407 mm table, removing up to 3 mm per pass at a 7 m/min feed. Height is set by a smooth-running central adjustment with a counter, so a setting on the HOB410ECOSMW2 can be repeated exactly on later batches.
