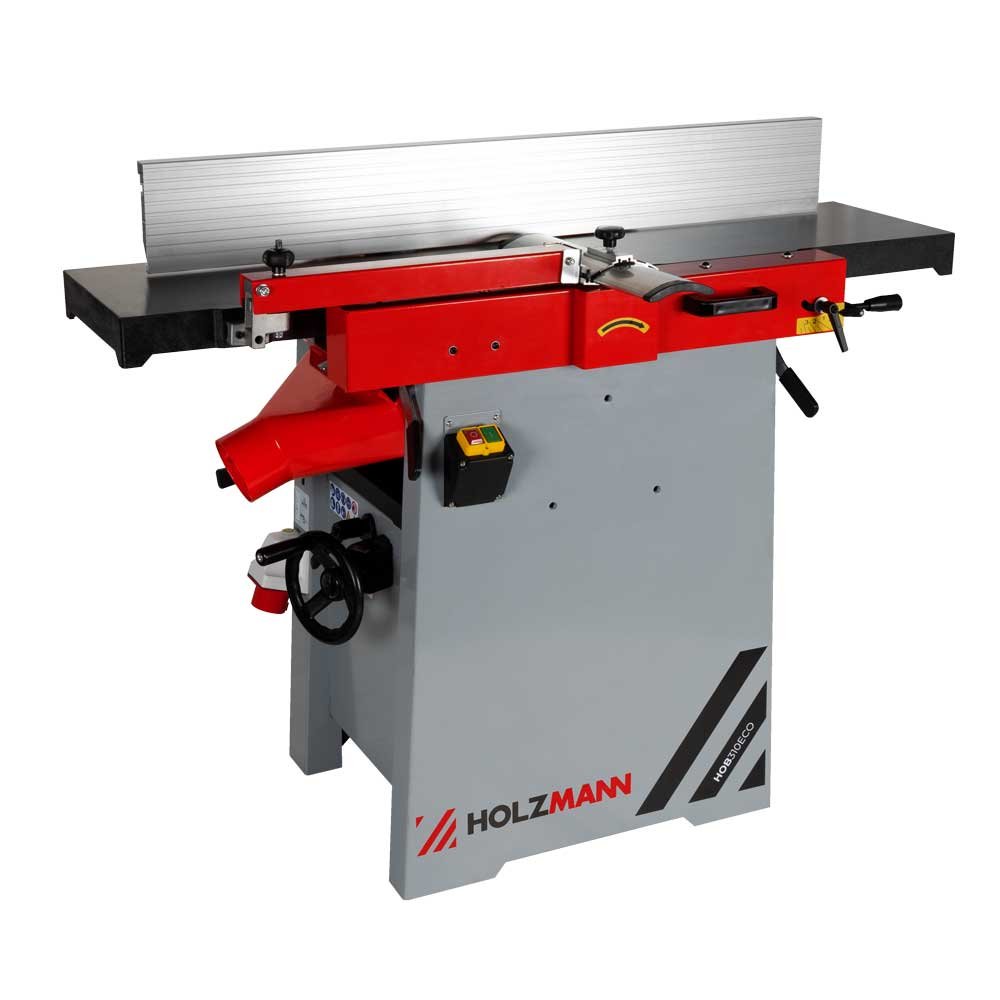

HOLZMANN HOB310ECO Combined Planer and Thicknesser, 310 mm

HOB310ECO — HOLZMANN HOB310ECO Combined Planer and Thicknesser, 310 mm 1 / 4

The HOB310ECO narrows the ECO planer-thicknesser to 310 mm of planing width on 1285 x 310 mm tables, a 179.5 kg machine sized for a one-room joinery rather than a production shop. Thicknessing still reaches 225 mm, cut by a Ø 70 mm three-knife block at 5500 min-1 behind a 2200 W S1 motor in 230 V or 400 V.

სამუშაო სიგანე
310 mm
ძრავის სიმძლავრე
2.2 kW
ძაბვა
230V
მაგიდის ზომა
1285 x 310 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The HOB310ECO price is driven by the voltage version, the optional HOB310ECOLL mortising unit and magnet setting jig, spare knife sets, any extraction unit and Ø 100 mm hose quoted alongside, and delivery to your workshop.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The HOB310ECO is the capacity sweet spot for a small joinery

The HOLZMANN HOB310ECO solves the problem that catches out buyers of 260 mm machines: thickness capacity. The HOB310ECO thicknesses workpieces up to 225 mm — the same figure as the 410 mm machines in the range — while staying a 179.5 kg machine on a 1285 x 750 x 1000 mm footprint that a small shop can house. Planing width is 310 mm on 1285 mm tables, and the whole package runs from a 2200 W motor that is available on 230 V single-phase.

Cutting and changeover

Speed is how the HOB310ECO compensates for having a small cutterblock. The Ø 70 mm three-knife block on the HOB310ECO turns at 5500 min-1, well above the 4000 min-1 of the 260 mm machines, which raises the number of cuts per millimetre of feed and produces a finer surface than the block diameter suggests. Depth of cut is 3 mm in planing and 4 mm in thicknessing, at a 7 m/min feed. Changeover is a single movement: the entire planer table of the HOB310ECO folds up, exposing the 545 x 308 mm thicknessing table, whose height is set by a smooth central adjustment with a counter for repeatable settings.

Options that matter at quotation

The HOB310ECO can be ordered with a mortising unit, and that is worth deciding before purchase. The HOB310ECOLL mortising attachment turns the HOB310ECO into a three-operation machine for a joinery cutting mortises for doors and frames, and adding it later is more disruptive than specifying it at the start. A magnet setting jig, lubricant and dust collectors are also available. The machine itself ships with the planing fence, planing knives fitted, a knife setting gauge, mounting tool and sliding wood.

Power supply and noise

Voltage flexibility is a real selling point for the HOB310ECO in Georgia. The HOB310ECO exists in 230 V single-phase and 400 V three-phase versions, so 310 mm capacity is available to shops without a three-phase connection. The fence measures 1100 x 150 mm with 0 to 45° tilt, extraction connects at Ø 100 mm, and the HOB310ECO is rated at 103 dB(A) sound power and 89.5 dB(A) sound pressure.

ძირითადი მახასიათებლები

  • 310 mm planing width on 1285 x 310 mm folding cast iron tables
  • 2200 W S1 motor offered in 230 V single-phase as well as 400 V three-phase
  • 7 m/min feed — the quicker feed of the two 310 mm ECO machines
  • Ø 70 mm block with 3 straight knives at 5500 min-1
  • 225 mm thicknessing height on a 545 x 308 mm table, 4 mm depth of cut
  • 3 mm planing depth of cut; 1100 x 150 mm fence tilting 0 to 45°
  • 103 dB(A) sound power, 89.5 dB(A) sound pressure
  • 179.5 kg net, 1285 x 750 x 1000 mm overall, 852 mm table height, Ø 100 mm port

ტექნიკური მახასიათებლები

Planing width
310 mm
Planing table size
1285 x 310 mm
Max. planing cutting depth
3 mm
Planer fence
1100 x 150 mm
Fence tilt
0 - 45°
Thicknesser table height
852 mm
Thicknessing table size
545 x 308 mm
Thicknessing cutting depth
4 mm
Thicknessing height
225 mm
Cutterblock diameter
Ø 70 mm
Cutterblock speed
5500 min-1
Number of planer knives
3
Motor power (S1)
2200 W
Voltage
230 V / 50 Hz (400 V version available)
Feed speed
7 m/min
Dust collector port
Ø 100 mm
Total dimensions
1285 x 750 x 1000 mm
Sound power level
103 dB(A)
Sound pressure level
89.5 dB(A)
Net weight
179.50 kg
Gross weight
206 kg
Packaging length
1320 mm
Packaging width
565 mm
Packaging height
960 mm
EAN code (HOB310ECO_230V)
9120058379314
EAN code (HOB310ECO_400V)
9120058379321

უპირატესობები

  • The HOB310ECO reaches 225 mm thicknessing capacity — matching the 410 mm machines — from a 179.5 kg body that a small workshop can actually accommodate.
  • A 230 V version means a Georgian shop without three-phase power can still run 310 mm capacity, which the 410 mm machines do not allow.
  • The optional HOB310ECOLL mortising unit turns the HOB310ECO into a three-operation machine, useful for door and frame work in a shop short of floor space.

გასათვალისწინებელი

  • A 2200 W motor and a Ø 70 mm three-knife block mean the HOB310ECO must take lighter passes than its stated maximums in dense hardwood at full 310 mm width.
  • The 1285 mm planing tables of the HOB310ECO are short for long components — edge-jointing 3 m door stiles needs roller supports at both ends.
  • Straight knives mean a nail strike on the HOB310ECO damages the whole three-knife set and knives must be reset with a gauge after sharpening; the HOB310ECOSMW2 spiral version avoids this.

ხშირად დასმული კითხვები

How much does the HOLZMANN HOB310ECO cost?
The HOLZMANN HOB310ECO is supplied on quotation rather than at a published price. The price of a HOB310ECO is driven by the voltage version chosen (230 V or 400 V), whether the HOB310ECOLL mortising unit and magnet setting jig are included, spare knife sets, whether a dust extraction unit and Ø 100 mm hose are quoted alongside, and delivery to your workshop. Tell us which options you want and we will return a written figure.
Should I order the HOB310ECO in 230 V or 400 V?
The HOB310ECO is offered as a 230 V single-phase machine (EAN 9120058379314) and a 400 V three-phase machine (EAN 9120058379321). For a Georgian workshop with only a 230 V supply, the single-phase HOB310ECO gives 310 mm capacity with no electrical upgrade — a genuine advantage, since none of the 410 mm machines offer that. Where three-phase already exists, the 400 V HOB310ECO handles sustained thicknessing more comfortably and suffers less from voltage drop.
What is the lead time for a HOLZMANN HOB310ECO?
The HOB310ECO is supplied to order from the Holzmann factory in Austria, so the lead time for a HOB310ECO depends on the current production run and shipping schedule rather than on stock held in Georgia. Ask us to confirm the current lead time when you request the quotation and we will check the factory position first.
Does the HOB310ECO need installation work?
Installation of the HOB310ECO is moderate. At 206 kg gross the HOB310ECO needs a pallet truck or small hoist and a level floor, with clear infeed and outfeed space beyond the 1285 mm tables. Connect the Ø 100 mm port to extraction before use, and have a qualified electrician make the supply connection — on the 400 V version the cutterblock rotation direction must be verified.
What tooling and consumables should I budget for separately with the HOB310ECO?
Budget separately for spare three-knife sets for the HOB310ECO, a dust extraction unit with Ø 100 mm hose, and slideway lubricant and table wax. Optional items priced at quotation include the HOB310ECOLL mortising unit and a magnet setting jig. The HOB310ECO already comes with planing knives fitted, a knife setting gauge, mounting tool and sliding wood.
Can a mortising attachment be fitted to the HOB310ECO?
Yes. The HOB310ECO accepts the HOB310ECOLL mortising unit as an option, which adds slot mortising for door and frame joinery to the planing and thicknessing functions. Because retro-fitting is more disruptive than factory specification, decide on the mortising unit for your HOB310ECO at the quotation stage rather than after delivery.
How does the HOB310ECO compare with the HOB260ECO?
The HOB310ECO and the HOB260ECO are two steps apart. The HOB310ECO planes 310 mm wide against 256 mm, thicknesses to 225 mm against 195 mm, runs at 5500 min-1 against 4000 min-1, takes a 4 mm thicknessing pass against 2 mm, and uses a 2200 W motor against 1500 W continuous. The HOB260ECO is smaller, lighter and cheaper; the HOB310ECO is the machine that stops a shop outgrowing its planer within two years.
HOB310ECO ფასი მოთხოვნით ფასის მოთხოვნა
