HOLZMANN

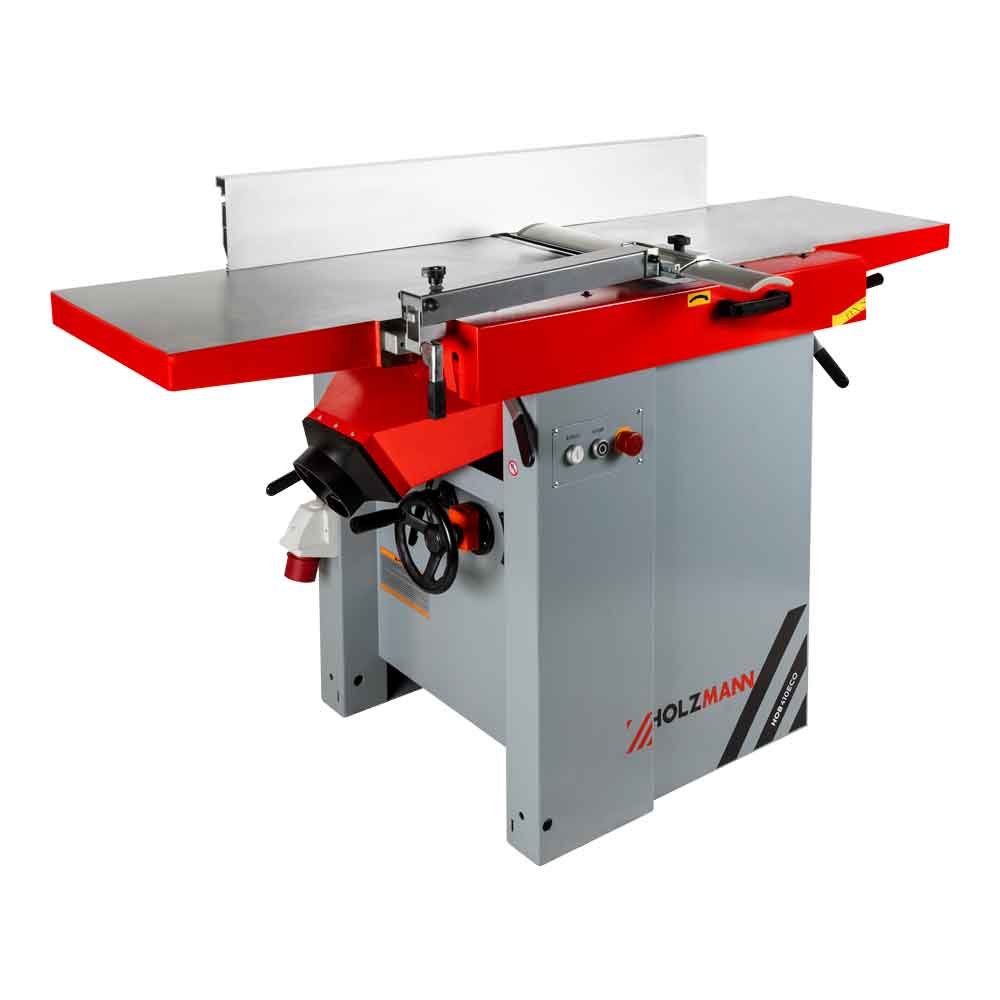

HOLZMANN HOB410ECO Combined Planer and Thicknesser, 410 mm
HOB410ECO
Planing width of 410 mm is what the HOB410ECO buys you over the narrower ECO models: full-width faces on 1660 x 410 mm cast iron tables that fold up in one piece for changeover. A Ø 70 mm three-knife block runs at 5500 min-1 behind a 4000 W S1 motor on 400 V / 3 / 50 Hz, at 295 kg net and a 7 m/min feed.
The HOB410ECO price is driven by the spare knife sets, the optional HOB410EET extension table and magnet setting jig, any extraction unit and ducting quoted alongside, the 400 V electrical installation, and delivery and offloading of 353 kg gross.
ფასის მოთხოვნაThe HOB410ECO is the value entry to 410 mm capacity
The HOLZMANN HOB410ECO is the cheapest route into a full 410 mm planing width in this Holzmann group, and the trade-offs are honest ones. The HOB410ECO gives 1660 x 410 mm planing tables, 225 mm of thicknessing capacity and a 4000 W continuously rated motor for 295 kg net — roughly 125 kg less machine than the HOB410PRO. What the HOB410ECO gives up is cutterblock mass and depth of cut: a Ø 70 mm three-knife block against Ø 98 mm and four knives, and 3 mm per thicknessing pass against 4 mm.
How the HOB410ECO works day to day
Changeover is where the HOB410ECO is genuinely well designed. The entire planer table of the HOB410ECO folds up as one unit rather than pivoting in two halves, so moving from surface planing to thicknessing takes seconds and the tables are completely out of the way. Underneath, the thicknessing table has a smooth central height adjustment with a counter, so an operator can return the HOB410ECO to a previous thickness setting exactly instead of creeping up on it. The block runs at 5500 min-1 — a high speed for the class, which compensates in surface finish for having three knives rather than four.
Knives and consumables
Straight knives keep the running cost of the HOB410ECO low. Three planer knives are supplied fitted, along with a knife setting gauge, mounting tool and sliding wood, so the shop can re-knife the HOB410ECO without buying anything extra on day one. A magnet setting jig, an HOB410EET extension table for the thicknessing table, lubricant and dust collectors are available as options and are worth pricing at the same time.
Power and space for the HOB410ECO
The HOB410ECO is a 400 V three-phase machine with no single-phase alternative, and that is the first thing to confirm before quoting. Overall dimensions are 1710 x 740 x 1150 mm at an 850 mm table height, the fence measures 1100 x 150 mm with 0 to 45° tilt, and sound power is rated at 107 dB(A) with 89 dB(A) at the operator position. Extraction should be connected before the machine is used.
ძირითადი მახასიათებლები
- 410 mm planing width across 1660 x 410 mm ground cast iron tables
- 4 mm depth of cut in planing against 3 mm in thicknessing
- 225 mm thicknessing height over a 650 x 407 mm table
- Ø 70 mm cutterblock with 3 straight knives at 5500 min-1, supplied fitted with a setting gauge
- 4000 W S1 continuously rated motor, 400 V / 3 / 50 Hz three-phase only
- 107 dB(A) sound power and 89 dB(A) sound pressure
- 1100 x 150 mm planer fence tilting 0 to 45°, 7 m/min feed
- 295 kg net on a 1710 x 740 x 1150 mm footprint, 850 mm table height
ტექნიკური მახასიათებლები
- Planing width
- 410 mm
- Planing table size
- 1660 x 410 mm
- Max. planing cutting depth
- 4 mm
- Planer fence
- 1100 x 150 mm
- Fence tilt
- 0 - 45°
- Thicknesser table height
- 850 mm
- Thicknessing table size
- 650 x 407 mm
- Thicknessing cutting depth
- 3 mm
- Thicknessing height
- 225 mm
- Cutterblock diameter
- Ø 70 mm
- Cutterblock speed
- 5500 min-1
- Number of planer knives
- 3
- Motor power (S1)
- 4000 W
- Voltage
- 400 V / 3 / 50 Hz
- Feed speed
- 7 m/min
- Total dimensions
- 1710 x 740 x 1150 mm
- Sound power level
- 107 dB(A)
- Sound pressure level
- 89 dB(A)
- Net weight
- 295 kg
- Gross weight
- 353 kg
- Packaging length
- 1710 mm
- Packaging width
- 740 mm
- Packaging height
- 1150 mm
- EAN code (HOB410ECO_400V)
- 9120058379932
უპირატესობები
- The HOB410ECO is the lowest-cost way into 410 mm width with 225 mm thicknessing capacity in this Holzmann group.
- Because the whole planer table of the HOB410ECO folds up as one unit, changeover between planing and thicknessing is faster and cleaner than on machines with two pivoting halves.
- Straight knives keep consumable costs on the HOB410ECO low, and a knife setting gauge, mounting tool and sliding wood are supplied with the machine.
გასათვალისწინებელი
- The HOB410ECO uses a Ø 70 mm three-knife block, so it removes only 3 mm per thicknessing pass against 4 mm on the HOB410PRO and is more prone to tear-out in figured hardwood.
- At 107 dB(A) sound power and 89 dB(A) sound pressure, the HOB410ECO is the loudest of the ECO machines here — the spiral HOB410ECOSMW2 runs at 104 / 86 dB(A).
- The HOB410ECO is 400 V three-phase only, and the source data publishes no dust port diameter, so extraction sizing must be confirmed with us before ordering ducting.
