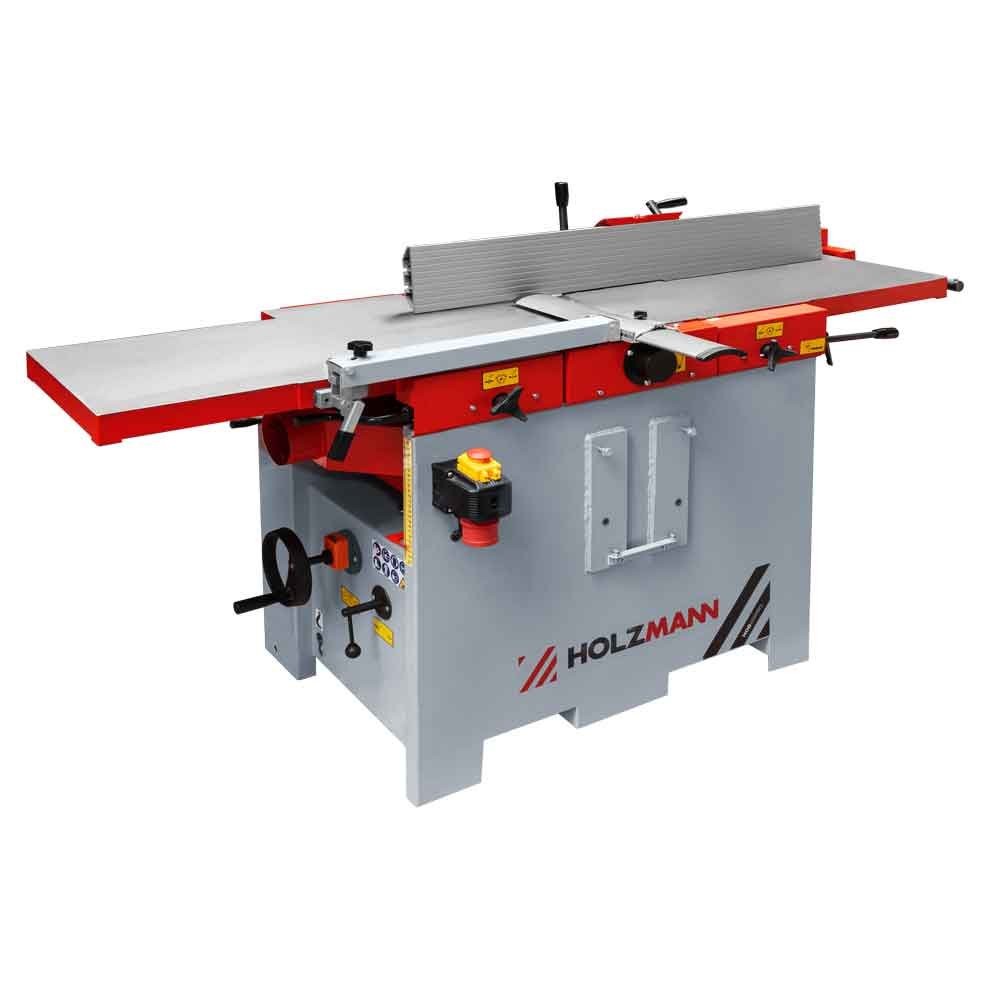

HOLZMANN HOB410PRO Industrial Planer and Thicknesser, 410 mm
HOB410PRO
The HOLZMANN HOB410PRO is a 420 kg industrial combined planer and thicknesser with 1800 x 410 mm ground cast iron tables, a 700 x 410 mm thicknessing table and a Ø 98 mm four-knife cutterblock at 4700 min-1. The HOB410PRO runs a 5.5 kW S6 (40%) motor on 400 V, feeds at 7 m/min and thicknesses workpieces from 5 mm to 225 mm.
The HOB410PRO price is driven by the spare knife-set and gauge package, the extraction unit and Ø 120 mm ducting quoted with it, the 400 V electrical installation, transport and offloading for 495 kg gross, and on-site commissioning.
ფასის მოთხოვნაThe HOB410PRO is built for continuous production
The HOLZMANN HOB410PRO is the machine in this range that is specified on mass and cutting force rather than on price. 420 kg net, ground grey cast iron tables 1800 mm long, and a Ø 98 mm four-knife cutterblock driven by a 5.5 kW S6 (40%) motor put the HOB410PRO in a different working class from the ECO machines: the HOB410PRO takes 5 mm in a planing pass and a full 4 mm in a thicknessing pass at a 7 m/min feed, in oak and beech, without the pass being an act of optimism.
Thicknessing behaviour
What separates the HOB410PRO from lighter combination machines is how the board is controlled while it is being cut. The HOB410PRO uses two adjustable thicknessing rollers plus a spiral-toothed infeed roller that grips the board and pulls it in cleanly, so board speed stays constant and the planing pattern stays uniform down the length. The feed is engaged and disengaged with a lever, which means the operator can stop the rollers for surface planing without touching the drive. Underneath, the thicknessing table is column-guided with extra guiding and travels through a 5 to 225 mm range on a 700 x 410 mm surface.
Tables, fence and changeover
Changeover on the HOB410PRO was designed so it does not cost the operator anything. The planing tables of the HOB410PRO fold rearwards, which keeps them clear of the workpiece during thicknessing instead of leaving them hanging over the work area. Table surfaces are ground grey cast iron. The professional-grade fence is sideways-guided and tilts from 90° to 45°, and the extraction port is a Ø 120 mm connection sized for the chip volume a 410 mm block produces.
What the HOB410PRO demands from the workshop
The HOB410PRO is a permanent installation and should be quoted as one. A 400 V three-phase supply is mandatory — there is no single-phase HOB410PRO — and the 495 kg gross shipping weight means a forklift or crane at delivery. Sound power is rated at 111 dB(A) with 82 dB(A) at the operator position, so extraction, hearing protection and a considered position in the shop layout are part of the purchase, not afterthoughts.
ძირითადი მახასიათებლები
- Ø 98 mm four-knife cutterblock at 4700 min-1 driven by a 5.5 kW S6 (40%) motor
- 1800 x 410 mm ground grey cast iron planing tables that fold rearwards, clear of the workpiece
- Thicknessing range of 5 to 225 mm on a 700 x 410 mm column-guided table with extra guiding
- 4 mm thicknessing depth of cut and 5 mm planing depth of cut at a 7 m/min feed
- Two adjustable thicknessing rollers plus a spiral-toothed infeed roller for constant board speed
- Feed engaged and disengaged by lever, so rollers stop for surface planing
- Sideways-guided professional fence tilting from 90° to 45°
- 420 kg net industrial build with a Ø 120 mm dust extraction port
ტექნიკური მახასიათებლები
- Planing width
- 410 mm
- Planing table size
- 1800 x 410 mm
- Max. planing cutting depth
- 5 mm
- Thicknessing table size
- 700 x 410 mm
- Thicknessing cutting depth
- 4 mm
- Thicknessing height
- 5 - 225 mm
- Cutterblock diameter
- 98 mm
- Cutterblock speed
- 4700 min-1
- Number of planer knives
- 4
- Motor power (S6)
- 5.5 kW S6 (40%)
- Voltage
- 400 V / 50 Hz
- Feed speed
- 7 m/min
- Dust collector port
- ø 120 mm
- Sound power level
- 111 dB(A)
- Sound pressure level
- 82 dB(A)
- Net weight
- 420 kg
- Gross weight
- 495 kg
- Packaging length
- 2000 mm
- Packaging width
- 845 mm
- Packaging height
- 1100 mm
- EAN code (HOB410PRO_400V)
- 9120058377068
უპირატესობები
- A Ø 98 mm four-knife block, 5.5 kW motor and 420 kg of mass let the HOB410PRO take a genuine 4 mm thicknessing pass at full 410 mm width in hardwood.
- 1800 mm of ground cast iron table on the HOB410PRO is the longest planing surface among the combination machines here, which directly improves straightness on long components.
- The rearwards-folding tables and lever-operated feed make changeover on the HOB410PRO fast, and the tables do not obstruct the workpiece during thicknessing.
გასათვალისწინებელი
- The HOB410PRO is 400 V three-phase only, so a workshop without a three-phase supply must budget for an electrical connection before the machine can be used.
- At 420 kg net and 495 kg gross the HOB410PRO needs a forklift or crane for delivery, a load-bearing level floor and a permanent position — this is not a machine that gets moved.
- A straight four-knife block means knife sets on the HOB410PRO must be gauged after sharpening and a nail strike damages all four knives; the HOB410PROSMW4 with a 68-insert spiral head is the alternative.
