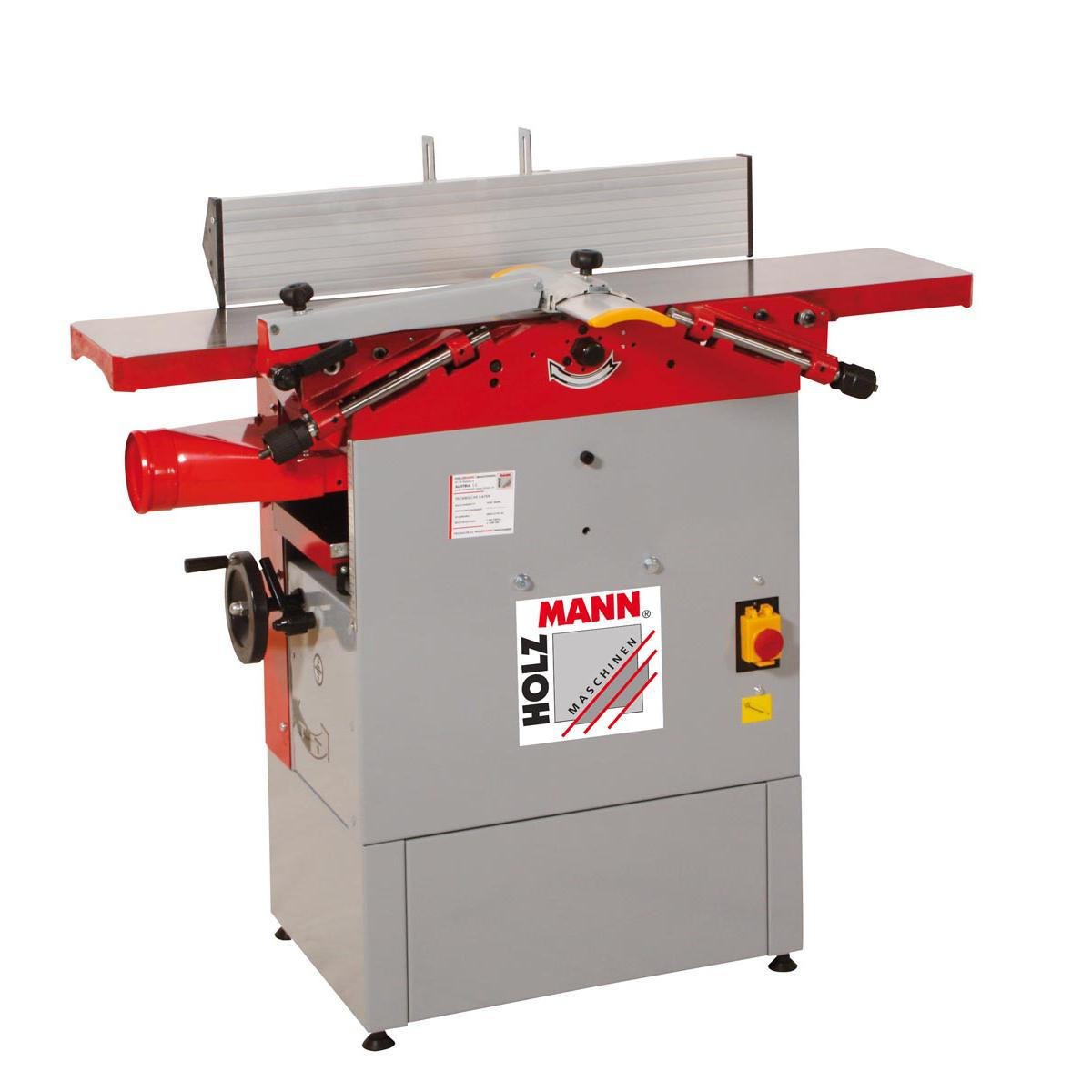

HOLZMANN HOB260NL Combined Planer and Thicknesser
HOB260NL
The HOLZMANN HOB260NL is a compact combined planer and thicknesser with 1090 x 250 mm pivoting cast iron tables, a 600 x 185 mm thicknessing table and a Ø 75 mm three-knife cutterblock at 4000 min-1. The HOB260NL runs a 2100 W S6 motor, feeds at 8 m/min, weighs 150 kg net and is available in 230 V and 400 V versions.
The HOB260NL price is driven by the voltage version, the spare knife sets and setting gauge, any extraction unit and hose quoted with the machine, and delivery to your workshop.
ფასის მოთხოვნაThe HOB260NL is the fast-feeding small combination machine
The HOLZMANN HOB260NL earns its place in a small shop through feed rate rather than capacity. At 8 m/min the HOB260NL moves timber through the thicknesser faster than the ECO-series machines of the same size, which matters when a joiner is dimensioning a batch of small components rather than occasional one-off pieces. The HOB260NL handles workpieces up to 185 mm thick, takes 3 mm per pass in both planing and thicknessing, and does it on a 150 kg net frame that a small workshop can actually accommodate.
Construction and changeover
Cast iron and a cabinet base are what keep the HOB260NL steady at this weight class. The grey cast iron planing tables of the HOB260NL pivot sideways together, uncovering the 600 x 185 mm thicknessing table without dismantling anything, and the solid cabinet base unit adds stability that an open-legged stand cannot. The infeed mechanism can be switched off for surface planing so the feed rollers are stationary while the operator works over the block. A Ø 75 mm three-knife cutterblock runs at 4000 min-1 behind an adjustable aluminium fence measuring 720 x 135 mm, tiltable from 90° to 45°.
Power and extraction
Motor rating on the HOB260NL is 2100 W S6 with a 1500 W continuous S1 figure, which is the practical number to size the supply against. The base version runs on 230 V single-phase — a real advantage in premises without three-phase — while a 400 V version exists for shops that have it. A 100 mm dust collector port serves the machine; connecting it is not optional, because a 250 mm planing width generates chip volume quickly in a small room.
Footprint and siting the HOB260NL
Floor space is where the HOB260NL wins against the 310 and 410 mm machines. The HOB260NL measures 1100 x 420 mm in plan with a thicknesser table height of 855 mm, and at 150 kg net (160 kg gross) two people with a pallet truck can position the machine. Leave clear infeed and outfeed length beyond the 1090 mm planing tables — that run-out, not the machine itself, is what usually decides where the HOB260NL can stand.
ძირითადი მახასიათებლები
- 1090 x 250 mm grey cast iron planing tables that pivot sideways together for thicknessing
- Feed speed of 8 m/min — faster than the comparable HOB260ECO at 5.5 m/min
- Ø 75 mm three-knife cutterblock running at 4000 min-1
- Maximum workpiece thickness 185 mm on a 600 x 185 mm thicknessing table
- 2100 W S6 motor (1500 W S1 continuous), offered in 230 V and 400 V versions
- Adjustable aluminium planer fence 720 x 135 mm, tilting from 90° to 45°
- Solid cabinet base unit with a compact 1100 x 420 mm plan footprint and 855 mm table height
- 150 kg net weight and a 100 mm dust collector port for connection to shop extraction
ტექნიკური მახასიათებლები
- Planing width
- 250 mm
- Planing table size
- 1090 x 250 mm
- Max. planing cutting depth
- 3 mm
- Planer fence
- 720 x 135 mm
- Fence tilt
- 90° - 45°
- Thicknesser table height
- 855 mm
- Thicknessing table size
- 600 x 185 mm
- Thicknessing cutting depth
- 3 mm
- Max. workpiece thickness
- 185 mm
- Cutterblock diameter
- 75 mm
- Cutterblock speed
- 4000 min-1
- Number of planer knives
- 3
- Motor power (S6)
- 2100 W
- Motor power (S1)
- 1500 W
- Feed speed
- 8 m/min
- Voltage
- 230 V (400 V version available)
- Total dimensions
- 1100 x 420 mm
- Dust collector port
- 100 mm
- Net weight
- 150 kg
- Gross weight
- 160 kg
- Packaging length
- 1150 mm
- Packaging width
- 520 mm
- Packaging height
- 950 mm
- EAN code (HOB260NL_230V)
- 9120039902289
- EAN code (HOB260NL_400V)
- 9120039902272
უპირატესობები
- At 8 m/min the HOB260NL feeds faster than the similarly sized HOB260ECO, which shortens dimensioning time on batch work.
- The HOB260NL is available in a 230 V version, so a Georgian workshop without three-phase can install a full combination machine without an electrical upgrade.
- A 1100 x 420 mm plan footprint and 150 kg net weight make the HOB260NL genuinely movable within a small shop, unlike the 410 mm machines in the range.
გასათვალისწინებელი
- The HOB260NL takes only 185 mm maximum workpiece thickness — less than the 195 mm of the HOB260ECO and well short of the 225 mm on the 310 and 410 mm machines.
- The Ø 75 mm three-knife block on the HOB260NL is a straight-knife design, so knives are reset with a gauge after sharpening and a nail strike damages the whole set; no spiral option exists on this model.
- A 1500 W continuous rating means the HOB260NL will bog down if pushed at full width and full depth in dense hardwood, so cuts must be lighter than the 3 mm maximum on hard timber.
