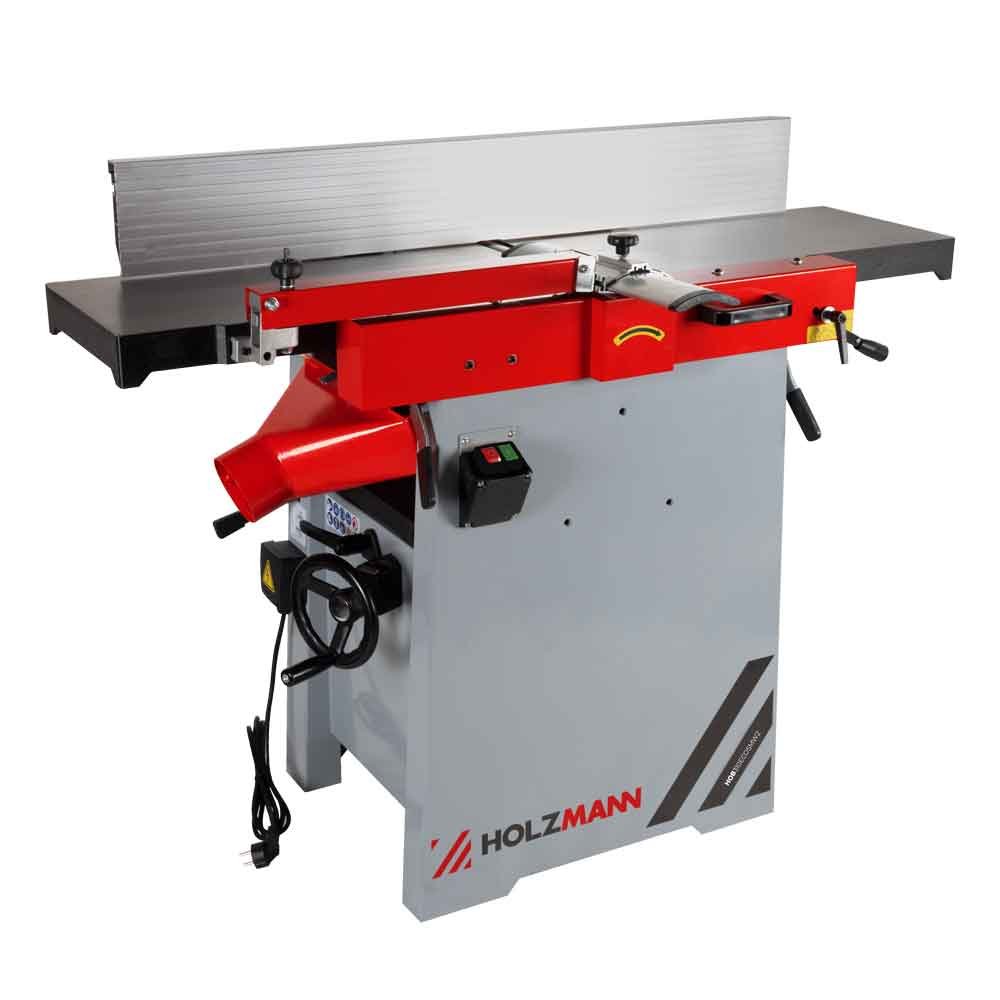

HOLZMANN HOB310ECOSMW2 Planer Thicknesser with Spiral Cutter Block

HOB310ECOSMW2 — HOLZMANN HOB310ECOSMW2 Planer Thicknesser with Spiral Cutter Block 1 / 4

Planing width steps up to 310 mm here: the HOB310ECOSMW2 works 1285 x 310 mm tables with a Ø 70 mm spiral block of 30 indexable inserts and thicknesses to 225 mm on a 545 x 308 mm table. A 2200 W S1 motor turns the block at 5500 min-1 with a 5.5 m/min feed, in 230 V or 400 V form.

სამუშაო სიგანე
310 mm
ძრავის სიმძლავრე
2.2 kW
ძაბვა
230V
მაგიდის ზომა
1285 x 310 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The HOB310ECOSMW2 price is driven by the voltage version, the spare cutter-insert package, the optional HOB310ECOLL mortising unit and magnet setting jig, any extraction unit and Ø 100 mm hose quoted alongside, and delivery to your workshop.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The HOB310ECOSMW2 is the only spiral-head machine here offered on single-phase at 310 mm

The HOLZMANN HOB310ECOSMW2 answers a specific problem for Georgian workshops: wanting spiral cutterhead finish without a three-phase supply. The HOB310ECOSMW2 is available in a 230 V version as well as a 400 V one, and carries a Ø 70 mm spiral cutter block with 30 indexable inserts of 15 x 15 x 2.5 mm at 30°, plus 5 spares in the box. Planing width is 310 mm and thicknessing capacity is a full 225 mm, on a machine of 179.5 kg net.

What the spiral block does at this size

The spiral block earns its cost on the HOB310ECOSMW2 through what it prevents rather than what it adds. Because each insert on the HOB310ECOSMW2 shears into the timber at an angle instead of the full 310 mm width striking at once, chestnut, oak and figured walnut come off with far less tear-out — and in a small shop that is the difference between a usable board and a reject. Insert damage is a one-piece repair with no knife gauging. The block turns at 5500 min-1 behind a 2200 W continuously rated motor.

Feed rate is the trade-off

The HOB310ECOSMW2 feeds at 5.5 m/min, slower than the 7 m/min of the straight-knife HOB310ECO. That is the deliberate consequence of a 30-insert head: more cutting edges engaging per revolution means a slower feed produces the intended finish and keeps the 2200 W motor comfortable. For a joinery producing components rather than volume flooring, the slower feed on the HOB310ECOSMW2 costs little.

Layout, extraction and options

Physically the HOB310ECOSMW2 is identical to its straight-knife sibling. Overall dimensions are 1285 x 750 x 1000 mm at an 852 mm thicknesser table height, the fence is 1100 x 150 mm with 0 to 45° tilt, the extraction port is Ø 100 mm, and the whole planer table folds up as one piece for changeover with a counter on the central height adjustment. The HOB310ECOSMW2 accepts the HOB310ECOLL mortising unit as an option, and a magnet setting jig, lubricant and dust collectors are also available. Sound power is 103 dB(A), sound pressure 89.5 dB(A).

ძირითადი მახასიათებლები

  • Ø 70 mm spiral cutter block carrying 30 indexable inserts, 15 x 15 x 2.5 mm at 30°
  • Spiral cutting available on single-phase: 2200 W S1 in a 230 V as well as a 400 V version
  • 5.5 m/min feed with the block turning at 5500 min-1
  • 310 mm planing width, 1285 x 310 mm tables, 3 mm planing depth of cut
  • 225 mm thicknessing on a 545 x 308 mm table at 4 mm per pass
  • 103 dB(A) sound power, 89.5 dB(A) sound pressure
  • Whole planer table folds up as one piece; central thicknessing height adjustment with counter
  • 179.5 kg net, 1285 x 750 x 1000 mm overall, 852 mm table height; optional mortising unit

ტექნიკური მახასიათებლები

Planing width
310 mm
Planing table size
1285 x 310 mm
Max. planing cutting depth
3 mm
Planer fence
1100 x 150 mm
Fence tilt
0 - 45°
Thicknesser table height
852 mm
Thicknessing table size
545 x 308 mm
Thicknessing cutting depth
4 mm
Thicknessing height
225 mm
Cutterblock type
Spiral cutter block with 30 cutter inserts (15 x 15 x 2.5 mm, 30°)
Cutterblock diameter
Ø 70 mm
Cutterblock speed
5500 min-1
Motor power (S1)
2200 W
Voltage
230 V / 50 Hz (400 V version available)
Feed speed
5.5 m/min
Dust collector port
Ø 100 mm
Total dimensions
1285 x 750 x 1000 mm
Sound power level
103 dB(A)
Sound pressure level
89.5 dB(A)
Net weight
179.50 kg
Gross weight
206 kg
Packaging length
1320 mm
Packaging width
565 mm
Packaging height
960 mm
EAN code (HOB310ECOSMW2_230V)
9120132140892
EAN code (HOB310ECOSMW2_400V)
9120132140885

უპირატესობები

  • The HOB310ECOSMW2 is the practical way for a single-phase Georgian workshop to get spiral-cutterhead finish, because a 230 V version is available.
  • 30 indexable inserts mean damage on the HOB310ECOSMW2 is repaired one insert at a time, with no knife setting gauge and no scrapped knife set after a nail strike.
  • 225 mm thicknessing capacity on a 179.5 kg machine gives the HOB310ECOSMW2 the same board depth as the 410 mm models in a small-shop footprint.

გასათვალისწინებელი

  • The HOB310ECOSMW2 feeds at 5.5 m/min against 7 m/min for the straight-knife HOB310ECO, so batch dimensioning takes longer.
  • With 30 inserts on a Ø 70 mm block, the HOB310ECOSMW2 has a coarser insert pattern than the 44-insert HOB410ECOSMW2 or the 68-insert HOB410PROSMW4, so the finish is good rather than best-in-range.
  • Sound levels are unchanged from the straight-knife HOB310ECO at 103 dB(A) sound power and 89.5 dB(A) sound pressure, so the spiral block on the HOB310ECOSMW2 should not be bought expecting a quieter machine.

ხშირად დასმული კითხვები

How much does the HOLZMANN HOB310ECOSMW2 cost?
The HOLZMANN HOB310ECOSMW2 is supplied on quotation, not at a fixed price. The price of a HOB310ECOSMW2 is driven by the voltage version chosen (230 V or 400 V), the spare cutter-insert package beyond the 5 supplied, whether the HOB310ECOLL mortising unit is included, whether an extraction unit and Ø 100 mm hose are quoted alongside, and delivery to your workshop in Georgia.
Is the HOB310ECOSMW2 available on single-phase power?
Yes. The HOB310ECOSMW2 is offered as a 230 V single-phase machine (EAN 9120132140892) and as a 400 V three-phase machine (EAN 9120132140885). That makes the HOB310ECOSMW2 unusual: it is the widest spiral-head planer thicknesser in this Holzmann group that a Georgian workshop can run without installing a three-phase supply. Where three-phase already exists, the 400 V HOB310ECOSMW2 is the smoother-running option under sustained load.
What is the lead time for a HOLZMANN HOB310ECOSMW2?
The HOB310ECOSMW2 is built to order at the Holzmann factory in Austria and shipped to Georgia, so the lead time depends on the current factory and freight position. Ask us to confirm the current lead time for the HOB310ECOSMW2 when you request the quotation and we will check availability before committing to a date.
What is involved in installing a HOB310ECOSMW2?
Installing the HOB310ECOSMW2 is straightforward but not trivial. At 206 kg gross the HOB310ECOSMW2 needs a pallet truck or small hoist and a level floor, with clear infeed and outfeed beyond the 1285 mm tables. Connect the Ø 100 mm port to extraction before the first cut, and have a qualified electrician make the supply connection, verifying cutterblock rotation direction on the 400 V version.
What consumables should I budget for separately with the HOB310ECOSMW2?
Budget for spare 15 x 15 x 2.5 mm cutter inserts for the HOB310ECOSMW2 beyond the 5 supplied, a torque driver for the insert screws, a dust extraction unit with Ø 100 mm hose, and lubricant and table wax. Optional items to price at the same time are the HOB310ECOLL mortising unit and a magnet setting jig.
Why does the HOB310ECOSMW2 feed slower than the HOB310ECO?
The HOB310ECOSMW2 feeds at 5.5 m/min against 7 m/min for the straight-knife HOB310ECO because its 30-insert spiral block presents many more cutting edges per revolution. A slower feed gives each insert on the HOB310ECOSMW2 the bite it is designed for and keeps the 2200 W motor within its rating. The result is a better surface on difficult timber at the cost of throughput.
Can the HOB310ECOSMW2 take a mortising attachment?
Yes. The HOB310ECOSMW2 accepts the optional HOB310ECOLL mortising unit, which adds slot mortising for door and frame joinery. Specify the mortising unit for your HOB310ECOSMW2 at quotation rather than retro-fitting later, as factory specification is simpler and usually cheaper.
