HOB260MINI — HOLZMANN HOB260MINI Compact Combined Planer-Thicknesser, 260 mm 1 / 4

HOLZMANN

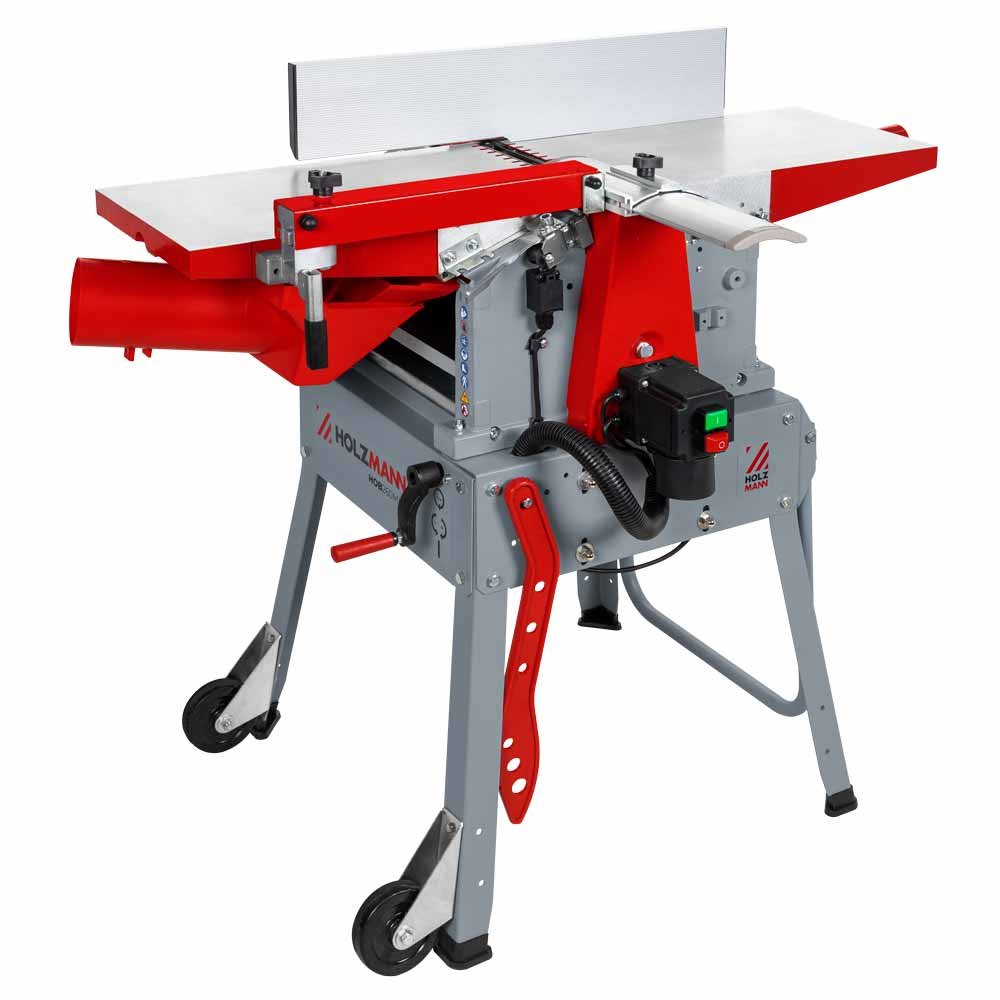

HOLZMANN HOB260MINI Compact Combined Planer-Thicknesser, 260 mm

HOB260MINI

At 260 mm working width and 72 kg net, the HOB260MINI is the small machine of this HOLZMANN family - 45 mm narrower and 21 kg lighter than the HOB305ABS. Its thicknessing bed is solid grey cast iron at 400 x 260 mm, taking up to 3 mm per pass at 5 m/min from a 2200 W S6 motor. Extraction is external, through a 100 mm port.

ფასი მოთხოვნით

The quoted price of the HOB260MINI depends on the voltage variant (HOB260MINI_230V or HOB260MINI_400V), the order quantity, whether a chip extractor and 100 mm hose are quoted with it since the machine has no on-board collection, spare reversible knife sets, delivery to your address, and the freight and import charges on the consignment at the time of order.

ფასის მოთხოვნა

What the HOLZMANN HOB260MINI does

The HOB260MINI is the entry point into the HOLZMANN combination range and the right choice where floor space, not capacity, is the constraint. The HOB260MINI planes and thicknesses to a full 260 mm width, surfaces on a 1040 x 260 mm table and thicknesses on a 400 x 260 mm table in solid grey cast iron, taking workpieces up to 160 mm thick. A 2200 W S6 motor turns the 63 mm diameter shaft with two reversible knives at 6500 min-1, and the thicknessing feed runs at 5 m/min.

Built to be moved, not installed

The HOB260MINI weighs 72 kg net and comes with a travelling device, so the machine is wheeled out for a batch of door frames or shelf stock and pushed back against the wall afterwards. Working height is 860 mm, which suits an operator standing at a normal bench, and the 1100 x 150 mm planing fence tilts from 90 to 45 degrees for chamfered edges. For a two-person joinery working in a garage-sized unit, the HOB260MINI is often the only combination machine that physically fits.

What the HOB260MINI asks of the workshop

The HOB260MINI is not self-extracting. The machine has a 100 mm dust collector port and expects a chip extractor such as the ABS1080 to be connected – budget for that at the same time. The published sound power level of 102.1 / 99.1 dB(A) and sound pressure level of 95.6 / 91.5 dB(A) also make ear protection non-negotiable, and the S6 rating on the 2200 W motor means the HOB260MINI is built for intermittent duty rather than a full production shift.

How the HOB260MINI compares with the 305 mm models

The step up is the HOB305ABS: 305 mm tables, an integrated dust collector, a faster 8.3 m/min feed and 93 kg. The HOB260MINI trades 45 mm of width and the on-board extraction for a lighter, cheaper and more portable machine of the same 160 mm thicknessing height. Buyers who already own an extractor and rarely exceed 260 mm-wide stock lose very little by taking the HOB260MINI.

Included in delivery

The HOB260MINI is delivered with two reversible planing knives measuring 260 x 18.6 x 1.2 mm, supplied as a spare part set.

ძირითადი მახასიათებლები

  • 260 mm planing and thicknessing width - the narrow, 72 kg member of this range
  • Thicknessing bed in solid grey cast iron, 400 x 260 mm, up to 3 mm removed per pass
  • 2200 W S6 motor on a 63 mm shaft at 6500 min-1 with 2 reversible knives
  • 1040 x 260 mm planing table with a 1100 x 150 mm fence tilting 90 to 45 degrees
  • Powered thicknessing feed at 5 m/min, workpieces up to 160 mm thick
  • Travelling device fitted, working height 860 mm
  • 100 mm dust port - an external extractor is required, there is no on-board collector
  • Supplied with 2 reversible planing knives, 260 x 18.6 x 1.2 mm

ტექნიკური მახასიათებლები

Planing table size
1040 x 260 mm
Max. thicknessing cutting depth (planing side)
3 mm
Planer fence
1100 x 150 mm
Fence tilt
90 - 45 degrees
Cutter shaft diameter
63 mm
Cutter shaft speed
6500 min-1
Number of cutter knives
2
Motor power S6
2200 W
Voltage
230 V / 50 Hz (400 V variant available)
Feed speed
5 m/min
Thicknessing table size
400 x 260 mm
Thicknessing cutting depth
3 mm
Thicknessing height
160 mm
Table height
860 mm
Dust collector port
100 mm
Sound power level
102.1 / 99.1 dB(A)
Sound pressure level
95.6 / 91.5 dB(A)
Net weight
72 kg
Gross weight
79.50 kg
Planing knives supplied
260 x 18.6 x 1.2 mm, reversible
EAN code (230 V variant)
9120058379574

უპირატესობები

  • Lightest machine in the range at 72 kg net, with a travelling device for storage between jobs
  • Solid grey cast-iron thicknessing table on an entry-level combination machine
  • 2200 W S6 motor and 3 mm cutting depth on both planing and thicknessing sides

გასათვალისწინებელი

  • No integrated dust collector - a separate extractor and hose are an additional purchase
  • Highest published noise level in this range at 102.1 dB(A) sound power
  • 260 mm width and 160 mm thicknessing height limit the HOB260MINI to small joinery stock

ხშირად დასმული კითხვები

Does the HOB260MINI run on 230 V or does it need three-phase power?
The HOB260MINI is offered both ways: HOB260MINI_230V (EAN 9120058379574) for single-phase 230 V / 50 Hz and HOB260MINI_400V (EAN 9120132140298) for three-phase 400 V. Most buyers of the HOB260MINI are small workshops on a single-phase supply and take the 230 V version; the 400 V version suits premises already wired for three-phase machinery.
What does the HOB260MINI not do?
The HOB260MINI is a planer-thicknesser only - the HOB260MINI does not saw, mould, mortise or sand. The machine also has no integrated dust collector, so a separate extractor must be connected to the 100 mm port, and the surface-planing side is hand-fed. Maximum working width on the HOB260MINI is 260 mm, so wider panels must be jointed after machining.
How wide and thick can the HOB260MINI machine?
The HOB260MINI planes and thicknesses up to 260 mm wide and takes workpieces up to 160 mm thick, with up to 3 mm removed per pass. The thicknessing table measures 400 x 260 mm and the planing table 1040 x 260 mm.
Does the HOB260MINI need a dust extractor?
Yes. Unlike the HOB305ABS, the HOB260MINI has no integrated dust collector - the machine provides a 100 mm dust collector port and must be connected to a workshop extractor such as the HOLZMANN ABS1080, which moves 1080 m3/h through a 100 mm inlet.
Is the HOB260MINI loud?
The HOB260MINI is rated at a sound power level of 102.1 / 99.1 dB(A) and a sound pressure level of 95.6 / 91.5 dB(A), so hearing protection is required whenever the HOB260MINI is running. These are the highest published noise figures in the HOLZMANN combination range covered here.
Should I choose the HOB260MINI or the HOB305ABS?
Choose the HOB260MINI when 260 mm working width is enough, when 72 kg and a travelling device matter because the machine has to be moved or stored, and when a chip extractor is already in the workshop to serve its 100 mm port. Choose the HOB305ABS for 305 mm width, an integrated dust collector that removes the need for a separate extractor, and a faster 8.3 m/min thicknessing feed at 93 kg. Both machines thickness to the same 160 mm height. Ask us to quote the HOB260MINI and the HOB305ABS side by side, including extraction where it is needed, so the comparison covers the whole installation rather than the machine alone.
What does a HOLZMANN HOB260MINI cost to put into a workshop?
The HOB260MINI is quoted rather than sold at a fixed price, and the total for putting one into a workshop is moved by the voltage variant chosen (HOB260MINI_230V or HOB260MINI_400V), the order quantity, whether a chip extractor and 100 mm hose have to be quoted with it - the HOB260MINI has no integrated collector, unlike the HOB305ABS - the spare reversible knife sets taken with it, delivery to your address, and the freight and import charges current at the time of order. Tell us whether extraction is already in place and the HOB260MINI will be priced accordingly.
How long is the wait for a HOB260MINI?
The HOB260MINI is built to order, so its lead time is confirmed at quotation rather than quoted as a standing figure; it depends on the HOLZMANN production slot for the variant you choose and on the transport route at the time of ordering. Ask for the HOB260MINI lead time in writing together with the price so that both refer to the same order date.
What is needed to install and commission a HOB260MINI?
Installing a HOB260MINI means providing a rigid, level base for a 72 kg machine at an 860 mm working height, connecting it to a 230 V single-phase or 400 V three-phase supply according to the variant, and - the step buyers most often overlook - running and clamping a 100 mm extraction hose to its dust port, because the HOB260MINI has no on-board collector. Commissioning is then a knife check, the planer-to-thicknesser conversion, and a test pass at full 260 mm width.
What has to be budgeted separately from the HOB260MINI machine price?
Budget separately for a chip extractor and its 100 mm hose and clamps if the workshop has none - a unit in the class of the HOLZMANN ABS1080, which moves 1080 m3/h through a 100 mm inlet, matches the HOB260MINI port - plus spare 260 x 18.6 x 1.2 mm reversible knives, a bench or stand if the machine is not floor-sited, roller stands for long stock on the 1040 mm planing table, and hearing protection, since the HOB260MINI is rated at 95.6 / 91.5 dB(A) sound pressure.
