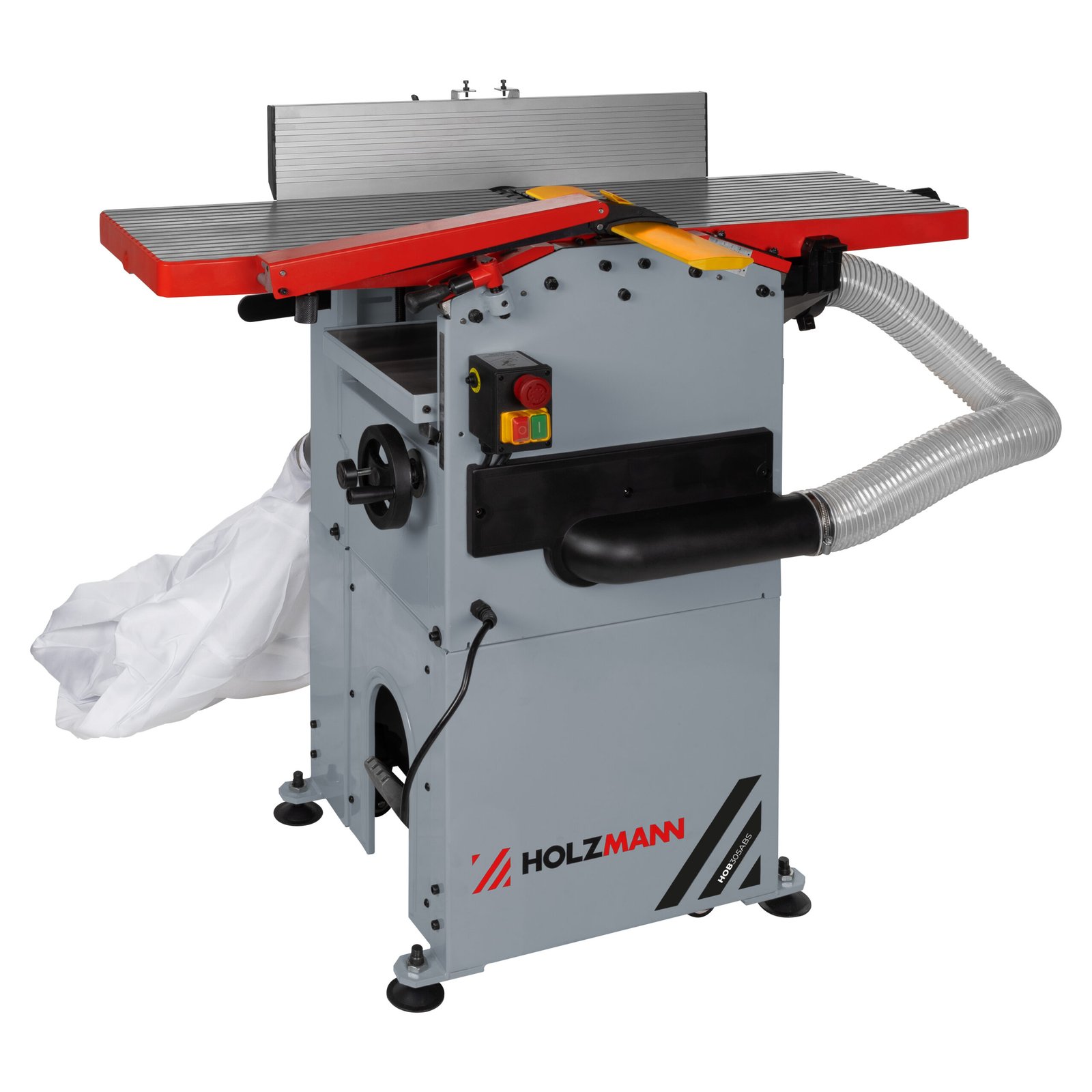

HOLZMANN HOB305ABS Combined Planer-Thicknesser with Integrated Dust Collector

HOB305ABS

Feed rate is where the HOB305ABS parts company with its spiral-head twin. Two straight 308 x 2.5 x 20 mm knives let it drive stock through at 8.3 m/min and take 2 mm per thicknessing pass, against 6 m/min and 1.6 mm on the HOB305ABSSMW2. Chips go straight into the integrated collector, and blades are inexpensive to replace.

ფასი მოთხოვნით

The quoted price of the HOB305ABS is driven by the voltage variant (HOB305ABS_230V or HOB305ABS_400V), the order quantity, spare knife sets and dust bags taken with the machine, delivery and unloading at your premises, and the freight and import charges on the consignment at the time of order.

ფასის მოთხოვნა

What the HOLZMANN HOB305ABS does

The HOB305ABS is the machine to buy when a workshop needs to square rough timber but has neither the floor area for two machines nor an extraction system to feed them. The HOB305ABS surfaces stock on a 1075 x 305 mm table of solid aluminium pressure cast, then converts by hand to thicknessing on a 500 x 305 mm table, and the chips go straight into an on-board collector bag. An 1800 W S1 motor drives a 62 mm diameter shaft with two planing knives at 6700 min-1, and the powered thicknessing feed pulls stock through at 8.3 m/min – the fastest feed in this HOLZMANN 305 mm family.

Integrated extraction is the defining feature

The integrated dust collector is the reason the HOB305ABS carries the ABS suffix. Instead of buying, siting and ducting a stand-alone extractor, the buyer gets a machine that fills its own exchangeable bag, and bag changes are a front-of-machine job. For a joinery in a rented unit, that is one less 230 V load, one less hose across the floor and one less piece of equipment to move.

Working envelope and handling

The HOB305ABS takes workpieces up to 160 mm thick in the thicknesser and removes up to 2 mm per pass, with the thicknessing infeed drive switchable on and off. The aluminium planing fence measures 643 x 126 mm and tilts from 90 to 45 degrees for chamfers and bevels. Overall the HOB305ABS measures 1140 x 780 x 1080 mm and weighs 93 kg net, and the supplied moving device – two swivel and two fixed castors with a lowering and lifting function – means a single operator can wheel it out for a job and park it again afterwards.

How the HOB305ABS differs from the HOB305ABSSMW2 and HOB305PRO

The HOB305ABSSMW2 is the same machine fitted with a 28-insert spiral head: better surface on figured hardwood, but a slower 6 m/min feed and a 1.6 mm thicknessing cut. The HOB305PRO is a different weight class at 258 kg with cast-iron tables and 225 mm thicknessing height. The HOB305ABS is the straight-knife, quick-feed, self-extracting option for softwood and mild hardwood work.

Included in delivery

The HOB305ABS ships with the integrated dust collector, the stand, planing knives measuring 308 x 2.5 x 20 mm and a dust bag.

ძირითადი მახასიათებლები

  • Two straight planing knives on the 62 mm shaft, supplied as 308 x 2.5 x 20 mm blades
  • 8.3 m/min thicknessing feed - 2.3 m/min quicker than the spiral-head HOB305ABSSMW2
  • 2 mm removed per thicknessing pass on the 500 x 305 mm table, up to 160 mm workpiece height
  • Integrated dust collector delivered with the stand, a dust bag and a fitted set of planing knives
  • 93 kg net on a moving device of 2 swivel and 2 fixed castors with lowering and lifting function
  • Thicknessing infeed drive switches off; 1140 x 780 x 1080 mm footprint, 925 mm table height
  • 1800 W S1 motor turning the cutter shaft at 6700 min-1
  • 1075 x 305 mm aluminium pressure-cast planing table with a 643 x 126 mm fence tilting 90 to 45 degrees

ტექნიკური მახასიათებლები

Planing table size
1075 x 305 mm
Thicknesser table height
925 mm
Max. thicknessing cutting depth (planing side)
3 mm
Planer fence
643 x 126 mm
Fence tilt
90 - 45 degrees
Cutter shaft diameter
62 mm
Cutter shaft speed
6700 min-1
Number of cutter knives
2
Motor power S1
1800 W
Voltage
230 V / 50 Hz (400 V variant available)
Feed speed
8.3 m/min
Cable length
1.8 m
Thicknessing table size
500 x 305 mm
Thicknessing cutting depth
2 mm
Thicknessing height
160 mm
Total dimensions
1140 x 780 x 1080 mm
Sound power level
96.2 dB(A)
Sound pressure level
83.2 dB(A)
Net weight
93 kg
Gross weight
99 kg
Planing knives supplied
308 x 2.5 x 20 mm
EAN code (230 V variant)
9120132141035

უპირატესობები

  • Integrated dust collector saves the cost, power and floor space of an external extractor
  • 8.3 m/min thicknessing feed - the fastest in the HOLZMANN 305 mm combination range
  • Aluminium pressure-cast tables and castor moving device suit a workshop with limited space

გასათვალისწინებელი

  • Two straight knives tear out on figured and interlocked hardwood where a spiral head would not
  • Manual feed on the surface-planing side, with no powered infeed for jointing
  • On-board bag collection means frequent bag changes compared with a full workshop extraction system

ხშირად დასმული კითხვები

Is the HOB305ABS available for 230 V or 400 V supply?
Both. The HOB305ABS is supplied as HOB305ABS_230V (EAN 9120132141035) for single-phase 230 V / 50 Hz and as HOB305ABS_400V (EAN 9120132141042) for three-phase 400 V. A small joinery running off a standard single-phase connection should order the 230 V HOB305ABS; a workshop already wired for three-phase machines gets smoother starting and better long-run behaviour from the 400 V version.
What can the HOB305ABS not do?
The HOB305ABS plane and thicknesses timber and nothing else - the HOB305ABS does not saw, does not cut tenons or mortises and does not sand. The surface-planing side is hand-fed; the 8.3 m/min powered feed works on the thicknessing side only. The HOB305ABS also uses two straight knives, so heavily figured or interlocked grain will tear more than on the spiral-head HOB305ABSSMW2.
Does the HOB305ABS need a separate dust collector?
No. The HOB305ABS has an integrated dust collector with an exchangeable bag, which is the main reason to choose this model over a conventional planer-thicknesser. The buyer saves the price and the floor space of a stand-alone extractor such as the ABS1080.
How thick a board can the HOB305ABS handle?
The HOB305ABS thicknesses workpieces up to 160 mm high on a 500 x 305 mm table and removes up to 2 mm of material per pass. On the surface-planing side the HOB305ABS takes up to 3 mm cutting depth across the 1075 x 305 mm table.
Can one person move the HOB305ABS around the workshop?
Yes. The HOB305ABS weighs 93 kg net and is delivered with a moving device of two swivel and two fixed castors with a lowering and lifting function, so the machine can be wheeled aside after use. Its footprint is 1140 x 780 x 1080 mm.
Which is the better buy, the HOB305ABS or the HOB305PRO?
The HOB305ABS is the lighter, self-extracting machine at 93 kg with a 160 mm thicknessing height and an 1800 W motor. The HOB305PRO is a 258 kg floor machine with cast-iron tables, a four-knife cutterblock, a 2200 W motor and 225 mm thicknessing height, but it needs a separate extractor. Small joineries take the HOB305ABS; production shops take the HOB305PRO.
How is the HOLZMANN HOB305ABS priced, and what moves the figure?
The HOB305ABS is priced by quotation, not from a published list, and what moves the figure is the voltage variant you need (HOB305ABS_230V single-phase or HOB305ABS_400V three-phase), the number of machines ordered together, the spare 308 x 2.5 x 20 mm knife sets and dust bags supplied with it, delivery and unloading at your address, and the freight and import charges that apply when the order is placed. Send us the variant and the spares you want and the HOB305ABS will be quoted against that specification.
What is the delivery time on a HOB305ABS?
The HOB305ABS is manufactured to order, so its lead time is confirmed on the quotation rather than stated up front; it follows the HOLZMANN production slot and the transport route at the time you order. Request the HOB305ABS lead time in writing with the price so that the delivery date and the quoted figure refer to the same moment.
Does the HOB305ABS need commissioning work on site?
Commissioning the HOB305ABS is straightforward compared with a floor-standing machine: assemble it on the supplied stand, level the 93 kg machine on a solid floor, allow infeed and outfeed room beyond the 1075 mm planing table, connect it to a 230 V single-phase or 400 V three-phase supply within the 1.8 m cable run, and confirm the integrated collector and its bag are seated before a test cut. Because the HOB305ABS collects its own chips, there is no extraction ducting to design or install.
What extra items should be budgeted with a HOB305ABS?
Alongside the HOB305ABS itself, budget for replacement planing knives in 308 x 2.5 x 20 mm and a knife-setting gauge, spare dust-collector bags, infeed and outfeed roller stands for boards longer than the 1075 mm table, push blocks, and hearing protection for the 83.2 dB(A) sound pressure level. What the HOB305ABS does not need is a separate chip extractor, which removes the single largest accessory cost that a conventional planer-thicknesser carries.
