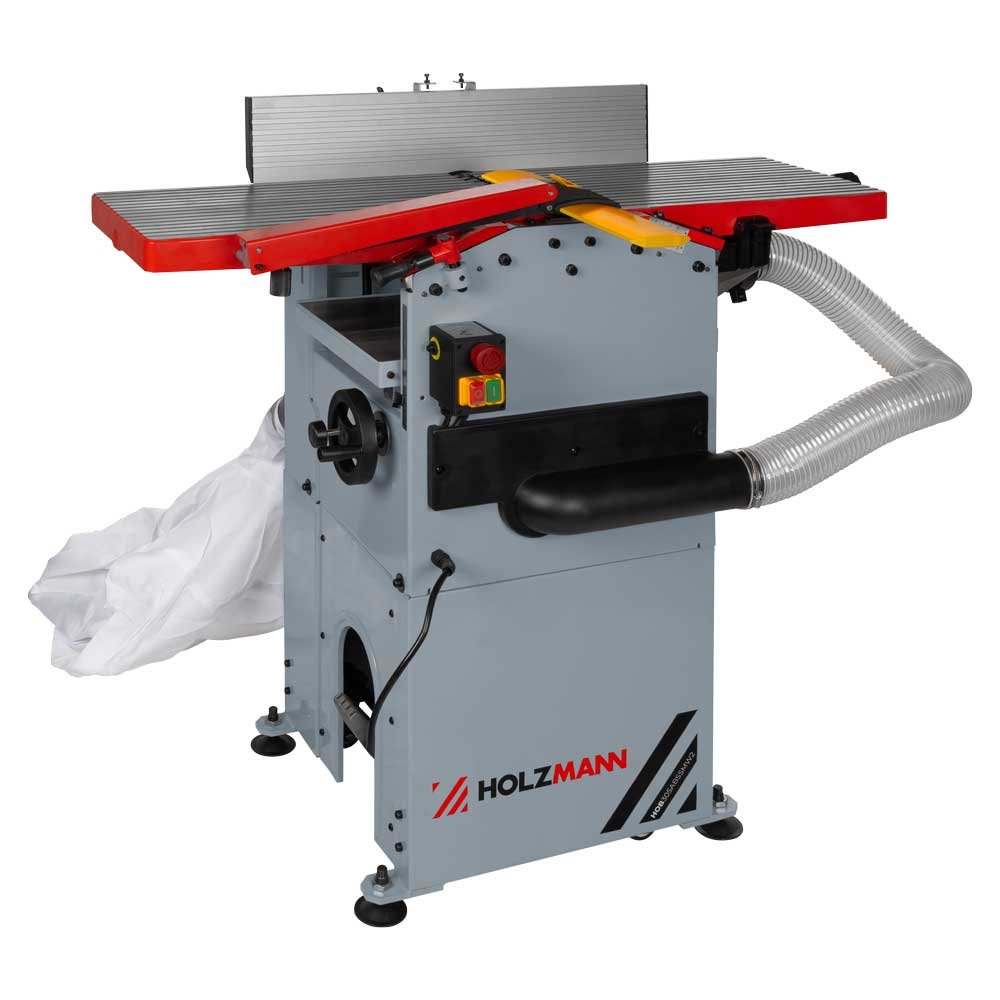

HOLZMANN HOB305ABSSMW2 Combined Planer-Thicknesser with Spiral Cutter Head and Integrated Dust Collector

1 / 4

A spiral cutter head with 2 grooves and 28 inserts of 15 x 15 x 2.5 mm is what separates the HOB305ABSSMW2 from the straight-knife HOB305ABS beside it. The insert geometry shears the grain rather than chopping it, and the HOB305ABSSMW2 pairs it with a finer 1.6 mm thicknessing cut at 6 m/min and an on-board collector on a 75 mm port.

ძრავის სიმძლავრე: 1.8 kW
ძაბვა: 230V
მაგიდის ზომა: 1075 x 305 mm
მაგიდის სიმაღლე: 925 mm

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

The quoted price of the HOB305ABSSMW2 moves with the voltage variant ordered (HOB305ABSSMW2_230V or HOB305ABSSMW2_400V), the quantity on the order, how many spare 15 x 15 x 2.5 mm inserts and dust bags are bundled with the machine, delivery and unloading at your address, and the freight and import charges applying to the consignment at the time of order.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN HOB305ABSSMW2 does

The HOB305ABSSMW2 is the spiral-head version of the HOLZMANN 305 mm combined planer-thicknesser, and the cutter head is the reason to choose it. Instead of two full-width straight knives, the HOB305ABSSMW2 carries a spiral head with two grooves and 28 square cutter inserts of 15 x 15 x 2.5 mm, turning on a 62 mm diameter shaft at 6700 min-1. Each insert meets the grain at a shear angle, so figured oak, beech and knotty pine leave the 1075 x 305 mm aluminium pressure-cast table with less tear-out, and a dulled edge is dealt with by rotating one insert rather than sending a pair of full-length knives out for grinding.

Surface planing and thicknessing in one 1140 mm footprint

The HOB305ABSSMW2 replaces two machines in a workshop that has room for one. Conversion from surface planing to thicknessing is a quick manual changeover, and the thicknessing side works on a 500 x 305 mm table taking stock up to 160 mm thick, removing up to 1.6 mm per pass at a feed speed of 6 m/min. The thicknessing infeed drive can be switched off, the aluminium planing fence measures 643 x 126 mm and tilts from 90 to 45 degrees, and the whole machine occupies 1140 x 780 x 1080 mm at 93 kg net. A moving device with two swivel and two fixed castors, including a lowering and lifting function, lets one person push the HOB305ABSSMW2 back against the wall at the end of the day.

Chip extraction is already on board

The HOB305ABSSMW2 needs no separate extraction unit to start work. The integrated dust collector discharges through a 75 mm diameter port into an exchangeable bag, which saves both the purchase price and the floor space of a stand-alone extractor – a real consideration in a rented Tbilisi or Kutaisi workshop unit.

How the HOB305ABSSMW2 differs from its neighbours

The HOB305ABS is the same machine with two straight knives instead of the spiral head: it feeds faster at 8.3 m/min and takes a 2 mm thicknessing cut, and it costs less, but it tears out on interlocked grain. The HOB305PRO is a heavier class again at 258 kg net, with cast-iron tables and 225 mm thicknessing height. Choose the HOB305ABSSMW2 when surface finish on hardwood matters more than raw feed rate.

Included in delivery

The HOB305ABSSMW2 is supplied with the integrated dust collector, the stand, the cutter inserts already assembled in the spiral head, and a dust bag.

ძირითადი მახასიათებლები

Spiral cutter head: 2 grooves, 28 cutter inserts of 15 x 15 x 2.5 mm
1.6 mm cut per pass on the 500 x 305 mm thicknessing bed, powered feed 6 m/min
Integrated dust collector discharging through a 75 mm diameter port into an exchangeable bag
Inserts are held individually, so a damaged edge means changing one insert instead of regrinding a full-width knife
Supplied with the inserts already assembled in the head, plus stand, collector and dust bag
1800 W S1 motor on a 62 mm diameter shaft at 6700 min-1
1075 x 305 mm aluminium pressure-cast planing table with a 643 x 126 mm fence tilting 90 to 45 degrees

ტექნიკური მახასიათებლები

Planing table size: 1075 x 305 mm
Thicknesser table height: 925 mm
Max. thicknessing cutting depth (planing side): 3 mm
Planer fence: 643 x 126 mm
Fence tilt: 90 - 45 degrees
Cutter head: Spiral, 2 grooves, 28 inserts (15 x 15 x 2.5 mm)
Cutter shaft diameter: 62 mm
Cutter shaft speed: 6700 min-1
Motor power S1: 1800 W
Voltage: 230 V / 50 Hz (400 V variant available)
Feed speed: 6 m/min
Cable length: 1.8 m
Thicknessing table size: 500 x 305 mm
Thicknessing cutting depth: 1.6 mm
Thicknessing height: 160 mm
Max. workpiece thickness: 160 mm
Dust collector port: 75 mm
Total dimensions: 1140 x 780 x 1080 mm
Sound power level: 96.2 dB(A)
Sound pressure level: 83.2 dB(A)
Net weight: 93 kg
Gross weight: 99 kg
EAN code (230 V variant): 9120132141059

უპირატესობები

Spiral head with cutter inserts gives clean results on figured and knotty hardwood
Integrated dust collector removes the cost and floor space of a separate extractor
Castor set with lowering and lifting function lets one person move the 93 kg machine

გასათვალისწინებელი

Feed speed of 6 m/min and a 1.6 mm thicknessing cut are lower than the straight-knife HOB305ABS
Manual feed on the surface-planing side - long or heavy boards need a second pair of hands
160 mm thicknessing height and a 500 x 305 mm table limit the HOB305ABSSMW2 to joinery-scale stock, not beams

ხშირად დასმული კითხვები

Should I order the HOB305ABSSMW2 in 230 V or 400 V?

The HOB305ABSSMW2 is available as HOB305ABSSMW2_230V (EAN 9120132141059) for single-phase 230 V / 50 Hz supply and as HOB305ABSSMW2_400V (EAN 9120132141066) for three-phase. Workshops on an ordinary domestic or small-commercial connection take the 230 V version of the HOB305ABSSMW2; if the building already has a three-phase supply for other machines, the 400 V version is the better long-term choice.

What does the HOB305ABSSMW2 not do?

The HOB305ABSSMW2 is a planer and thicknesser only. The HOB305ABSSMW2 does not saw, does not mortise, does not tenon and does not sand, and the machine has no powered feed on the surface-planing side - stock is pushed by hand over the 1075 x 305 mm table. The powered feed at 6 m/min applies to thicknessing only.

Does the HOB305ABSSMW2 need a separate dust extractor?

No. The HOB305ABSSMW2 has an integrated dust collector that discharges through a 75 mm port into an exchangeable bag, which is why the machine is chosen by workshops with no central extraction. A workshop that already runs a central system can still connect the HOB305ABSSMW2, but for most buyers the on-board collector is the point of the model.

How wide and how thick can the HOB305ABSSMW2 work?

The HOB305ABSSMW2 surfaces on a 1075 x 305 mm table and thicknesses on a 500 x 305 mm table with a maximum workpiece thickness of 160 mm. The HOB305ABSSMW2 removes up to 1.6 mm per thicknessing pass, so a 40 mm board taken down to 30 mm needs about seven passes.

What is the difference between the HOB305ABSSMW2 and the HOB305ABS?

The HOB305ABSSMW2 uses a spiral cutter head with 2 grooves and 28 cutter inserts of 15 x 15 x 2.5 mm; the HOB305ABS uses two straight planing knives of 308 x 2.5 x 20 mm. HOLZMANN does not state the insert material, so no claim is made about it here. Everything else is shared: the 1800 W S1 motor, the 62 mm shaft at 6700 min-1, the 1075 x 305 mm table, the 160 mm thicknessing height, the 93 kg net weight and the integrated dust collector. The HOB305ABSSMW2 shears figured and knotty hardwood more cleanly and lets a single damaged insert be changed on its own; the HOB305ABS feeds faster at 8.3 m/min and takes a 2 mm thicknessing cut.

What maintenance does the spiral head on the HOB305ABSSMW2 need?

The spiral head on the HOB305ABSSMW2 carries 28 cutter inserts of 15 x 15 x 2.5 mm in two grooves, each held on its own screw. When one stretch of the cut starts to leave lines, only the inserts in that zone are unscrewed and dealt with, so the HOB305ABSSMW2 avoids sending a matched pair of full-width knives away for regrinding and resetting the way a straight-knife machine requires. HOLZMANN publishes no insert material or edge count for the HOB305ABSSMW2; replacement inserts are quoted with the machine.

What determines the price of the HOLZMANN HOB305ABSSMW2?

The HOB305ABSSMW2 is a quoted machine rather than a shelf item, and the figure is built from the voltage variant you need (HOB305ABSSMW2_230V for single-phase or HOB305ABSSMW2_400V for three-phase), the number of machines on the order, the spare cutter inserts and dust bags bundled with it, delivery and unloading at your address, and the freight and import charges that apply to the consignment when the order is placed. Tell us the timber you machine and how many spare insert sets you want held with the HOB305ABSSMW2 and we will price it against that.

How soon can a HOB305ABSSMW2 be delivered?

The HOB305ABSSMW2 is built to order by HOLZMANN, so the current lead time is confirmed on the quotation rather than promised in advance - it depends on the production slot for the spiral-head version and on the transport route at the time of ordering. Ask for the HOB305ABSSMW2 lead time in writing alongside the price so that both are quoted against the same date.

What is involved in installing and commissioning the HOB305ABSSMW2?

Installing the HOB305ABSSMW2 means siting the 93 kg machine on its supplied stand in a 1140 x 780 x 1080 mm footprint, levelling it on a solid floor, allowing infeed and outfeed clearance past the 1075 mm planing table, and connecting it to a single-phase 230 V or three-phase supply within reach of the 1.8 m cable. No extraction ducting is needed for the HOB305ABSSMW2 because the integrated collector discharges through its own 75 mm port into the bag. Commissioning is the changeover check between planing and thicknessing, a test cut, and a handover on insert changing.

What should I budget for alongside the HOB305ABSSMW2 itself?

Budget separately for consumables and workshop items that are not part of the HOB305ABSSMW2 delivery scope: spare 15 x 15 x 2.5 mm cutter inserts and the screwdriver bit for them, replacement dust-collector bags, infeed and outfeed roller stands for stock longer than the 1075 mm table, push blocks and a hearing-protection set for the 83.2 dB(A) pressure level. The HOB305ABSSMW2 needs no external extractor, which is one accessory you can leave out of the budget.
