HOB305PRO — HOLZMANN HOB305PRO Combined Planer-Thicknesser with Four-Knife Cutterblock 1 / 4

HOLZMANN

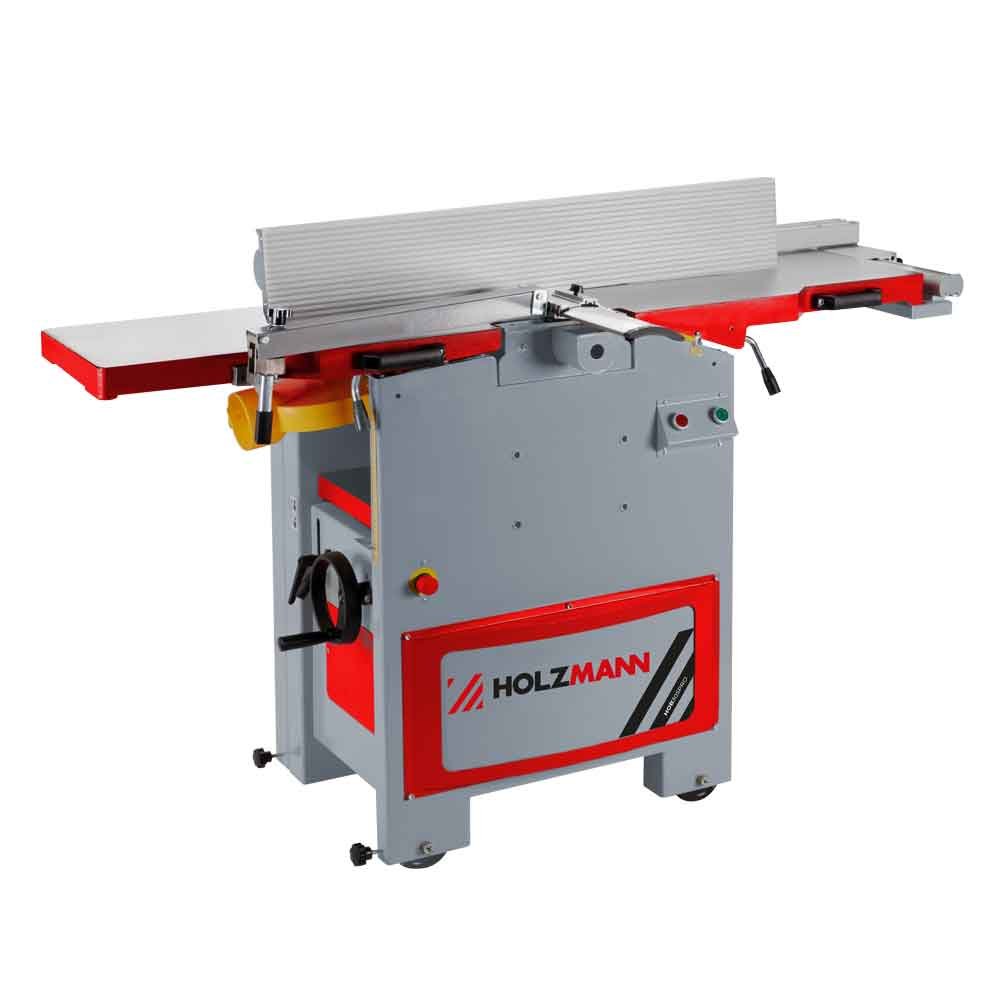

HOLZMANN HOB305PRO Combined Planer-Thicknesser with Four-Knife Cutterblock

HOB305PRO

Thicknessing capacity is the reason to specify the HOB305PRO: 6 to 225 mm, where every other machine in this family stops at 160 mm. A four-knife block on a 74 mm shaft at 4000 min-1 works under 1512 x 400 mm cast-iron tables that fold away for thicknessing, and the 258 kg frame stays where it is installed.

ფასი მოთხოვნით

The quoted price of the HOB305PRO is driven by the voltage variant (HOB305PRO_230V or HOB305PRO_400V), the order quantity, the extraction package quoted for the 100 mm port, delivery of a 292 kg palletised machine including offloading and positioning at your premises, and the freight and import charges on the consignment at the time of order.

ფასის მოთხოვნა

What the HOLZMANN HOB305PRO does

The HOB305PRO is the production machine of the HOLZMANN combination range, and its numbers say so: 258 kg net, a 2200 W S1 motor, and a thicknessing capacity from 6 to 225 mm. Where the lighter HOB305ABS tops out at 160 mm, the HOB305PRO takes structural stock – staircase strings, door stiles, workbench tops – in a single setup. Both planing tables are cast iron and fold away for thicknessing, and the thicknessing height is set through a centrally located adjustment that stays smooth under the weight of the table.

Four knives, not two

The HOB305PRO carries a four-knife cutterblock on a 74 mm diameter shaft turning at 4000 min-1. Four knives at that shaft speed mean twice the cuts per revolution of a two-knife head, which shortens the pitch between knife marks and leaves a finish that needs less sanding before finishing. The larger 74 mm block also carries more mass than the 62 mm shafts in the HOB305ABS models, so the HOB305PRO holds its speed through wide, dense hardwood instead of bogging down.

Tables, fence and footprint

The HOB305PRO surfaces on a 1512 x 400 mm cast-iron table with a 1000 x 160 mm fence tilting from 90 to 45 degrees, and thicknesses on a 585 x 300 mm table with up to 3 mm removed per pass. The thicknesser table height is 900 mm. A 100 mm dust collector port is provided; the HOB305PRO has no integrated extraction, so a chip collector such as the ABS1080 belongs on the same order. Published noise is 93 dB(A) sound power and 87.3 dB(A) sound pressure.

Choosing between the HOB305PRO and the HOB305ABS models

The HOB305ABS and HOB305ABSSMW2 are 93 kg machines with on-board dust collection, made to be wheeled aside. The HOB305PRO is the opposite proposition: it is installed once, on a floor that can carry 258 kg, and it is delivered on a pallet – a forklift or pallet truck is needed at the workshop door. In exchange the HOB305PRO offers cast-iron tables, four knives and 65 mm more thicknessing height.

Delivery and setup

The HOB305PRO is a floor-standing machine supplied with its four-knife cutterblock and cast-iron tables; HOLZMANN publishes no separate accessory list for this model, so confirm spare knives and any additional equipment with the dealer when ordering.

ძირითადი მახასიათებლები

  • Thicknessing from 6 to 225 mm - 65 mm more capacity than any other HOB in this family
  • Four-knife cutterblock on a 74 mm diameter shaft at 4000 min-1
  • 1512 x 400 mm cast-iron tables, both of which fold away for thicknessing
  • 2200 W S1 motor; 585 x 300 mm thicknessing table taking up to 3 mm per pass
  • Centrally located thicknessing height adjustment
  • 258 kg net (292 kg gross) floor machine, thicknesser table at 900 mm
  • 1000 x 160 mm planing fence tilting from 90 to 45 degrees
  • 93 dB(A) sound power - the lowest published figure in this family; 100 mm extraction port

ტექნიკური მახასიათებლები

Planing table size
1512 x 400 mm
Thicknesser table height
900 mm
Max. thicknessing cutting depth (planing side)
3 mm
Planer fence
1000 x 160 mm
Fence tilt
90 - 45 degrees
Cutter shaft diameter
74 mm
Cutter shaft speed
4000 min-1
Number of cutter knives
4
Motor power S1
2200 W
Voltage
230 V (400 V variant available)
Feed speed
5.5
Thicknessing table size
585 x 300 mm
Thicknessing cutting depth
3 mm
Thicknessing height
6 - 225 mm
Dust collector port
100 mm
Sound power level
93 dB(A)
Sound pressure level
87.3 dB(A)
Net weight
258 kg
Gross weight
292 kg
EAN code (230 V variant)
9120039905198

უპირატესობები

  • Thicknesses up to 225 mm - the largest capacity among these HOLZMANN combination machines
  • Four-knife cutterblock on a 74 mm shaft for a finer finish on wide hardwood
  • Cast-iron planing tables that fold away, with central thicknessing height adjustment

გასათვალისწინებელი

  • 258 kg net means pallet-truck delivery and a permanent installed position, not a movable machine
  • No integrated dust collector - a separate extractor and ducting are required
  • Straight knives rather than a spiral insert head, so knife setting and regrinding remain part of maintenance

ხშირად დასმული კითხვები

Is the HOB305PRO available in 230 V and 400 V?
Yes. The HOB305PRO is supplied as HOB305PRO_230V (EAN 9120039905198) and as HOB305PRO_400V (EAN 9120039900964). Given that the HOB305PRO is a 258 kg machine intended for steady production work, a three-phase 400 V supply is the better match where the workshop has one; the 230 V version exists for premises limited to single-phase power.
What does the HOB305PRO not do?
The HOB305PRO planes and thicknesses only - the HOB305PRO does not saw, does not mould and does not mortise. The machine has no integrated dust collector, so extraction must be connected to the 100 mm port, and the HOB305PRO uses straight knives rather than a spiral insert head. Surface planing is hand-fed; the powered feed applies to thicknessing.
How thick a workpiece can the HOB305PRO handle?
The HOB305PRO thicknesses stock from 6 mm up to 225 mm on a 585 x 300 mm table, removing up to 3 mm per pass. That 225 mm capacity is what separates the HOB305PRO from the HOB305ABS and HOB305ABSSMW2, both of which stop at 160 mm.
How is the HOB305PRO delivered and installed?
The HOB305PRO weighs 258 kg net and 292 kg gross, so the machine arrives on a pallet and needs a pallet truck or forklift to move into position. Unlike the 93 kg HOB305ABS, the HOB305PRO is not a machine to be wheeled aside between jobs - plan a permanent position with the thicknesser table at its 900 mm working height.
Why does the HOB305PRO have four knives?
The HOB305PRO carries a four-knife cutterblock on a 74 mm shaft running at 4000 min-1. Four cutting edges per revolution place the knife marks closer together than a two-knife head does, so the HOB305PRO leaves a finer surface and reduces sanding time before finishing.
Does the HOB305PRO need a separate extractor?
Yes. The HOB305PRO provides a 100 mm dust collector port but has no on-board collection, so a chip extractor must be ordered alongside it. A four-knife block at 2200 W generates a substantial chip volume, so size the extractor accordingly rather than relying on a shop vacuum.
What drives the quoted price of a HOLZMANN HOB305PRO?
The HOB305PRO is quoted, not listed, and the figure is built from the voltage variant (HOB305PRO_230V single-phase or HOB305PRO_400V three-phase), the number of machines ordered, the chip extractor and ducting quoted for its 100 mm port since the HOB305PRO has no on-board collection, the logistics of a 292 kg palletised delivery including offloading and moving it into position, spare knife sets for the four-knife block, and the freight and import charges applying when the order is placed. Give us your floor plan and power supply and the HOB305PRO will be quoted as an installed machine rather than a bare price.
How long does it take to get a HOB305PRO?
The HOB305PRO is built to order, so its lead time is confirmed on the quotation and not promised in advance - it follows the HOLZMANN production slot for the chosen variant and the transport arrangements for a 292 kg palletised machine at the time of ordering. Ask for the HOB305PRO lead time in writing alongside the price so the two are quoted against the same date.
What does installing and commissioning a HOB305PRO involve?
Commissioning a HOB305PRO starts before it arrives: the 258 kg net machine comes palletised at 292 kg gross and needs a pallet truck or forklift, a clear route and a permanent, solid, level position, because unlike the 93 kg HOB305ABS it is not moved between jobs. On site it is levelled, connected to a 230 V single-phase or 400 V three-phase supply, and ducted to a workshop extractor at the 100 mm port. Setting the four knives, folding the cast-iron tables for the thicknessing changeover and a test pass complete the commissioning of the HOB305PRO.
What should be budgeted alongside a HOB305PRO?
Because HOLZMANN publishes no delivery-scope list for the HOB305PRO, confirm at quotation what is in the box and budget separately for the items that usually sit outside it: a chip extractor and ducting sized for a 2200 W four-knife block on a 100 mm port, at least one spare set of four knives plus a setting gauge, infeed and outfeed roller stands to work with the 1512 x 400 mm tables, offloading equipment or a rigging service for a 292 kg pallet, and hearing protection for the 87.3 dB(A) sound pressure level.
