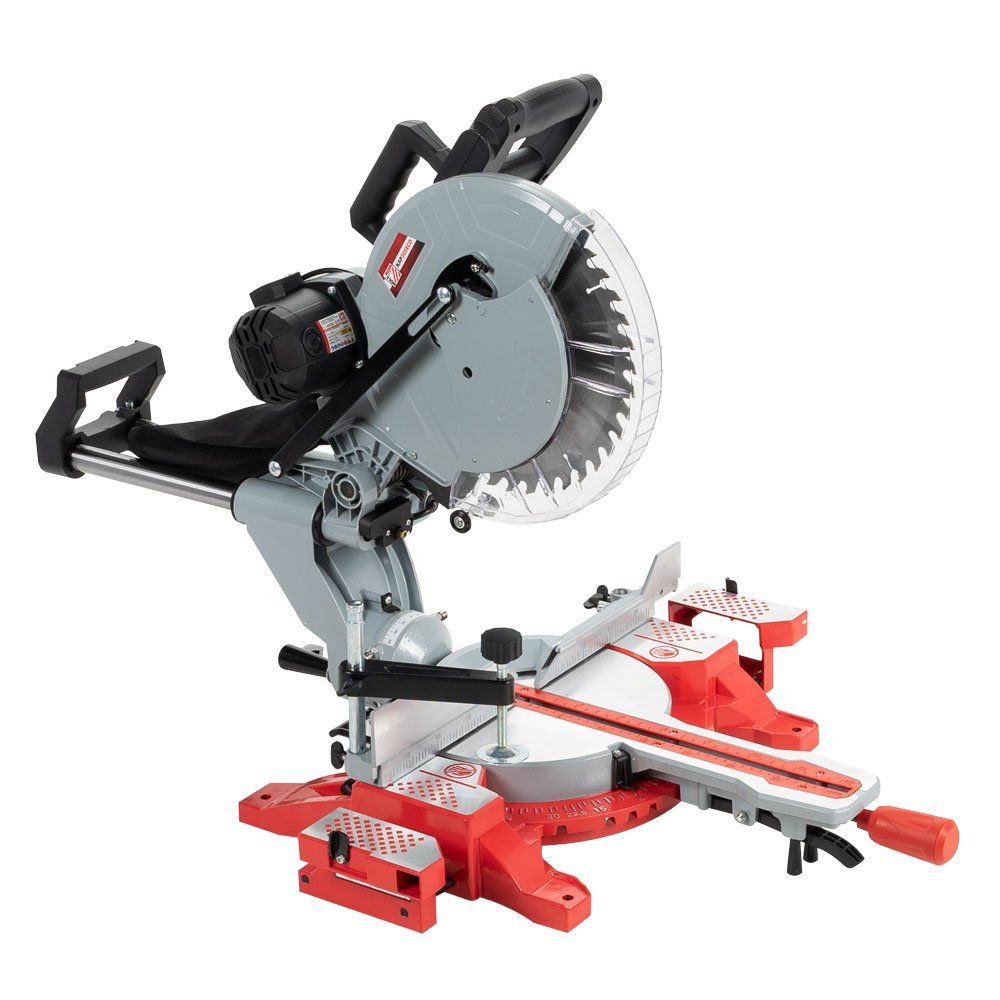

HOLZMANN KAP305ECO Sliding Mitre Saw, 305 mm
KAP305ECO
Belt drive separates the HOLZMANN KAP305ECO from the KAP305JL: its 1800 W S1 / 2000 W S6 motor reaches 3800 min-1 through a drive belt, which HOLZMANN specifies for low noise and gentle mechanical treatment. The KAP305ECO crosscuts 330 mm wide and 105 mm deep, on a 305 mm blade with a 25.4 mm bore.
What moves the KAP305ECO price is the quantity ordered, the 305 mm blades specified on the 25.4 mm bore for the material being crosscut, whether a stand and a vacuum or chip collector for the 37.5 mm port are added, and delivery of a 25 kg gross package.
ფასის მოთხოვნაWhat the HOLZMANN KAP305ECO does
The HOLZMANN KAP305ECO is a sliding compound mitre saw for accurate crosscutting, mitring and bevelling. The KAP305ECO takes a 305 mm blade on a 25.4 mm bore and cuts 105 mm deep at 90 degrees and 60 mm deep at 45 degrees, with a maximum cutting length of 330 mm at 90 degrees and 230 mm at 45 degrees. The saw head on the KAP305ECO tilts left and right from -45 to +45 degrees and rotates from -45 to +45 degrees, so compound angles are set on one machine without turning the workpiece. A thin red laser line marks the cut before the blade enters the timber.
Who the KAP305ECO suits
The HOLZMANN KAP305ECO suits door manufacturers, joineries and furniture workshops cutting frame stock, architrave, skirting and glulam sections to length all day. The 330 mm crosscut capacity of the KAP305ECO is what separates it from a small site saw: door stiles, wide skirting and stair components go through in one pass. A massive die-cast aluminium base gives the KAP305ECO the stability that accurate mitres depend on, and the stable double bar guide keeps the head square through the whole slide stroke.
How the KAP305ECO differs from the HOLZMANN TK305
The KAP305ECO and the TK305 both use 305 mm blades on 230V, but they are different machines. The KAP305ECO is a dedicated sliding mitre saw with 330 mm of crosscut length, 105 mm of cutting height at 90 degrees, a laser line, belt drive and a depth end stop. The TK305 is a convertible table saw and mitre saw with 180 mm of crosscut length at 90 degrees, so it adds a ripping mode the KAP305ECO does not have but gives up more than half the crosscut capacity. Choose the KAP305ECO when crosscutting accuracy and width are the priority.
Drive, extraction and handling
The KAP305ECO uses a drive belt rather than a direct-drive gear train, which supports quieter running and gentler mechanical treatment of the motor. Extraction on the KAP305ECO connects at a Ø 37.5 mm port. The machine weighs 21 kg net, measures 890 x 600 x 490 mm and up to 1140 x 1020 x 690 mm with the slide extended, and a depth end stop is included in delivery for grooving and stopped cuts.
ძირითადი მახასიათებლები
- Drive belt system, specified by HOLZMANN for low noise and gentle mechanical treatment
- 1800 W S1 / 2000 W S6 at 3800 min-1 - the higher continuous rating of the two KAP305 models
- Cutting height 105 mm at 90 degrees and 60 mm at 45 degrees
- Cutting length 330 mm at 90 degrees and 230 mm at 45 degrees
- 305 mm blade running on a 25.4 mm bore
- Massive die-cast aluminium base with a stable and precise double bar guide
- Thin red laser line indicates the cut; depth end stop included in delivery
- 37.5 mm dust port, 2 m cable, appliance class II, IP20, 21 kg net
ტექნიკური მახასიათებლები
- Motor power S1
- 1800 W
- Motor power S6
- 2000 W
- Voltage
- 230V
- Speed
- 3800 min-1
- Appliance class
- II
- Engine type
- IP20
- Cable length
- 2 m
- Dust collector port
- Ø 37.5 mm
- Total dimensions
- 890 x 600 x 490 mm (max 1140 x 1020 x 690 mm)
- Max. cutting height 90°
- 105 mm
- Max. cutting height 45°
- 60 mm
- Max. cutting length 90°
- 330 mm
- Max. cutting length 45°
- 230 mm
- Saw blade
- 305 mm
- Bore
- 25.4 mm
- Sound power level
- 108 dB(A)
- Sound pressure level
- 95 dB(A)
- Net weight
- 21 kg
- Gross weight
- 25 kg
- EAN code
- 9120058376658
უპირატესობები
- 330 mm crosscut length and 105 mm cutting height handle door stiles, wide skirting and stair parts
- Belt drive plus a massive die-cast aluminium base give quiet, stable and accurate cutting
- Laser cut-line, depth end stop and double bar guide included as standard
გასათვალისწინებელი
- Crosscut only - no ripping mode, unlike the convertible TK305
- 21 kg net and up to 1140 mm wide with the slide extended, so it needs a permanent bench position
- No dust collector included; the Ø 37.5 mm port needs a separate extractor
