TK305 — HOLZMANN TK305 Compound Table and Mitre Saw, 305 mm 1 / 4

HOLZMANN

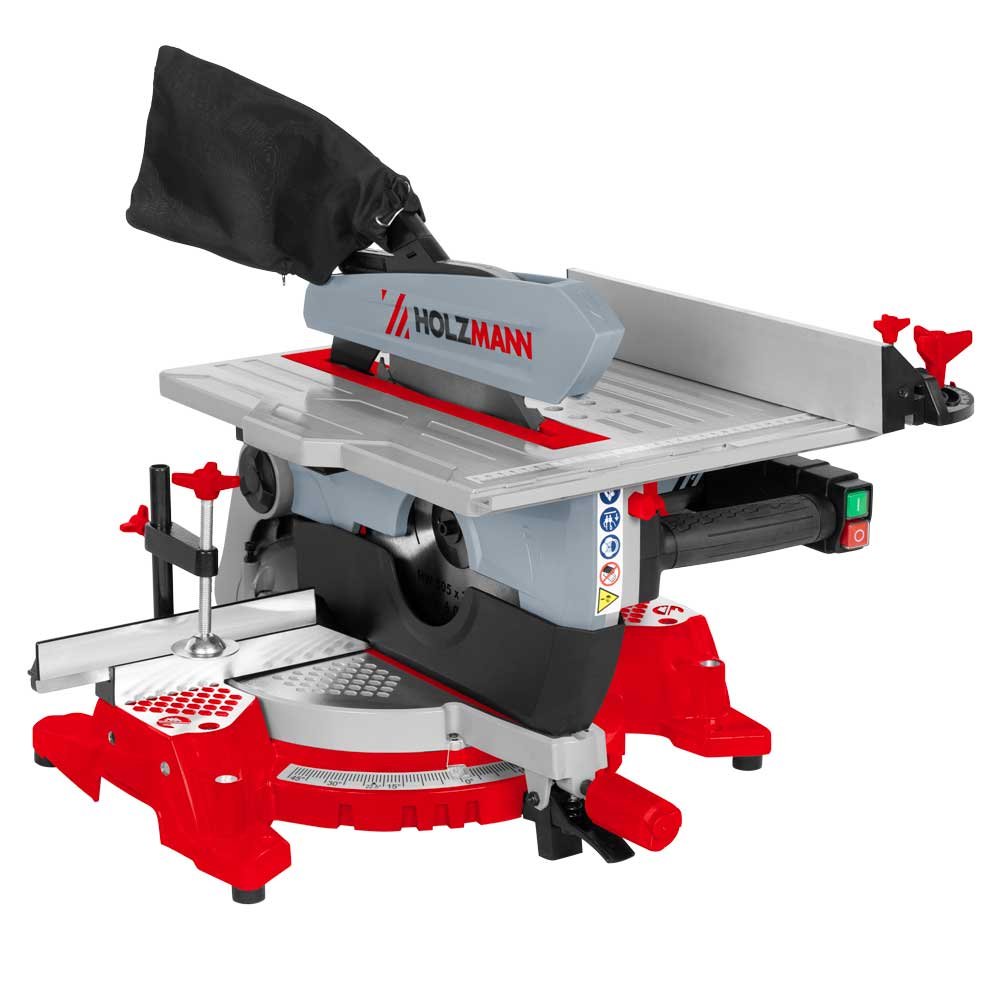

HOLZMANN TK305 Compound Table and Mitre Saw, 305 mm

TK305

Two machines share one 20.5 kg body here: release the locking lever, lift off the lower cover, and the TK305 changes from table saw to mitre saw. In mitre mode the head swivels -45 to +45 degrees and tilts to 45, cutting 180 mm long at 90 degrees. A 2000 W motor spins the 305 x 30 mm blade at 4200 min-1.

ფასი მოთხოვნით

TK305 pricing moves on order quantity, freight and customs on a 22.5 kg carton of 595 x 570 x 540 mm, whether a USK1710 or USK2760 stand is taken with it, and any additional Ø305 x 30 mm TCT blades; the TK305 has only one 230 V configuration, so no voltage option affects the figure.

ფასის მოთხოვნა

What the HOLZMANN TK305 does

The HOLZMANN TK305 combines a table saw and a mitre saw in one body. In table-saw mode the TK305 rips on a die-cast aluminium table with a rip fence that mounts on either the left or the right of the blade, for 90 degree cuts. In mitre-saw mode the TK305 crosscuts and mitres with the saw unit swivelling from -45 to +45 degrees and tilting up to 45 degrees, with workpiece extensions on both the left and the right. Converting from table saw to mitre saw on the TK305 takes two steps: release the locking lever and remove the lower cover, then reverse the order to convert back.

Who the TK305 suits

The HOLZMANN TK305 suits small furniture workshops, site joiners and door fitters who need both ripping and crosscutting but do not have the floor space or the budget for two separate machines. The compact TK305 works on a workbench, or optionally on the HOLZMANN USK1710 or USK2760 machine stands. At 20.5 kg net the TK305 is a machine two people can reposition, and its 510/970 x 650 x 490 mm footprint fits a workshop where every square metre is committed.

How the TK305 differs from the HOLZMANN KAP305ECO

The TK305 and the KAP305ECO both run 305 mm blades on single-phase power, but the trade is capacity against versatility. The TK305 adds a full table-saw mode for ripping, which the KAP305ECO does not have at all. In exchange, the TK305 crosscuts 180 mm at 90 degrees and 145 mm at 45 degrees, while the dedicated sliding KAP305ECO reaches 330 mm and 230 mm respectively and 105 mm of cutting height. If wide crosscuts are the daily work, the KAP305ECO wins; if one machine has to do everything in a small shop, the TK305 is the answer.

Delivery and set-up

Delivery of the HOLZMANN TK305 includes a TCT saw blade Ø305x30x36T, a push stick and a dust bag, so the TK305 cuts from the first day without buying tooling. The push stick is not an accessory to leave in the box – table-saw mode has no riving-knife-and-feed system substitute for safe hand placement.

ძირითადი მახასიათებლები

  • Converts between table saw and mitre saw in two steps: release the locking lever, remove the lower cover
  • Mitre saw unit swivels -45 to +45 degrees and tilts up to 45 degrees
  • 180 mm maximum cutting length at 90 degrees, 145 mm at 45 degrees
  • Cutting height 85/50 mm at 90 degrees and 55 mm at 45 degrees
  • 2000 W S1 motor on 230 V turning a 305 x 30 mm blade at 4200 min-1
  • Die-cast aluminium saw table with the rip fence mountable left or right of the blade
  • Left and right workpiece extensions in mitre mode; 510/970 x 650 x 490 mm overall
  • 20.5 kg net; TCT blade Ø305x30x36T, push stick and dust bag included, USK1710 / USK2760 stands optional

ტექნიკური მახასიათებლები

Motor power S1
2000 W
Speed
4200 min-1
Voltage
230 V
Total dimensions
510/970 x 650 x 490 mm
Max. cutting length 90°
180 mm
Max. cutting length 45°
145 mm
Max. cutting height 90°
85/50 mm
Max. cutting height 45°
55 mm
Saw blade
305 x 30 mm
Net weight
20.50 kg
Gross weight
22.50 kg
EAN code
9120058371615

უპირატესობები

  • Two machines in one: table-saw ripping and mitre-saw crosscutting from a single 2000 W body
  • Ships ready to cut with a TCT Ø305x30x36T blade, push stick and dust bag
  • Compact 510/970 x 650 x 490 mm footprint that works on a bench or on the optional USK1710 / USK2760 stands

გასათვალისწინებელი

  • 180 mm crosscut length at 90 degrees, barely half the capacity of the sliding KAP305ECO
  • Mode changes take a conversion step each time, so mixed ripping and crosscutting slows the workflow
  • No machine stand included and only a dust bag for chip collection

ხშირად დასმული კითხვები

Does the HOLZMANN TK305 need a 230V or a 400V supply?
The HOLZMANN TK305 is a 230 V single-phase machine and no 400V three-phase version of the TK305 exists. The 2000 W motor of the TK305 runs from an ordinary workshop socket, which suits small Georgian workshops and site work where a three-phase connection is not available.
What does the HOLZMANN TK305 not do?
The TK305 is bounded by its published cutting capacity rather than by features it is claimed to lack: crosscut length stops at 180 mm at 90 degrees and 145 mm at 45 degrees, and cutting height at 85/50 mm at 90 degrees and 55 mm at 45 degrees. Longer or deeper stock is outside the TK305's range - a dedicated mitre saw such as the KAP305ECO reaches 330 mm cutting length and 105 mm cutting height at 90 degrees - and full sheets belong on a sliding-table panel saw. No machine stand comes with the TK305; the USK1710 and USK2760 are the listed options.
How do you switch the HOLZMANN TK305 between table saw and mitre saw?
Converting the HOLZMANN TK305 from table saw to mitre saw takes two steps: release the locking lever and remove the lower cover. Converting the TK305 back from mitre saw to table saw is the same procedure in reverse order.
Should I buy the HOLZMANN TK305 or the KAP305ECO?
Choose the HOLZMANN TK305 when one machine has to both rip and crosscut in a small workshop, since the TK305 has a table-saw mode the KAP305ECO does not. Choose the KAP305ECO when crosscut capacity matters more, because the dedicated sliding KAP305ECO reaches 330 mm cutting length and 105 mm cutting height at 90 degrees against 180 mm on the TK305.
What is included with the HOLZMANN TK305?
The HOLZMANN TK305 is delivered with a TCT saw blade Ø305x30x36T, a push stick and a dust bag. A machine stand for the TK305 is optional, with the USK1710 and USK2760 listed as the matching HOLZMANN stands.
How much space does the HOLZMANN TK305 need?
The HOLZMANN TK305 measures 510/970 x 650 x 490 mm and weighs 20.5 kg net, so the TK305 fits on a workbench. Allow clear space on both sides of the TK305 for the workpiece extensions used in mitre saw mode and for infeed and outfeed in table saw mode.
What does a HOLZMANN TK305 cost?
The TK305 is quoted rather than sold at a shelf price. The figure is set by order quantity, freight and customs on a 22.5 kg carton, whether a USK1710 or USK2760 stand is added, and any extra Ø305 x 30 mm TCT blades. There is only one TK305 configuration - 230 V - so no voltage choice enters the price. Tell us the quantity and delivery point and we will quote the TK305.
What is the lead time on a TK305?
The TK305 is supplied to order and its lead time is confirmed at the point of quotation rather than published as a fixed figure. Ask us when you enquire about the TK305 and we will confirm the current position, transit to Georgia included.
Does the TK305 need to be commissioned, and does it need a stand?
Commissioning a TK305 is straightforward: a solid bench or a USK1710 / USK2760 stand, a level stance, one 230 V socket, and the supplied dust bag or a vacuum connection. The stand is the decision worth making at order time - the TK305 is a benchtop machine and no stand is included, so if there is no suitable bench, quote the stand with the saw rather than after it.
What should be budgeted alongside a TK305?
Alongside the TK305 machine price, budget for a stand if there is no bench (USK1710 or USK2760), for additional Ø305 x 30 mm TCT blades - a 36-tooth blade is supplied, and finer tooth counts suit trim and mitre work better - and for extraction, since a dust bag is included but a vacuum or extractor is preferable for continuous cutting.
