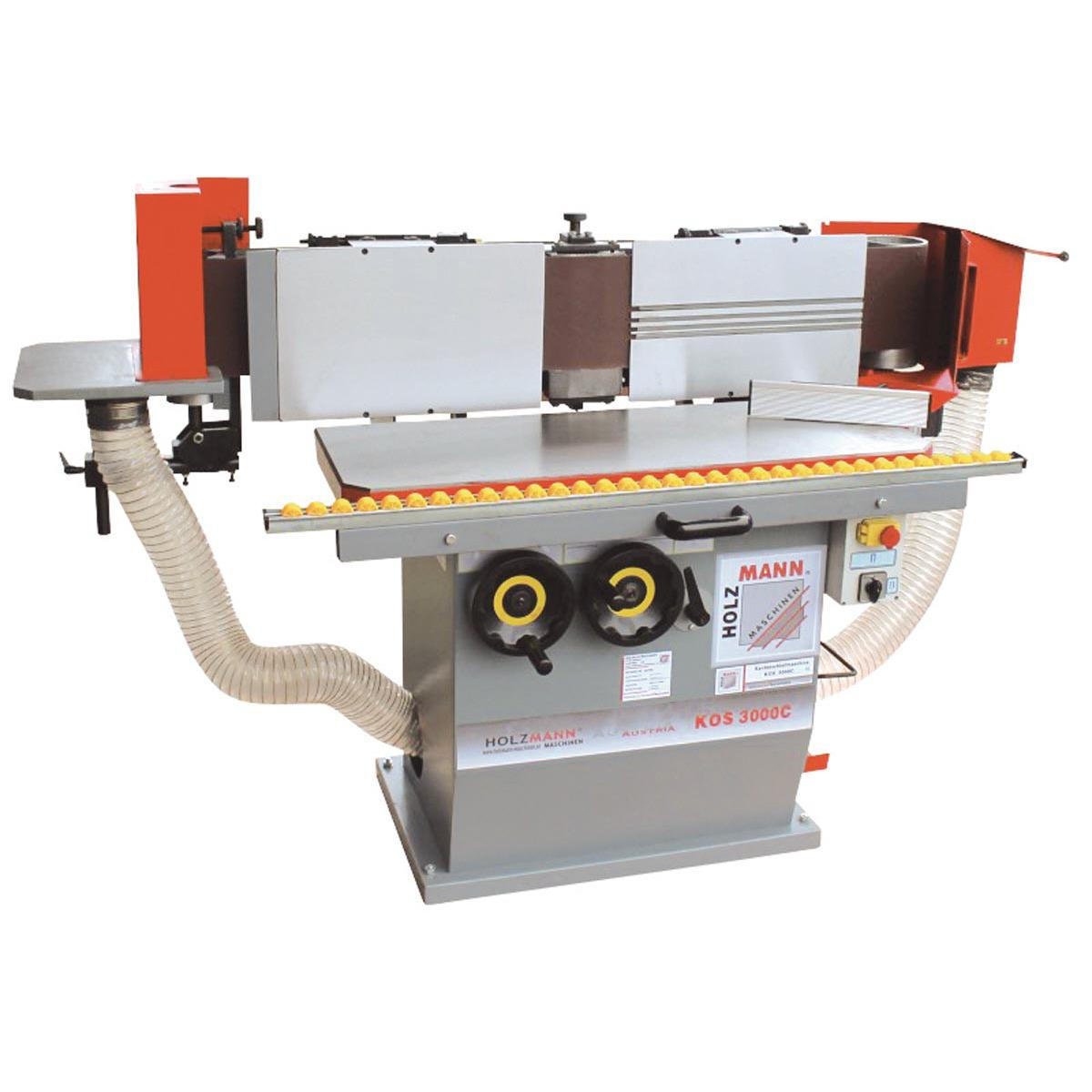

HOLZMANN KOS3000C Industrial Oscillating Belt Sander (3000 x 200 mm, 400 V)

KOS3000C — HOLZMANN KOS3000C Industrial Oscillating Belt Sander (3000 x 200 mm, 400 V)

The HOLZMANN KOS3000C is a 400 V industrial oscillating belt sanding machine with a 3000 x 200 mm abrasive belt, a 960 x 350 mm cast iron table on bar-guided handwheel height adjustment, and a double dust collection system serving both the main sanding unit and the round table.

ძრავის სიმძლავრე
4.2 kW
ძაბვა
400V
მაგიდის ზომა
960 x 350 mm
წონა
284 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The KOS3000C price is driven by the abrasive belt package quoted with the machine, whether extraction equipment and ducting are included, freight and customs into Georgia for a 350 kg gross crate, unloading, and whether commissioning and operator training are added.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN KOS3000C is for

The HOLZMANN KOS3000C is the industrial end of the Holzmann oscillating belt sander range, built for shops running veneered panels and long solid components daily. The KOS3000C works a 200 mm wide belt over a 3000 mm loop, and the 960 x 350 mm cast iron table is heavy enough that the machine does not move under a full-width push. At 284 kg net, the KOS3000C is a fixed installation rather than a bench machine.

Veneer work is the reason to choose the KOS3000C

Veneer sanding equipment is the clearest difference between the KOS3000C and any smaller belt sander. The KOS3000C carries a veneer sanding attachment with a fine adjustment function, a veneer shoe, a fence and release rollers, plus a special fence with nuts for setting veneer overhang. That combination lets an operator trim and finish veneer overhang against the belt in a controlled, repeatable way instead of freehand.

Table, extension and mitre work

Workpiece support on the KOS3000C is deliberately over-specified. The cast iron table is raised and lowered on bar guides by handwheel, an extractable table extension with a multi-roller system takes the weight of long parts as they leave the belt, and a precise mitre gauge with an angle scale sets repeatable angles. The main sanding unit itself adjusts steplessly from vertical to 45° by handwheel.

Belt behaviour and dust

Belt stability on the KOS3000C is handled by a separate oscillation gear drive, precision-guided sanding rollers for a smooth belt run, a spring-mounted band tension system and a graphite-coated contact surface that minimises friction. Dust is taken by a double collecting system serving the round table and the main sanding unit separately, so fine dust is captured at both cutting points rather than one.

Supply and shop planning

Plan the KOS3000C as a three-phase installation: 400 V, 3000 W on S1 continuous duty and 4200 W on S6 intermittent duty. Compared with the KOS2600C – 2600 x 150 mm belt, 750 x 300 mm table, 180 kg – the KOS3000C buys 50 mm more belt width, a much larger cast iron table and the veneer package, at 284 kg net and 350 kg gross for shipping.

ძირითადი მახასიათებლები

  • 3000 x 200 mm abrasive belt with a 200 mm wide sanding face
  • Veneer sanding attachment with fine adjustment, veneer shoe, fence and release rollers
  • Special fence with nuts for setting veneer overhang
  • 960 x 350 mm cast iron table with bar-guided height adjustment by handwheel
  • Extractable table extension with multi-roller system for long workpieces
  • Separate oscillation gear drive plus spring-mounted band tension and a graphite-coated contact surface
  • Double dust collecting system for the round table and the main sanding unit
  • Main sanding unit adjustable steplessly from vertical to 45° by handwheel; 400 V, 3000 W (S1) / 4200 W (S6)

ტექნიკური მახასიათებლები

Motor power (S1, continuous)
3000 W
Motor power (S6, intermittent)
4200 W
Voltage
400 V
Table size
960 x 350 mm
Belt dimensions
3000 x 200 mm
Belt speed
20 m/s
Net weight
284 kg
Gross weight
350 kg
Packaging length
1680 mm
Packaging width
930 mm
Packaging height
1200 mm
EAN code
9120039904146

უპირატესობები

  • The veneer package - fine-adjustable attachment, veneer shoe, fence, release rollers and overhang fence - is genuinely production equipment, not an accessory afterthought
  • 960 x 350 mm cast iron table plus an extractable multi-roller extension supports long and heavy parts properly
  • Double dust collection captures at the round table and the main unit separately, which matters on veneer and MDF dust

გასათვალისწინებელი

  • 400 V three-phase only; the KOS3000C has no single-phase version at all
  • 284 kg net and 350 kg gross means forklift or pallet-truck unloading and a permanent floor position
  • Larger footprint and a 200 mm belt make the KOS3000C oversized for a small shop that only edges solid timber - the KOS2600C or KOS2260C fits that better

ხშირად დასმული კითხვები

How much does the HOLZMANN KOS3000C cost?
The HOLZMANN KOS3000C is a capital machine sold on quotation, not at a published shelf price. The KOS3000C price moves with the abrasive belt package quoted with it (3000 x 200 mm belts in the grits you run), whether extraction capacity and ducting are included, freight and customs handling into Georgia, unloading of a 350 kg gross crate, and whether commissioning and operator training are added. Tell us your panel sizes and power supply and the KOS3000C will be quoted configured for that work.
What does the HOLZMANN KOS3000C do that the KOS2600C does not?
The HOLZMANN KOS3000C differs from the KOS2600C in three concrete ways: a 3000 x 200 mm belt instead of 2600 x 150 mm, a 960 x 350 mm cast iron table with handwheel height adjustment and an extractable multi-roller extension instead of a 750 x 300 mm table, and a full veneer sanding package with fine adjustment, veneer shoe, fence and release rollers. The KOS3000C also uses double dust collection and weighs 284 kg net against 180 kg for the KOS2600C.
Can the HOLZMANN KOS3000C run on single-phase 230 V?
No. The HOLZMANN KOS3000C is supplied only as a 400 V three-phase machine (article code KOS3000C_400V), rated 3000 W S1 and 4200 W S6. A 400 V supply must be in place before the KOS3000C is delivered. Workshops without three-phase power should look at the Holzmann KOS2260C or KOS2740C, which are offered in 230 V versions.
What is the lead time and availability for the HOLZMANN KOS3000C?
The HOLZMANN KOS3000C is produced in Austria and quoted against the current factory position rather than a fixed stock date. Holzmann currently lists this model as unavailable on its own webshop, so availability for the KOS3000C is checked with the factory at the time of enquiry and the confirmed lead time is stated on the quotation before any order is placed.
Does the HOLZMANN KOS3000C need installation and training?
Yes. The HOLZMANN KOS3000C arrives crated at 350 kg gross and needs forklift or pallet-truck unloading, siting on a level solid floor, levelling, a 400 V three-phase connection by a qualified electrician with rotation direction checked, and both dust collection points connected. Operator familiarisation on the KOS3000C is worth including because the veneer attachment, overhang fence and table extension need correct setting to pay for themselves.
What consumables should be budgeted separately for the HOLZMANN KOS3000C?
Budget separately for abrasive belts and extraction around the HOLZMANN KOS3000C. Running stock means 3000 x 200 mm belts across a coarse, medium and finishing grit, plus extraction hose and clamps for both collection points and, if the workshop has no spare capacity, a dust collector sized for a machine of this class. Abrasive belts are the recurring cost of owning the KOS3000C.
