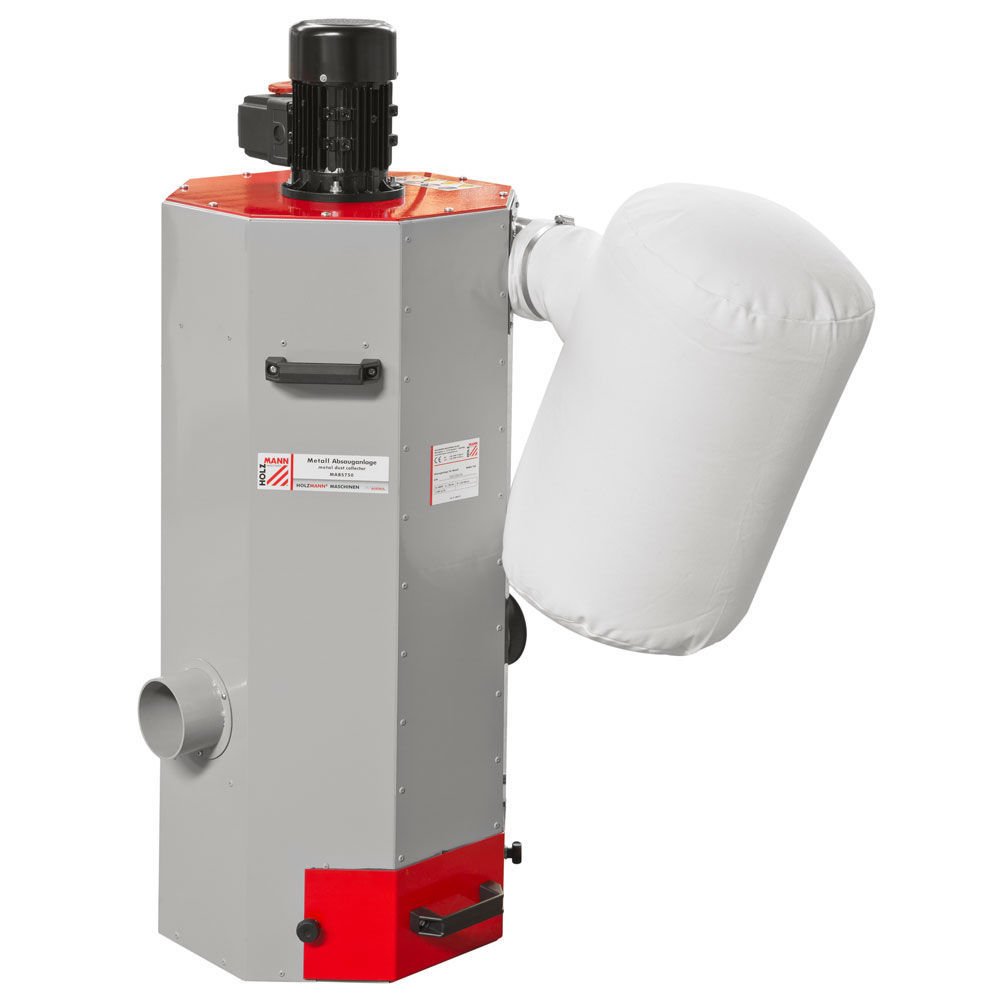

HOLZMANN MABS750 Metal Dust Collector – 1100 m³/h, 750 W

MABS750 — HOLZMANN MABS750 Metal Dust Collector – 1100 m³/h, 750 W

The HOLZMANN MABS750 is the three-phase member of HOLZMANN's 750 W collector class, and the one tuned for pressure: 1600 Pa of vacuum against 1100 m³/h, where the 230 V ABS1080 on the same motor rating holds 1020 Pa at 1080 m³/h. Two Ø100 mm ports, a 325 mm fan wheel, a 350 x 470 mm chip bag, 36 kg net.

ძრავის სიმძლავრე
0.75 kW
ძაბვა
400V
წონა
36 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the MABS750 is driven by the 400V three-phase motor build, the quantity of spare 350 x 470 mm collection bags taken with the machine, any Ø100 mm hose, clamps and machine hoods quoted alongside it, and delivery to your workshop.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN MABS750 does

The HOLZMANN MABS750 is HOLZMANN’s metal dust collector: a compact extraction unit with a 750 W motor and a 325 mm fan wheel producing 1100 m³/h at 1600 Pa. Two Ø100 mm ports mean the MABS750 can be piped to two machines rather than one, and the collection bag measures 350 x 470 mm. At 36 kg net the MABS750 is a small unit that stands beside the machine it serves rather than at the head of a duct network.

Who the MABS750 suits

The MABS750 suits a metalworking bay inside a woodworking business — the corner where a workshop grinds, sands or deburrs metal parts, fittings and hardware alongside its joinery work. Its 1600 Pa of static pressure is high in relation to its 1100 m³/h airflow, which is the balance a small-diameter, high-resistance extraction point needs, as opposed to the high-volume low-pressure balance of a chip collector on a planer.

How the MABS750 differs from the wood-chip collectors

The MABS750 should not be read as a small version of the ABS range. The ABS3000SE and ABS5000SE are chip collectors sized to swallow the shaving volume of planers and moulders at 3000 and 5000 m³/h; the MABS750 handles a far smaller air volume at higher pressure and is catalogued by HOLZMANN as a metal dust collector. A workshop that needs both usually buys an ABS unit for the woodworking machines and the MABS750 for the metal bench.

Practical points before ordering the MABS750

The MABS750 requires a 400V / 3 / 50Hz three-phase supply, so it cannot be plugged into an ordinary single-phase socket. HOLZMANN publishes no highlights or delivery contents list for the MABS750, so hoses, clamps and any additional bags should be confirmed at the time of order rather than assumed. The two Ø100 mm ports set the hose size for both connected machines.

ძირითადი მახასიათებლები

  • 1600 Pa of static vacuum at 1100 m³/h - a high-pressure, moderate-volume balance for small-bore pick-ups
  • 750 W motor on 400V / 3 / 50Hz, the only three-phase unit in HOLZMANN's 750 W collector class
  • Two Ø100 mm ports, so two extraction points can be piped in
  • 325 mm fan wheel, large relative to the 750 W motor rating
  • Chip bag of 350 x 470 mm, emptied by hand
  • 36 kg net / 39 kg gross, packed at 1200 x 460 x 470 mm
  • Catalogued by HOLZMANN as a metal dust collector rather than a wood chip collector

ტექნიკური მახასიათებლები

Motor power S1
750 W
Voltage
400V / 3 / 50Hz
Dust collector port
2 x 100 mm
Suction performance
1100 m³/h
Chip bag diameter
350 x 470 mm
Fan wheel diameter
325 mm
Hypotension (static pressure)
1600 Pa
Net weight
36 kg
Gross weight
39 kg
EAN code
9120058374272

უპირატესობები

  • High 1600 Pa static pressure for small extraction points
  • Two Ø100 mm ports serve two machines from one 750 W unit
  • Light at 36 kg net for a three-phase collector

გასათვალისწინებელი

  • 400V three-phase only — no single-phase variant
  • 1100 m³/h is not enough for woodworking chip machines
  • HOLZMANN publishes no delivery contents list, so accessories must be confirmed

ხშირად დასმული კითხვები

Can the HOLZMANN MABS750 run on 230V?
No. The HOLZMANN MABS750 is supplied as the MABS750_400V variant with a 400V / 3 / 50Hz three-phase motor, so a three-phase workshop connection is required at the machine position. A single-phase workshop needing a small collector should look at HOLZMANN's genuinely 230V units instead - the ABS850DBK at 850 m³/h or the ABS1080 at 1080 m³/h. (Correction: the ABS3000SE named in an earlier version of this answer is a 400V / 50Hz machine, not a 230V one.)
What does the HOLZMANN MABS750 not do?
The HOLZMANN MABS750 is not a chip collector for planers, thicknessers or moulders — its 1100 m³/h is a fraction of the 3000 to 5000 m³/h those machines require. The MABS750 also has no cyclone separator, no automatic filter cleaning and no supplied distributor for more than its two Ø100 mm ports.
How many machines can be connected to the MABS750?
The HOLZMANN MABS750 has two Ø100 mm dust collector ports, so two machines can be piped to the MABS750, each through a Ø100 mm hose.
Why is the MABS750 called a metal dust collector?
HOLZMANN catalogues the MABS750 as a metal dust collector, and its specification reflects that: 1600 Pa of static pressure against only 1100 m³/h of airflow, the high-pressure balance suited to small-diameter extraction points on grinding and sanding work rather than to bulk wood chips.
How large is the collection bag on the MABS750?
The HOLZMANN MABS750 collects into a bag of 350 x 470 mm. The bag is emptied by hand and its modest volume suits intermittent bench work rather than continuous production.
Is the MABS750 easy to move around the workshop?
The HOLZMANN MABS750 weighs 36 kg net, so it is light enough to reposition, but it needs a three-phase outlet wherever it is placed, which in practice limits how freely the MABS750 can be moved.
How is the HOLZMANN MABS750 priced?
The HOLZMANN MABS750 is a quoted machine, not a shelf-price item. The price is shaped by the 400V / 3 / 50Hz three-phase build, how many spare 350 x 470 mm collection bags you take with it, whether Ø100 mm hose, clamps and machine-side hoods are quoted alongside the MABS750, and delivery to your workshop. Tell us the two machines it will serve and we will quote the MABS750 complete.
What is the lead time on a HOLZMANN MABS750?
The HOLZMANN MABS750 is built to order and the current lead time is confirmed at quotation. We check the factory position for the MABS750 when we price it, so the delivery window comes back with the figure.
What is involved in installing a HOLZMANN MABS750?
Installing a HOLZMANN MABS750 means siting the 36 kg unit level and within hose reach of both pick-up points, having a 400V three-phase outlet at that position and confirming fan rotation, and running Ø100 mm hose to its two ports with the bends kept generous so the 1100 m³/h is not lost in the pipework. Clear space at the bag for hand emptying should be planned in as well.
What should I budget for alongside the HOLZMANN MABS750?
Beyond the HOLZMANN MABS750 itself, budget for spare 350 x 470 mm collection bags as a running consumable, Ø100 mm hose and clamps for both ports, extraction hoods or shrouds at the machines being served, and the three-phase electrical work to the collector position. The MABS750 is supplied as a collector, so hoods and hoses at the machine end are a separate line.
