OSS75A — HOLZMANN OSS75A Oscillating Spindle Sander (450 W, bench-top) 1 / 4

HOLZMANN

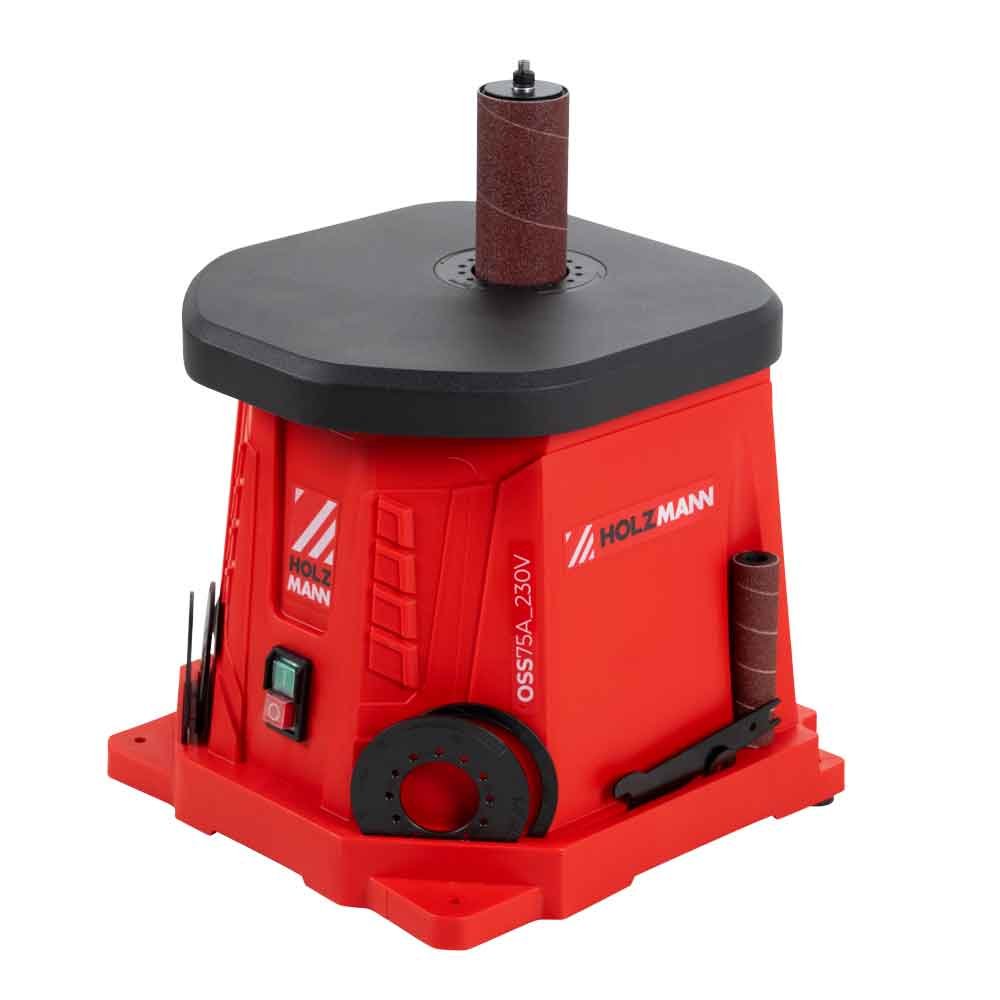

HOLZMANN OSS75A Oscillating Spindle Sander (450 W, bench-top)

OSS75A

Sleeve range decides it: the HOLZMANN OSS75A is supplied with six K80 sleeves from 15 up to 78 mm diameter, the widest in this range, against 53 mm on the OBS100A. A 450 W motor oscillates the spindle at 2000 min-1 over a 320 x 300 mm table, and at 9 kg the OSS75A is lifted onto a bench by one person.

ფასი მოთხოვნით

What moves the OSS75A price is the quantity ordered, the replacement K80 sleeve sets added across the six supplied diameters, whether a workshop vacuum for the 39 mm port is included, and the transport arrangement for a 10.6 kg gross package.

ფასის მოთხოვნა

What the HOLZMANN OSS75A does

The HOLZMANN OSS75A is a bench-top oscillating spindle sander for sanding wood to a curved shape. The spindle of the OSS75A both turns at 2000 rpm and oscillates up and down, which keeps the abrasive cutting evenly and avoids the burn marks and ridges a fixed drum leaves in a tight inside curve. A 450 W motor on 230 V / 50 Hz supply drives the OSS75A, and the working table measures 320 x 300 mm.

Which workshops the OSS75A suits

The HOLZMANN OSS75A suits furniture workshops, instrument makers and joineries producing curved parts: chair backs, arched door panels, bow shapes and templates. Six sanding sleeves in K80 are included in diameters of 15, 21, 28, 40, 53 and 78 mm, so most internal radii met in furniture work have a matching sleeve from the first day. The OSS75A weighs 9 kg net and measures 400 x 365 x 440 mm, and the sleeves and table inserts are stored on the machine rather than in a drawer.

OSS75A next to the OBS100A and OSS200

The HOLZMANN OSS75A is the spindle-only member of the family. The HOLZMANN OBS100A shares the 450 W motor but adds a 610 x 100 mm sanding belt and a table swivelling 0 to 45 degrees, at 12.5 kg. The stationary HOLZMANN OSS200 works at another level again: 750 W spindle plus 370 W oscillation motor, 400 V three-phase supply, a 300 mm lamella roller and 114 kg. The OSS75A is the choice where curved parts are sanded regularly but not in continuous production.

Delivery

The HOLZMANN OSS75A is delivered with six K80 sanding sleeves of 15, 21, 28, 40, 53 and 78 mm diameter, five matching rubber sanding rollers, six table inserts, four spindle discs and the setting tool. Extraction is taken from a 39 mm port.

ძირითადი მახასიათებლები

  • Six K80 sleeves supplied: 15, 21, 28, 40, 53 and 78 mm diameter
  • Five matching rubber rollers, six table inserts, four spindle discs and tool supplied
  • Spindle-only machine - no sanding belt and no published table swivel range
  • Working table of 320 x 300 mm
  • 450 W motor at 2000 min-1 on a 230 V / 50 Hz single-phase socket
  • On-board storage for the supplied sleeves and table inserts
  • Sound power 109.8 dB(A), sound pressure 96.8 dB(A) - hearing protection needed
  • 9 kg net, 400 x 365 x 440 mm footprint, 39 mm dust port

ტექნიკური მახასიათებლები

Motor power S1
450 W
Voltage
230 V / 50 Hz
Speed
2000 min-1
Table size
320 x 300 mm
Dust collector port
39 mm
Total dimensions
400 x 365 x 440 mm
Sound power level
109.8 dB(A)
Sound pressure level
96.8 dB(A)
Net weight
9 kg
Gross weight
10.60 kg
EAN code
9120058379291

უპირატესობები

  • Six K80 sleeves from 15 to 78 mm diameter included, the widest sleeve range in the bench-top pair
  • Oscillating spindle avoids burn marks and ridges in tight inside curves
  • At 9 kg and 400 x 365 x 440 mm it is easily moved and stored between jobs

გასათვალისწინებელი

  • Spindle only: no sanding belt for straight edges, unlike the OBS100A
  • Published sound pressure of 96.8 dB(A) makes hearing protection compulsory
  • HOLZMANN publishes no swivel range for the OSS75A table, so bevel work is limited

ხშირად დასმული კითხვები

Does the HOLZMANN OSS75A run on 230 V or does it need 400 V?
The HOLZMANN OSS75A runs on 230 V / 50 Hz single-phase supply with a 450 W motor, so the OSS75A works from an ordinary socket and no three-phase installation is needed. Only the larger stationary HOLZMANN OSS200 in this family requires a 400 V three-phase connection.
Which sanding sleeves come with the HOLZMANN OSS75A?
The HOLZMANN OSS75A is delivered with six K80 sanding sleeves in diameters of 15, 21, 28, 40, 53 and 78 mm, together with five matching rubber sanding rollers, six table inserts, four spindle discs and a tool. That covers most internal radii in furniture and joinery work without a further purchase for the OSS75A.
What does the HOLZMANN OSS75A not do?
The HOLZMANN OSS75A does not sand straight edges against a belt, which is what the HOLZMANN OBS100A adds with its 610 x 100 mm belt, and the OSS75A does not sand panels to thickness, which needs a wide belt sander. HOLZMANN also publishes no swivel range for the OSS75A table, so bevel sanding at a set angle is a job for the OBS100A.
Is hearing protection needed with the HOLZMANN OSS75A?
Yes. The HOLZMANN OSS75A is published with a sound power level of 109.8 dB(A) and a sound pressure level of 96.8 dB(A), so hearing protection should be worn when working at the OSS75A, especially during longer sanding runs.
What extraction does the HOLZMANN OSS75A need?
The HOLZMANN OSS75A has a 39 mm dust extraction port, which is sized for a workshop vacuum rather than a 100 mm extraction hose. No vacuum or extractor is included with the OSS75A.
Should a workshop buy the HOLZMANN OSS75A or the HOLZMANN OBS100A?
The HOLZMANN OSS75A is the right choice where the work is curves and the largest supplied sleeve of 78 mm diameter matters, at 9 kg. The HOLZMANN OBS100A is the right choice where straight edges are sanded as often as curves, since the OBS100A adds a 610 x 100 mm belt at 8 m/s and a table that swivels 0 to 45 degrees, at 12.5 kg with sleeves up to 53 mm.
What does a HOLZMANN OSS75A cost?
The HOLZMANN OSS75A is supplied by quotation rather than at a listed shelf price. What moves an OSS75A quotation is the number of units, the replacement K80 sleeve sets ordered across the 15 to 78 mm diameters, whether a workshop vacuum for the 39 mm port is added, and delivery of a 10.6 kg gross package. Ask us to quote the OSS75A with a starting stock of sleeves.
How long does a HOLZMANN OSS75A take to supply?
The HOLZMANN OSS75A is supplied to order and the current lead time for the OSS75A is confirmed on the quotation. There is no site preparation to run alongside it: at 9 kg net the OSS75A goes straight onto a bench, so the lead time is the only date that matters.
Does a HOLZMANN OSS75A need installation?
The HOLZMANN OSS75A needs no commissioning. Stand the 400 x 365 x 440 mm machine on a bench firm enough that it does not walk under oscillation, plug it into a 230 V / 50 Hz socket, and connect a workshop vacuum to the 39 mm port. No levelling to specification and no three-phase supply are involved with the OSS75A.
What should be budgeted separately for a HOLZMANN OSS75A?
Budget separately for abrasives and extraction on the HOLZMANN OSS75A. The six K80 sleeves supplied in 15, 21, 28, 40, 53 and 78 mm are a starting set, and sleeves are wearing parts that need reordering in the diameters your work uses most. A vacuum for the 39 mm port and hearing protection for a machine published at 96.8 dB(A) sound pressure are also separate from the OSS75A price.
