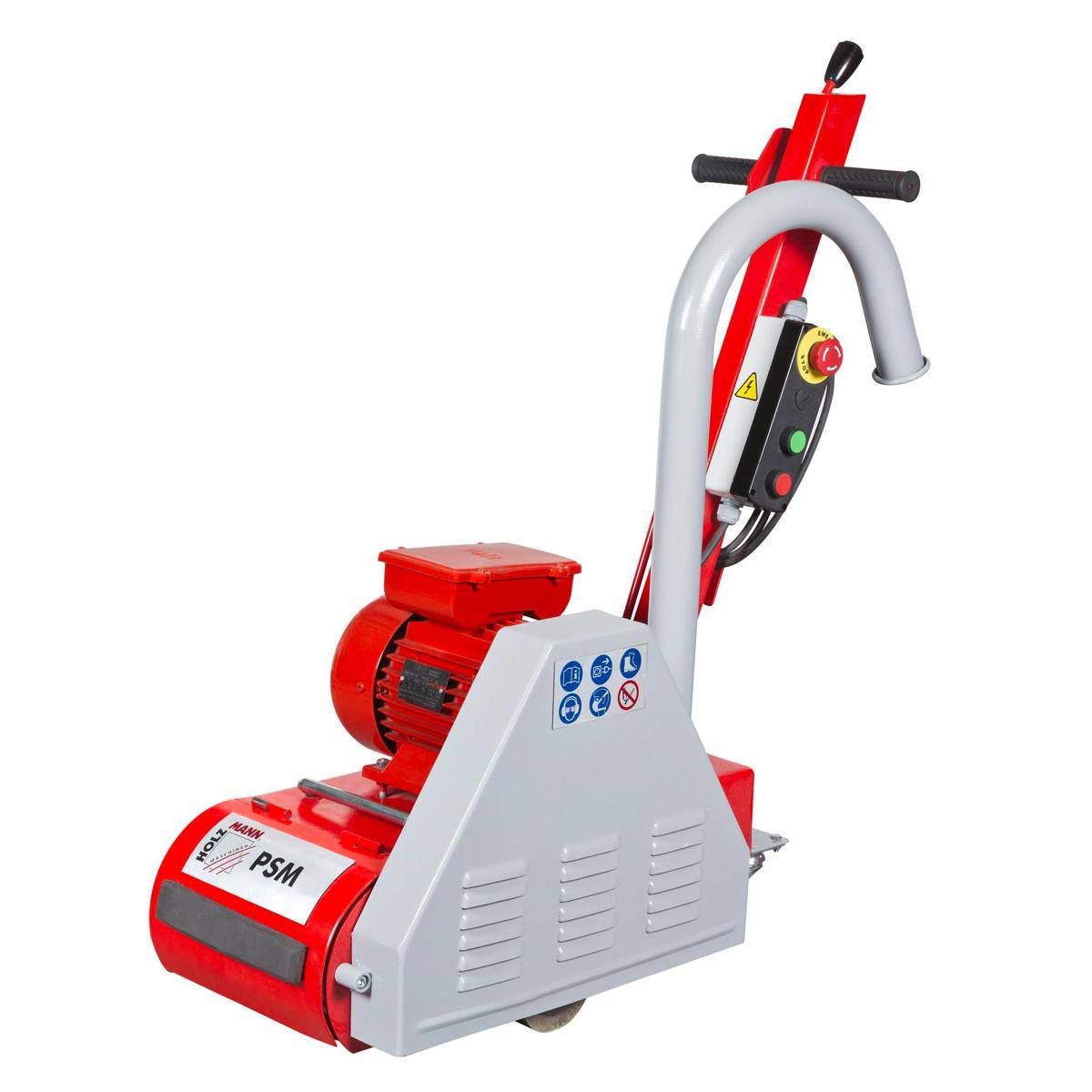

HOLZMANN PSM3 Parquet Sanding Machine (200 mm, 2200 W)

PSM3 — HOLZMANN PSM3 Parquet Sanding Machine (200 mm, 2200 W) 1 / 2

At 2200 W the HOLZMANN PSM3 carries 700 W more than the PSM2 while turning the same 176 mm drum at 2000 min-1 over the same 200 mm width, so the extra power goes into holding cut depth in oak and through back-to-back working days. The 230 V PSM3 weighs 65 kg, measures 960 x 340 x 960 mm and bags its own dust.

სამუშაო სიგანე
200 mm
ძრავის სიმძლავრე
2.2 kW
ძაბვა
230V
გაბარიტები
960 x 340 x 960 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The quoted price for the PSM3 moves with the abrasive package specified with it, with whether an edge sander is ordered at the same time for the perimeter, with the number of machines a flooring contractor is buying, and with freight and customs clearance into Georgia for a 68 kg gross item.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN PSM3 does

The HOLZMANN PSM3 is a floor sanding machine for parquet, built around a 176 mm diameter sanding drum turning at 2000 rpm behind a 2200 W S1 motor. The PSM3 takes down old surfaces and levels newly laid parquet, working a 200 mm strip on every pass. Because the PSM3 runs on 230 V / 50 Hz and carries an IP 55 rated motor, the machine works from an ordinary single-phase socket in an occupied apartment or office, with no three-phase connection to arrange first.

Which workshops the PSM3 suits

The HOLZMANN PSM3 suits flooring contractors and joineries in Georgia that refinish parquet in apartments, offices and small halls. A 200 mm sanding width is a deliberate compromise: narrow enough to steer around furniture and through corridors, wide enough to finish a room without an unreasonable number of passes. Net weight is 65 kg and the total dimensions are 960 x 340 x 960 mm, so the PSM3 is a two-person lift into a van but a one-person machine once it is standing on the floor.

PSM3 or PSM2

The HOLZMANN PSM3 and the smaller HOLZMANN PSM2 share the same sanding geometry: a 176 mm drum, 2000 rpm drum speed, 200 mm sanding width and 65 kg net weight. The difference is the motor. The PSM3 carries 2200 W S1 where the PSM2 carries 1500 W. Choose the PSM3 for daily commercial floor work and for hard species such as oak and beech, where the extra power holds drum speed through a heavy first cut. Choose the PSM2 where parquet sanding is occasional.

Delivery and dust

The HOLZMANN PSM3 is delivered with integrated dust extraction and a dust bag, so the machine can be put to work without buying a separate mobile extractor first. Gross shipping weight is 68 kg. A HOLZMANN setting video is published for the PSM3 for drum and belt adjustment.

ძირითადი მახასიათებლები

  • 2200 W (S1) motor, 700 W more than the PSM2, for hardwood floors and consecutive working days rather than occasional use
  • 960 mm overall length (960 x 340 x 960 mm), the longer of the two PSM bodies
  • Drum diameter 176 mm, drum speed 2000 min-1, motor speed 2800 min-1
  • Sanding width 200 mm, identical to the PSM2 - the extra 700 W buys sustained cut depth, not a wider pass
  • IP 55 protection class on the motor for continuous work in sanding dust
  • Integrated extraction with a dust bag in the delivery scope
  • 65 kg net and 68 kg gross, the same mass as the PSM2 despite the larger motor, so handling is unchanged
  • HOLZMANN publishes a setting video covering drum and abrasive adjustment for this machine

ტექნიკური მახასიათებლები

Motor power S1
2200 W
Protection class
IP 55
Motor speed
2800 min-1
Voltage
230 V / 50 Hz
Total dimensions
960 x 340 x 960 mm
Drum speed
2000 min-1
Drum diameter
176 mm
Max. sanding width
200 mm
Net weight
65 kg
Gross weight
68 kg
EAN code
9120058373145
Setting video (YouTube ID)
xOAfjIwnO00

უპირატესობები

  • 2200 W S1 motor, 700 W more than the PSM2, for hardwood floors and daily use
  • Runs from an ordinary 230 V / 50 Hz socket, so no three-phase installation is needed on site
  • Integrated extraction with a dust bag included, ready to work out of the crate

გასათვალისწინებელი

  • 200 mm sanding width means a large hall floor needs many passes
  • 65 kg net weight makes carrying the PSM3 up stairs a two-person job
  • No 400 V version, so a workshop standardised on three-phase power cannot use its existing supply

ხშირად დასმული კითხვები

Does the HOLZMANN PSM3 need a 400 V three-phase supply?
No. The HOLZMANN PSM3 is built in one version only, 230 V / 50 Hz single-phase, with a 2200 W S1 motor, so the PSM3 plugs into an ordinary socket in the apartment or office being refinished. There is no 400 V variant of the PSM3, which is why the machine can be used on sites where only household power is available.
What sanding width does the HOLZMANN PSM3 cover in one pass?
The HOLZMANN PSM3 sands a 200 mm wide strip in one pass, using a drum of 176 mm diameter turning at 2000 rpm. That width makes the PSM3 practical for rooms, corridors and small halls rather than for large open floor areas.
What does the HOLZMANN PSM3 not do?
The HOLZMANN PSM3 does not sand panels or boards to a set thickness, which is the job of a wide belt sander such as the HOLZMANN ZS560FU, and the PSM3 does not sand curved or profiled edges, which is spindle sander work. The PSM3 is a floor machine for flat parquet surfaces only.
Is dust extraction included with the HOLZMANN PSM3?
Yes. The HOLZMANN PSM3 has integrated dust extraction and a dust bag is included in delivery, so the PSM3 can be put to work without first buying a separate mobile extractor.
How heavy is the HOLZMANN PSM3 and how much space does it need?
The HOLZMANN PSM3 weighs 65 kg net and 68 kg gross, with total dimensions of 960 x 340 x 960 mm. Two people should load the PSM3 into a vehicle, and the machine is narrow enough at 340 mm to pass through normal doorways.
What is the difference between the HOLZMANN PSM3 and the HOLZMANN PSM2?
HOLZMANN publishes exactly two differences between the PSM3 and the PSM2. The PSM3 carries a 2200 W S1 motor against 1500 W on the PSM2, and the PSM3 body is 30 mm longer at 960 x 340 x 960 mm against 930 x 340 x 960 mm. Everything else in the two data sheets is identical: a 176 mm drum at 2000 min-1, a 2800 min-1 motor, a 200 mm sanding width, IP 55 protection, 230 V / 50 Hz supply and 65 kg net / 68 kg gross. The extra 700 W on the PSM3 is therefore what you are choosing - the ability to hold cut depth in oak and through consecutive working days - and not a wider pass or a heavier machine.
What does a HOLZMANN PSM3 cost, and is the extra over a PSM2 worth it?
The HOLZMANN PSM3 is quoted, not shelf-priced. Its quotation is moved by the abrasive package taken with the machine, by whether an edge sander is ordered alongside for the perimeter, by the number of machines a contractor is equipping, and by freight and customs clearance into Georgia. The step up from the PSM2 buys one published thing - 700 W more motor, 2200 W against 1500 W - so it pays for itself where floors are oak or where the PSM3 will run day after day, and not where the work is occasional softwood.
How long does it take to get a HOLZMANN PSM3?
The HOLZMANN PSM3 is built to order and its current lead time is confirmed at quotation. The PSM3 travels at 68 kg gross in a 920 x 380 x 920 mm carton as ordinary palletised freight, so the build schedule rather than the transport usually governs the date; both are set out on the quotation.
Does a HOLZMANN PSM3 need commissioning or an electrical connection?
A HOLZMANN PSM3 needs only a 230 V / 50 Hz socket, but at 2200 W it draws noticeably more than the 1500 W PSM2, so the circuit on an older apartment or office should be checked before a long sanding run. Commissioning is done by the operator: fit abrasive to the 176 mm drum, attach the dust bag, set drum pressure and test on an inconspicuous area. We can include a setting-up and demonstration visit for the PSM3 in the quotation.
What should be budgeted separately when buying a HOLZMANN PSM3?
Abrasives are the recurring cost of a HOLZMANN PSM3 and are bought as a grit sequence, coarse through fine, not as a single grade; spare dust bags go in the same order. Because the PSM3 covers 200 mm per pass and cannot reach a skirting or a corner, an edge sander and hand scrapers should be budgeted with it, along with the floor finish and, for commercial use, a mobile extractor for the dust the bag does not hold.
