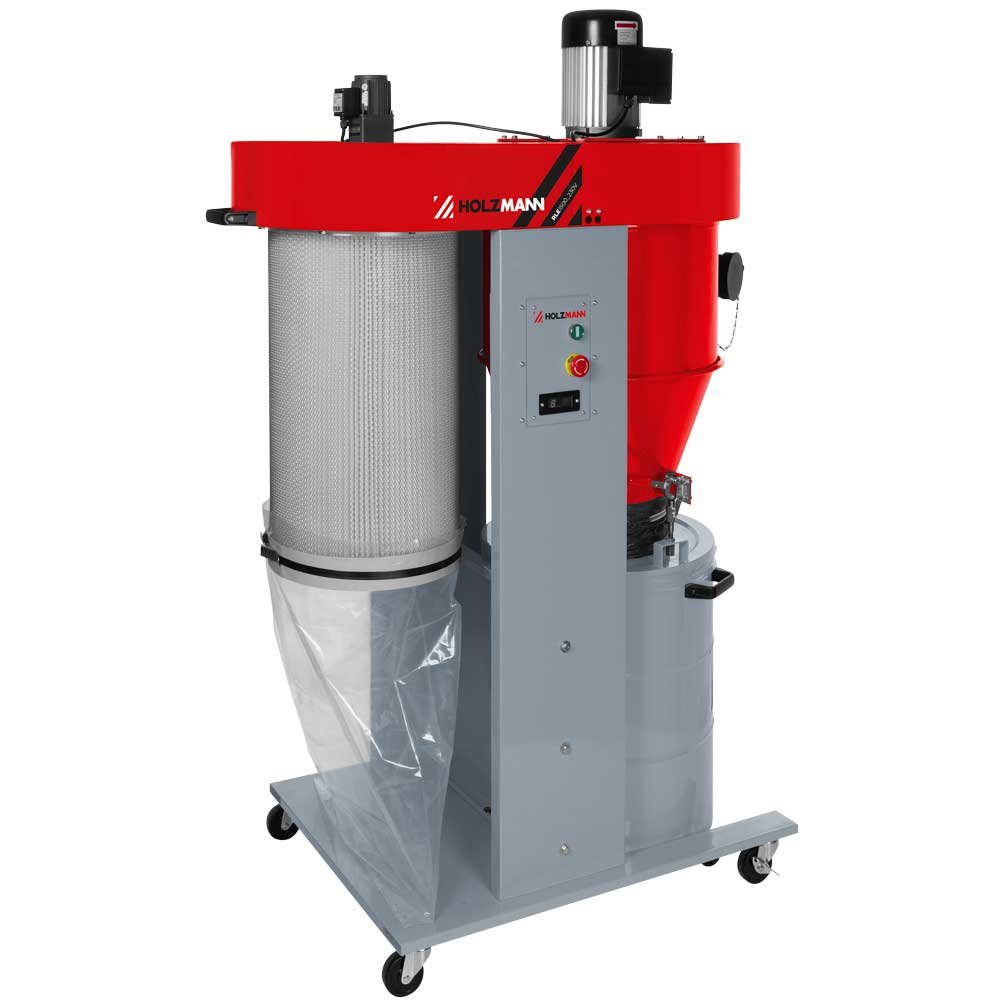

HOLZMANN RLE1500 Cyclone Dust Collector – 1900 m³/h, 230V

RLE1500

Single-phase power is the one spec that separates the HOLZMANN RLE1500 from the rest of the cyclone range: 1500 W on a 230 V / 50 Hz socket, where the RLE2200 and RLE3000 both demand 400 V. It draws 1900 m³/h at 2040 Pa, takes a Ø150 mm main inlet, fills a 110 l wheeled bin and runs at 71 dB(A).

ფასი მოთხოვნით

Price on the RLE1500 is driven by the 230 V single-phase build, the ducting package - Ø150 mm main, Ø100 mm branches, blast gates and flexible connectors - taken with it, spare filter cartridges and collection bags, and delivery of a 135 kg gross crate to the workshop floor.

ფასის მოთხოვნა

What the HOLZMANN RLE1500 does

The HOLZMANN RLE1500 separates in two stages instead of one. Chips and coarse dust drop out in the cyclone before the air reaches the filter cartridge, so the cartridge stays clear and the RLE1500 holds its 1900 m³/h and 2040 Pa far longer into a working day than a bag machine whose filter sleeve slowly blinds. When the RLE1500 is switched off, an automatic cleaning cycle knocks the cartridge down into the collection filter bag, which means the operator is not beating a filter by hand every week.

Who the RLE1500 suits

The RLE1500 suits a workshop that cares about fine dust as much as chip volume: cabinet shops sanding MDF and veneer, and any joinery where the collector stands in the same room as the people. Sound pressure is 71 dB(A) and sound power 84 dB(A), which is quiet for this class. A 1500 W motor on a 230V / 50 Hz single-phase supply means the RLE1500 needs no three-phase installation, and the supplied remote control starts and stops the unit from the machine the operator is standing at.

How the RLE1500 differs from the HOLZMANN bag collectors

Airflow is where the RLE1500 gives ground and dust control is where it gains. The ABS3000SE moves 3000 m³/h and the ABS4000 3900 m³/h — both more than the RLE1500’s 1900 m³/h — but both separate into an open-weave filter sleeve and a chip bag, with no cyclone, no cartridge and no automatic cleaning. The RLE1500 also collects into a container with a sight glass so filling level is checked at a glance, whereas a bag has to be lifted. Chip capacity is 110 l and 80 l respectively, and the 365 mm fan wheel is the largest in the single-phase group.

Connections, size and handling of the RLE1500

The RLE1500 has one Ø150 mm and three Ø100 mm inlets, so up to three woodworking machines can be connected through the inlet adapter. The unit measures 1280 x 790 x 1740 mm and weighs 97 kg net, and a transport device with wheels is part of the machine, though at that weight the RLE1500 is repositioned occasionally rather than daily.

ძირითადი მახასიათებლები

  • The only single-phase cyclone in the RLE line: 1500 W on a 230 V / 50 Hz socket
  • 1900 m³/h at 2040 Pa through a 365 mm fan wheel
  • Ø150 mm main inlet plus 3 x Ø100 mm branches - the light-duty port set of the range
  • 110 l collection container capacity (with an 80 l figure also published)
  • The quietest of the three RLE cyclones on paper: 71 dB(A) sound pressure, 84 dB(A) sound power
  • 1280 x 790 x 1740 mm and 97 kg net - the smallest footprint and lowest headroom demand in the family
  • Cyclone separator ahead of the filter cartridge, with automatic cartridge cleaning after switch-off
  • Remote control start/stop, and a wheeled collection container with a sight glass for the fill level

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230 V / 50 Hz
Dust collector port
1 x Ø150 mm | 3 x Ø100 mm
Total dimensions
1280 x 790 x 1740 mm
Suction performance
1900 m³/h
Chip container / bag capacity
110 l | 80 l
Fan wheel diameter
365 mm
Hypotension (static pressure)
2040 Pa
Sound power level
84 dB(A)
Sound pressure level
71 dB(A)
Net weight
97 kg
Gross weight
135 kg
EAN code
9120132141110

უპირატესობები

  • Cyclone plus cartridge keeps suction steady through the day
  • Automatic filter cleaning and a sight glass cut maintenance time
  • Runs on 230V single-phase and is quiet at 71 dB(A)

გასათვალისწინებელი

  • 1900 m³/h is less airflow than the cheaper ABS bag collectors
  • 97 kg net makes repositioning a two-person job
  • Only three machines can be connected via the inlet adapter

ხშირად დასმული კითხვები

Does the HOLZMANN RLE1500 need a 400V three-phase supply?
No. The HOLZMANN RLE1500 is supplied as the RLE1500_230V variant with a 1500 W motor for a 230 V / 50 Hz single-phase socket, so no three-phase installation is needed. That makes the RLE1500 one of the few cyclone-class collectors a small Georgian workshop can run on ordinary building power.
What does the HOLZMANN RLE1500 not do?
The HOLZMANN RLE1500 does not match the raw airflow of the bag collectors — its 1900 m³/h is below the ABS3000SE's 3000 m³/h and the ABS4000's 3900 m³/h — so the RLE1500 is not the choice for a heavy planer-thicknesser running all day. The RLE1500 is also not a floor vacuum and does not extract liquids.
How does the automatic filter cleaning on the RLE1500 work?
After the HOLZMANN RLE1500 is switched off, an automatic cleaning cycle clears the filter cartridge and the released dust falls into the collection filter bag. This keeps the cartridge open so the RLE1500 maintains a consistent suction performance without the operator cleaning the filter by hand.
How many machines can be connected to the RLE1500?
The HOLZMANN RLE1500 has an inlet adapter for a maximum of three woodworking machines, using its 1 x Ø150 mm and 3 x Ø100 mm connections.
What is the remote control on the RLE1500 for?
The HOLZMANN RLE1500 includes a remote control to start and stop the collector, so the operator switches extraction on from the saw or sander instead of walking back to the unit each time.
How full is the RLE1500 container and how is it checked?
The HOLZMANN RLE1500 collects into a container with capacities given as 110 l and 80 l, mounted on wheels and fitted with a sight glass, so the filling level of collected chips and dust is checked visually without opening the machine.
What does a HOLZMANN RLE1500 cost?
The HOLZMANN RLE1500 is a quoted machine, not a shelf-price item. What moves the figure is the 230 V single-phase configuration, whether the Ø150 mm main duct, Ø100 mm branches, blast gates and flexible connectors are quoted with it, how many spare filter cartridges and collection bags you take, and delivery of the 135 kg gross crate. Send us the list of machines the RLE1500 will serve and we will quote it as an installed system.
What is the lead time on a HOLZMANN RLE1500?
The HOLZMANN RLE1500 is built to order and its current lead time is confirmed at quotation. We check the factory position for the RLE1500 at pricing, so the delivery window is confirmed alongside the figure rather than promised in advance.
What does installing a HOLZMANN RLE1500 involve?
Installing a HOLZMANN RLE1500 means a level 1280 x 790 mm floor bay with 1740 mm of headroom and clearance in front for the wheeled container, a 230 V / 50 Hz circuit of adequate rating - no three-phase work needed - and ducting from the Ø150 mm main out to three machines on Ø100 mm branches with blast gates. Commissioning is the point at which airflow is balanced so each branch gets its share of the 1900 m³/h.
What consumables and extras should be budgeted with an RLE1500?
Budget alongside the HOLZMANN RLE1500 for the ducting package - Ø150 mm main, Ø100 mm branches, blast gates, flexible connectors and machine-side hoods - plus replacement filter cartridges and collection filter bags as running consumables. The RLE1500 arrives as a collector with its cyclone, cartridge, remote and wheeled bin; the pipework between it and your machines is always a separate line.
