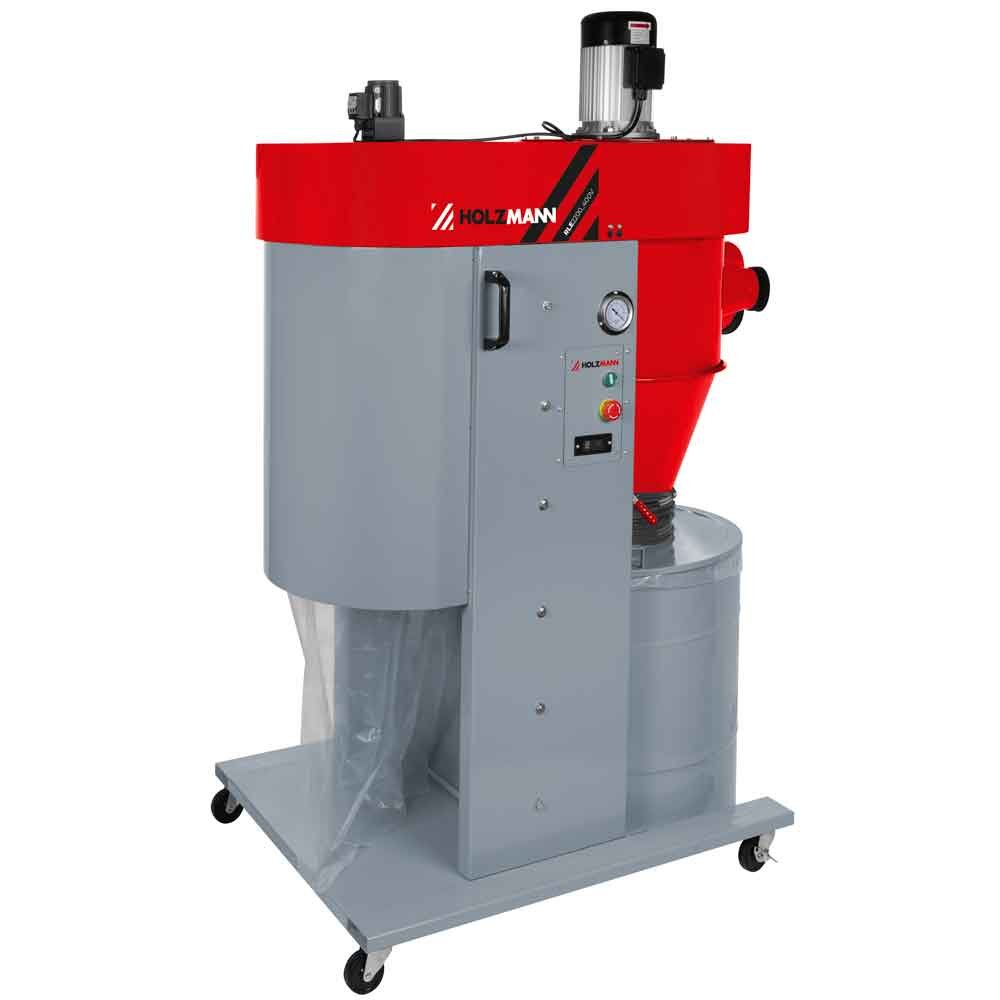

HOLZMANN RLE2200 Cyclone Dust Collector (2800 m³/h)

1 / 4

Move up from the RLE1500 and the main inlet grows to Ø200 mm: the HOLZMANN RLE2200 pulls 2800 m³/h at 2220 Pa through a 365 mm wheel driven by 2200 W on 400 V three-phase. Its 151 l wheeled bin sits under a cabinet 1840 mm tall - 350 mm lower than the RLE3000, which is what decides the choice under a low ceiling.

ძრავის სიმძლავრე: 2.2 kW
ძაბვა: 400V
გაბარიტები: 1320 x 900 x 1840 mm
წონა: 136 kg

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the RLE2200 is driven by the 2200 W 400 V three-phase build, the ducting package - Ø200 mm main, Ø100 mm branches, blast gates and flexible connectors - quoted with it, spare cartridges and collection bags, and delivery plus positioning of a 170 kg gross crate.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN RLE2200 does

The HOLZMANN RLE2200 is a cyclone extraction system rather than a simple bag collector: chips and dust drawn in at 2800 m³/h and 2220 Pa are spun out in the cyclone separator and dropped into a 151 l collection container, so only the residue reaches the filter cartridge. That order of operations is what keeps a cyclone’s airflow steady through a long shift — the cartridge is not being buried under shavings. A 2200 W motor on 400 V drives the Ø365 mm fan wheel, and the whole unit stands 1840 mm tall on a 1320 x 900 mm footprint at 136 kg net.

Multi-machine extraction and daily handling

The RLE2200 is built around a workshop that runs more than one machine. The inlet adapter takes a maximum of three woodworking machines, with one Ø200 mm and three Ø100 mm connections, and the supplied remote control starts and stops the RLE2200 from the machine the operator is standing at instead of from the unit itself. A static vacuum pressure gauge shows when the cartridge is loading up, and after the RLE2200 is switched off the cartridge is cleaned automatically, with the released dust caught in the collection filter bag. The collection container runs on its own wheels and has a sight glass so the fill level can be checked without opening it, and the RLE2200 itself is supplied with a transport device on wheels.

How the RLE2200 differs from the RLE3000

The RLE2200 is the smaller of the two HOLZMANN cyclones. Against the RLE3000’s 3000 W, 3200 m³/h, 2470 Pa, Ø400 mm fan wheel and 227 l container, the RLE2200 gives 2800 m³/h at 2220 Pa into a 151 l container — but it stands 1840 mm rather than 2190 mm high and weighs 136 kg rather than 153 kg. In a Georgian workshop with a low ceiling or a modest three-phase supply, that 350 mm of headroom is often what decides between the two.

Delivery

The RLE2200 is delivered with its cyclone separator and filter cartridge, remote control, collection filter bag, wheeled collection container and transport wheels.

ძირითადი მახასიათებლები

2200 W on 400 V / 50 Hz three-phase, giving 2800 m³/h at 2220 Pa
Ø200 mm main inlet with 3 x Ø100 mm branches - a step up from the RLE1500's Ø150 mm main
365 mm fan wheel, the same diameter as the RLE1500's but driven by 700 W more motor
151 l collection container - 41 l more than the RLE1500 holds
1840 mm overall height: 350 mm of ceiling clearance saved against the RLE3000
136 kg net / 170 kg gross on a 1320 x 900 mm floor plan; 87 dB(A) sound power, 74 dB(A) sound pressure
Cyclone separator ahead of the filter cartridge, with automatic cartridge cleaning after switch-off
Remote control start/stop, and a wheeled collection container with a sight glass for the fill level

ტექნიკური მახასიათებლები

Motor power (S1): 2200 W
Voltage: 400 V / 50 Hz
Extraction ports: 1 x Ø200 mm | 3 x Ø100 mm
Total dimensions: 1320 x 900 x 1840 mm
Suction performance: 2800 m³/h
Fan wheel diameter: Ø365 mm
Static vacuum pressure: 2220 Pa
Container / bag capacity: 151 l | 80 l
Sound power level: 87 dB(A)
Sound pressure level: 74 dB(A)
Net weight: 136 kg
Gross weight: 170 kg
EAN code: 9120132141127

უპირატესობები

Cyclone separation plus automatic cartridge cleaning keeps 2800 m³/h steady through long shifts
Serves up to three machines from one unit, with remote start/stop from the workplace
151 l wheeled container with sight glass makes emptying quick and predictable

გასათვალისწინებელი

400 V three-phase only — no single-phase version for a workshop without three-phase supply
136 kg and 1320 x 900 x 1840 mm, so it is a fixed installation needing real floor space
Capped at three machines; a larger ducted shop needs the RLE3000 or an ABS8000PRO

ხშირად დასმული კითხვები

Does the HOLZMANN RLE2200 run on 230 V or 400 V?

The HOLZMANN RLE2200 is a 400 V / 50 Hz three-phase machine only — it is supplied as RLE2200_400V and there is no 230 V version. A Georgian workshop buying the RLE2200 needs a three-phase outlet at the installation point; a single-phase shop should look at the HOLZMANN ABS4500MF, which reaches 4500 m³/h on 230 V, instead.

What does the HOLZMANN RLE2200 not do?

The HOLZMANN RLE2200 does not extract from more than three machines and is not a floor vacuum. The RLE2200's inlet adapter is designed for a maximum of three woodworking machines, and the unit is intended for machine-mounted extraction hoods rather than sweeping the floor or picking up liquids. The RLE2200 also does not run on single-phase power.

Why choose the HOLZMANN RLE2200 cyclone over a bag collector?

The HOLZMANN RLE2200 separates chips in a cyclone before the air reaches the filter cartridge, so the RLE2200 holds its 2800 m³/h more consistently than a bag unit whose filter blinds as the bag fills. The RLE2200 also cleans its cartridge automatically after switch-off and shows filter loading on a static vacuum pressure gauge.

How is the collected dust emptied from the HOLZMANN RLE2200?

The HOLZMANN RLE2200 drops separated chips into a 151 l collection container that runs on its own wheels and carries a sight glass, so the fill level is visible without opening the RLE2200. The container is wheeled away and emptied; the dust released by automatic cartridge cleaning is caught in the collection filter bag.

How much space does the HOLZMANN RLE2200 need?

The HOLZMANN RLE2200 measures 1320 x 900 x 1840 mm and weighs 136 kg net, and it needs clearance above and in front for the container to be withdrawn. Workshops with a low ceiling should note that the RLE2200 is 350 mm shorter than the 2190 mm HOLZMANN RLE3000.

Can the HOLZMANN RLE2200 be started from the machine being used?

Yes — the HOLZMANN RLE2200 is supplied with a remote control for start/stop, so the operator switches the RLE2200 on from the saw or planer instead of walking back to the unit.

How is the HOLZMANN RLE2200 priced?

The HOLZMANN RLE2200 is supplied by quotation. The price is driven by the 2200 W 400 V three-phase specification, the ducting package taken with it - Ø200 mm main, Ø100 mm branches, blast gates and flexible connectors - the number of spare filter cartridges and collection bags, and delivery and positioning of a 170 kg gross crate. Give us the machine list and duct route and we will price the RLE2200 as an installed system rather than as a box.

What is the lead time on a HOLZMANN RLE2200?

The HOLZMANN RLE2200 is built to order, and the current lead time is confirmed at quotation. Where the RLE2200 is quoted with ducting and installation, we confirm the machine and the site work against the same date so the system is commissioned in one visit.

What is required to commission a HOLZMANN RLE2200?

Commissioning a HOLZMANN RLE2200 needs a level 1320 x 900 mm bay with 1840 mm of headroom and container clearance at the front, a 400 V / 50 Hz three-phase supply run to that position with fan rotation verified, Ø200 mm main ducting out to 3 x Ø100 mm branches with blast gates, and a balancing pass so each machine draws its share of the 2800 m³/h. The remote receiver is sited where the operator actually works.

What should be budgeted separately when buying an RLE2200?

Separate from the HOLZMANN RLE2200 itself, budget for the Ø200 mm main duct and Ø100 mm branches, blast gates, flexible connectors and machine-side extraction hoods, the three-phase electrical work to the collector bay, and running consumables - filter cartridges and collection filter bags. The RLE2200 comes as a cyclone unit with cartridge, remote, wheels and 151 l container; the pipework and hoods are always additional.
