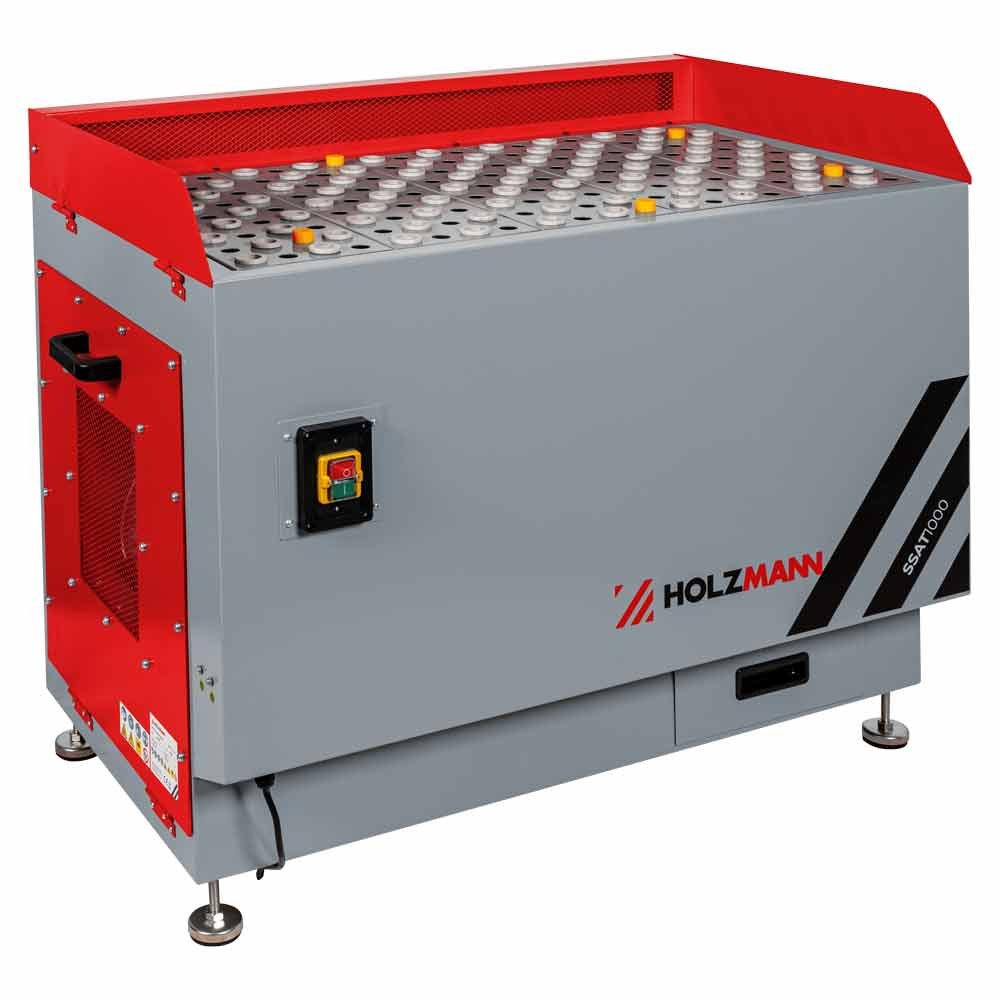

HOLZMANN SSAT1000 Downdraft Sanding Table (1050 mm)

SSAT1000 — HOLZMANN SSAT1000 Downdraft Sanding Table (1050 mm) 1 / 4

One 1000 W fan and a 1050 mm top make the HOLZMANN SSAT1000 the half-length answer to the 2200 mm SSAT2200: 4000 m³/h through a single 250 mm wheel and two 395 x 495 x 24 mm front filters, on 230 V / 50 Hz. At 68 kg net and 1050 x 600 x 850 mm it suits a workshop with one metre of free wall.

ძრავის სიმძლავრე
1 kW
ძაბვა
230V
გაბარიტები
1050 x 600 x 850 mm
წონა
68 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the SSAT1000 is driven by the single-fan 4000 m³/h build with its two-filter block, the number of spare 395 x 495 x 24 mm filter sets taken with the table, and delivery of a 71 kg gross crate to the workshop.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN SSAT1000 does

The HOLZMANN SSAT1000 is a compact sanding station that captures its own dust: a single 1000 W fan pulls 4000 m³/h off the 1050 x 600 mm work surface, downwards and to the rear, and pushes the air through two front filters of 395 x 495 x 24 mm before returning it to the workshop. No external dust collector is required and no duct to the outside is needed, which is why the SSAT1000 suits a shop that has no spare extraction capacity to give a hand-sanding bench. Collected dust gathers in an extendable chip drawer at the front, withdrawn and emptied in seconds.

Working on the SSAT1000

The SSAT1000 is set up for scratch-free work: metal insert plates with plastic spacers form the support surface and a rubber-coated table protection lets already-finished faces be laid down without marking. Fold-away side panels extend the support for pieces longer than the table, and the SSAT1000 stands 850 mm high — normal bench height — on a 1050 x 600 mm footprint. At 68 kg net the SSAT1000 is light enough to be repositioned by two people when the shop layout changes, and its sound power level is 85 dB(A).

How the SSAT1000 differs from the SSAT2200 and SSAT150M

The SSAT1000 is the small powered table in the HOLZMANN sanding-table line. The HOLZMANN SSAT2200 is twice as long at 2200 mm, uses two 1000 W fans for 8000 m³/h and four filters, and weighs 130 kg — the table for door leaves and worktops. The HOLZMANN SSAT150M is a metal sanding table with no fan at all, which must be ducted to a dust collector supplying 1030 m³/h. The SSAT1000 is the one to choose for cabinet parts, drawer fronts, chair components and general hand sanding in a shop where floor space is tight.

Power supply

The SSAT1000 runs on 230 V / 50 Hz single-phase power and plugs into an ordinary workshop socket; no three-phase installation is involved.

ძირითადი მახასიათებლები

  • 4000 m³/h from a single 1000 W fan - the shop-scale member of the SSAT range
  • 1050 x 600 x 850 mm: half the SSAT2200's length, for a bench wall with a metre to spare
  • Two front filters of 395 x 495 x 24 mm
  • One 250 mm fan wheel on a 230 V / 50 Hz single-phase supply
  • Sound power level of 85 dB(A)
  • 68 kg net / 71 kg gross - the lightest powered table in the SSAT line, crated at 1050 x 680 x 750 mm
  • Filtered air recirculates into the working space, so the SSAT1000 needs no duct to the outside
  • Fold-away side panels extend support for longer workpieces
  • Extendable chip drawer at the front for emptying collected sanding dust

ტექნიკური მახასიათებლები

Motor power (S1)
1000 W
Voltage
230 V / 50 Hz
Total dimensions
1050 x 600 x 850 mm
Suction performance
4000 m³/h
Fan wheel diameter
250 mm
Front filter size
2 x (395 x 495 x 24 mm)
Sound power level
85 dB(A)
Net weight
68 kg
Gross weight
71 kg
EAN code
9120058377181

უპირატესობები

  • Standalone 4000 m³/h extraction from a 230 V socket — no collector, no ducting
  • 68 kg and 1050 x 600 mm, so it fits a small workshop and can be repositioned
  • Rubber-coated protection and fold-away side panels allow scratch-free work on longer parts

გასათვალისწინებელი

  • Does not sand — extraction table only
  • Half the airflow and table length of the SSAT2200; too small for full door leaves
  • Two filters recirculate air into the room and need regular cleaning or replacement

ხშირად დასმული კითხვები

Does the HOLZMANN SSAT1000 need 230 V or 400 V?
The HOLZMANN SSAT1000 runs on 230 V / 50 Hz single-phase power and is supplied in that configuration only — there is no 400 V version. Its single 1000 W fan draws little enough that the SSAT1000 plugs into an ordinary workshop socket, which makes it practical for small Georgian workshops without three-phase supply.
What does the HOLZMANN SSAT1000 not do?
The HOLZMANN SSAT1000 does not sand, and it does not extract other machines. The SSAT1000 is a downdraft table: the operator sands by hand or with an orbital sander on its surface while the built-in 1000 W fan pulls 4000 m³/h of dust down through the top and into the two front filters. The SSAT1000's fan cannot be hosed to a saw, planer or router. Where metal is being sanded, HOLZMANN's purpose-built metal table is the SSAT150M, which takes a metal-sanding table insert and connects to an external collector through a Ø160 mm port.
Does the HOLZMANN SSAT1000 need a separate dust collector?
No — the HOLZMANN SSAT1000 has its own 1000 W fan and two-filter block delivering 4000 m³/h, so the SSAT1000 works standalone. The filtered air is returned to the working space, so no external ducting is required either.
Should I buy the HOLZMANN SSAT1000 or the SSAT2200?
Choose the HOLZMANN SSAT1000 for component work and tight floor space: 1050 mm of table, 4000 m³/h, one fan, two filters, 68 kg. Choose the SSAT2200 if full-size doors and worktops are sanded — 2200 mm of table, 8000 m³/h from two fans, four filters and 130 kg.
How is the HOLZMANN SSAT1000 emptied and serviced?
The HOLZMANN SSAT1000 collects sanding dust in an extendable chip drawer at the front, and its two front filters of 395 x 495 x 24 mm are reached from the front for cleaning or replacement. Neither job requires the SSAT1000 to be moved.
Can longer workpieces be sanded on the HOLZMANN SSAT1000?
Yes, within limits — the HOLZMANN SSAT1000 has fold-away side panels that extend the support beyond its 1050 x 600 mm table. For genuinely long panels and door leaves the 2200 mm HOLZMANN SSAT2200 is the correct table.
How is the HOLZMANN SSAT1000 priced?
The HOLZMANN SSAT1000 is supplied by quotation rather than at a shelf price. The figure reflects the single-fan 4000 m³/h build with its two 395 x 495 x 24 mm filters, how many spare filter sets are taken with the table, and delivery of the 71 kg gross crate. Because the SSAT1000 extracts on its own, no separate dust collector needs to be priced with it - which is usually why it comes in below a table-plus-collector package.
What is the lead time on a HOLZMANN SSAT1000?
The HOLZMANN SSAT1000 is built to order and the current lead time is confirmed at quotation. We check the factory build position for the SSAT1000 at the time we price it rather than quoting a standing delivery window.
What does it take to commission a HOLZMANN SSAT1000?
Commissioning a HOLZMANN SSAT1000 is simple: set the 68 kg table level on a 1050 x 600 mm floor position with clearance at the sides and front, plug the 1000 W fan into a 230 V / 50 Hz socket on an adequately rated circuit, and check that the two front filters are seated. There is no ducting and no three-phase work, so the SSAT1000 can usually be working the same day it is delivered.
What ongoing items should be budgeted with an SSAT1000?
The running budget on a HOLZMANN SSAT1000 is its two 395 x 495 x 24 mm front filters, which load with sanding dust and are cleaned or replaced on a schedule set by usage. Abrasives, and the hand or orbital sanders used on top of the table, are separate items - the SSAT1000 provides the surface and the downdraft, not the sanding tool.
