HOLZMANN

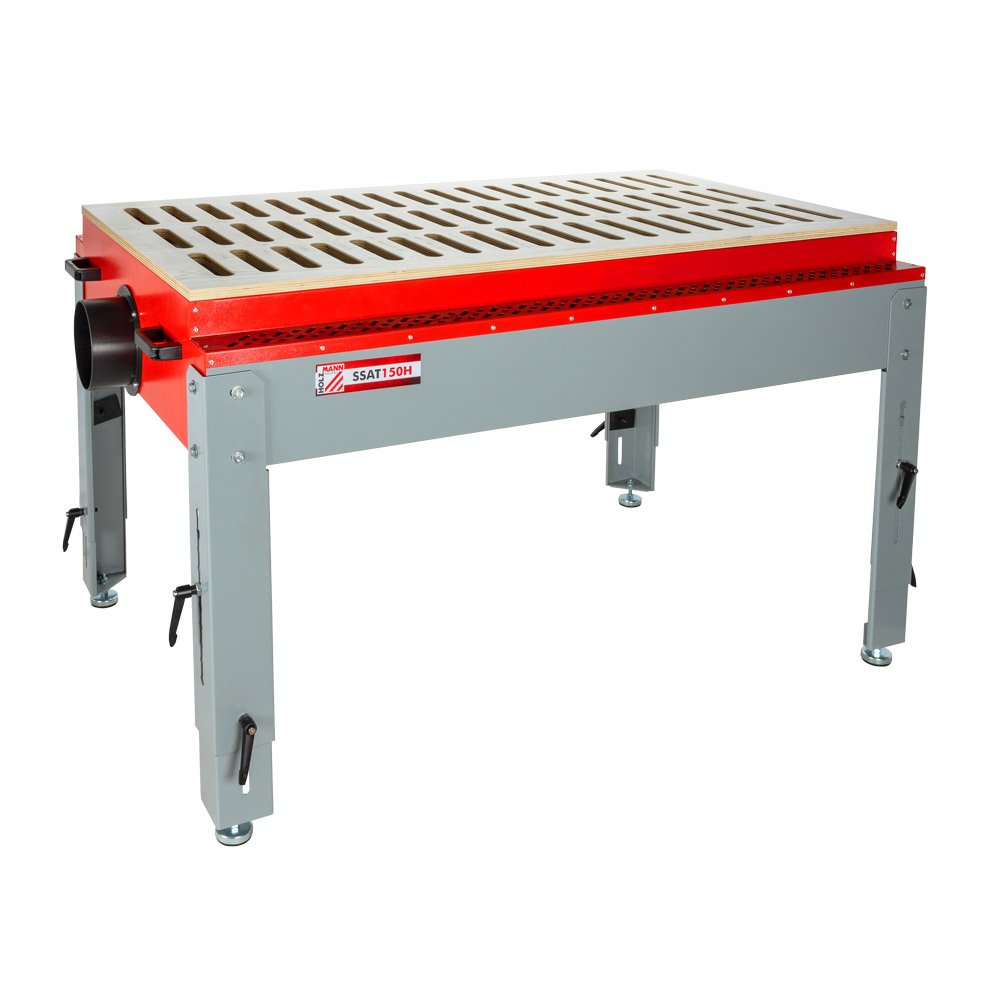

HOLZMANN SSAT150H Downdraft Sanding Table – 1440 x 800 mm
SSAT150H
Table area is the deciding spec across the SSAT150 pair: the HOLZMANN SSAT150H offers 1440 x 800 mm of wood-sanding surface against 1350 x 695 mm on the metal-insert SSAT150M, and weighs 80 kg net rather than 90 kg. Height sets anywhere from 760 to 1030 mm, payload is 200 kg, and one Ø160 mm port feeds a 1030 m³/h collector.
Price on the SSAT150H is driven by whether the optional metal-sanding table insert is taken with it, whether the 1030 m³/h dust collector and the Ø160 mm ducting are quoted in the same package or already exist in your shop, and delivery of the 86 kg gross crate to the workshop floor.
ფასის მოთხოვნაWhat the HOLZMANN SSAT150H does
The HOLZMANN SSAT150H is a sanding bench that pulls dust downwards through the work surface instead of letting it rise into the operator’s face. The table measures 1440 x 800 mm and takes a payload of 200 kg, so full door leaves, cabinet sides and table tops can be laid flat and hand-sanded or orbital-sanded on it. Extraction is drawn from a single Ø160 mm port on the SSAT150H, and the table itself contains no fan or motor: the airflow comes from a separate collector connected to that port.
Who the SSAT150H suits
The SSAT150H suits door manufacturers, furniture workshops and paint-preparation bays where sanding is done by hand over large flat parts. The 760 to 1030 mm height adjustment is the detail that earns its place in daily work — the bench can be dropped for sanding a tall carcass side or raised so an operator is not stooping over a door for an hour. At 80 kg net and 1570 x 1050 mm in plan, the SSAT150H is a fixed fitting in the shop rather than something moved between jobs.
How the SSAT150H differs from the HOLZMANN dust collectors
The SSAT150H is a capture device, not an extraction unit, and this is the key distinction from every ABS and RLE machine. An ABS3000SE or RLE1500 creates the airflow and separates the dust; the SSAT150H provides the perforated surface that turns that airflow into an effective capture zone at the workpiece. HOLZMANN specifies that a collector delivering 1030 m³/h is required to serve the SSAT150H, which a unit such as the RLE1500 (1900 m³/h) or ABS3000SE (3000 m³/h) covers comfortably through Ø160 to Ø150 mm ducting.
Sanding metal on the SSAT150H
The SSAT150H is optionally convertible for metal sanding with the corresponding table insert for metal sanding, which lets one bench serve both a joinery and a small metal fitting bay. That insert is a separate item, and the SSAT150H as delivered is configured as a wood sanding table.
ძირითადი მახასიათებლები
- 1440 x 800 mm downdraft top - 90 mm longer and 105 mm deeper than the SSAT150M's 1350 x 695 mm
- Supplied as a wood sanding table; the metal-sanding table insert is the optional conversion
- 80 kg net / 86 kg gross - 10 kg lighter than the metal-configured SSAT150M
- Ships packed at 1490 x 1000 x 330 mm
- Working height set anywhere between 760 and 1030 mm
- 200 kg payload on a 1570 x 1050 mm frame - an interior door leaf lies flat
- One Ø160 mm outlet; HOLZMANN specifies 1030 m³/h of collector capacity behind it
- No fan and no filter on board - extraction performance is entirely the connected collector's
ტექნიკური მახასიათებლები
- Table size
- 1440 x 800 mm
- Table height
- 760 - 1030 mm
- Total dimensions
- 1570 x 1050 x 760 - 1030 mm
- Payload
- 200 kg
- Dust collector port
- Ø160 mm
- Required dust collector capacity
- 1030 m³/h
- Net weight
- 80 kg
- Gross weight
- 86 kg
- EAN code
- 9120058378591
უპირატესობები
- 1440 x 800 mm surface with 200 kg payload takes full door leaves
- 760-1030 mm height adjustment protects the operator's back
- Convertible to metal sanding with the optional table insert
გასათვალისწინებელი
- No fan or motor — a separate 1030 m³/h collector is essential
- 80 kg and 1570 x 1050 mm, so it is a fixed shop station
- The metal sanding insert is not included in delivery
