SSAT150M — HOLZMANN SSAT150M Metal Sanding Table

HOLZMANN

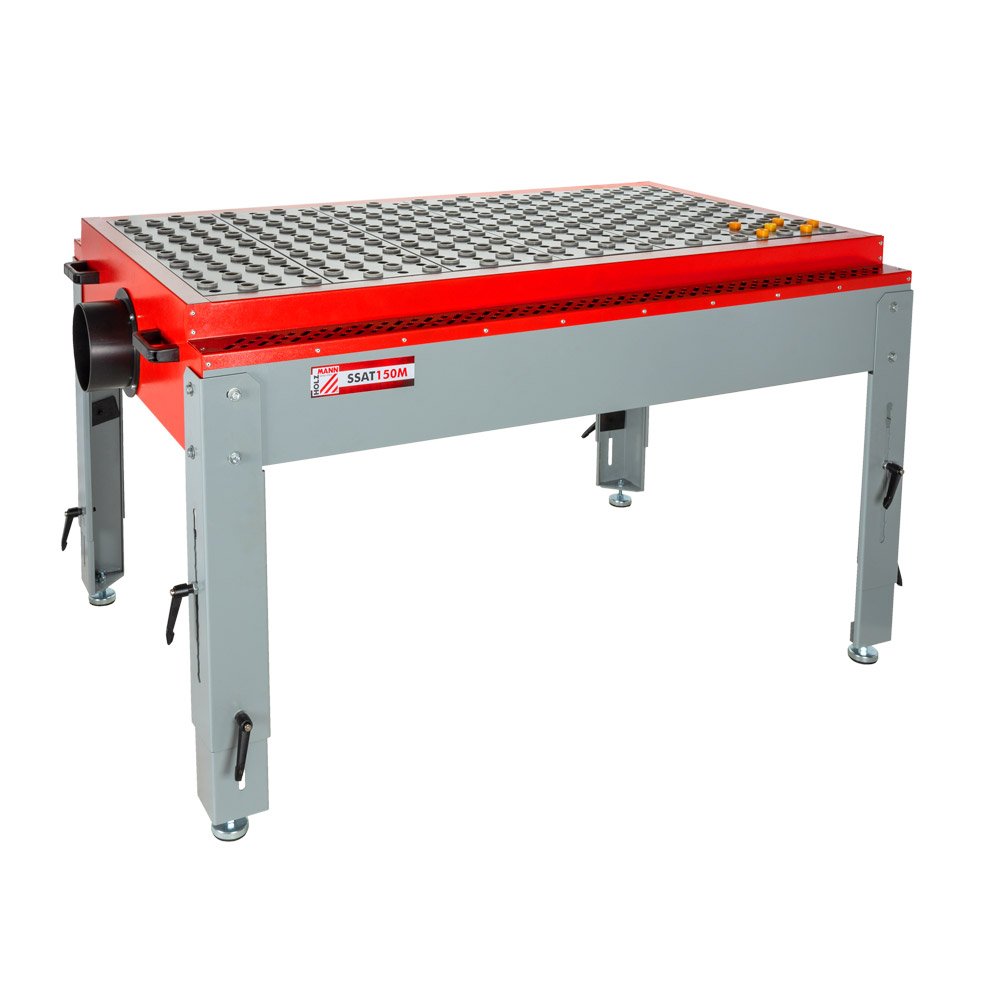

HOLZMANN SSAT150M Metal Sanding Table

SSAT150M

Ordered as the metal-sanding member of the SSAT150 pair, the HOLZMANN SSAT150M presents a 1350 x 695 mm downdraft top - narrower than the SSAT150H's 1440 x 800 mm wood surface, and 10 kg heavier at 90 kg net. Payload is 200 kg, working height runs 760 to 1030 mm, and the Ø160 mm outlet needs 1030 m³/h.

ფასი მოთხოვნით

Price on the SSAT150M is driven by whether the optional wood-sanding table insert is added, whether a 1030 m³/h collector and the Ø160 mm ducting are quoted with the table or already installed, and delivery of the 94 kg gross crate to the shop floor.

ფასის მოთხოვნა

What the HOLZMANN SSAT150M does

The HOLZMANN SSAT150M is a passive extraction bench: the table captures grinding and sanding dust downwards through its 1350 x 695 mm metal surface and passes it out of a single Ø160 mm port to a dust collector standing elsewhere in the workshop. Because the SSAT150M carries no motor and no filter, the extraction performance is set entirely by the unit connected to it, and HOLZMANN states a required dust collector capacity of 1030 m³/h. In its standard form the SSAT150M is configured as a metal sanding table, and it is optionally convertible for wood sanding with the corresponding table insert.

Who the SSAT150M suits

The SSAT150M suits a joinery or metal fabrication bay that already owns a chip collector or cyclone and wants a dedicated dust-controlled bench rather than a second fan unit. The 200 kg payload takes heavy door leaves, weldments and steel frames, and the 760-1030 mm height adjustment lets the table be set to standing work, to seated work, or level with an adjacent assembly bench. The overall footprint is 1570 x 1050 mm and net weight is 90 kg, so the SSAT150M is a fixed installation rather than a bench that gets moved daily.

How the SSAT150M differs from the SSAT1000 and SSAT2200

The difference is the fan. The HOLZMANN SSAT1000 and SSAT2200 sanding tables carry their own extraction fans and filters and need no external collector at all, while the SSAT150M is a bare extraction table that must be ducted into an existing dust collector. The trade is cost and duplication: a workshop with spare collector capacity gets a 200 kg-rated metal table for less outlay, whereas a workshop without one should buy an SSAT1000 or SSAT2200 instead.

Delivery

The SSAT150M is delivered as the height-adjustable metal sanding table with its Ø160 mm extraction port. The wood-sanding table insert, the extraction hose and the dust collector itself are separate items and are not part of the SSAT150M delivery.

ძირითადი მახასიათებლები

  • 1350 x 695 mm metal-sanding top - the compact surface of the SSAT150 pair
  • Catalogued and supplied as a metal sanding table; a wood-sanding table insert is the optional conversion
  • 90 kg net / 94 kg gross - the heavier build of the two SSAT150 tables
  • Packs flat to 1470 x 995 x 300 mm, the slimmer crate of the pair
  • Table height adjusts through the 760-1030 mm range
  • Carries 200 kg of workpiece within the same 1570 x 1050 mm floor plan as the SSAT150H
  • Ø160 mm connection sized for a dust collection system of 1030 m³/h
  • No motor and no electrical connection - all suction comes from the unit you connect

ტექნიკური მახასიათებლები

Table size
1350 x 695 mm
Table height (adjustable)
760 - 1030 mm
Total dimensions
1570 x 1050 x 760 - 1030 mm
Payload
200 kg
Extraction port
Ø160 mm
Required dust collector capacity
1030 m³/h
Net weight
90 kg
Gross weight
94 kg
EAN code
9120058378607

უპირატესობები

  • 200 kg payload on a 1350 x 695 mm metal table, enough for door leaves and steel frames
  • Height adjustable 760-1030 mm, so it can be matched to an existing bench line
  • Cheaper than a powered sanding table if the workshop already owns a suitable collector

გასათვალისწინებელი

  • No fan, filter or chip bag — a separate dust collector of at least 1030 m³/h is mandatory
  • Only one Ø160 mm port, so it occupies a full branch of the extraction system
  • 90 kg and a 1570 x 1050 mm footprint make it a fixed installation, not a portable bench

ხშირად დასმული კითხვები

Does the HOLZMANN SSAT150M run on 230 V or 400 V?
The HOLZMANN SSAT150M has no motor and therefore no power supply of its own — the SSAT150M is a passive extraction table. The 230 V single-phase versus 400 V three-phase decision applies to the dust collector connected to the SSAT150M's Ø160 mm port: a 230 V unit plugs into an ordinary workshop socket, while a 400 V unit needs a three-phase supply installed at the machine position.
What does the HOLZMANN SSAT150M not do?
The HOLZMANN SSAT150M does not sand and does not extract on its own. The SSAT150M contains no sanding motor, no fan, no filter and no chip bag; it is a work surface that channels dust downwards to an external dust collector, which must supply at least 1030 m³/h. Grinding and sanding are still done by hand tools on top of the table.
Which dust collector should be connected to the HOLZMANN SSAT150M?
The HOLZMANN SSAT150M requires a dust collector rated for at least 1030 m³/h connected to its single Ø160 mm port. Chip collectors and cyclone units in the HOLZMANN ABS and RLE ranges that meet or exceed that airflow are suitable; a smaller shop vacuum will not develop the volume the SSAT150M needs across its full table area.
Can the HOLZMANN SSAT150M be used for wood sanding as well as metal?
Yes. The HOLZMANN SSAT150M is catalogued and supplied as a metal sanding table and is optionally convertible for wood sanding with the corresponding table insert, which is quoted separately. If timber is the main work, the wood-configured SSAT150H is the better starting point - it carries the larger 1440 x 800 mm top against the SSAT150M's 1350 x 695 mm, and converts the other way with a metal insert.
How heavy a workpiece can the HOLZMANN SSAT150M carry?
The HOLZMANN SSAT150M is rated for a 200 kg payload on its 1350 x 695 mm table, which covers door leaves, steel frames and welded assemblies. The SSAT150M itself weighs 90 kg net and occupies a 1570 x 1050 mm footprint.
Can the working height of the HOLZMANN SSAT150M be changed?
Yes — the HOLZMANN SSAT150M has a height-adjustable table that sets between 760 mm and 1030 mm, so the SSAT150M can be levelled with a neighbouring bench or raised for standing finishing work.
What drives the price of a HOLZMANN SSAT150M?
The HOLZMANN SSAT150M is quoted rather than sold at a list price. The figure is shaped by whether the optional wood-sanding table insert is included, whether the 1030 m³/h dust collector and Ø160 mm ducting are on the same quotation or already in your shop, and delivery of the 94 kg gross crate. Tell us what extraction you already run and we will price the SSAT150M into it.
How long does a HOLZMANN SSAT150M take to supply?
The HOLZMANN SSAT150M is built to order and the current lead time is confirmed at quotation. Where the SSAT150M is bought with the collector that feeds its Ø160 mm port, we confirm both lead times together so the table does not arrive before the extraction that makes it work.
How is a HOLZMANN SSAT150M commissioned?
Commissioning a HOLZMANN SSAT150M means levelling it on a 1570 x 1050 mm floor position, setting and locking the working height between 760 and 1030 mm, and ducting the Ø160 mm outlet to a collector rated at 1030 m³/h or more. The SSAT150M itself has no electrical connection, so the electrical commissioning is done at the collector - we can quote that work with the table.
What tooling and extras should be budgeted with an SSAT150M?
Alongside the HOLZMANN SSAT150M, budget for the dust collector that supplies its 1030 m³/h, the Ø160 mm ducting and blast gate, the optional wood-sanding table insert if the table will be shared between metal and timber work, and the abrasives and hand or portable sanders used on top of it. The SSAT150M is a work surface with a downdraft path, so the sanding tools themselves are always a separate budget line.
