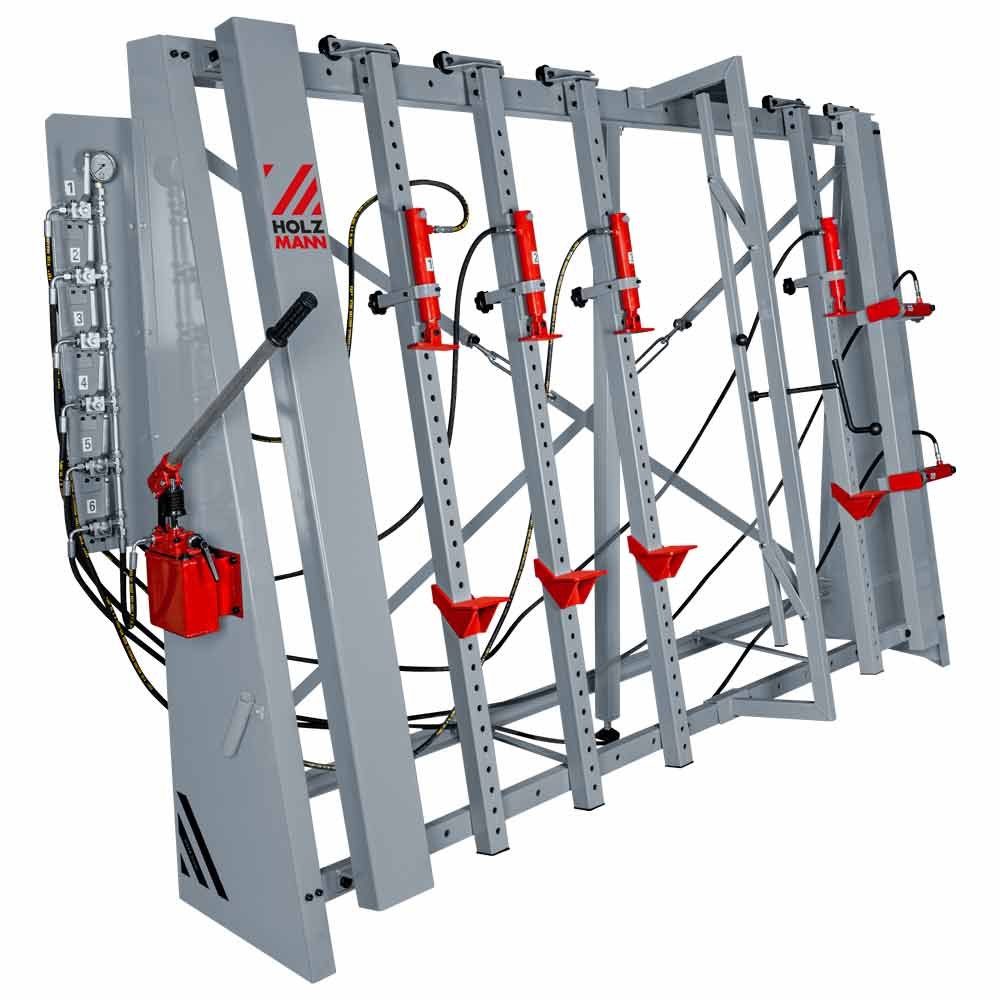

HOLZMANN VSTR3000 Panel Glueing Press (6 x 2 t, Hydraulic)
VSTR3000
Two of the six pressing units on the HOLZMANN VSTR3000 push horizontally rather than down, holding the panel flat while the four vertical units close the glue line - 2 t per unit, all six worked from one control point. Two stepless hydraulic cylinders and pressure-holding valves drive a braced 325 kg frame to 1550 mm.
The quoted price for the VSTR3000 is driven by the hydraulic pressing unit and the extra 105 kg of braced steel it carries over the VST3000, by XL freight and customs clearance for a 370 kg item packed 3030 mm long, and by whether unloading and positioning on site are included.
ფასის მოთხოვნაWhat the HOLZMANN VSTR3000 does
The HOLZMANN VSTR3000 presses glued boards into flat panels using six pressing units: four vertical and two horizontal, each rated 2 t, all centrally controlled from one point. The two horizontal units are the reason to buy this press. Vertical pressure alone closes the glue joints; the horizontal units hold the panel down against the frame so the boards cannot lift or cup while the glue cures, which is what produces a flat table top or door blank rather than one that needs re-planing.
Who the VSTR3000 suits
The VSTR3000 is a daily production press for a joinery, furniture workshop or door manufacturer, with total dimensions given as 2040/3000 mm. A heavy-duty frame press unit with two steplessly adjustable hydraulic cylinders sets the pressure, hydraulic valves hold it steady through the cure, and additional bracings stop the frame twisting under uneven load. Pressing units are height-adjustable and move quickly along the frame on a 50 bore pitch, with a minimum spacing of 240 mm and a maximum clamp height of 1550 mm.
VSTR3000 compared with the HOLZMANN VST3000
The VST3000 is the simpler press: four vertical units of 2.5 t, spring-guided cylinders with solid nuts and a self-holding function, 220 kg net. The VSTR3000 adds the two horizontal units, central control, hydraulic cylinders with pressure-holding valves and the extra bracing, and weighs 325 kg net. A workshop gluing panels occasionally is well served by the VST3000; a workshop gluing panels every day, or gluing wide tops that must come out flat, should take the VSTR3000.
Delivery
The VSTR3000 ships as an XL item at 370 kg gross in a package 3030 mm long and 450 mm wide.
ძირითადი მახასიათებლები
- Six pressing units, four vertical and two horizontal, at 2 t each: the horizontal pair is what stops the panel lifting or cupping as the vertical units close the joint
- All six units controlled centrally from a single operating point, so the whole panel is brought up to pressure together
- Heavy-duty frame press unit built around two steplessly adjustable hydraulic cylinders
- Hydraulic valves hold the set pressure through the full cure, with no manual re-tightening as the timber gives
- Additional frame bracings resist twisting when the load across the units is uneven
- 325 kg net / 370 kg gross: 105 kg more steel than the VST3000, and correspondingly stiffer under load
- 1550 mm maximum clamp height, units set on a 50 bore pitch to a 240 mm minimum spacing
- Ships as an XL freight item, packed 3030 x 450 x 660 mm
ტექნიკური მახასიათებლები
- Total dimensions
- 2040/3000 mm
- Pressing power
- 6 x 2 t
- Bore distance, pressing unit
- 50
- Min. distance, pressing unit
- 240 mm
- Max. clamp height
- 1550 mm
- Net weight
- 325 kg
- Gross weight
- 370 kg
- EAN code
- 9120058372001
უპირატესობები
- Two horizontal units on top of four vertical ones keep wide panels flat during curing
- Hydraulic cylinders with pressure-holding valves and central control of all six units
- 325 kg braced steel frame resists twisting under uneven clamping loads
გასათვალისწინებელი
- 325 kg net and 370 kg gross on a 3030 mm pallet - XL freight and a forklift are needed
- Pressing units are still positioned and loaded by hand, so cycle time is operator-bound
- Costs and weighs considerably more than the VST3000 for the same 3 m frame length
