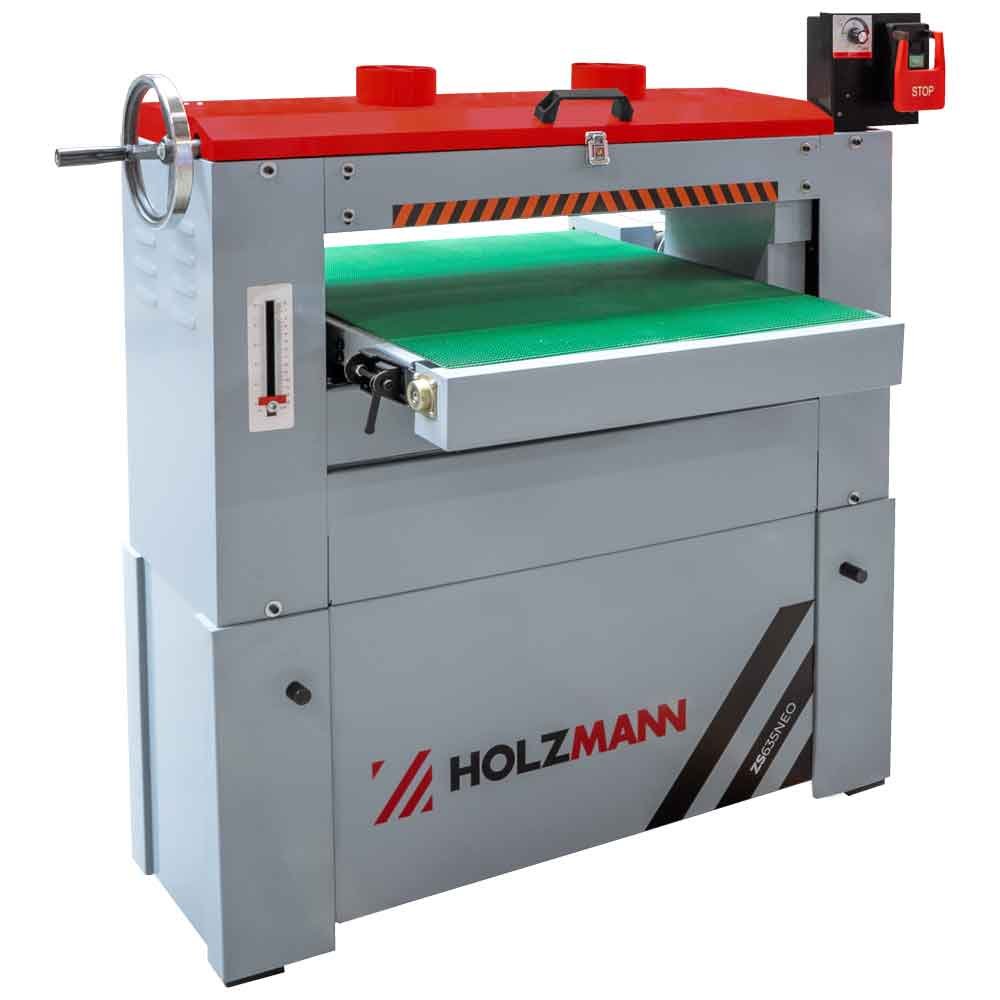

HOLZMANN ZS635NEO Mini Wide Belt Sander (630 mm, two drums)

ZS635NEO

Two sanding drums, not one, separate the HOLZMANN ZS635NEO from the single-drum ZS560FU: both 127 mm drums turn at a fixed 1550 min-1 across a 630 mm width, with K80 and K100 belts mounted on delivery. The ZS635NEO passes stock 7 to 125 mm thick at 0.9 to 6.1 m/min and is ordered 230 V or 400 V.

ფასი მოთხოვნით

What moves the ZS635NEO price is the voltage variant chosen (230 V or 400 V), the number and grit range of spare 2740 x 100 mm belts ordered with it, the extraction unit sized to serve both 100 mm ports, and delivery plus rigging of a 206 kg machine into the workshop.

ფასის მოთხოვნა

What the HOLZMANN ZS635NEO does

The HOLZMANN ZS635NEO is a mini wide belt sander that finishes glued-up panels and doors up to 630 mm wide in a single powered pass. Two sanding drums of 127 mm diameter run at 1550 rpm above a conveyor belt whose speed is set anywhere between 0.9 and 6.1 m/min, driven by a 2200 W main motor plus a 120 W feed motor. Two drums mean two grits in one pass: the ZS635NEO leaves the factory with a K80 and a K100 belt of 2740 x 100 mm already mounted.

Which workshops the ZS635NEO suits

The HOLZMANN ZS635NEO suits furniture workshops, joineries and door manufacturers working in both soft and hard species, where panels between 7 and 125 mm thick are prepared for lacquer or oil. The conveyor belt is specified for a long service life, which matters when the same machine sands every panel a small factory produces. The ZS635NEO stands 1145 x 715 x 1325 mm and weighs 206 kg net, so the machine needs a firm floor and a pallet truck rather than four people.

ZS635NEO next to the ZS560FU

The HOLZMANN ZS635NEO differs from the single-drum HOLZMANN ZS560FU in three ways that decide the purchase. The ZS635NEO sands 630 mm wide against 560 mm, accepts workpieces up to 125 mm thick against 80 mm, and carries two drums instead of one, so a coarse and a fine grit work the panel in the same pass. The ZS560FU answers back with a frequency-controlled drum from 0 to 1800 rpm and a smaller footprint for a one-room workshop.

Power supply, extraction and delivery

The HOLZMANN ZS635NEO is ordered as either ZS635NEO_230V for single-phase supply or ZS635NEO_400V for three-phase supply, and the two are otherwise the same machine. Extraction is taken from two 100 mm ports, and a dust extractor is not part of the delivery. Delivery covers the machine with two sanding belts mounted, grit K80 and K100.

ძირითადი მახასიათებლები

  • Two sanding drums of 127 mm diameter, both turning at a fixed 1550 min-1
  • Maximum sanding width 630 mm; workpiece thickness from 7 mm to 125 mm
  • Conveyor feed variable from 0.9 to 6.1 m/min
  • 2200 W main motor with a separate 120 W feed motor
  • Two dust extraction ports of 100 mm diameter
  • Belts of 2740 x 100 mm; two arrive mounted, in grit K80 and grit K100
  • 206 kg net on a 1145 x 715 x 1325 mm footprint
  • Ordered as ZS635NEO_230V single-phase or ZS635NEO_400V three-phase

ტექნიკური მახასიათებლები

Motor power S1
2200 + 120 W
Voltage (230 V variant)
230 V / 50 Hz
Dust collector ports
2 x 100 mm
Total dimensions
1145 x 715 x 1325 mm
Min. workpiece thickness
7 mm
Max. workpiece thickness
125 mm
Belt dimensions
2740 x 100 mm
Feeding
0.9 - 6.1 m/min
Max. sanding width
630 mm
Drum diameter
127 mm
Drum speed
1550 min-1
Sound power level
87 dB(A)
Sound pressure level
96 dB(A)
Net weight
206 kg
Gross weight
252 kg

უპირატესობები

  • Two sanding drums allow a coarse and a fine grit to work the panel in one pass
  • 630 mm sanding width and 125 mm thickness capacity cover door and panel work
  • Available in both 230 V single-phase and 400 V three-phase versions

გასათვალისწინებელი

  • 206 kg net weight requires a firm floor and mechanical handling to position
  • Two 100 mm extraction ports must be served by a separate extractor, which is not included
  • Sanding only: rough sawn timber still has to be planed to thickness on another machine first

ხშირად დასმული კითხვები

Should a workshop order the HOLZMANN ZS635NEO in 230 V or 400 V?
The HOLZMANN ZS635NEO exists as ZS635NEO_230V for single-phase 230 V / 50 Hz supply and as ZS635NEO_400V for three-phase supply. A Georgian workshop with only a household single-phase connection orders the 230 V ZS635NEO; a workshop that already runs three-phase machines and has a 400 V distribution board orders the 400 V ZS635NEO. The machine, the 630 mm sanding width and the two drums are identical in both variants.
What size of workpiece does the HOLZMANN ZS635NEO take?
The HOLZMANN ZS635NEO sands workpieces up to 630 mm wide and between 7 mm and 125 mm thick. Panels thinner than 7 mm or thicker than 125 mm cannot be passed through the ZS635NEO.
What does the HOLZMANN ZS635NEO not do?
The HOLZMANN ZS635NEO does not replace a planer thicknesser: the ZS635NEO is a sanding machine, so rough sawn stock must be planed to thickness before it reaches the sander. The ZS635NEO also does not sand curved or profiled edges, which needs a spindle sander such as the HOLZMANN OSS200, and does not handle pieces outside the 7 to 125 mm thickness range.
What is included with the HOLZMANN ZS635NEO?
The HOLZMANN ZS635NEO is delivered with two sanding belts already mounted, one in grit K80 and one in grit K100, in the 2740 x 100 mm belt size. A dust extractor is not included with the ZS635NEO and is ordered separately.
What extraction does the HOLZMANN ZS635NEO need?
The HOLZMANN ZS635NEO has two dust extraction ports of 100 mm diameter, so the machine should be connected to a workshop extractor able to serve both ports. Sanding dust volume from a 630 mm wide drum sander makes extraction a working requirement on the ZS635NEO, not an option.
How does the HOLZMANN ZS635NEO compare with the HOLZMANN ZS560FU?
The HOLZMANN ZS635NEO sands 630 mm wide, takes stock up to 125 mm thick and uses two drums, while the HOLZMANN ZS560FU sands 560 mm wide, takes stock up to 80 mm thick and uses one frequency-controlled drum. The ZS635NEO at 206 kg net is the production machine; the ZS560FU at 118 kg net fits a smaller shop.
What does a HOLZMANN ZS635NEO cost?
The HOLZMANN ZS635NEO is supplied by quotation rather than at a shelf price. The figure on a ZS635NEO quotation is driven by the voltage variant (ZS635NEO_230V or ZS635NEO_400V), the spare 2740 x 100 mm belt sets ordered with the machine, the extractor sized for its two 100 mm ports, and delivery and rigging of 206 kg net. Send us the variant and the extraction position and we will quote the whole package.
How long does delivery of a HOLZMANN ZS635NEO take?
The HOLZMANN ZS635NEO is built to order, and the current lead time for the ZS635NEO is confirmed on the quotation rather than quoted in advance. Both HOLZMANN listings for the ZS635NEO were showing as unavailable when this page was written, so ask us to confirm the position for your chosen voltage variant before you plan the installation date.
What is involved in installing a HOLZMANN ZS635NEO?
Installing the HOLZMANN ZS635NEO means siting a 1145 x 715 x 1325 mm machine on a level, load-bearing floor with clear run-in and run-out for 630 mm panels, levelling it so the conveyor feeds squarely, connecting the supply for the variant ordered, and ducting both 100 mm ports to an extractor. Commissioning of the ZS635NEO can be included in the quotation on request.
What should be budgeted separately alongside a HOLZMANN ZS635NEO?
Alongside the HOLZMANN ZS635NEO, budget for a dust extractor able to serve two 100 mm ports, for replacement 2740 x 100 mm sanding belts in the grits your work needs beyond the K80 and K100 pair mounted on delivery, and for the electrical work if you order the 400 V version. None of these are part of the ZS635NEO machine price.
