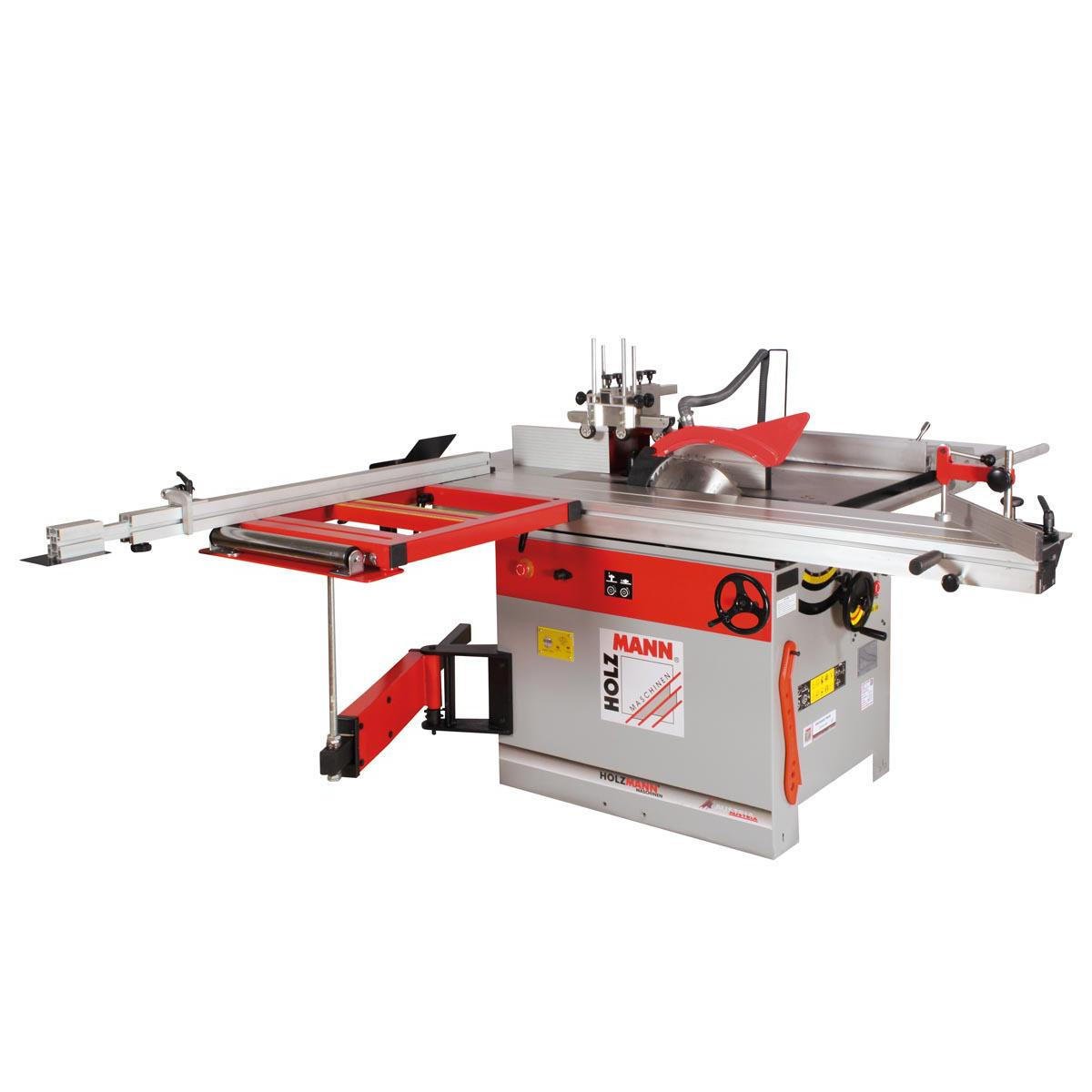

HOLZMANN KF315VF2000 Circular Saw and Spindle Moulder Combination

1 / 3

The HOLZMANN KF315VF2000 combines a Ø315 mm sliding table saw with a scoring unit and a Ø30 mm spindle moulder on one 860 x 890 mm cast iron table, cutting 100 mm deep at 90° and ripping up to 1330 mm. The KF315VF2000 has a 2000 x 270 mm sliding table, weighs 340 kg net and is supplied on quotation.

სამუშაო სიგანე: 1330 mm
ძრავის სიმძლავრე: 5.1 kW
მაგიდის სიგრძე: 2000 mm
ძაბვა: 230V

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

The price of a KF315VF2000 is moved by the voltage version, the saw blade and cutter block tooling package, whether extraction and a power feed unit are quoted with the machine, freight and unloading of a 425 kg gross machine into Georgia, and whether installation, alignment and operator training are included.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

Two machines, one cast iron frame

The KF315VF2000 is bought for floor space as much as for capability: a sliding table saw and a spindle moulder share one 860 x 890 mm cast iron table, with a turn to change duty. The KF315VF2000 saws with a Ø315 mm blade at 4500 rpm to 100 mm depth at 90° and 80 mm at 45°, and moulds with a Ø30 mm spindle offering four speeds from 1800 to 9000 rpm. For a joinery that cannot house both machines separately, the KF315VF2000 is the honest answer.

Sawing capacity and scoring

Panel work on the KF315VF2000 is supported by a 2000 x 270 mm sliding table and a 750 x 590 mm outrigger with a support roller, giving 2200 mm of trimming length. Rip capacity on the KF315VF2000 is an unusually generous 1330 mm at a solid, smooth-running rip fence with a quick-clamp. The saw blade tilts and adjusts for height, and a two-piece Ø100 mm scoring blade running at 8500 rpm is fitted as standard, so faced board leaves the KF315VF2000 without breakout on the underside.

The moulding side

The shaper half of the KF315VF2000 is not an afterthought. The KF315VF2000 provides 100 mm of spindle stroke, 100 mm clamping height, a 190 mm table opening, tool diameters to 180 mm below and 200 mm above the table, and a 360 x 120 mm extractable mitre fence with an end stop. A quality shaper hood with roller guides, protective plate and fine-adjustable aluminium fences comes as part of the KF315VF2000, with LED speed indication and a removable spindle adjustment handwheel.

Power, weight and the 2600 alternative

The KF315VF2000 weighs 340 kg net, extracts through two Ø100 mm ports and is offered in 230 V and 400 V versions, rated 3800 W (saw) and 2800 W (shaper) at S1. Choose the longer KF315VF2600 instead when panels beyond 2200 mm are routine; the KF315VF2000 gives the same cutting heights and 1330 mm rip in a shorter, lighter installation.

ძირითადი მახასიათებლები

Ø315 mm saw blade at 4500 rpm cutting 100 mm at 90° and 80 mm at 45°
Two-piece Ø100 mm scoring blade at 8500 rpm fitted as standard for chip-free faced board
2000 x 270 mm sliding table with 750 x 590 mm outrigger table and support roller; 2200 mm trimming length
1330 mm maximum cutting width at a quick-clamping rip fence
Ø30 mm spindle moulder with four speeds — 1800, 3000, 6000 and 9000 rpm — and LED speed indication
100 mm spindle stroke, 100 mm clamping height, tools to 180 mm below and 200 mm above the table
Cast iron table 860 x 890 mm at 850 mm height with table widening 860 x 440 mm and 500 x 450 mm
Separate motors rated 3800 W and 2800 W at S1 (5100 W / 4000 W at S6); two Ø100 mm extraction ports

ტექნიკური მახასიათებლები

Motor power (S1), saw / shaper: 3800 W / 2800 W
Motor power (S6), saw / shaper: 5100 W / 4000 W
Voltage: 230 V (400 V three-phase variant also available)
Table size: 860 x 890 mm
Table height: 850 mm
Table widening: 860 x 440 mm / 500 x 450 mm
Sliding table: 2000 x 270 mm
Outrigger table: 750 x 590 mm
Dust extraction ports: 2 x Ø100 mm
Max. cutting height at 90°: 100 mm
Max. cutting height at 45°: 80 mm
Max. trimming length: 2200 mm
Max. cutting width at parallel fence: 1330 mm
Saw blade: Ø315 mm
Saw blade speed: 4500 rpm
Scoring saw blade: Ø100 mm
Scoring unit speed: 8500 rpm
Milling spindle diameter: 30 mm
Milling spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Spindle stroke: 100 mm
Max. clamping height: 100 mm
Max. tool diameter below table: 180 mm
Max. tool diameter above table: 200 mm
Table opening: 190 mm
Mitre fence: 360 x 120 mm
Net weight: 340 kg
Gross weight: 425 kg
Packaging width: 825 mm
Packaging length: 990 mm
Packaging height: 1035 mm
EAN code (230 V variant): 9120039906607

უპირატესობები

A full sliding table saw with scoring unit and a full spindle moulder in one 340 kg frame saves both floor area and the cost of two machines
1330 mm rip capacity is exceptional for a machine of this size and covers full-width panel ripping
Separate motors for saw and shaper, plus a 230 V option, make the KF315VF2000 practical for workshops without three-phase

გასათვალისწინებელი

Changing between sawing and moulding costs setup time, so a shop alternating the two jobs all day will be slower than with separate machines
100 mm cutting height at 90° is modest against a dedicated Ø400 mm panel saw such as the FKS400V32SMART
With a 2000 mm carriage, panels longer than 2200 mm cannot be trimmed in one pass — that is what the KF315VF2600 is for

ხშირად დასმული კითხვები

How much does the HOLZMANN KF315VF2000 cost?

The HOLZMANN KF315VF2000 circular saw and spindle moulder combination is supplied on quotation rather than at a fixed price. The price of a KF315VF2000 is driven by the voltage version chosen (230 V or 400 V), the saw blade and cutter block tooling package specified, whether extraction and a power feed unit are quoted with the machine, freight and unloading of a 425 kg gross machine into Georgia, and whether installation, alignment and operator training are included. Describe the cutting and moulding work involved and a written KF315VF2000 quotation will be prepared.

Does the KF315VF2000 need three-phase power?

Not necessarily. The KF315VF2000 is offered as KF315VF2000_230V for a single-phase supply and KF315VF2000_400V for 400 V three-phase, with separate motors for the saw and shaper rated 3800 W and 2800 W at S1. A Georgian workshop without a three-phase connection can therefore still run a KF315VF2000, though three-phase is generally preferable for sustained heavy cutting. The two versions carry different EAN codes, so confirm which is required at enquiry.

How much time does it take to switch the KF315VF2000 between sawing and moulding?

Switching duty on the KF315VF2000 means changing the fence and guard setup and selecting the required unit, not rebuilding the machine, but it is not instantaneous. The realistic planning assumption for a KF315VF2000 is that work should be batched — all the sawing, then all the moulding — rather than alternating job by job. Workshops that cannot batch their work are usually better served by separate machines.

What is the lead time for a KF315VF2000?

The KF315VF2000 is a factory-built machine and Holzmann currently lists this model as unavailable on its own webshop, so a KF315VF2000 is ordered against the quotation rather than supplied from local stock. Confirm the current lead time for the KF315VF2000 when requesting a quote; a delivery window is stated in writing with the offer.

What does installing a KF315VF2000 involve?

Installing a KF315VF2000 means unloading a 425 kg gross machine with a forklift or pallet truck, siting it on a level floor with clear run-out for the 2000 mm carriage and the 750 x 590 mm outrigger, levelling the frame so the carriage runs parallel to the saw blade, connecting a 230 V or 400 V supply through an isolator, and connecting both Ø100 mm ports to extraction. Aligning the scoring blade to the main blade is part of commissioning the KF315VF2000.

What tooling and consumables should be budgeted with the KF315VF2000?

Budget separately for a Ø315 mm main saw blade in the required tooth geometry, replacement two-piece Ø100 mm scoring blades, and Ø30 mm bore cutter blocks and profile cutters for the moulding side of the KF315VF2000. Spacer and levelling rings, blade and cutter resharpening, extraction ducting for two Ø100 mm ports, and a power feed unit for the shaper are all separate lines from the machine price.
