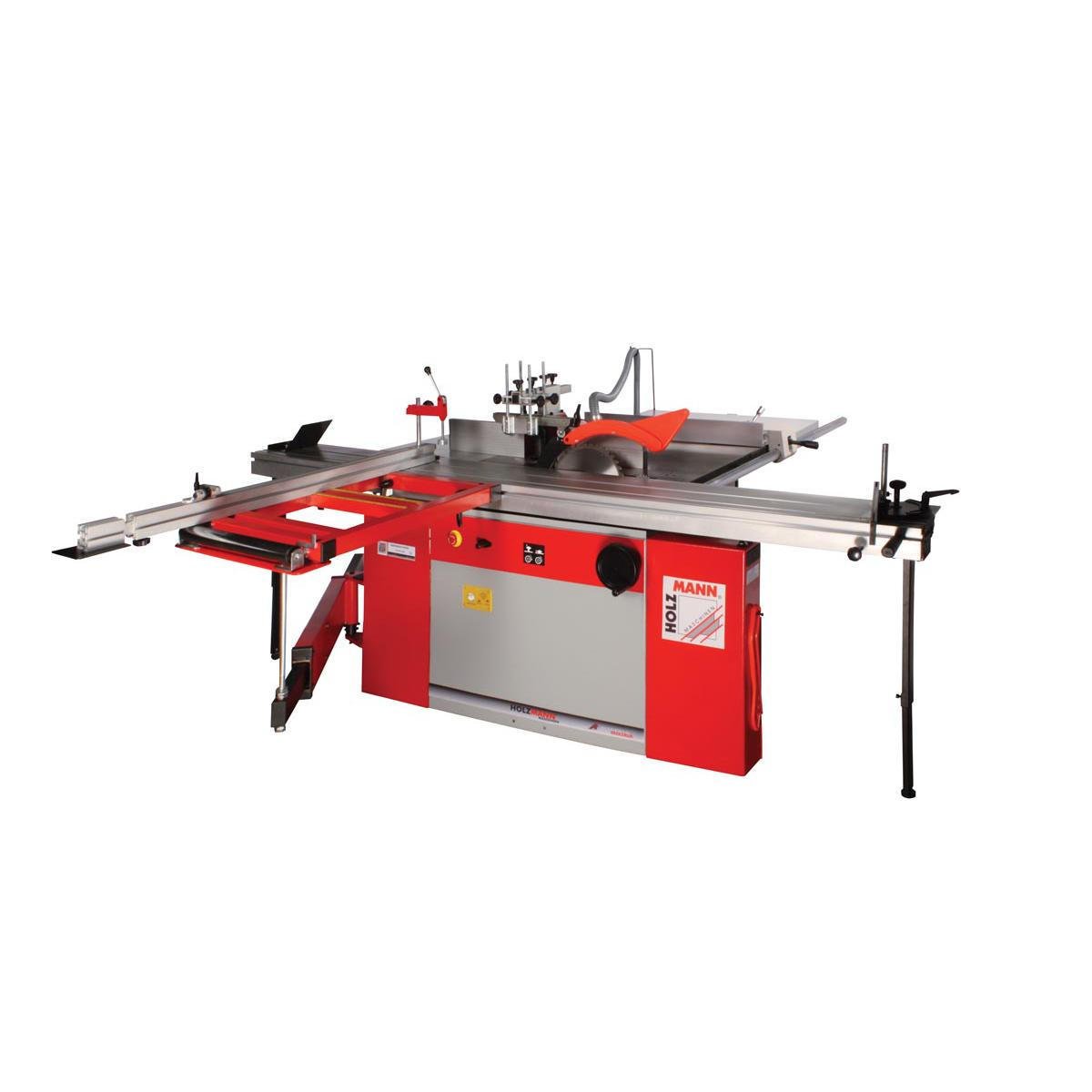

HOLZMANN KF315VF2600 Circular Saw and Spindle Moulder Combination
KF315VF2600
The HOLZMANN KF315VF2600 combines a Ø315 mm sliding table saw with scoring unit and a Ø30 mm spindle moulder on one 860 x 890 mm cast iron table, with a 2600 x 270 mm carriage trimming up to 2700 mm. The KF315VF2600 rips 1330 mm at the parallel fence, weighs 337 kg net and is supplied on quotation.
The price of a KF315VF2600 is moved by the voltage version, the saw blade and cutter block tooling package specified, whether extraction and a power feed unit are quoted with the machine, freight and unloading of a 465 kg gross machine into Georgia, and whether installation, carriage alignment and operator training are included.
ფასის მოთხოვნაThe long-carriage combination machine
The KF315VF2600 exists for one reason: a 2600 x 270 mm sliding table that trims up to 2700 mm in a single pass. That length lets the KF315VF2600 cross-cut a full-length board or a 2.5 m door blank on the carriage, work that forces a shorter combination machine into two setups. Alongside that, the KF315VF2600 carries a full Ø30 mm spindle moulder in the same 860 x 890 mm cast iron table, changing duty without moving the workpiece to another machine.
Sawing, scoring and fences
The saw unit of the KF315VF2600 takes a Ø315 mm blade at 4500 rpm, cutting 100 mm deep at 90° and 80 mm at 45°, with tilt and height adjustment. A two-piece Ø100 mm scoring blade at 8500 rpm is standard on the KF315VF2600, which is what makes melamine and veneered board viable. Rip capacity on the KF315VF2600 reaches 1330 mm at a quick-clamping rip fence, and a 750 x 590 mm outrigger table with support roller carries the far corner of the panel.
Spindle moulder specification
Moulding on the KF315VF2600 runs at 1800, 3000, 6000 or 9000 rpm with LED speed indication, through 100 mm of spindle stroke and 100 mm of clamping height. The KF315VF2600 takes tools to 180 mm below the table and 200 mm above it through a 190 mm opening, and is equipped with a shaper hood with roller guides, a protective plate and fine-adjustable aluminium fences, plus a 360 x 120 mm extractable mitre fence with workpiece end stop.
Installation and the shorter KF315VF2000
The KF315VF2600 weighs 337 kg net, works at 850 mm table height, extracts through two Ø100 mm ports and is available in 230 V and 400 V versions rated 3000 W and 2800 W at S1. The extra 600 mm of carriage means the KF315VF2600 needs noticeably more clear run-out than the KF315VF2000; where panels rarely exceed 2200 mm, the shorter machine is the better use of floor.
ძირითადი მახასიათებლები
- 2600 x 270 mm aluminium sliding table giving 2700 mm maximum trimming length
- Ø315 mm saw blade at 4500 rpm cutting 100 mm at 90° and 80 mm at 45°
- Two-piece Ø100 mm scoring blade at 8500 rpm supplied as standard
- 1330 mm maximum cutting width at a quick-clamping rip fence
- 750 x 590 mm outrigger table with support roller for panel support
- Ø30 mm spindle moulder at 1800, 3000, 6000 or 9000 rpm with LED speed indication
- 100 mm spindle stroke and clamping height; tools to 180 mm below and 200 mm above the table
- Cast iron table 860 x 890 mm at 850 mm height; separate motors rated 3000 W and 2800 W at S1; two Ø100 mm ports
ტექნიკური მახასიათებლები
- Motor power (S1), saw / shaper
- 3000 W / 2800 W
- Voltage
- 230 V (400 V three-phase variant also available)
- Table size
- 860 x 890 mm
- Table height
- 850 mm
- Table widening
- 800 x 440 mm / 500 x 450 mm
- Sliding table
- 2600 x 270 mm
- Outrigger table
- 750 x 590 mm
- Dust extraction ports
- 2 x Ø100 mm
- Max. cutting height at 90°
- 100 mm
- Max. cutting height at 45°
- 80 mm
- Max. trimming length
- 2700 mm
- Max. cutting width at parallel fence
- 1330 mm
- Saw blade
- Ø315 mm
- Saw blade speed
- 4500 rpm
- Scoring saw blade
- Ø100 mm
- Scoring unit speed
- 8500 rpm
- Milling spindle diameter
- 30 mm
- Milling spindle speed
- 1800 / 3000 / 6000 / 9000 rpm
- Spindle stroke
- 100 mm
- Max. clamping height
- 100 mm
- Max. tool diameter below table
- 180 mm
- Max. tool diameter above table
- 200 mm
- Table opening
- 190 mm
- Mitre fence
- 360 x 120 mm
- Net weight
- 337 kg
- Gross weight
- 465 kg
- Packaging width
- 825 mm
- Packaging length
- 1220 mm
- Packaging height
- 1035 mm
- EAN code (230 V variant)
- 9120039906577
უპირატესობები
- 2700 mm trimming length handles full-length boards and tall door blanks on the carriage in one pass
- A standard two-piece scoring blade at 8500 rpm plus 1330 mm rip capacity makes the KF315VF2600 a genuine panel machine, not a saw with a moulder attached
- Saw and moulder share one cast iron table and one footprint, with a 230 V version available for workshops without three-phase
გასათვალისწინებელი
- The 2600 mm carriage needs considerably more clear run-out than the shorter KF315VF2000 — allow for travel at both ends before committing floor space
- Duty changeover between sawing and moulding costs setup time, so work has to be batched to keep the machine efficient
- 100 mm cutting height at 90° is the ceiling; deeper cutting needs a Ø400 mm class panel saw such as the FKS400V32SMART
