Mizrak FR-532 Door Component Moulder

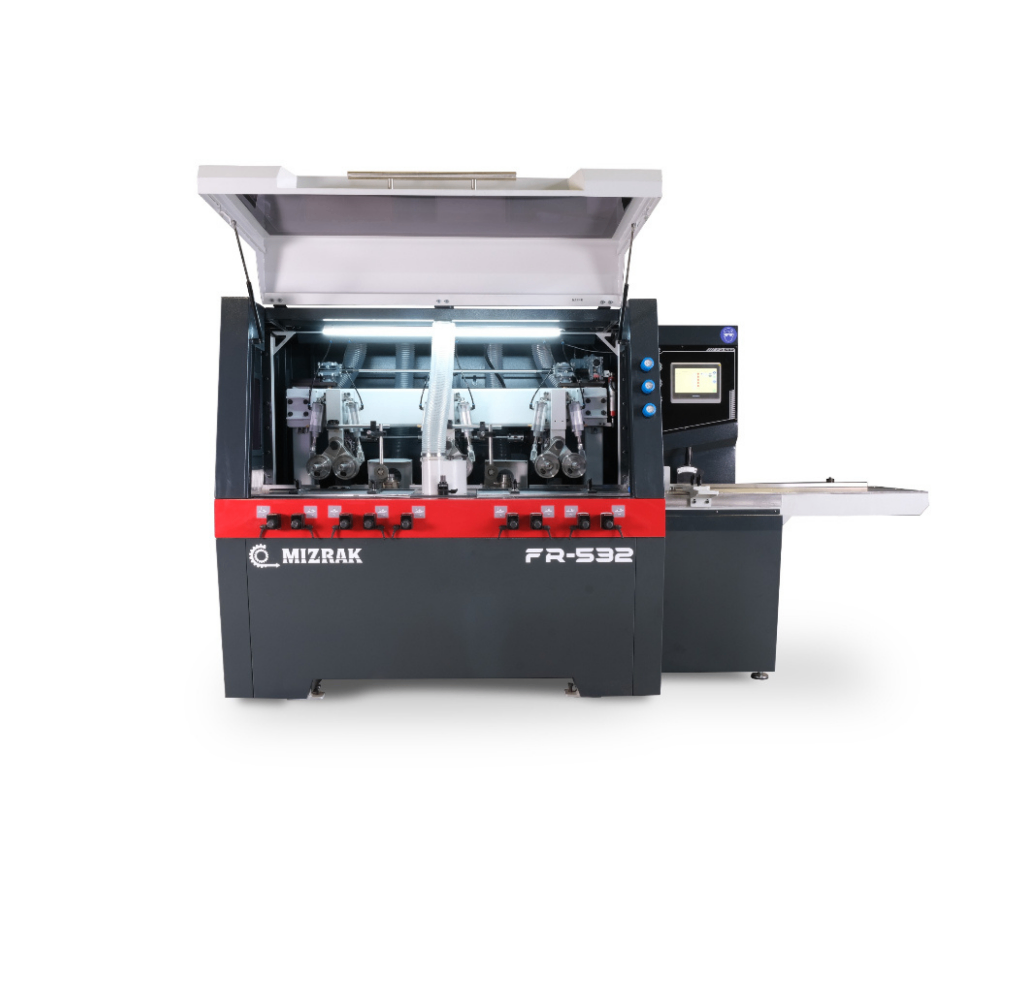

FR-532 — Mizrak FR-532 Door Component Moulder 1 / 4

Five high-frequency heads rated 7.5 kW at 9000 rpm let the Mizrak FR-532 profile door frames, jambs and architraves 80 to 320 mm wide and 10 to 50 mm thick in one through-feed pass. Total installed power on the FR-532 is 41 kW, under PLC touchscreen control with an automatic moving top pressure system.

სამუშაო სიგანე
320 mm
ჰაერის წნევა
6–8 BAR
შპინდელი
7.5 kW
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price of the FR-532 is driven by the profile tooling package ground for the sections actually run, the number of high-frequency heads finally fitted, extraction ducting sized for 41 kW of cutting, and delivery, rigging and commissioning in Georgia.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the Mizrak FR-532 does

The Mizrak FR-532 profiles door frames, jambs and architraves in a single through-feed pass instead of building the profile up on a spindle moulder over several setups. Working width on the FR-532 runs from 80 to 320 mm and working height from 10 to 50 mm, which covers the frame and casing sections used in interior door production. An automatic moving top pressure system holds the workpiece against the bed as it feeds, so section thickness stays consistent along the length rather than drifting where the operator’s hand pressure changes.

Cutter heads and power

The Mizrak FR-532 carries five high-frequency motors rated 7.5 kW at 9000 rpm, with the supplier’s technical schedule naming a rough planing motor and two vertical spindle motors of type HM110.12_ER40S at that same rating. Cutting tools mount on a 40 mm connection diameter. Maximum horizontal cutter size on the FR-532 is 150 mm diameter by 60 mm length and maximum vertical cutter size is 200 mm diameter by 60 mm length, which sets the profile depth a workshop can achieve in one pass. Total installed power is 41 kW on a 380-400 V AC 50-60 Hz supply.

Who the FR-532 suits

The Mizrak FR-532 suits door manufacturers producing their own frames and casings in volume rather than buying them in. The machine repays itself where the same profile runs for hundreds of metres, because the simplified quick adjustment feature and PLC touchscreen let a known setup be recalled rather than dialled in from scratch. A joinery that moulds a few metres of architrave a week will not justify 41 kW of installed power.

Footprint and services

The Mizrak FR-532 measures 3320 mm long, 1590 mm wide and 1790 mm high, and needs compressed air at 6-8 bar for the top pressure system alongside the three-phase supply. Infeed and outfeed tables or roller stands must be allowed for beyond the machine body, since through-feed work needs support at both ends for the full length of the section.

ძირითადი მახასიათებლები

  • Working width from 80 to 320 mm and working height from 10 to 50 mm
  • Five high-frequency motors rated 7.5 kW at 9000 rpm
  • HM110.12_ER40S rough planing motor and two HM110.12_ER40S vertical spindle motors
  • 40 mm connection diameter for cutting tools
  • Maximum horizontal cutter 150 mm diameter x 60 mm length; maximum vertical cutter 200 mm diameter x 60 mm length
  • Automatic moving top pressure system with simplified quick adjustment
  • 41 kW total electrical power and 6-8 bar air requirement
  • PLC control with touchscreen panel; 3320 x 1590 x 1790 mm footprint

ტექნიკური მახასიათებლები

Nominal Current
380–400V AC, 50–60Hz
Total Electric Power
41 kW
Air Pressure
6–8 BAR
Working Width (min/max)
80 / 320 mm
Working Height (min/max)
10 / 50 mm
High-Frequency Motors
5 x 7.5 kW, 9000 rpm
Rough Planing Motor
HM110.12_ER40S, 7.5 kW, 9000 rpm
Vertical Spindle – Motor 1
HM110.12_ER40S, 7.5 kW, 9000 rpm
Vertical Spindle – Motor 2
HM110.12_ER40S, 7.5 kW, 9000 rpm
Cutting Tool Connection Diameter
40 mm
Maximum Horizontal Cutter Diameter – Length
150 – 60 mm
Maximum Vertical Cutter Diameter – Length
200 – 60 mm
Top Pressure System
Automatic moving top pressure system
Control System
PLC with touchscreen control panel
Machine Width
1590 mm
Machine Length
3320 mm
Machine Height
1790 mm

უპირატესობები

  • Full frame or casing profile produced in one through-feed pass instead of several spindle setups
  • Five 7.5 kW / 9000 rpm high-frequency heads give a clean finish straight off the machine
  • Automatic moving top pressure plus quick adjustment keeps repeat setups consistent

გასათვალისწინებელი

  • 41 kW installed power is a heavy load that many small workshops cannot supply
  • Profile tooling is not included and must be ground for each profile the shop runs
  • Requires compressed air at 6-8 bar and substantial separate dust extraction

ხშირად დასმული კითხვები

What size stock can the Mizrak FR-532 machine?
The Mizrak FR-532 works stock from 80 to 320 mm wide and from 10 to 50 mm high. Sections outside that 80-320 mm width or 10-50 mm thickness range cannot be run through the FR-532.
What power supply does the Mizrak FR-532 need?
The Mizrak FR-532 runs on a three-phase 380-400 V AC, 50-60 Hz supply with a total electrical power of 41 kW, and also requires compressed air at 6-8 bar. A workshop board and cabling rated for 41 kW must be in place before the FR-532 is installed.
What tooling does the Mizrak FR-532 take?
Cutting tools for the Mizrak FR-532 mount on a 40 mm connection diameter, with a maximum horizontal cutter of 150 mm diameter by 60 mm length and a maximum vertical cutter of 200 mm diameter by 60 mm length. Profile tooling for the FR-532 is a separate purchase and must be ground to the profiles the workshop actually produces.
How much floor space does the Mizrak FR-532 occupy?
The Mizrak FR-532 measures 3320 mm long, 1590 mm wide and 1790 mm high. Because the FR-532 is a through-feed machine, allow additional infeed and outfeed support beyond those dimensions for the full length of the sections being moulded.
Does the Mizrak FR-532 cut door leaves to size?
No, the Mizrak FR-532 is a moulding machine for door frames, jambs and casings and does not size door leaves. Door panels are sized on a separate machine such as the MZK NC Ripper series, not on the FR-532.
Does the Mizrak FR-532 include dust extraction?
Dust extraction is not part of the Mizrak FR-532 and must be provided separately. Five high-frequency heads running at 9000 rpm generate a large chip volume, so extraction ducting for the FR-532 should be sized accordingly before installation.
How much does the Mizrak FR-532 cost?
The Mizrak FR-532 is supplied on quotation rather than at a list price. The quoted figure for the FR-532 is driven by the profile tooling package ground for the sections being produced, the number of high-frequency heads finally fitted, extraction ducting sized for 41 kW of cutting, and delivery, rigging and commissioning in Georgia. Send drawings of the frame and architrave profiles to be run, within the 80-320 mm width and 10-50 mm thickness range, and a written quotation follows.
What is the lead time for the Mizrak FR-532?
The Mizrak FR-532 is built to order, so the lead time is confirmed at quotation rather than published in advance. Profile tooling for the FR-532 is usually ground to order alongside the machine, so allow for tooling manufacture as well as the machine build when planning the first production run.
What has to be in place before the Mizrak FR-532 is commissioned?
Before the Mizrak FR-532 is commissioned the workshop needs floor space for a 3320 x 1590 x 1790 mm machine plus infeed and outfeed support for the full section length, a three-phase 380-400 V AC 50-60 Hz board and cabling rated for 41 kW, compressed air at 6-8 bar for the top pressure system, and extraction ducting for the cutting heads. Delivery, rigging, commissioning and operator training on the FR-532 are quoted separately from the machine.
What tooling and consumables should be budgeted alongside the Mizrak FR-532?
Profile tooling is the main separate cost with the Mizrak FR-532: cutters mount on a 40 mm connection diameter, with a maximum horizontal cutter of 150 mm diameter by 60 mm length and a maximum vertical cutter of 200 mm diameter by 60 mm length, and each profile the workshop runs needs its own ground tooling. Budget also for regrinding, for spare high-frequency spindle parts, and for extraction, none of which is included with the FR-532.
