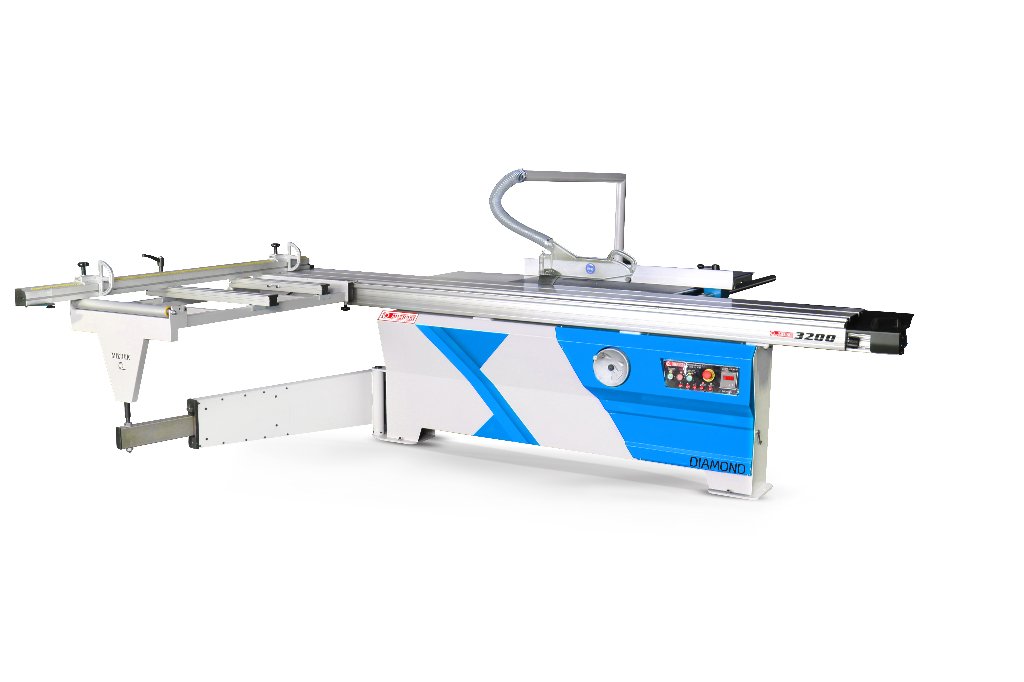

MZK 3200 DIAMOND — MIZRAK MZK 3200 Diamond Sliding Table Panel Saw 1 / 4

MIZRAK

MIZRAK MZK 3200 Diamond Sliding Table Panel Saw

MZK 3200 DIAMOND

Sized for standard full-sheet breakdown rather than oversize door leaves, the MZK 3200 Diamond carries a 3200 mm sliding table and 3200 mm of carriage travel on a 435 mm aluminium beam. A 4 kW saw motor and 0.75 kW scoring motor cut 80 mm deep at 90 degrees, at 720 kg net weight.

ფასი მოთხოვნით

The price of an MZK 3200 Diamond is driven by the carriage length chosen against the 2800 mm and 3800 mm Diamonds, the main and scoring blade set specified, freight and offloading of a 720 kg machine, and whether three-phase connection and extraction ducting are quoted with the machine.

ფასის მოთხოვნა

The MZK 3200 Diamond is the standard-sheet workhorse of the Diamond range

The MZK 3200 Diamond covers the cut that most Georgian furniture workshops make hundreds of times a week: a full sheet of melamine or MDF broken down into carcass parts. A 3200 mm sliding table with 3200 mm of travel takes a standard panel lengthwise in one pass, the 4 kW main motor turns Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm to 80 mm of depth at 90 degrees, and a 0.75 kW scoring motor runs a Ø125 x 20 mm scorer at 7250 rpm so faced board does not chip on the underside.

The 9-spindle carriage and machined frame

The 435 mm wide aluminium carriage of the MZK 3200 Diamond rides on a 9-spindle enhanced movement system built into a machined frame, and the machine weighs 720 kg. That mass is what stops carriage deflection when a heavy sheet is loaded off-centre, and it is the reason a saw of this class stays square for years where a lightweight machine drifts within months.

Who should buy the MZK 3200 Diamond

The MZK 3200 Diamond is the sensible first serious panel saw for a furniture workshop or joinery moving up from a circular saw and a straight-edge guide. It gives the full sheet capacity, the scoring unit and the fence system that make panel work accurate, without the electronics that push the price of the S and SX models up. The MZK 3200 Diamond is also a practical second saw in a larger shop, kept set for one repeated operation.

MZK 3200 Diamond against the rest of the family

Above the MZK 3200 Diamond, the MZK 3200 Diamond S changes to an overhead-spindle carriage with motorised 45-90 degree tilt and motorised blade rise at 820 kg, and the MZK 3200 Diamond SX adds PLC control and a servo rear stop. The MZK 3200 Concord moves to a 5.5 kW motor with 400 mm blade compatibility, pneumatic panel hold-down and a digital cast fence. Below it, the MZK 2800 Diamond is the same machine on a shorter 2800 mm carriage at 675 kg. Cutting depth is 80 mm at 90 degrees across all of them.

What is supplied

The MZK 3200 Diamond includes a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension, a 1200 mm rip fence, a 1950 mm crosscut fence with a 0-3000 mm stop range, and the scoring unit. Blades, extraction and wiring are separate.

ძირითადი მახასიათებლები

  • 3200 mm sliding table and 3200 mm of travel - full-sheet capacity without the floor length the MZK 3800 Diamond needs
  • 435 mm wide aluminium carriage on a 9-spindle enhanced movement system
  • 4 kW main saw motor running Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
  • 0.75 kW scoring motor with Ø125 x 20 mm blade at 7250 rpm
  • 80 mm cutting depth at 90 degrees and 65 mm at 45 degrees
  • 1950 mm crosscut fence with ±45 degree setting and 0-3000 mm stop range
  • Machined frame, 720 kg net weight and 1400 mm machine height
  • 550 x 910 mm main table with 380 x 540 mm side and 785 x 970 mm rear extensions

ტექნიკური მახასიათებლები

Saw blade diameter (min-max, outer x inner)
Ø250 x 30 mm – Ø300 x 30 mm
Max. cutting depth (90°)
80 mm
Max. cutting depth (45°)
65 mm
Saw blade speed
4750 – 5250 rpm
Saw motor power
4 kW
Scoring blade diameter (outer x inner)
Ø125 x 20 mm
Scoring saw speed
7250 rpm
Scoring saw motor power
0.75 kW
Sound level
80 dB
Main table size
550 x 910 mm
Side extension table size
380 x 540 mm
Rear extension table size
785 x 970 mm
Rip fence length (main table)
1200 mm
Sliding table length
3200 mm
Sliding table travel
3200 mm
Sliding table fence angle (right–left)
0–45° right and left
Aluminium carriage width
435 mm
Crosscut fence length
1950 mm
Crosscut fence angle (right–left)
±45°
Crosscut fence stop range
0 – 3000 mm
Carriage system
9-spindle enhanced smooth movement system, linear system
Frame
Machined frame
Dust extraction port height from floor
845 mm
Machine height
1400 mm
Net weight
720 kg

უპირატესობები

  • Full 3200 mm sheet capacity and a standard scoring unit at the entry price of the Diamond range
  • 720 kg machined frame and 9-spindle carriage give real rigidity rather than a light fabricated body
  • Purely mechanical machine with no PLC or servo hardware to service or replace

გასათვალისწინებელი

  • The supplier's feature list does not confirm motorised or manual angle and height adjustment for this model, so it must be checked at order
  • No programmed fence positioning - every rip width is set and checked by the operator
  • Extractor, blades and electrical installation are all outside the machine price

ხშირად დასმული კითხვები

What electrical supply does the MZK 3200 Diamond need?
The MZK 3200 Diamond carries a 4 kW main saw motor and a 0.75 kW scoring motor, giving a combined installed motor load of 4.75 kW. Mizrak does not publish a supply voltage or current rating for the MZK 3200 Diamond, so the supply, cable size and protection must be confirmed with the dealer before installation.
What panel sizes does the MZK 3200 Diamond handle?
The MZK 3200 Diamond has a 3200 mm sliding table with 3200 mm of travel, so a standard 2800 mm or 3050 mm sheet is cut lengthwise in a single pass. For panels longer than 3200 mm, the MZK 3800 Diamond with its 3700 mm table and 3800 mm travel is the correct machine.
Does the MZK 3200 Diamond have motorised blade angle adjustment?
No. The supplier's general-information list for the MZK 3200 Diamond specifies the 9-spindle movement system, machined body, 4 kW motor and linear system, but does not include the motorised automatic 45-90 degree tilt or motorised vertical movement listed for the MZK 3200 Diamond S and SX. Confirm the exact adjustment method of the MZK 3200 Diamond at the point of order.
What blades and tooling does the MZK 3200 Diamond need?
The MZK 3200 Diamond needs a main blade between Ø250 x 30 mm and Ø300 x 30 mm with a 30 mm bore and a Ø125 x 20 mm scoring blade. Neither is included with the MZK 3200 Diamond; a high tooth count blade suits melamine and MDF, while solid timber ripping calls for a coarser grind.
How much space and extraction does the MZK 3200 Diamond need?
The MZK 3200 Diamond is 1400 mm high, weighs 720 kg and has a dust extraction port 845 mm above the floor, with the extractor supplied separately. Allow a clear run along the machine of roughly twice the 3200 mm carriage travel so the sliding table can move fully in both directions, plus outfeed space behind the blade.
What does the MZK 3200 Diamond not do?
The MZK 3200 Diamond is a single-panel, operator-fed saw: the MZK 3200 Diamond does not cut stacked panels to a programmed cutting plan like a beam saw, has no automatic panel loading, and cannot bore, rout or apply edging. Cuts deeper than 80 mm at 90 degrees are also beyond its capacity.
How much does the MZK 3200 Diamond cost?
The MZK 3200 Diamond is priced on quotation, not from a published list price. What moves the figure is the choice of the 3200 mm carriage over the 2800 mm and 3800 mm Diamonds, the saw and scoring blade package, delivery and offloading of the 720 kg machine, and whether electrical connection and extraction ducting are included. Supply the panel sizes and a quotation for the MZK 3200 Diamond follows.
Is the MZK 3200 Diamond available from stock, or built to order?
The MZK 3200 Diamond is built to order by Mizrak, so availability is confirmed at quotation rather than promised as an off-the-shelf delivery. Request the current MZK 3200 Diamond lead time and shipping route to Georgia alongside the price so installation can be scheduled.
Who installs and commissions the MZK 3200 Diamond?
Installation and commissioning of the MZK 3200 Diamond are quoted separately from the machine. The work covers levelling the 720 kg saw with clear run for 3200 mm of carriage travel, three-phase connection by a qualified electrician, and connecting extraction to the port 845 mm above floor level. Confirm the MZK 3200 Diamond installation scope on the quotation.
What consumables should be budgeted with an MZK 3200 Diamond?
Budget separately for the items the MZK 3200 Diamond needs but that Mizrak does not list as included: Ø250 x 30 mm to Ø300 x 30 mm main blades, Ø125 x 20 mm scoring blades and their resharpening, a dust extraction unit and ducting, and the three-phase electrical installation. These appear as itemised lines on the MZK 3200 Diamond quotation.
