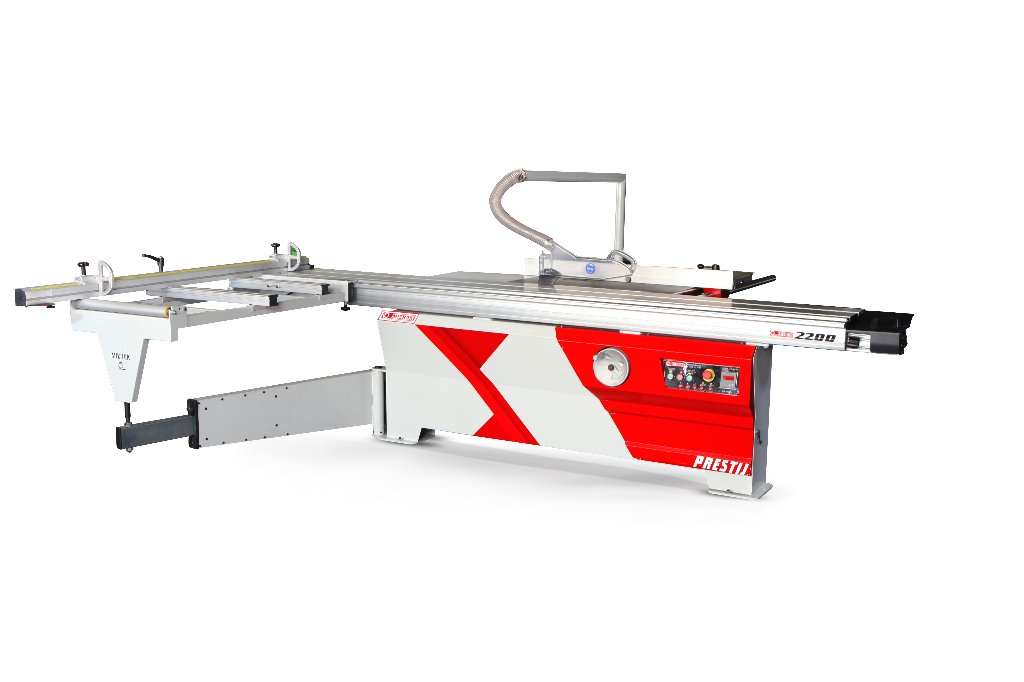

Mizrak MZK 2200 PRESTIJ Sliding Table Panel Saw

At 625 kg the MZK 2200 PRESTIJ is the lightest saw in the PRESTIJ line, built on a 2200 mm sliding table for shops working mainly from half sheets and pre-cut board. Cutting capacity is not reduced: 4 kW saw motor, 0.75 kW scoring motor, 80 mm depth at 90 degrees and 65 mm at 45 degrees.

ძრავის სიმძლავრე: 4 kW
მაგიდის სიგრძე: 2200 mm
წონა: 625 kg

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the MZK 2200 PRESTIJ is moved by the short 2200 mm table specified in place of the 2800 mm or longer models, the blade and scoring tooling package, whether extraction is supplied, and delivery and installation, which are simplest in the range at 625 kg.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK 2200 PRESTIJ does

The MZK 2200 PRESTIJ brings full format-saw cutting quality into a 2200 mm stroke. Nothing in the cutting head is downgraded: the 4 kW main motor drives Ø250 x 30 mm to Ø300 x 30 mm blades at 4750 to 5250 rpm for 80 mm of cut at 90 degrees and 65 mm at 45 degrees, and a 0.75 kW scoring motor turns a Ø125 x 20 mm blade at 7250 rpm so coated board finishes clean on both faces. The 1950 mm sliding fence carries stops across a 0 to 3000 mm range with ±45 degree angle setting, exactly as on the longer PRESTIJ machines.

Who the MZK 2200 PRESTIJ suits

The MZK 2200 PRESTIJ is for the workshop where floor length, not cutting capability, is the constraint. Small joineries, door and window shops, and furniture makers working mainly with pre-cut or half-sheet material get the same cut finish as a larger machine in a shorter installation. At 625 kg the MZK 2200 PRESTIJ is the lightest saw in the PRESTIJ line, which also makes it the easiest to move into a tight building.

How the MZK 2200 PRESTIJ compares in the range

The MZK 2200 PRESTIJ differs from the MZK 2800 PRESTIJ by 600 mm of travel and 21 kg of weight, and from the MZK 3200 PRESTIJ by 1000 mm of travel; motors, tables, fences and cutting depths are unchanged across all three. The supplier’s General Information for the MZK 2200 PRESTIJ lists manual 45 to 90 degree angle adjustment and does not list the separate manual vertical movement noted on the 2800 and 3200 models, so confirm that detail before ordering. Powered tilt is not offered on the MZK 2200 PRESTIJ at all.

What is included

The MZK 2200 PRESTIJ ships with a 550 x 910 mm main table, a 380 x 540 mm side extension table, a 785 x 970 mm rear extension table and a 1200 mm rip fence on the main table. Machine height is 1400 mm, noise is quoted at 80 dB and the dust extraction port sits 845 mm above the floor.

ძირითადი მახასიათებლები

2200 mm sliding table with 2200 mm of carriage travel for space-limited workshops
380 mm aluminium carriage on an 8-shaft smooth movement system
4 kW saw motor running Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
0.75 kW scoring motor with a Ø125 x 20 mm blade at 7250 rpm
80 mm cutting depth at 90 degrees and 65 mm at 45 degrees - identical to the larger PRESTIJ saws
1950 mm sliding fence with 0-3000 mm stop range and ±45 degree setting
625 kg net weight, the lightest machine in the MZK PRESTIJ panel saw line

ტექნიკური მახასიათებლები

Saw Blade Diameter (Min - Max, Outer/Inner): Ø250 x 30 mm - Ø300 x 30 mm
Max. Cutting Depth (at 90°): 80 mm
Max. Cutting Depth (at 45°): 65 mm
Saw Blade Speed: 4750 - 5250 RPM
Saw Motor Power: 4 kW
Scoring Blade Diameter (Outer/Inner): Ø125 x 20 mm
Scoring Blade Speed: 7250 RPM
Scoring Motor Power: 0.75 kW
Noise Level: 80 dB
Main Table Dimensions: 550 x 910 mm
Side Extension Table Dimensions: 380 x 540 mm
Rear Extension Table Dimensions: 785 x 970 mm
Rip Fence Length (Main Table): 1200 mm
Sliding Table Length: 2200 mm
Sliding Table Travel Distance: 2200 mm
Sliding Table Fence Angle (Right-Left): 0-45° both directions
Aluminum Carriage Width: 380 mm
Sliding Table Fence Length: 1950 mm
Sliding Table Fence Angle (Right-Left): ±45°
Sliding Fence Stop Range: 0 - 3000 mm
Dust Extraction Port Height from Floor: 845 mm
Machine Height: 1400 mm
Net Weight: 625 kg

უპირატესობები

Full-size cutting head - 4 kW motor, 0.75 kW scorer, 80 mm depth - in the smallest PRESTIJ footprint
625 kg net weight makes delivery, positioning and levelling straightforward in tight premises
1950 mm fence and 0-3000 mm stop range are unchanged from the larger machines, so crosscut setting is just as precise

გასათვალისწინებელი

2200 mm of travel is too short for cutting full-length sheets in one pass
Blade tilt is manual and the supplier's bullet list omits any mention of vertical adjustment - confirm before ordering
Dust extractor, tooling and supply details are not part of the specification

ხშირად დასმული კითხვები

What supply does the MZK 2200 PRESTIJ need?

The MZK 2200 PRESTIJ runs a 4 kW saw motor and a 0.75 kW scoring motor, but the supplier's technical table for the MZK 2200 PRESTIJ publishes no supply voltage or total connected load. Confirm the electrical requirement with us before wiring.

Is the MZK 2200 PRESTIJ big enough for full sheets?

The MZK 2200 PRESTIJ has 2200 mm of carriage travel, which is shorter than a full board length. Buyers cutting whole sheets in one pass should look at the MZK 2800 PRESTIJ or MZK 3200 PRESTIJ instead of the MZK 2200 PRESTIJ.

Does the shorter stroke reduce cutting quality on the MZK 2200 PRESTIJ?

No. The MZK 2200 PRESTIJ uses the same 4 kW saw motor, the same 0.75 kW scoring unit, the same 550 x 910 mm main table and the same 80 mm depth of cut as the longer PRESTIJ machines. Only the sliding table length and the 625 kg net weight are smaller on the MZK 2200 PRESTIJ.

What blades does the MZK 2200 PRESTIJ take?

The MZK 2200 PRESTIJ takes main blades from Ø250 x 30 mm to Ø300 x 30 mm and a Ø125 x 20 mm scoring blade. The supplier does not specify an included blade set for the MZK 2200 PRESTIJ, so confirm tooling with the order.

How much space does the MZK 2200 PRESTIJ need?

The MZK 2200 PRESTIJ needs clear floor for the 2200 mm carriage run at each end of the machine plus loading room on the carriage side, and stands 1400 mm high. The supplier does not publish an overall footprint for the MZK 2200 PRESTIJ.

What does the MZK 2200 PRESTIJ not do?

The MZK 2200 PRESTIJ has no motorised blade tilt, no automatic feed and no programmable cutting. The MZK 2200 PRESTIJ is a hand-operated sliding table saw and needs a separate dust extractor.

How much does the MZK 2200 PRESTIJ cost?

The MZK 2200 PRESTIJ is quoted rather than listed at a fixed price. The price of an MZK 2200 PRESTIJ depends on the short 2200 mm table chosen instead of the longer PRESTIJ models, the blade and scoring tooling package, whether a dust extractor is included, and delivery and installation. Send your available floor length and typical board sizes for a quotation on the MZK 2200 PRESTIJ.

What is the availability of the MZK 2200 PRESTIJ?

The MZK 2200 PRESTIJ is built to order, so availability of an MZK 2200 PRESTIJ is confirmed at quotation against the current Mizrak production schedule. Tell us at enquiry stage if the machine has to be running by a particular date.

How difficult is an MZK 2200 PRESTIJ to install in a small workshop?

An MZK 2200 PRESTIJ is the simplest machine in the line to install: 625 kg net, 1400 mm high, needing only a level load-bearing floor with clear run for the 2200 mm carriage. Commissioning an MZK 2200 PRESTIJ still requires a three-phase connection for the 4 kW saw and 0.75 kW scoring motors and extraction ducted to the 845 mm port, both quoted with the machine.

What tooling should be budgeted with the MZK 2200 PRESTIJ?

Budget main blades between 250 x 30 mm and 300 x 30 mm, 125 x 20 mm scoring blades and a dust extractor separately from the MZK 2200 PRESTIJ, since the supplier specification for the MZK 2200 PRESTIJ lists none of them. Blade sharpening is the recurring cost once the machine is in production.
